Slim, integrated, compact and with 400 watt hours at a weight of just around 2 kilograms—a real energy champion.
The CompactTube 400 features innovative Bosch battery cell technology, delivering the highest energy density of all Bosch eBike batteries.
This extra-light battery is the ideal choice for sporty light eMTBs, minimalist eGravel bikes, or design-oriented eUrban bikes. Perfect for those who love the sleek look of conventional bikes but don't want to sacrifice electric support.
Features
- With innovative battery cell technology offers the highest energy density of all Bosch eBike batteries.
- Convenient and safe insertion and removal
- High mileage and long life due to integrated battery management system
- No memory effect and no self-discharge
- Compatible with the smart system
-
Version: For horizontal and vertical mounting in the frame
-
Length: 352 mm
Specification
-

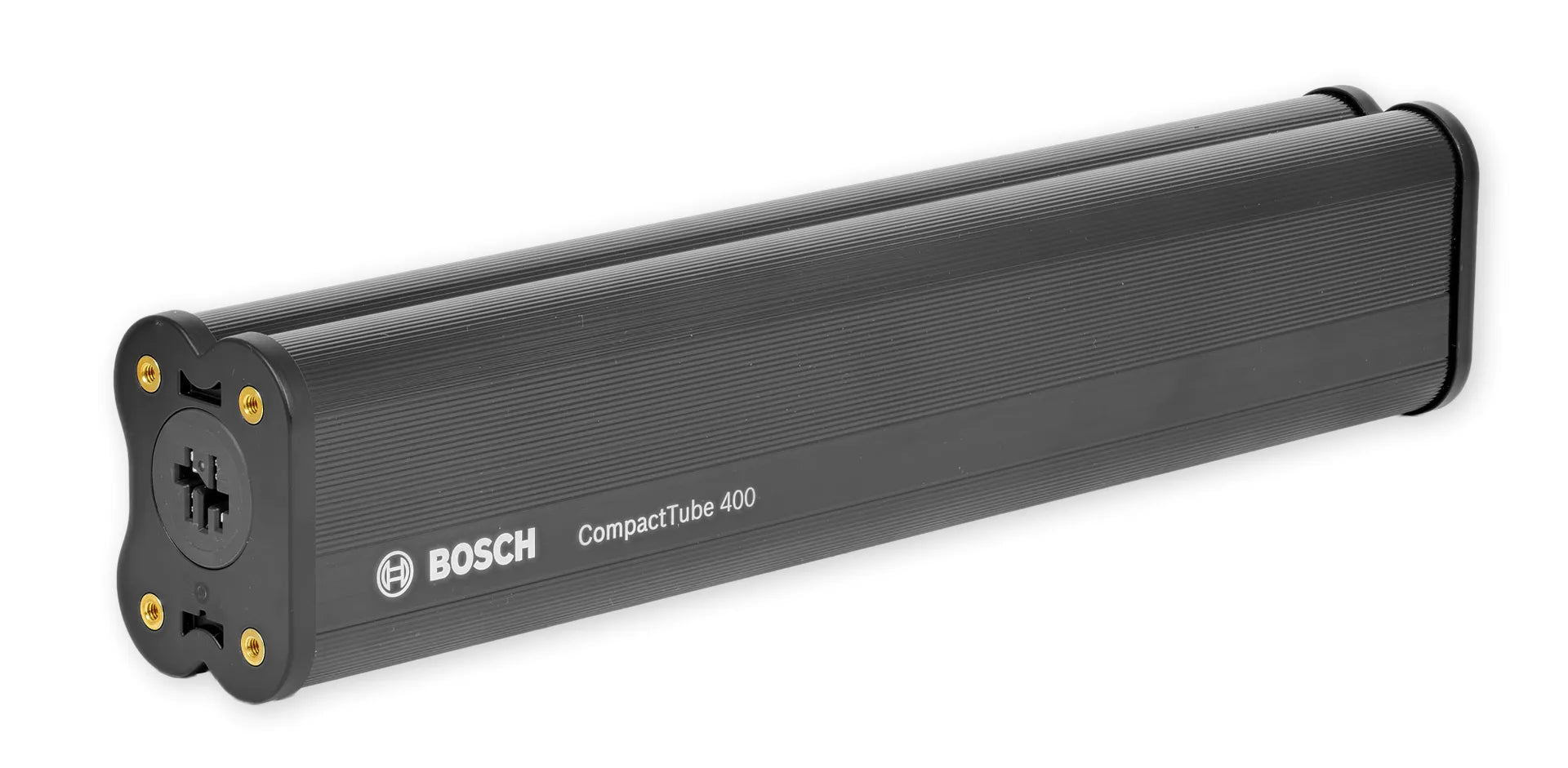

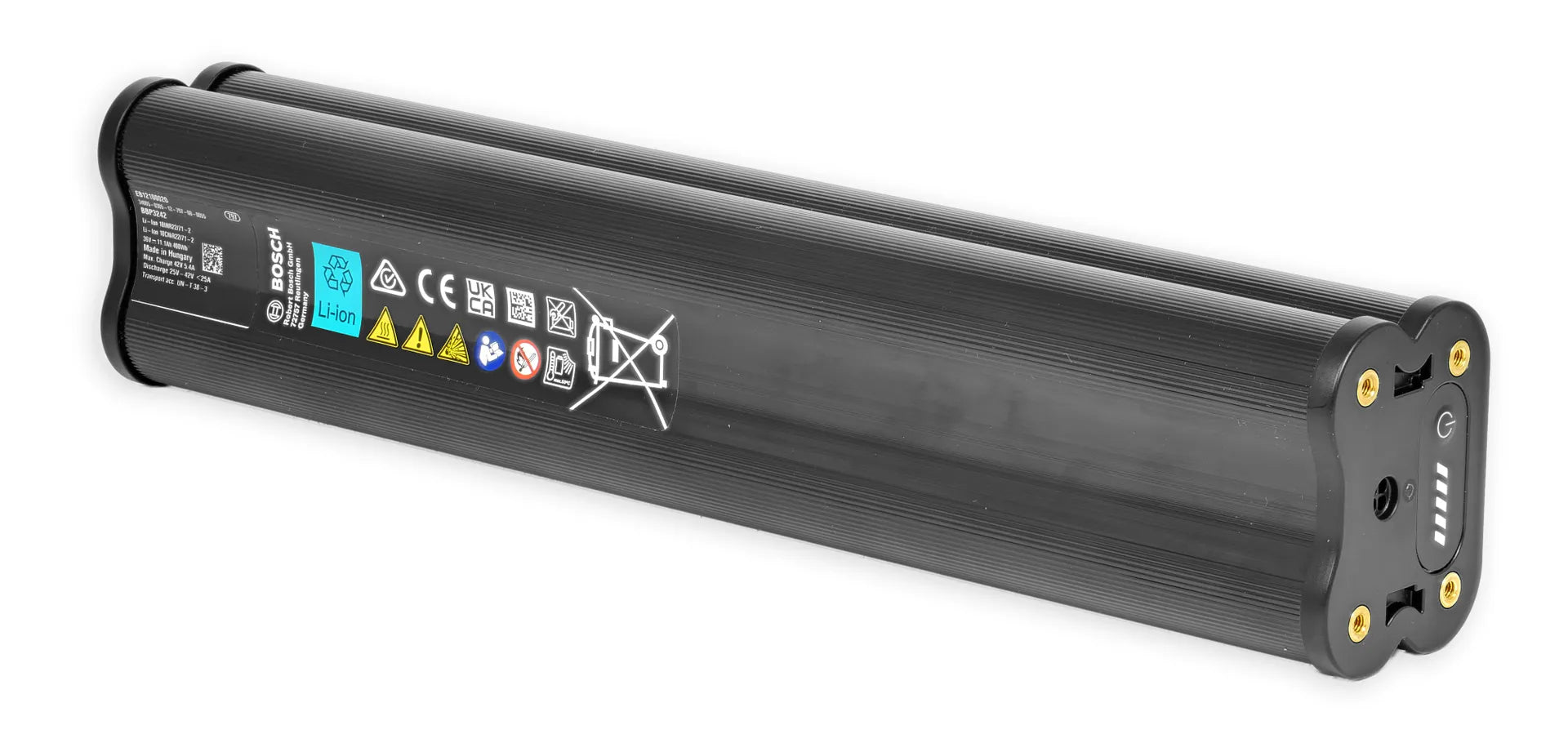

Model: CompactTube 400
-
Model name: BBP3242
-
Manufacturer Code: EB12100020
-
System: The smart system
-
Mounting type: Frame battery integrated
- Mounting type: Horizontal/Vertical
-
Voltage (V): 36 V
-
Capacity (Ah): 11.1 Ah
-
Energy content (Wh): 400 Wh
-
Charging cycles: 500 - 600
-
Dimensions: 352 x 57 x 75 mm
Compatibility
Colour
Weight
Contents
- 1 x Bosch CompactTube 400 battery (BBP3242) - The smart system
- 1 x Transport packaging (hazardous goods compliant)
- 1 x instruction manual
Adapter plate - PowerTube mounting kit not included!
