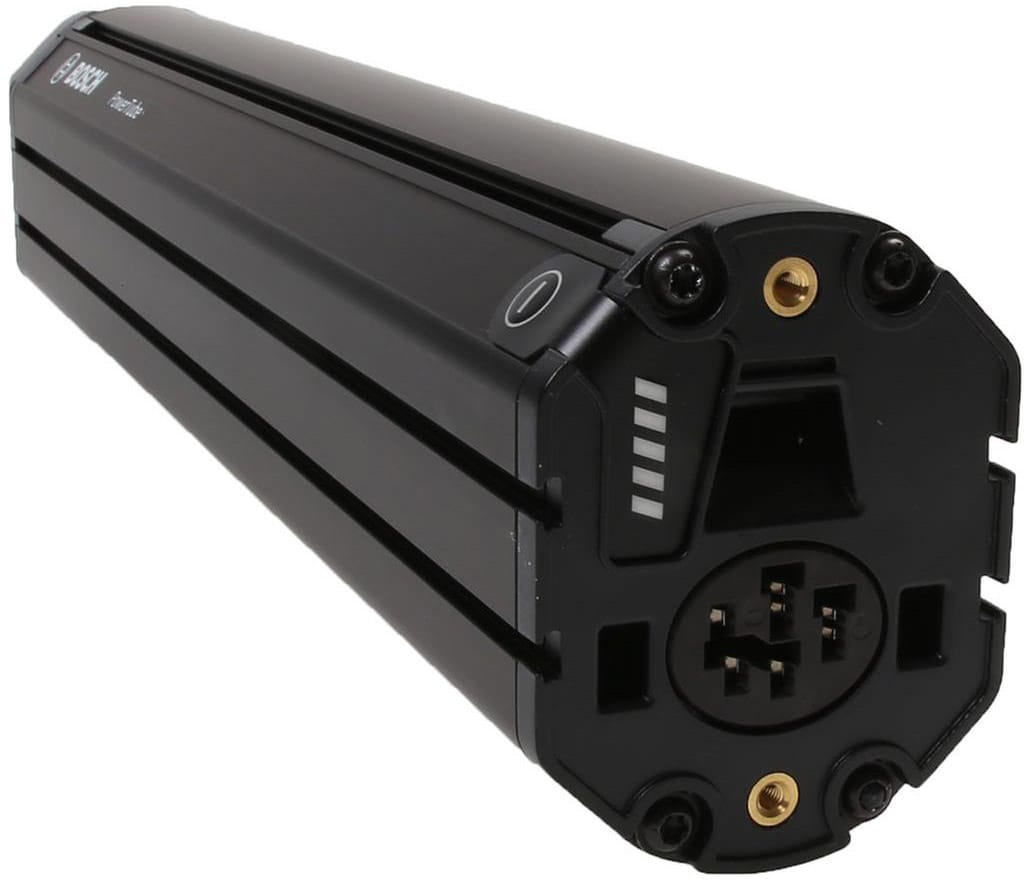

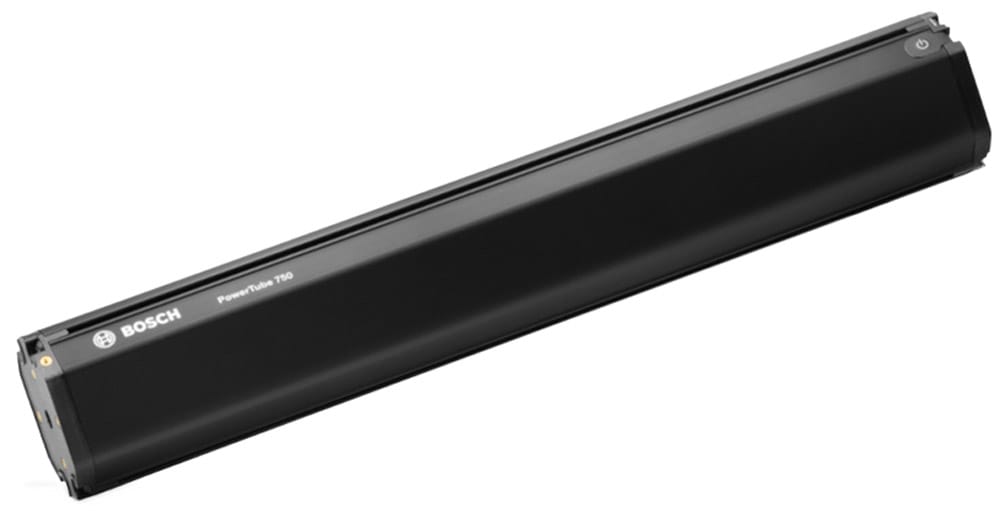

The PowerTube 750 is the new power pack among the Bosch eBike batteries for long and demanding tours. The enduring energy supplier allows for an approx. 20 % longer range than the PowerTube 625. Like all Bosch PowerTubes, the battery is perfectly integrated into the frame of the eBike. The smart battery management system reliably protects the battery cells from overload.
Removal is via an intuitive, lockable mechanism, making it particularly easy and convenient to use.
ATTENTION: E-bike batteries are rarely compatible with each other! It is therefore unfortunately essential to measure the length of the battery to be replaced and to determine both the model designation and the manufacturer code before ordering. Then these three pieces of information must be compared with the information in our item description. Only if there is a complete match is there no doubt that the battery is the correct one. If you are unsure, please contact our customer service by e-mail or telephone before ordering, see "Contact" at the bottom of the page.
Features
- Vertical installation variant, rechargeable battery that can be integrated into the bicycle frame
- Convenient and safe insertion and removal
- High mileage and long service life thanks to integrated battery management system
- No memory effect and no self-discharge
- Compatible with the smart system
-

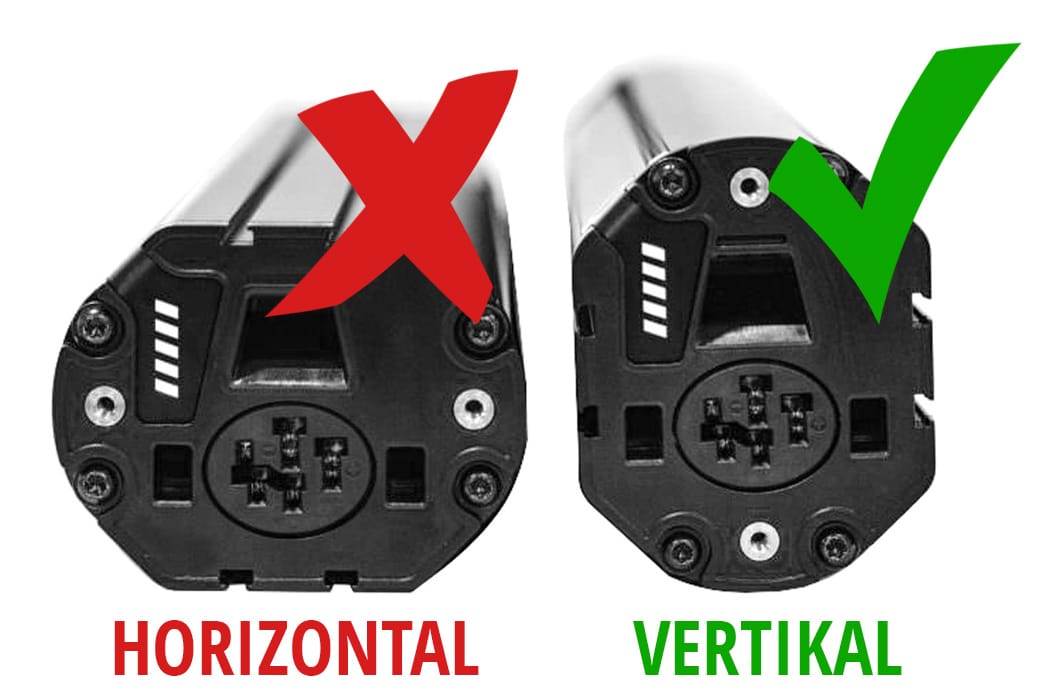

Version: For vertical mounting in the frame
-
Length: 484 mm
Specification
-
Model: PowerTube 750 Vertical
-
Model designation: BBP3771
-
Manufacturer code: EB1210000W
-

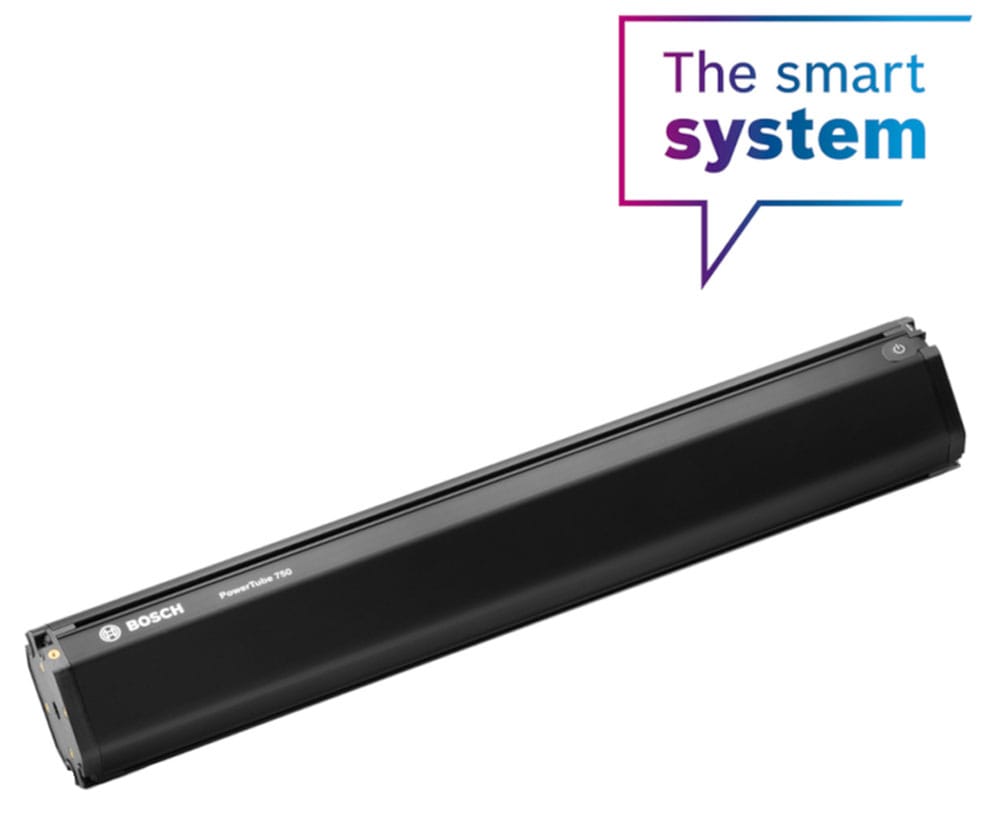

System: The smart system
-
Mounting type: Frame battery integrated
-
Mounting variant: Vertical
-
Voltage (V): 36 V
-
Capacity (Ah): 20.1 Ah
-
Energy content (Wh): 750 Wh
-
Charging cycles: 500 - 600
-
Dimensions: 484 x 65 x 84 mm
Compatibility
Colour
Weight
Technologies
Charge times and service life - Refill your energy tank in no time
A charge cycle refers to the full recharging of a battery in a single charging session or several partial charging sessions. The charging time depends on the capacity of the battery and of the charger: with the Standard Charger, the PowerPack 500 and PowerTube 500 require approx. two hours for half a charge, and 4.5 hours to fully charge. Charging with the Fast Charger is quicker, with only 1 hour needed to half-charge the PowerTube 500 and PowerPack 500 – the perfect solution when on the road – and only three hours to fully recharge these battery packs. The service life of Bosch rechargeable batteries is influenced mainly by the type and duration of use. Like every lithium-ion battery, a Bosch rechargeable battery also ages over time, even if you do not use it.
Factors that shorten the service life:
- Heavy use
- Storage above 30°C ambient temperature
- Long-term storage fully charged or fully drained
- Parking the eBike in direct sunlight
Factors that have a positive impact on service life:
- Minimal use
- Storage at a temperature between 0 and 20°C
- Storage at approx. 30 to 60% charge status
- Parking the eBike in the shade or a cool location
Contents
- 1 x Bosch PowerTube 750 Battery (BBP3771) VERTICAL - The smart system
- 1 x Transport packaging (dangerous goods compliant)
- 1 x Instruction manual
