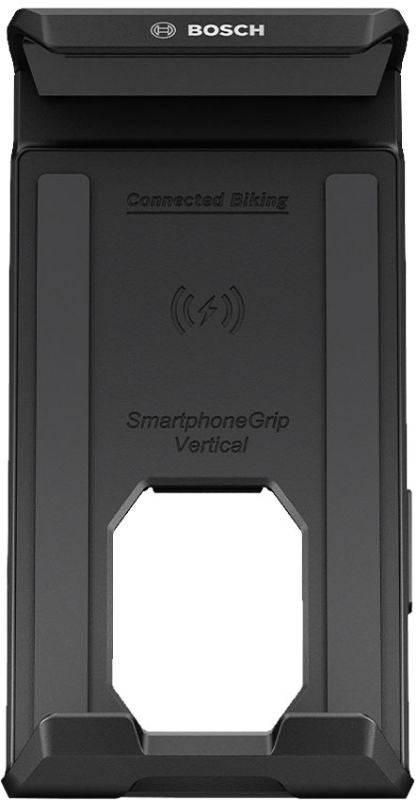

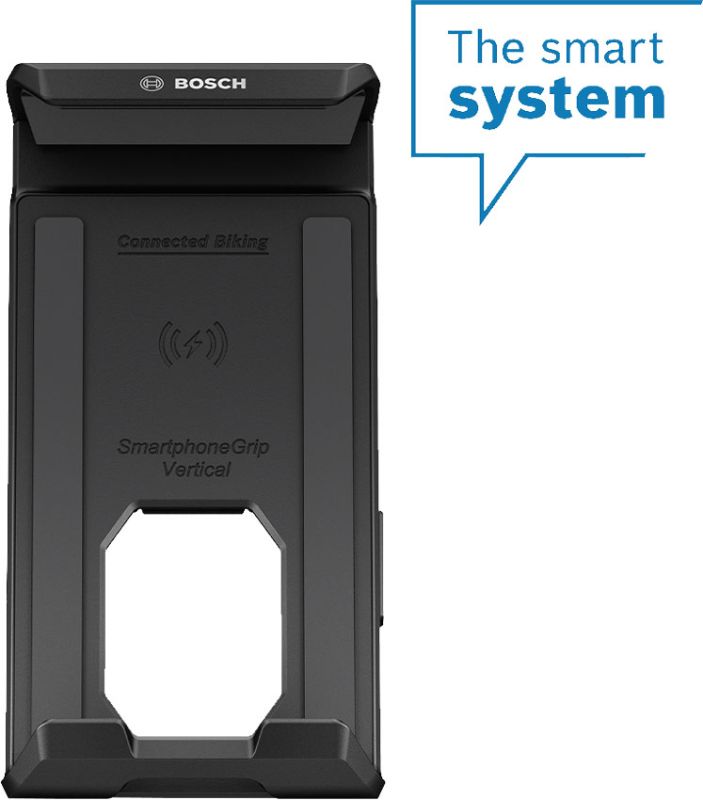

Transform your smartphone into a complete eBike control centre with the Bosch SmartphoneGrip.

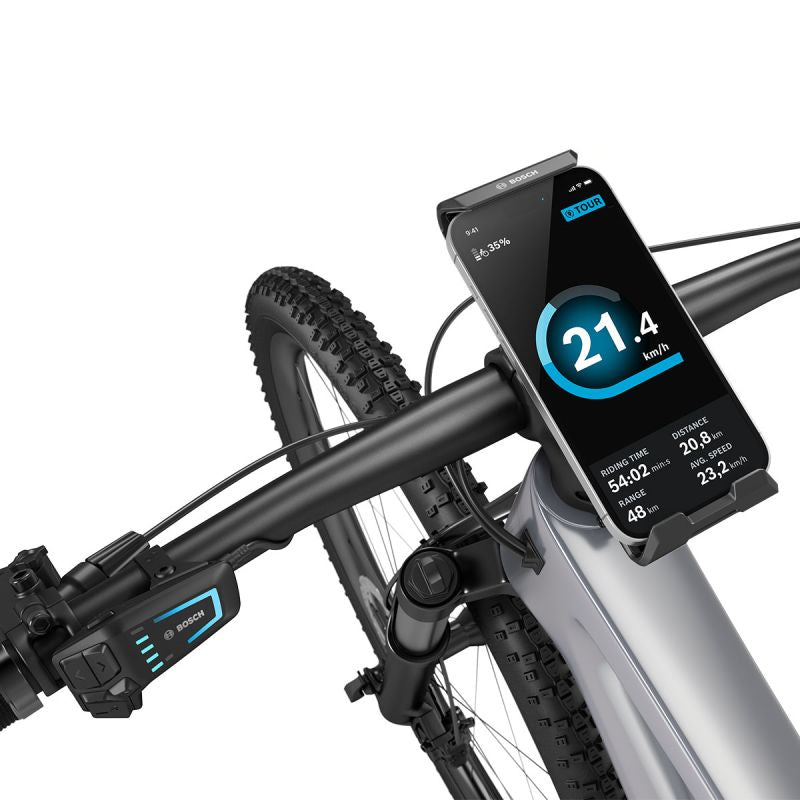

Simply attach it to your handlebar, place your phone, and launch the eBike Flow app. Your device charges wirelessly whilst the app provides real-time navigation and essential ride data—speed, battery status, arrival time, and more—keeping you informed every pedal of the way.
Features
- Your goal in view: The SmartphoneGrip Vertical turns your smartphone into a large, easy-to-read display
- Your smartphone charges directly on the handlebars while you ride. So you arrive at your destination with a charged smartphone battery
- The eBike battery supplies your smartphone with power via the SmartphoneGrip Vertical during the ride - inductively or with a cable via USB-C® connection
- Ride relaxed over any surface. Your smartphone sits firmly in the holder, even on cobblestones or gravel paths
- The SmartphoneGrip Vertical holds your smartphone reliably on the handlebars with two clamps - and protects the back with a rubber coating
Specification
-
Dimensions: 130 x 76 x 33 mm
-
Charging power via USB port: 5 W (1 A@5 V) - charging cable not included!
-
Inductive charging power: 7.5 W (1.5 A@5 V) Efficiency > 67 %
-
Operating temperature: -5 °C to 40 °C
-
Storage temperature: 10 °C to 40 °C
-
Protection class: IP55
-
Compatibility: All Bosch e-bikes with Smart System
More details
Relaxed parking
If you use the supplied locking screw, the SmartphoneGrip Vertical can no longer be unlocked by pressing a button. You should always take your smartphone with you and not leave it on the handlebars.
Convenient operation
You can use your control unit to control various functions of the eBike Flow app. You can switch flexibly between the riding data and navigation or select the appropriate riding mode. Your hands stay on the handlebars - so you stay in control and ride more safely
Your ride. Your display
The SmartphoneGrip Vertical is compatible with the display holder for Kiox 300, Kiox 500 and SmartphoneGrip. Use the SmartphoneGrip Vertical as a display for the city and relaxed tours, the Kiox 500 for sporty tours or the Kiox 300 for the trail.
Flexible focus
You can mount the SmartphoneGrip Vertical flexibly in front of, on or next to the stem of your handlebars and adjust the angle individually. Different holder components are required depending on the position. To ensure that everything fits perfectly, your specialist dealer will help you choose the right parts.
Colour
Weight
Contents
- 1 x Bosch SmartphoneGrip Vertical (BSP3300)
- 1 x Key lock screw EB1320004N
- 1 x operating instructions
- 1-arm bracket and display cable not included!
Note: The modular display holder (display holder, display cable, 1-arm handlebar mount) is required to use the SmartphoneGrip. Please note that there are two different handlebar diameters (31.8 mm and 35 mm)!
If you already have a Bosch display from the smart system installed (e.g. Kiox 300 display), it is easy to replace it!

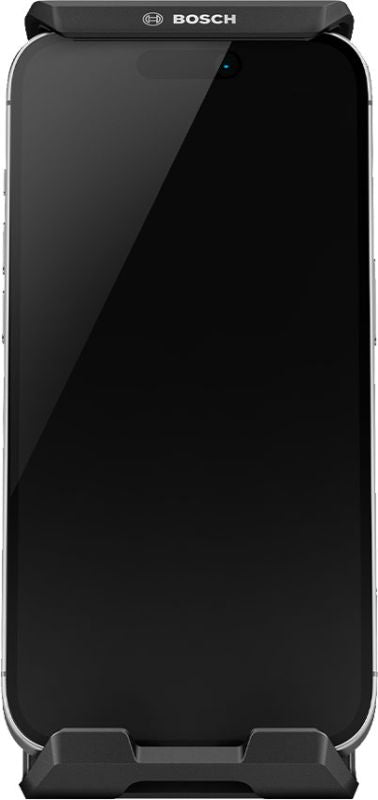

Suitable for smartphones incl. camera assembly and cover with the following dimensions (L x W x D): 135 - 170 mm x 68 - 80 mm x 7 - 12 mm and a total weight of up to 260 g incl. cover. Not suitable for foldable smartphones and smartphones with folding and case covers. Depending on the case, the inductive charging function may be limited.
