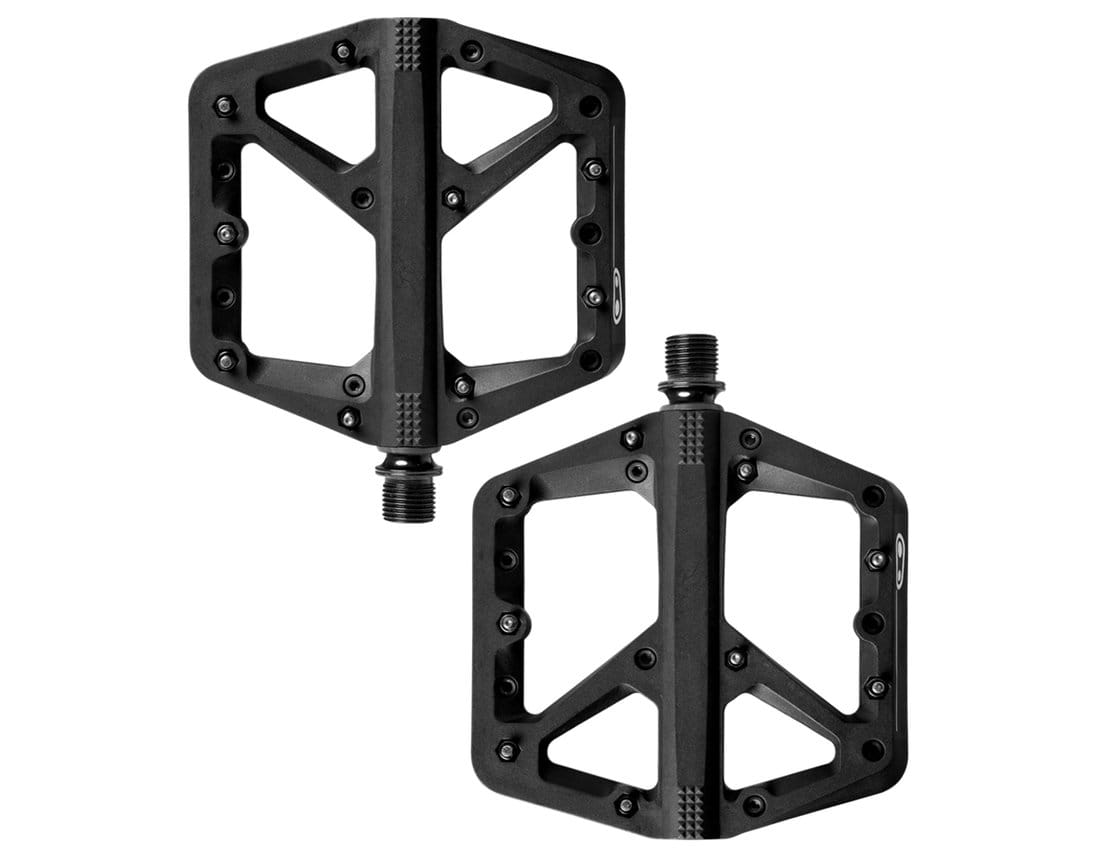

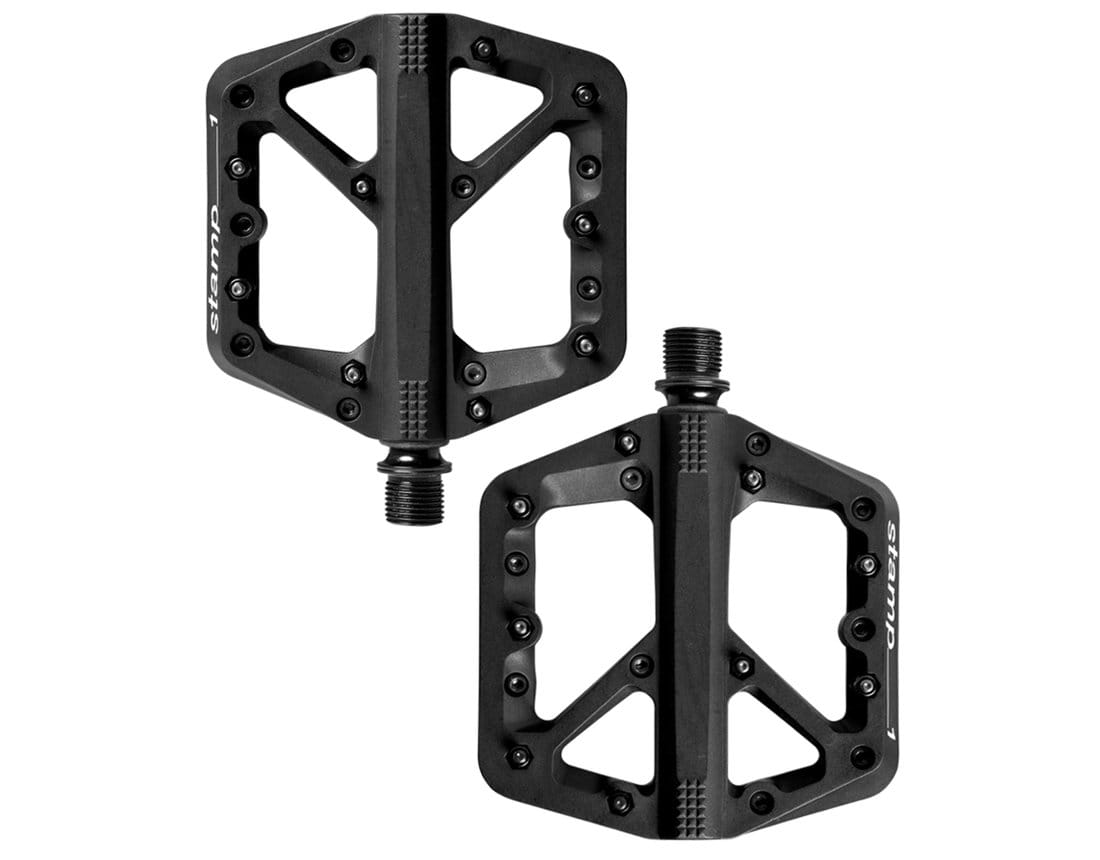

Crankbrothers' Stamp 1 are size-specific platform pedals with a composite pedal body and plenty of grip. They provide the optimal interface between bike and shoe.
Features
- Minimal 13mm thickness
- 9 metal pins per side for grip
- Premium bearings and seal system
Specification
-
Pins - 9 per side mounted from the back
-
Body material - Composite
-
Footprint - 100mm x 100mm small / 111mm x 114mm large
-
Inner bearing - IGUS LL Glide Bearing
-
Outer bearing - Enduro cartridge bearing
-
Spindle - 52mm forged 435 chromoly steel
-
Warranty - 5 year
-
Use: All Mountain, Enduro, Freeride, Downhill
-
Profile: 13mm
-
Inner Bearing Type: Igus LL-glide bearing
-
Outer Bearing Type: Enduro cartridge bearing
-
Pins per side: 9
Material
-
Spindle: Forged scm 435 chromoly steel
-
Body: Composite
Size
-
Small: 100mm x 100mm — recommended for shoe sizes 5-10 (US) // 37-43 (EU)
-
Large: 114mm x 111mm — recommended for shoe sizes 10-15 (US) // 43-49 (EU)
Weight (manufacturer information)
- 299g (pair / small)
- 329g (pair / large)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
