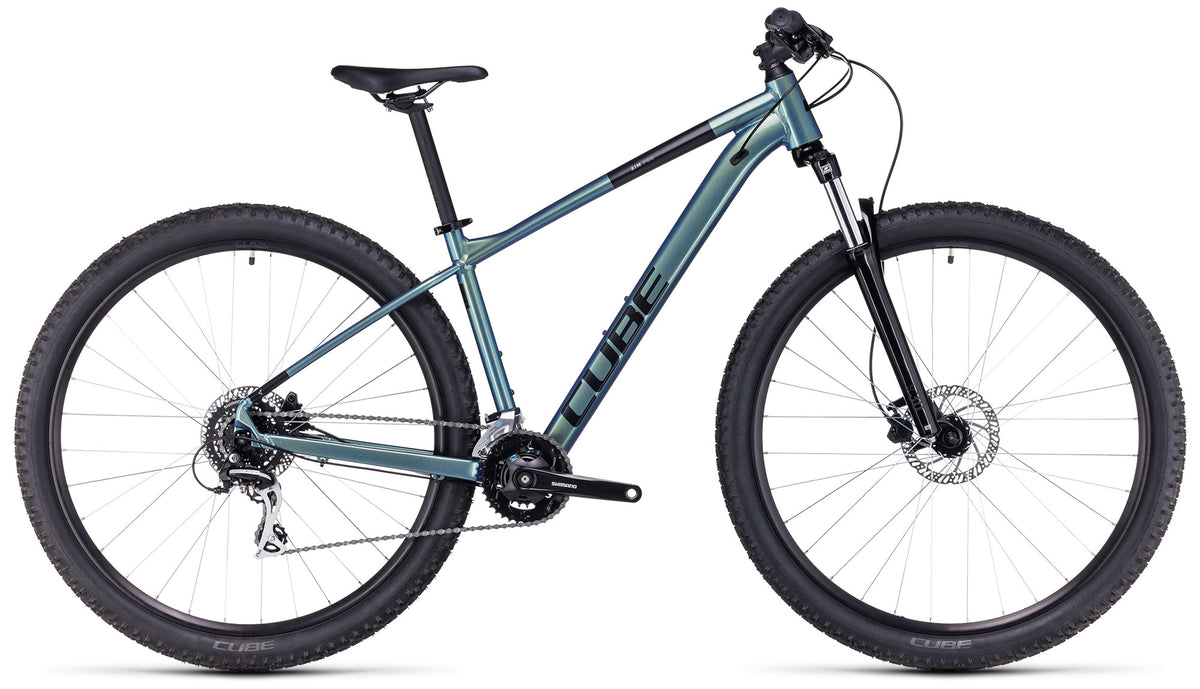

CUBE AIM PRO HARDTAIL MTB BIKE 2023 - SHIFTVERDE ' N 'BLACK
Skip to product information
1 of 7

Product Details

If you've got an off-road itch that needs scratching, the new Aim Pro could be the relief you've been looking for. With its grippy 2.25in tyres and 100mm of suspension fork travel, courtesy of Suntour, it's got what you need to keep riding where the road ends.


Open 360° view


Wide-ranging Shimano 2x8 gears will help you see off the steepest climbs, and strong hydraulic disc brakes put you in control on the descents. SizeSplit makes it easy to find the perfect fit, and the new tapered head tube frame is even ready to accept a dropper post upgrade.


Frame sizes XS (14") and S (16") come with 27.5" wheels, sizes M (18"), L (20"), XL (22") and XXL (24") are 29ers.

    Key Features

    • SR Suntour XCT, 100mm suspension fork: For comfort and control.
    • Disc brakes: For reliable stopping in all conditions.
    • Shimano 8 speed gears: To get you up the steepest of hills.

    Full specification

    • Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
    • Fork: Cube XCT Disc, 100mm
    • Gear Shifters: Shimano SL-M315, Rapidfire-Plus
    • Chainset: Shimano FC-M315, 36x22T, 170mm
    • Chainrings: 36/22T
    • Rear Cassette: Shimano CS-HG31, 11-34T
    • Chain: KMC Z8.3
    • Front Derailleur: Shimano FD-M315, Top Swing, 31.8mm Clamp
    • Rear Derailleur: Shimano RD-M3020, 8-Speed
    • Bottom Bracket: Feimin FP-B902N, 73mm BSA
    • Pedals: CUBE PP MTB
    • Rims: CUBE ZX20, 32H, Disc
    • Front Hub: Shimano DH-3D32, Hub Dynamo, QR
    • Rear Hub: CUBE Alloy Light, QR, 6-Bolt
    • Tyres: CUBE IMPAC Smartpac, 2.25
    • Brakes: Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
    • Handlebars: CUBE Rise Trail Bar, 680mm
    • Grips: CUBE Acid React
    • Headset: CUBE FPH863, Semi-Integrated
    • Stem: CUBE Performance Stem SL, 31.8mm
    • Saddle: Natural Fit Venec Lite
    • Seatpost: CUBE Performance Post, 27.2mm
    • Weight: 14.7 kg

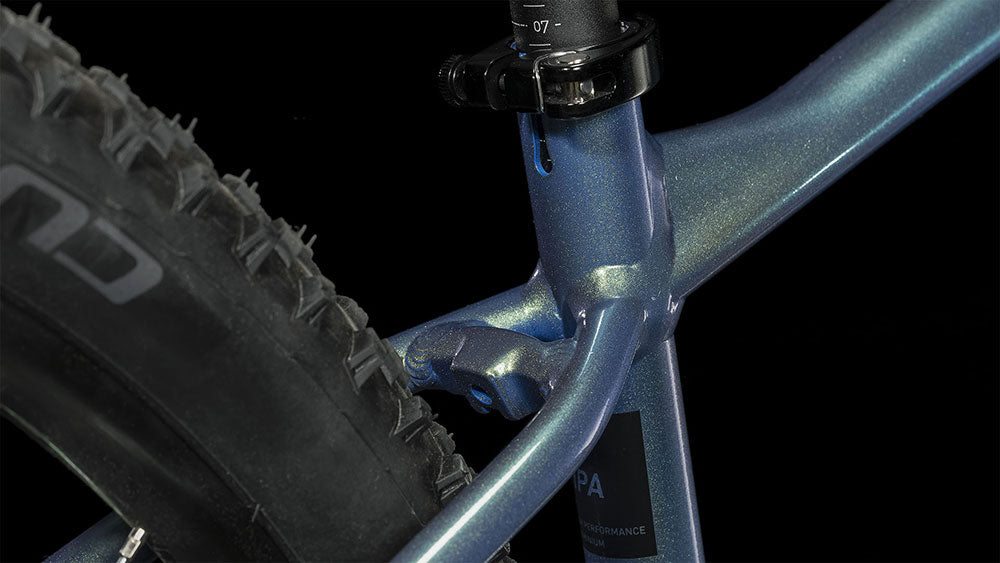

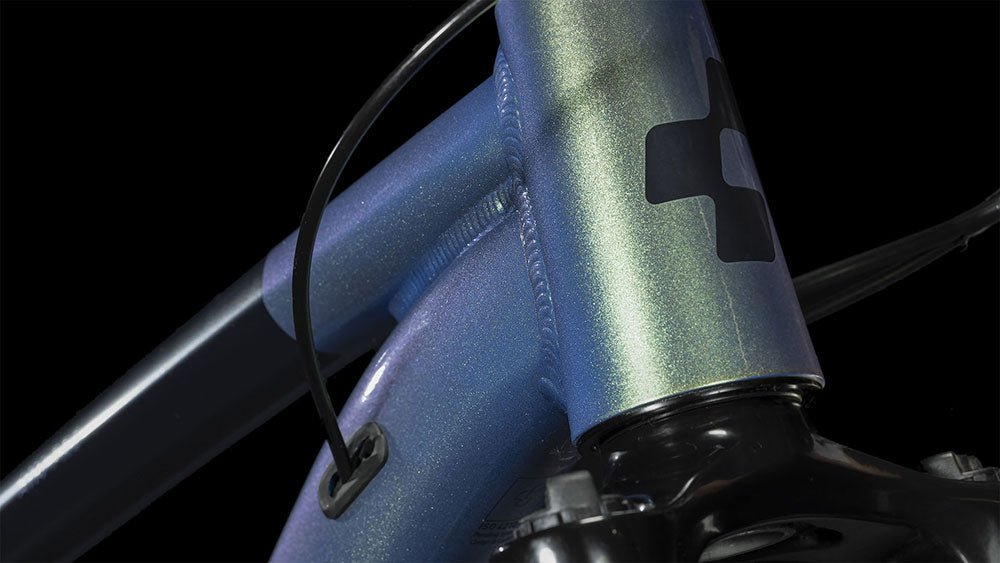

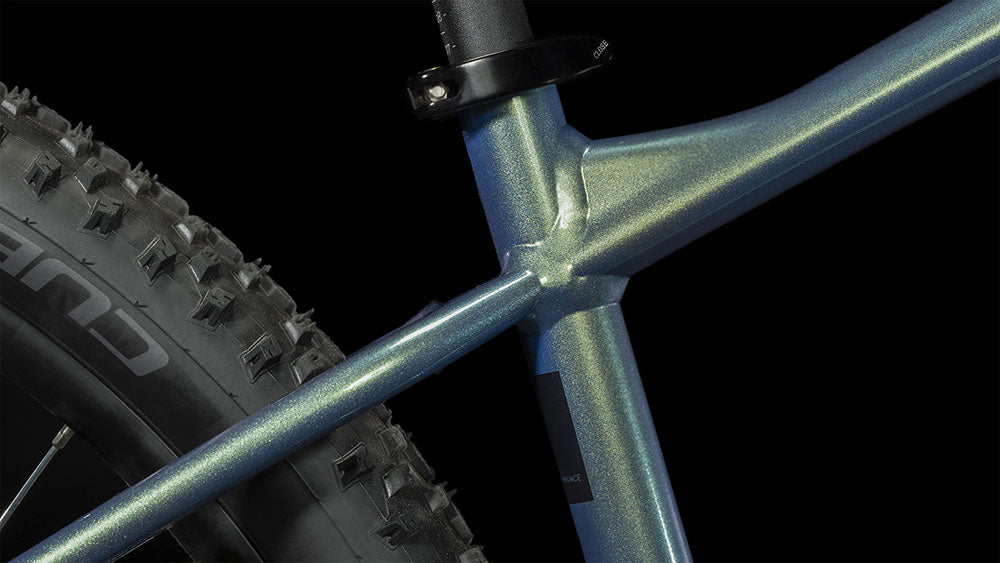

    Completely revised, the brand-new Aim's sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with the kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. The SizeSplit system has an expanded range too, so however tall you are there'll be an Aim that fits perfectly.

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

    Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.


    Shipping

    SHIPPING COSTS

    UK

    £4.99 for non-bike orders, minimum basket of £20.

    UK Mainland

    Bike £18.99    Ebike £39.99

    Highlands

    Bike £39.99    Ebike £59.99

    Islands

    Bike £59.99  Ebike £99.99

    When ordering bikes there is no additional delivery charge for other items.

    Read more

    Size Guide

    Cube Bikes Size Guide

    How to Build Your Bike

    Aftercare





    CUBE AIM PRO HARDTAIL MTB BIKE 2023 - SHIFTVERDE ' N 'BLACK

    Regular price £443.00
    Save 11%
    Regular price Was £499.00 Sale price £443.00

    SKU: 60131014

    EPOS Code:


    Size
    Est. Dispatch
    Delivery From £18.99
    Simple Returns
    Built With Care
    View full details
