Genuine Cube spare part for 2025 Reaction, Nuroad, and Kathmandu e-bikes.
This 22mm battery cover push button is one of seven components in the complete push button unit. Part number 4328 includes updated button and nut versions (4408 and 4409) replacing earlier models 3116 and 3117. Essential for maintaining reliable battery interface operation. Compatible with numerous 2025 Cube hybrid models. Order additional components separately if building a complete push button assembly.

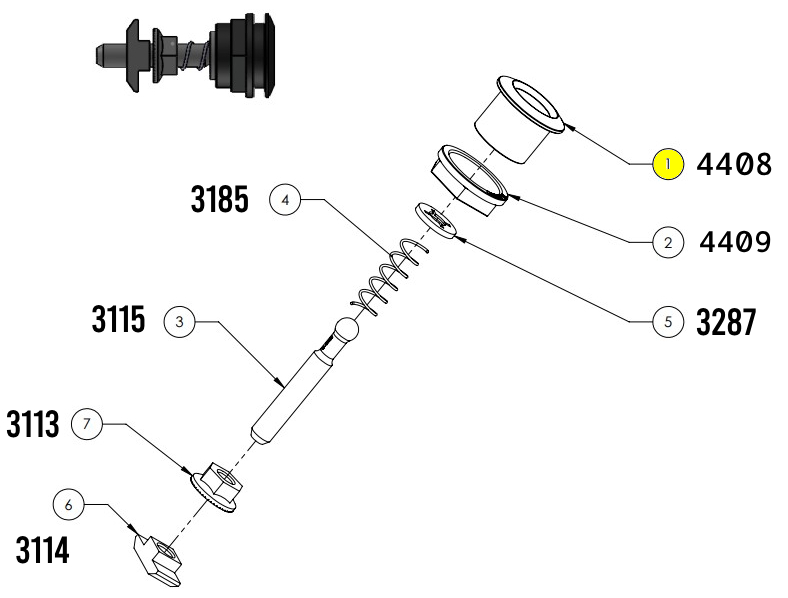

If you need a complete Push Button unit, you will need to order all of the below
- 3113 - Locking Nut M6
- 3114 - Nut M6
- 3115 - Bolt M6
- 4408 - Button 22mm (was 3116)
- 4409 - Nut 22mm M17 (was 3117)
- 3185 - Spring
- 3287 - Holding Washer

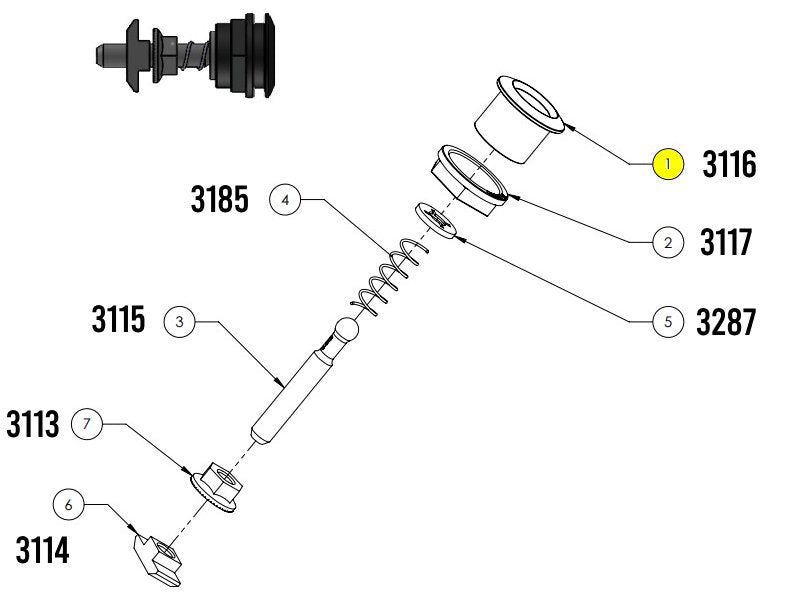

3116 replaced by 4408 & 3117 replaced by 4409
Contents
- 1 x Cube Battery Cover Push Button 22mm
