eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated.
Minimum personal assembly is required.

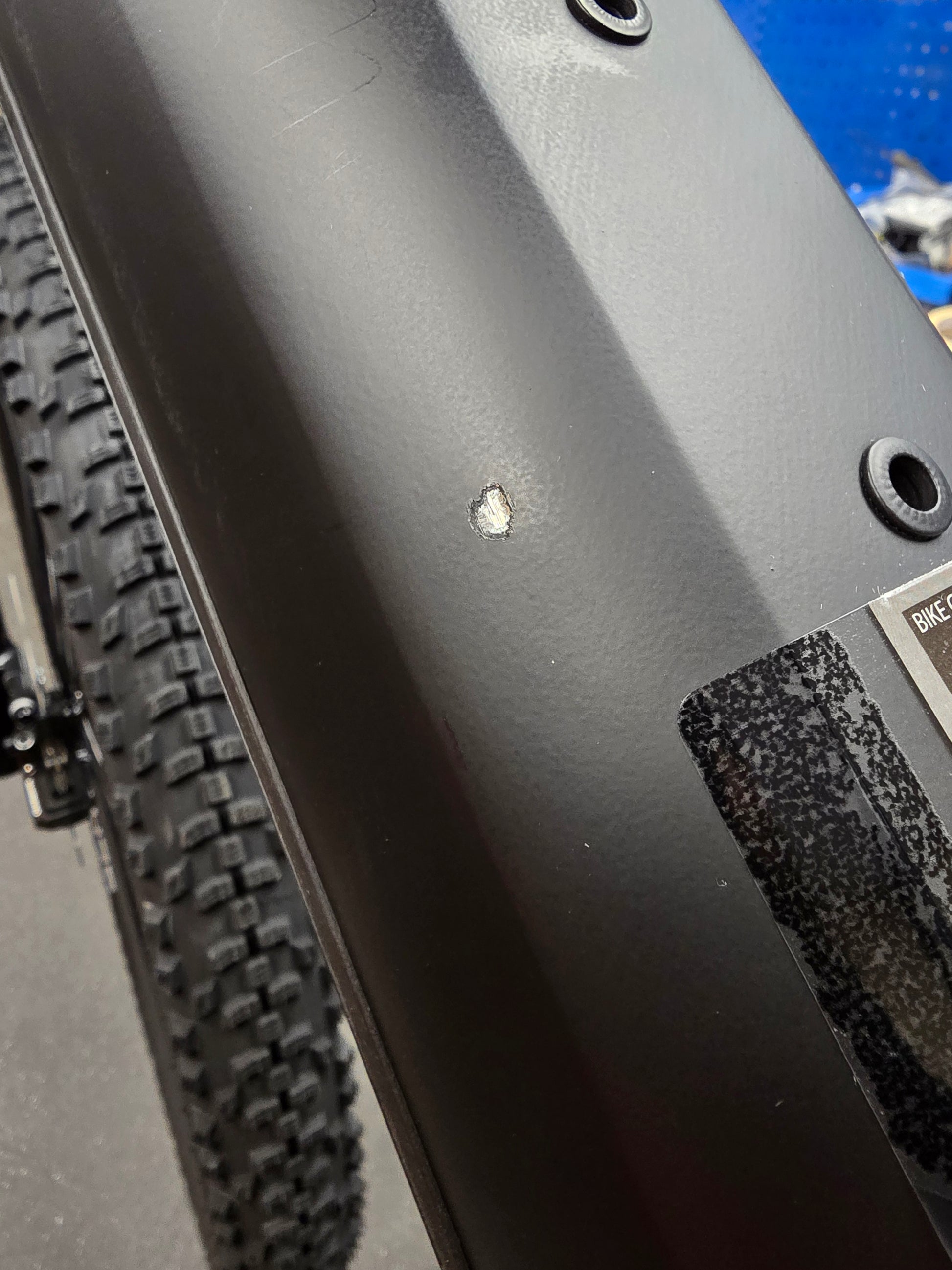

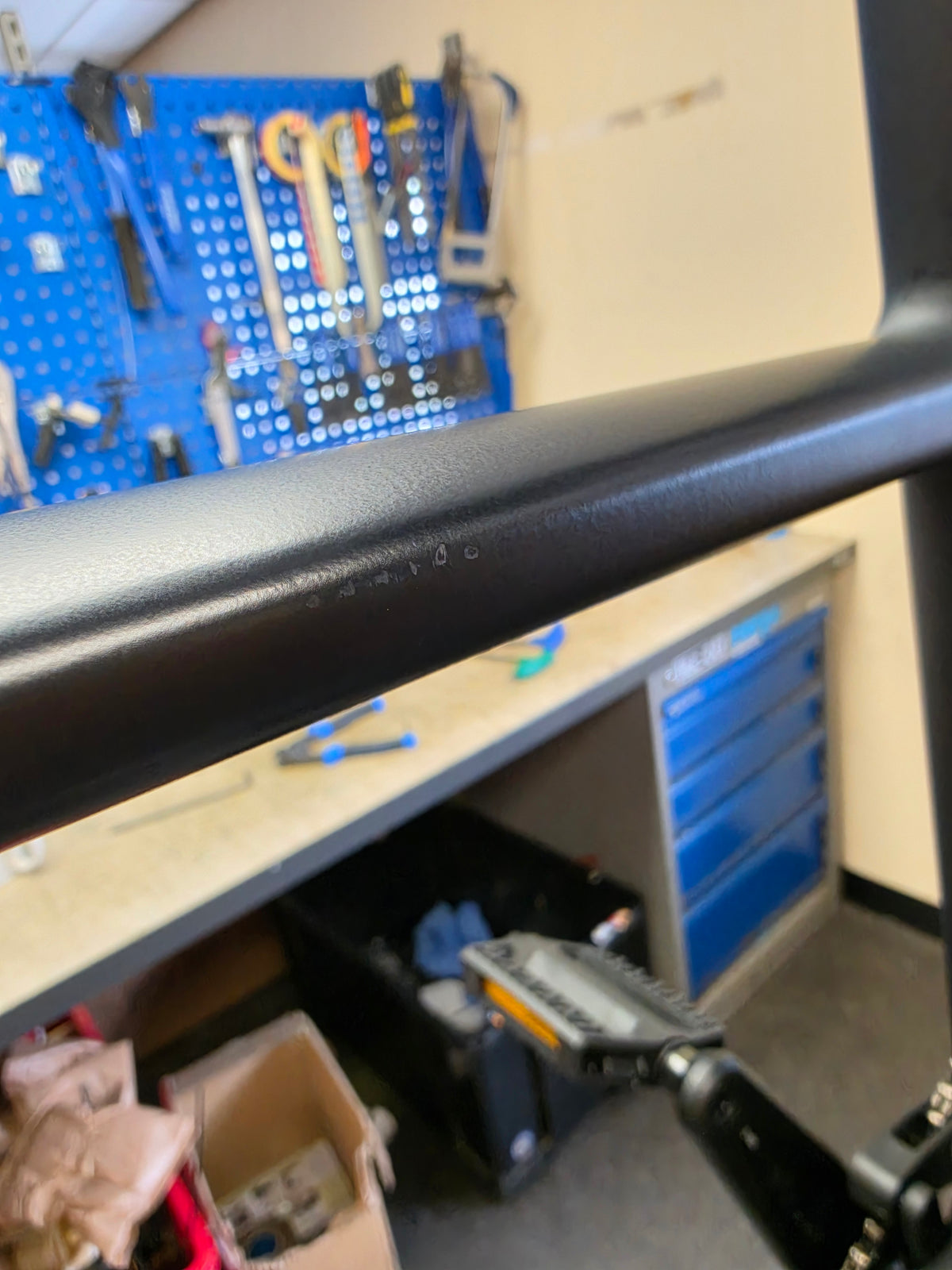

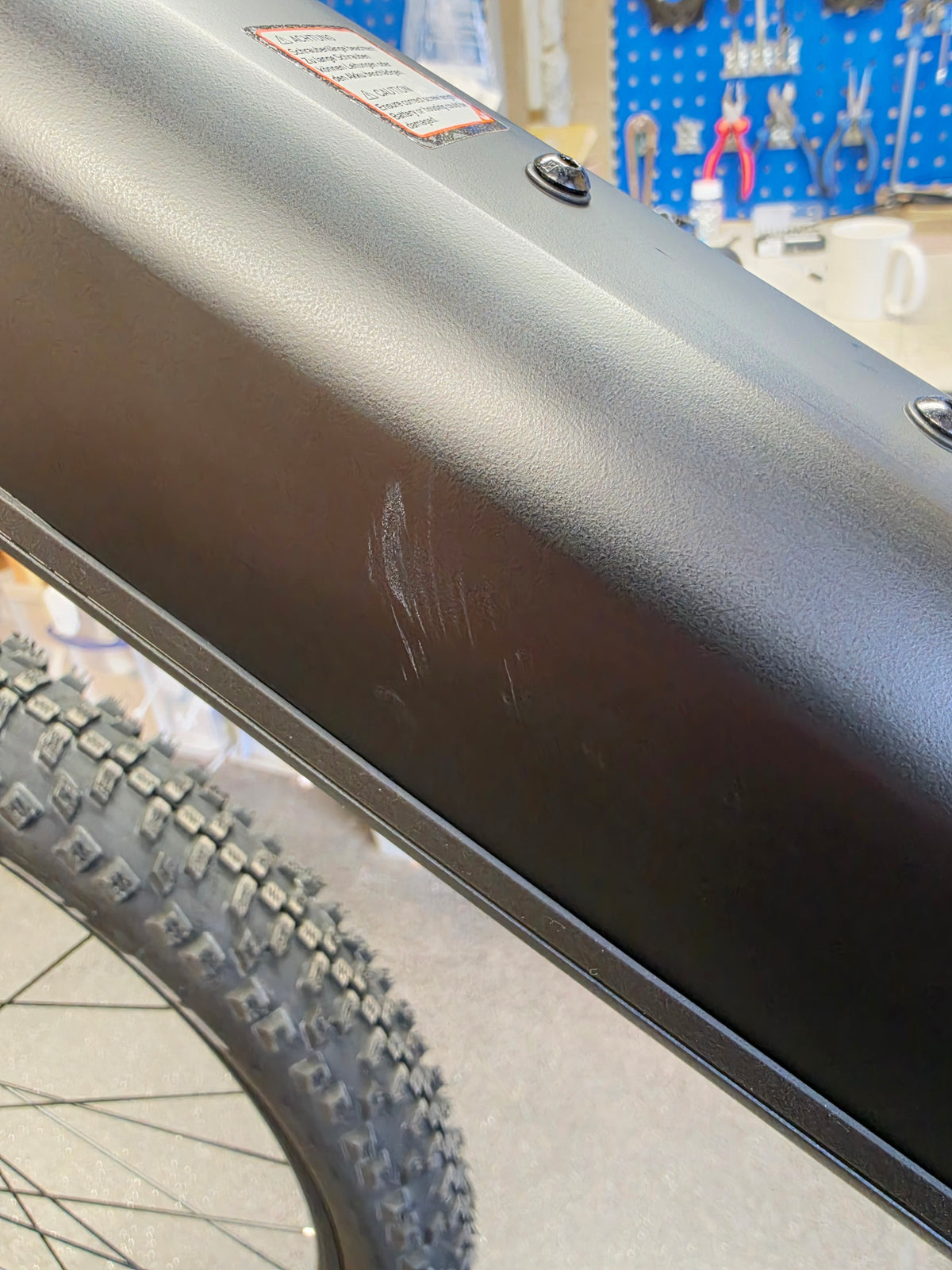

SEE IMAGES FOR DETAILS OF CHIPPED PAINT WORK. FOR FURTHER DETAILS PLEASE EMAIL sales@allterraincycles.co.uk
The Reaction Hybrid Pro combines mountain bike versatility with Bosch-powered ease of use and clever CUBE design.
Tackle any route, off-road or on, thanks to an 800Wh battery and smooth, powerful Bosch CX drive. Combined with Shimano's easy-to-use XT 12-speed gears, it's all you need to comfortably ride any hill. For coming back down the other side, we fitted powerful Shimano 4-piston hydraulic disc brakes and grippy Schwalbe 2.6in tyres.
Open 360° view
There's also an air-sprung fork with 120mm of travel (100mm for small frame sizes and for all Easy Entry models), and a remote dropper seatpost for extra comfort and control on rougher trails. It's got it all – the rest is up to you.
Frame sizes XS and S comes are 27.5". Sizes M, L, XL and XXL are 29".
Key Features
-
250W Bosch Motor: Most reliable pedal-assist motor in e-bike industry, capable of sustaining speeds up to 25 km/h
-
Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
-
Shimano Gears: Wide range of gears suitable for a range of terrain.
Specification
-
Frame: Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Fully Integrated Battery, Internal Cable Routing, Kickstand/Fender/Carrier Mounting Parts
-
Fork: SR Suntour X1-32 LO-R Air, Tapered, 15x110mm, 120mm (27.5: 100mm)
-
Motor: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
-
Battery: Bosch PowerTube 800
-
Controller: Bosch Purion 200 w/ Integrated Display
-
Charger: Bosch 2A
-
Shifters: Shimano Deore SL-M6100-IR, Direct Attach
-
Crankset: ACID MTB Hybrid Pro, 38T
-
Cassette: Shimano Deore CS-M6100, 10-51T
-
Chain: KMC e12
-
Front Derailleur: N/A
-
Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
-
Pedals: ACID PP MTB
-
Wheels: Acid SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
-
Tyres: Schwalbe Smart Sam, Active, 2.6
-
Brakes: Shimano BR-MT420, Hydr. Disc Brake (203/203)
-
Handlebars: CUBE Rise Trail Bar 35
-
Grips: ACID Hybrid Perform
-
Headset: ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
-
Stem: CUBE Performance Stem E-MTB, FPI-Link
-
Saddle: Acid Sequence 160
-
Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
-
Weight: Starting from 25,6 kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
