eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated.
Minimum personal assembly is required.

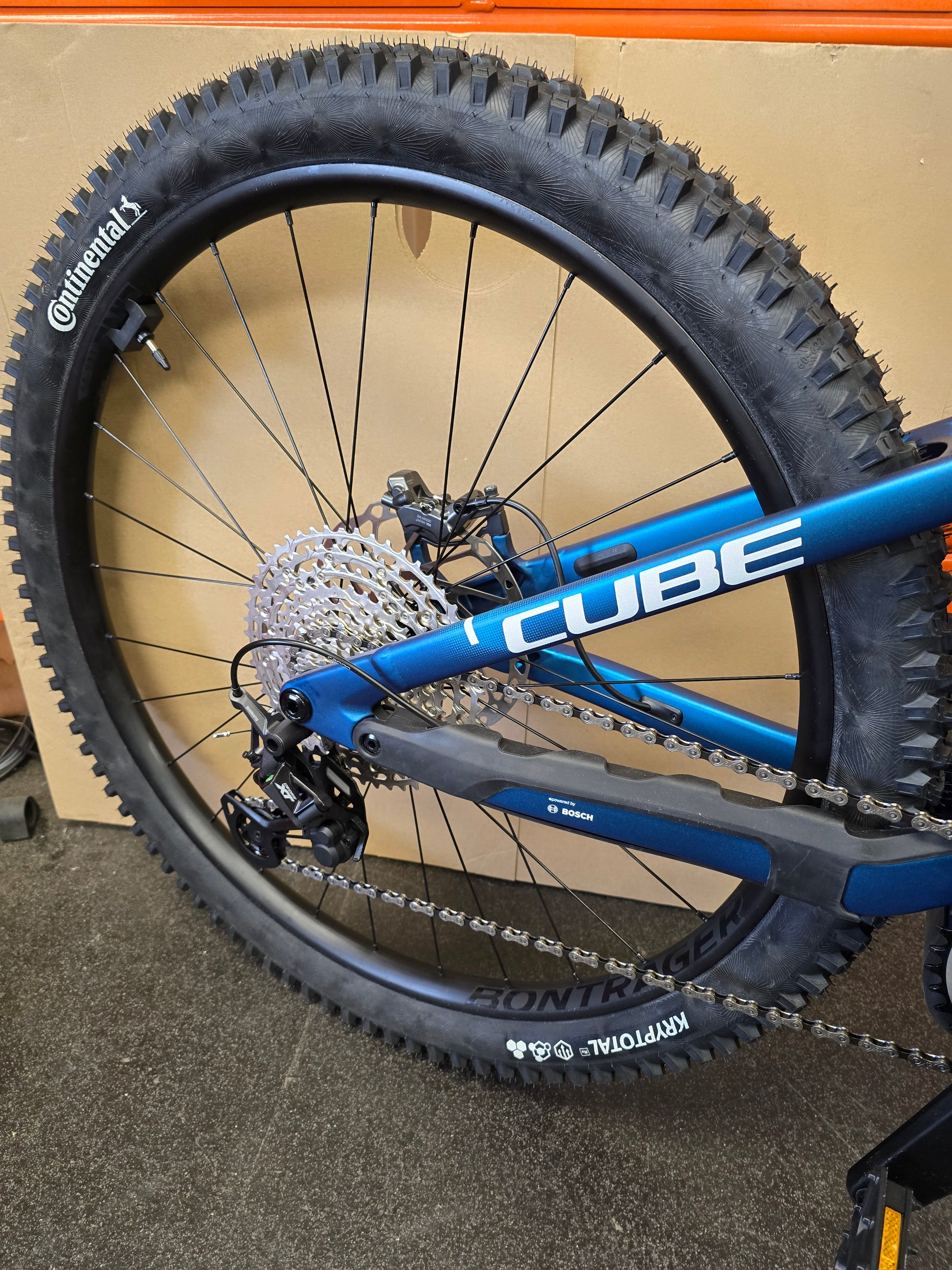

Rear wheel changed to Bonrager Line 30 for further contact sales@allterraincycles.co.uk
You know you're on a great trail bike when it just gets out of the way and lets you enjoy the ride.
It's the reason that, for the Stereo Hybrid ONE44 HPC SLX 800, we began with a 150mm Fox 36 Float Rhythm fork and matching Float Performance shock. Combined with a Newmen Performance 30 wheelset and Continental Kryptotal 2.4in tyres, it's the closest we can get to a magic carpet ride. Bosch's CX motor and an 800Wh battery deliver up to 100Nm of torque to the trail via Shimano's slick-shifting, legendarily reliable XT 1x12 gears, while the Kiox 400C display shows you what's going on. And strong, progressive Shimano XT 4-piston hydraulic disc brakes with 203mm rotors bring you safely to a stop, on demand.
Open 360° view
With a remote dropper post included in the mix, you simply need to add your spirit of adventure... and ride.
Key Features
- High-quality frame (main frame made of carbon, rear triangle made of aluminum) with internally routed cables, UDH derailleur hanger, designed for a maximum system weight of 160 kg
- Powerful Bosch Performance Line CX-R Smart System motor with 100 Nm of torque
- Long range thanks to the Bosch Powertube 800 Wh battery
- Bosch Kiox 400C display and Mini Remote on the handlebar - for clear and intuitive e-bike system control
- Fox 36 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 150mm
- Steering headset with angle adjustment
Specification
-
Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
-
Fork: Fox 36 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 150mm
-
Shock: Fox Float Performance, 230x60mm (27.5: 210x55mm), Adjustable LSR w/ 2-Pos. Lever
-
Engine: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
-
Battery: Bosch PowerTube 800
-
Display: Bosch Kiox 400C
-
Shifters: Shimano XT SL-M8100-IR, 12-Speed
-
Crankset: Acid MTB Hybrid Pro, 27.5: 36T // 29: 34T
-
Cassette: Shimano Deore CS-M6100, 10-51T
-
Chain: KMC e12
-
Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
-
Pedals: Acid PP MTB
-
Front Wheels Newmen Phase 30
-
Rear Wheel: Bontrager Line 30.
-
Front Tyre: Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4
-
Rear Tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
-
Brakes: Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
-
Handlebars: Cube Rise Trail Bar 35
-
Grips: ACID Disrupt, Soft Compound
-
Headset: ACROS AZF-675, ICR (Integrated Cable Routing) Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fibre Inserts for Angle Adjustment, X-Connect Interface
-
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
-
Saddle: Acid Venec eMTB Trail 140
-
Seatpost: Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
-
Seatpost Clamp: Cube Semi-Integrated
-
Weight: Starting from 24,4 kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
