DT SWISS A 510 28" DISC RIM

Are you planning to customise and aerodynamically optimise your road bike on your own? Then the A 510 is the right choice for you.

The aerodynamically optimised shape effectively reduces drag and allows you to hold higher speeds with ease.

The lightweight aluminium profile supports you as you accelerate to those crucial speeds where aerodynamic drag becomes your toughest opponent. Take control of your road cycling experience and maximise your performance with the A 510.

Specification

• Use: Road / Aero
• Size: 28"
• Rim joint: Sleeve joint
• Tyre interface: Hooked / Crotchet tubeless TC
• Reference diameter ERD: 581 mm
• Rim diameter: 622 mm

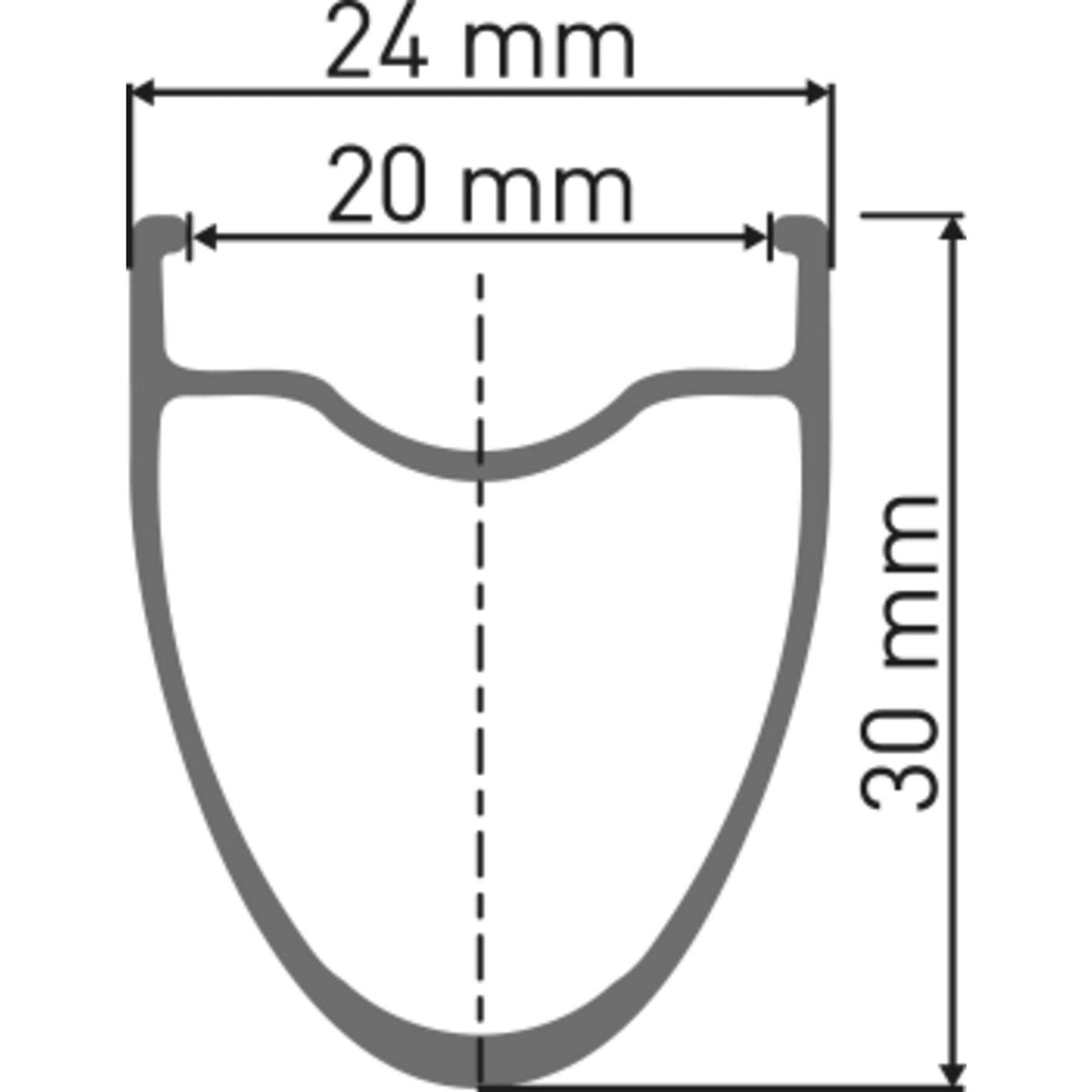

• Inner width: 20 mm
• Outer width: 24 mm
• Rim height: 30 mm
• Brake interface: Disc
• Spoke bore rim: Non-Eyelet
• Valve hole: Presta / SV Ø 6.5 mm
• Recommended system weight max.: 110 kg (body weight + bike + equipment)
• ASTM Classification: 1
• Approved for E-Bikes: No

Holes

• 24
• 28
• 32

Material

• Aluminium

Colour

• Black

Weight

• 510g

Contents

• 1 x DT Swiss A 510 Disc 28" Rim

• incl. DT Pro Lock hidden alu silver

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
