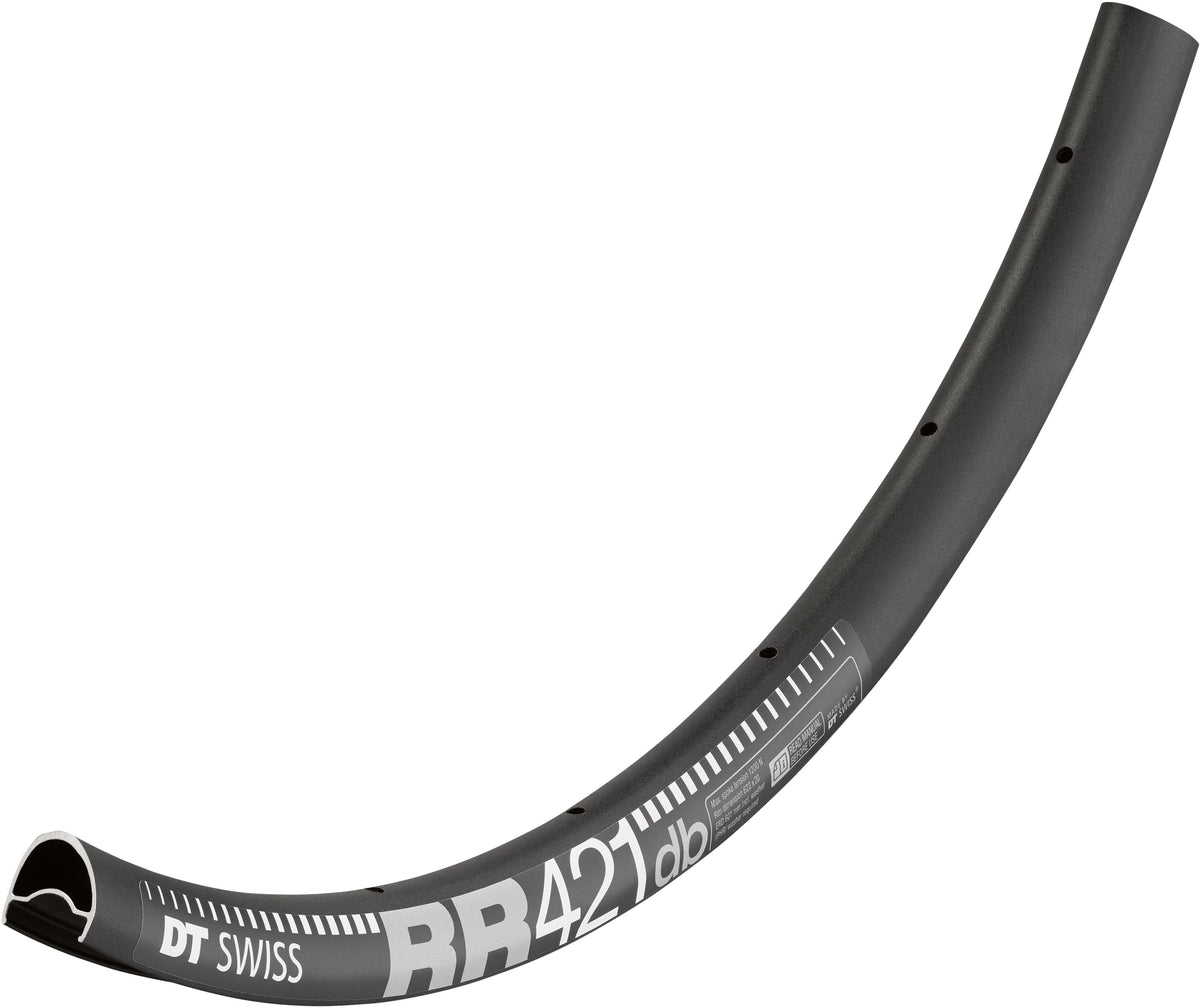

The DT Swiss RR 421 Asymmetric is a premium aluminium rim engineered for modern road cycling.
Featuring a generous 20 mm internal width, it accommodates wider tyres while maintaining a featherlight 430-gram weight—ideal for endurance road disc brake builds. The asymmetrical profile counterbalances the offset created by disc brake hubs, optimising spoke angles for more uniform tension and enhanced wheel stiffness.
Position the offset towards the drive side on the front wheel and away on the rear for optimal performance.
Fully compatible with both standard clinchers and tubeless road tyres using DT Swiss tubeless tape and valves. Assembled with Squorx ProHead nipples and PHR washers for maximum durability without added weight.

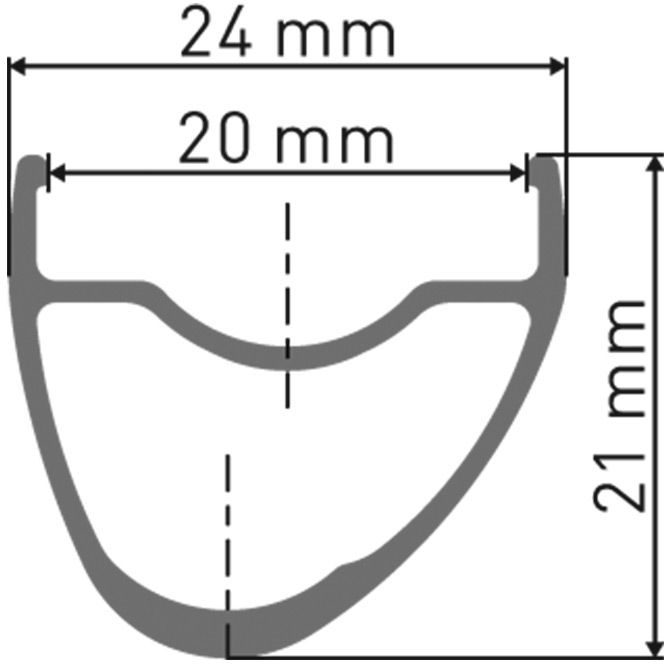

Strength Boost Welding Technology delivers a perfectly welded, reliable construction. The tough black coating provides both resilience and visual appeal. Specifications include Presta drilling, 24 mm outer width, 21 mm height, 601 mm ERD with PHR washers, and maximum spoke tension of 1200 N.
Rated for systems up to 120 kg. For heavier-duty applications, consider the RR 521. A versatile upgrade that transforms your road bike's performance.
Specification
-
Use: Road / Endurance
-
Size: 28"
-
Reference diameter ERD: 601mm
-
Rim diameter: 622mm
-
Inner width: 20mm
-
Outer width: 24mm
-
Height: 21mm
-
Brake type: Disc brake
-
Bore Type: Non-Eyelet (PHR washer)
-
Valve hole: Presta / SV Ø 6.5 mm
-
Max recommended system weight: 120kg (body weight + bike + equipment)
-
ASTM Classification: 2
Holes
Material
Colour
Weight
Contents
- 1 x DT Swiss RR 421 Performance asymmetric Road Rim
- incl. PHR Washer and DT Pro Lock Squorx Pro Head Nipple
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
