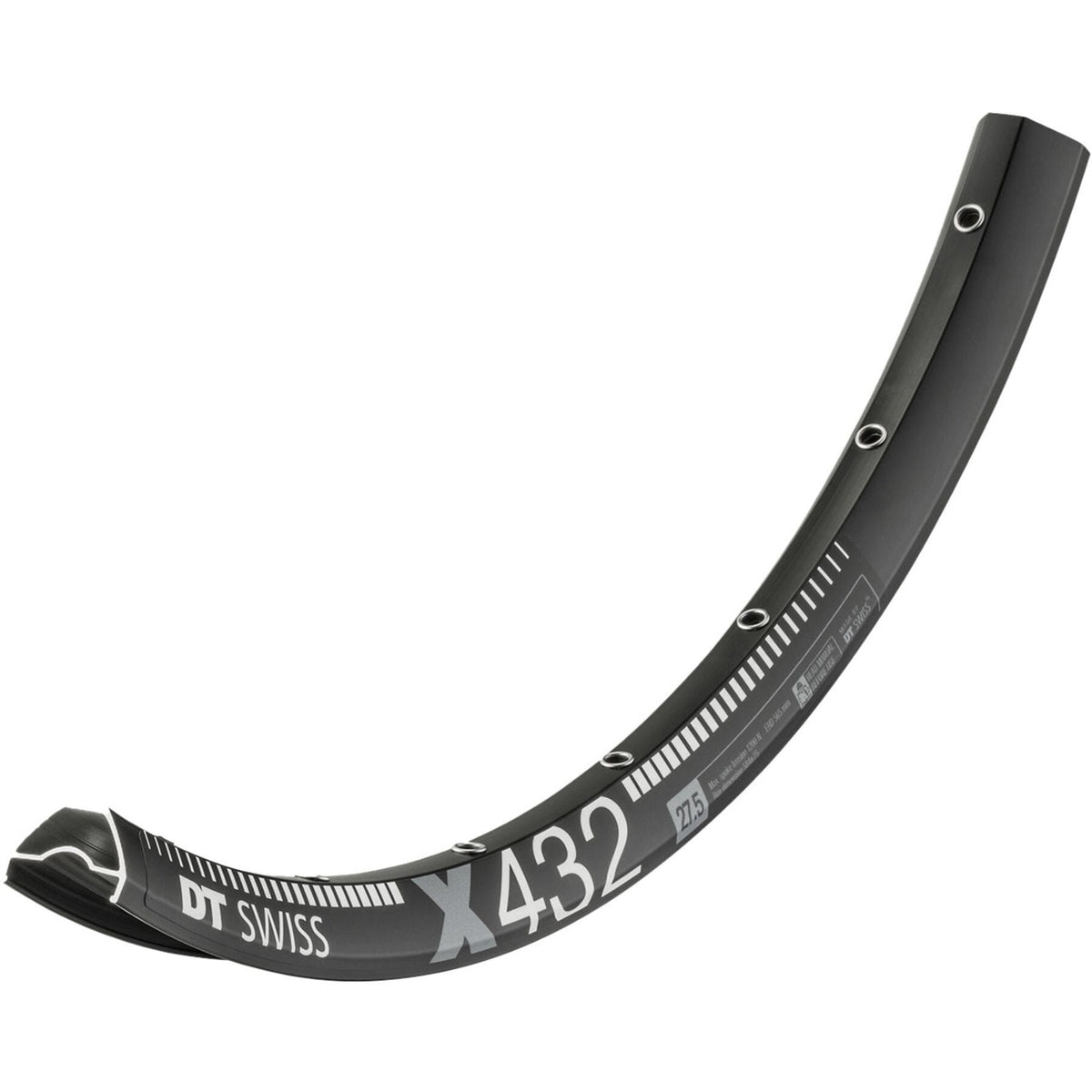

The X 432 represents a paradigm shift in cross-country rim design.
Born from the demands of modern course architecture, this rim combines the wide platform support needed for aggressive berm cornering with the lightweight performance XC riders demand.
At 25 mm inner width, the X 432 delivers the tire support and stability of downhill-inspired geometry without the weight penalty. Corner harder and accelerate faster—this rim lets you do both. The wider footprint keeps your tire seated confidently through technical turns, while the 460g (27.5") and 490g (29") weights keep your bike responsive.
Built for reliability, the X 432 features DT Swiss' proven sleeve joint construction, ensuring perfect spoke alignment and extended rim life. The result is wheels built with minimal spoke tension variance and exceptional precision, even under demanding trail conditions.
Designed specifically for disc brake cross-country systems, this rim offers genuine versatility. Available in 28 and 32 hole options and fully compatible with DT Swiss Tubeless Kits for modern setups. Maximum rider weight is 110 kg.
The X 432 is engineered for cyclists who refuse to compromise—those seeking the perfect balance of width, weight, and durability at a price that doesn't require a premium system investment.
Specification
-
Use: MTB / All Mountain
-
Size: 29"
-
Reference diameter ERD: 603mm
-
Rim diameter: 622mm
-

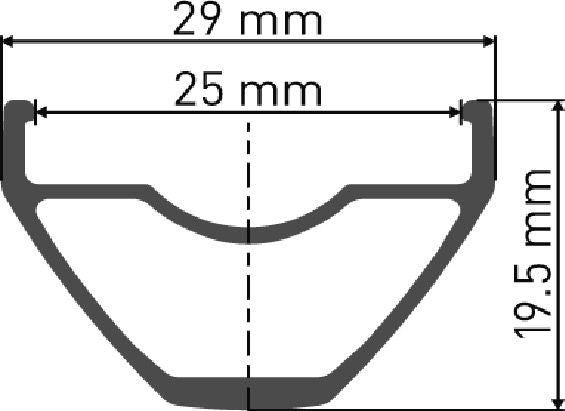

Inner width: 25mm
-
Outer width: 29mm
-
Height: 19.5mm
-
Brake type: Disc brake
-
Bore Type: Eyelet
-
Valve hole: Presta / SV Ø 6.5 mm
-
Max recommended system weight: 110kg (body weight + bike + equipment)
-
ASTM Classification: 3
Holes
Material
Colour
Weight
Contents
- 1 x DT Swiss X 432 Disc 29" Rim
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
