The Orbit No. 57E is a semi-integrated (ZS) headset by FSA for tapered steerer tubes with a diameter of 1 1/8" (top) and 1.5" (bottom).
The headset includes an aluminium cap.
Features
-
Type: Semi-integrated (ZS)
-
Fork steerer: 1 1/8“
-
Outer diameter headtube top: 50mm
-
Outer diameter headtube bottom: 62mm
-
Bearing: 1 1/8” / 1.5”, 36°/ 45° angular contact bearing
-
Upper part: Forged aluminium bearing shells with angular contact bearing (Black seal)
-
Bottom: 1.5" CNC milled Bearing Shells with angular contact bearing (Black Seal)
-

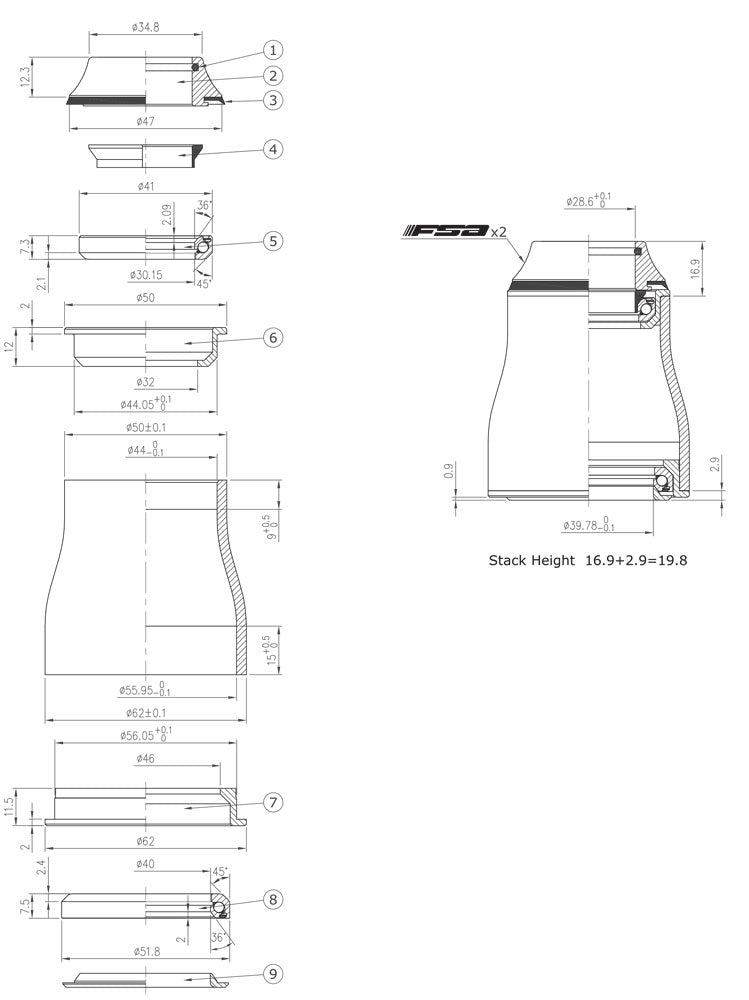

Stack height: 16.9 + 2.9 = 19.8mm
Size aluminium cap
Material
Weight
Contents
- 1 x FSA Orbit No.57E 1.5E ZS Headset
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
