The Hope RX4 Flatmount Shimano/Campagnolo calliper builds on 25 years’ experience designing and manufacturing hydraulic disc brakes and transfers the knowledge and skills acquired into the world of Road and Cyclocross dropbar brakes.
For use with Mineral Oil brake fluid only!
A precision CNC machined monobloc design results in a stiffer caliper to give unrivalled feel and modulation.
Features
- RX4+ Flatmount Front +20mm Caliper
- The RX4+ supersedes the RX4 caliper
- Flat Mount +20mm version for dropbar set ups
- Designed to fit 160mm disc rotors without adapters
- 4-piston brake caliper
- Compatible with Shimano/Campagnolo hydraulic road bike lever
- Only for Mineral Oil
- Machined from one piece for more stability
Specification
-
Use: Road / Cyclocross / Gravel
-
Model: RX4+
-
Brake type: Disc-Brake
-
Mount: front
-
Brake mounting: Flat-Mount +20
-
Brake disc size: 160mm
-
Brake pads:Resin (organic) / Sintermetal
-
Piston: 4 Slimline
-
Brake fluid: Mineral Oil
Compatibility
- Shimano Dura Ace R9120 / Di2 R9170
- Shimano Ultegra R8020 / Di2 R8070
- Shimano 105 R7020 / Di2 R785 / RS685
- Shimano GRX RX810 / RX600 / RX400 / RX815 Di2 / RX817 Di2
- Campagnolo Super Record
- Campagnolo Platte
- Campagnolo H11
Material
- CNC machined from 2014 T6 aluminium

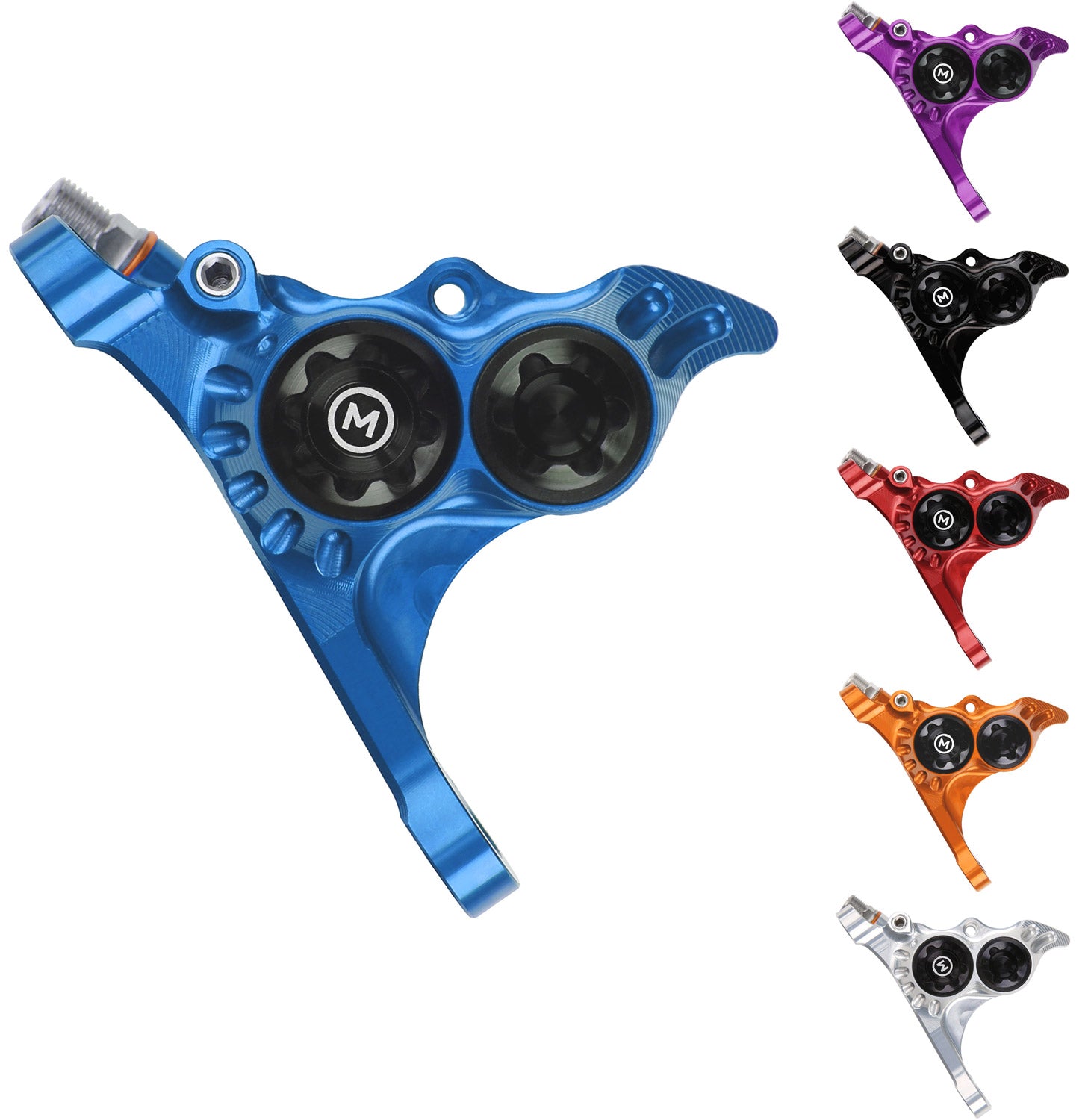

Colour
- Blue
- Purple
- Black
- Red
- Orange
- Silver
- Bronze
Contents
- 1 Hope RX4+ Flat Mount Brake Caliper front
- 1 pair brake pads sintered metal
- 1 pair brake pads resin (organic)
- 1 line connection kit
- 1 bleeding kit
- 1 mounting kit
Brake hose and brake fluid not included!
