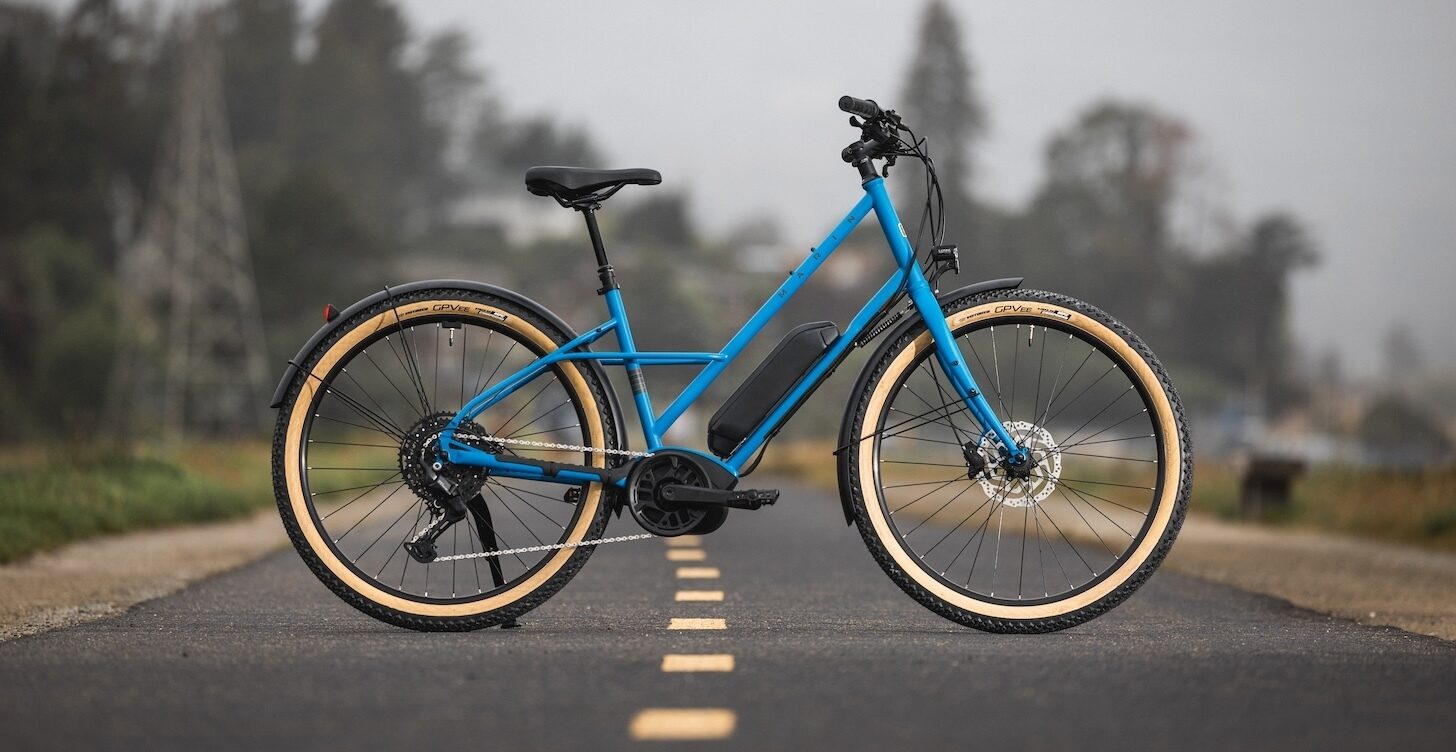

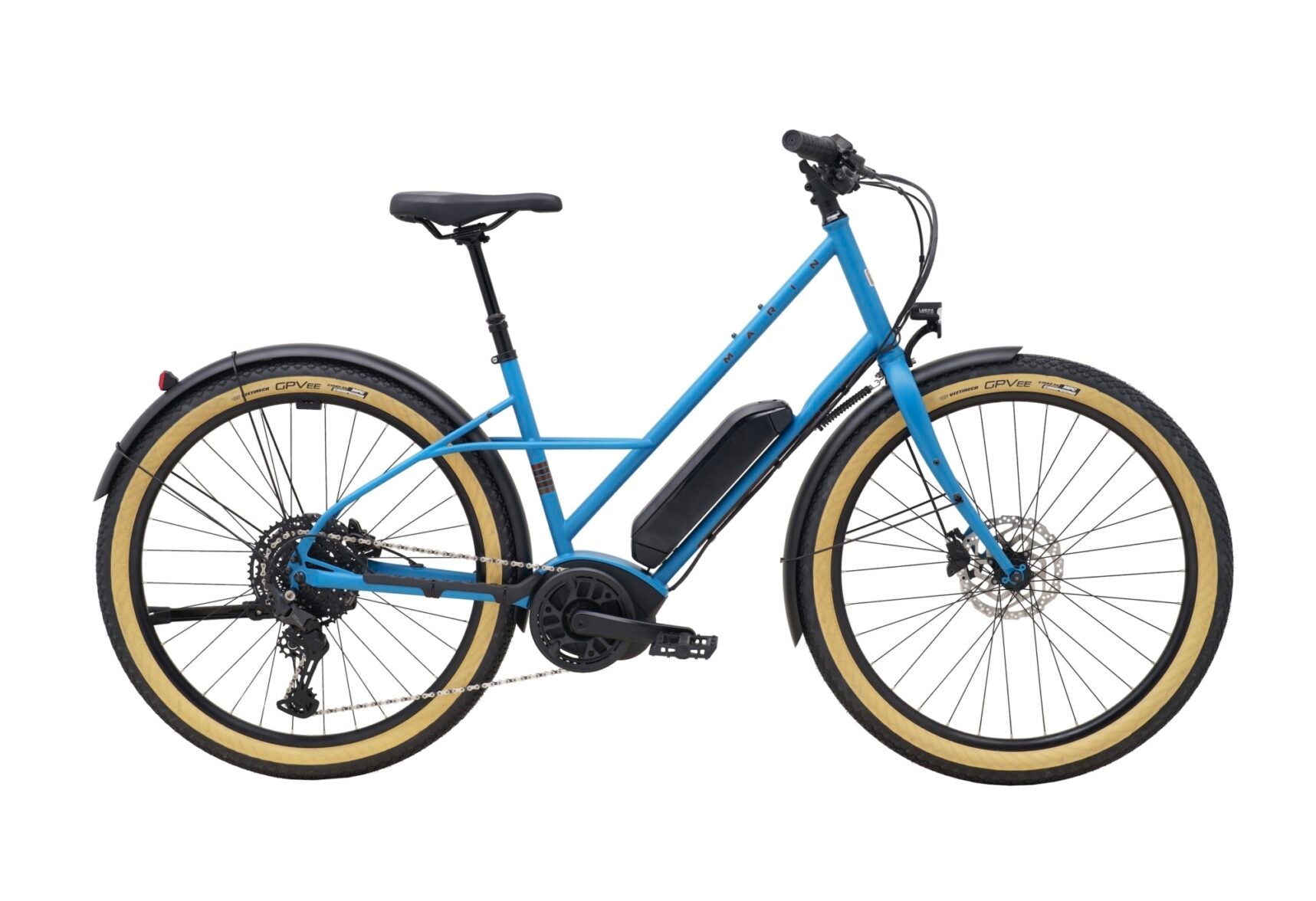

MARIN LARKSPUR E ELECTRIC HYBRID BIKE 2025 BLUE
Product Details - Marin Larkspur E Electric Hybrid Bike 2025 Blue
Product Details - Marin Larkspur E Electric Hybrid Bike 2025 Blue
eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated in two boxes.
Minimum personal assembly is required.
Hop aboard and see just how fun a bike can be.
Adventure inspired, commute ready! The Larkspur E takes our modern icon and given it a boost. Larkspur E is ideally suited to a wide range of cycling endeavors, from fire road cruising to neighborhood exploring, errands, commuting, and beyond. It's an adventure bike, it's a gravel bike, it's a mountain bike, it’s one of our funnest bikes yet! The Larkspur E's Bosch Active Line Plus drive unit offers a range of 25-93 miles (40-150km), depending on rider weight, terrain, climate, and level of assistance used, and can recharge in about four hours. The top assisted speed is 20MPH in the US and New Zealand and 25 km/h in other global markets, and the different modes are selected via the controller with a clean integrated display next to the left grip. Shimano's CUES 10-speed drivetrain has a wide range and industry-leading durability when paired with center motors, while hydraulic disc brakes with large rotors help you effortlessly stop on the proverbial dime. And when you do come to a stop, push the lever for the dropper post to put both feet safely on the ground.
Key Features
- Bosch Active Plus motor: Super-compact with exceptionally smooth power delivery.
- 650b wheels: Perfectly complement the geometry for maximum steering control.
-
545Wh battery: Gives you increased range.
Full Specification
- Frame: Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts
- Fork: CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets
- Motor: Bosch Active Plus, 250W, 50Nm, Class 1 (North America - 20mph/32Kph, EU - 25Kph)

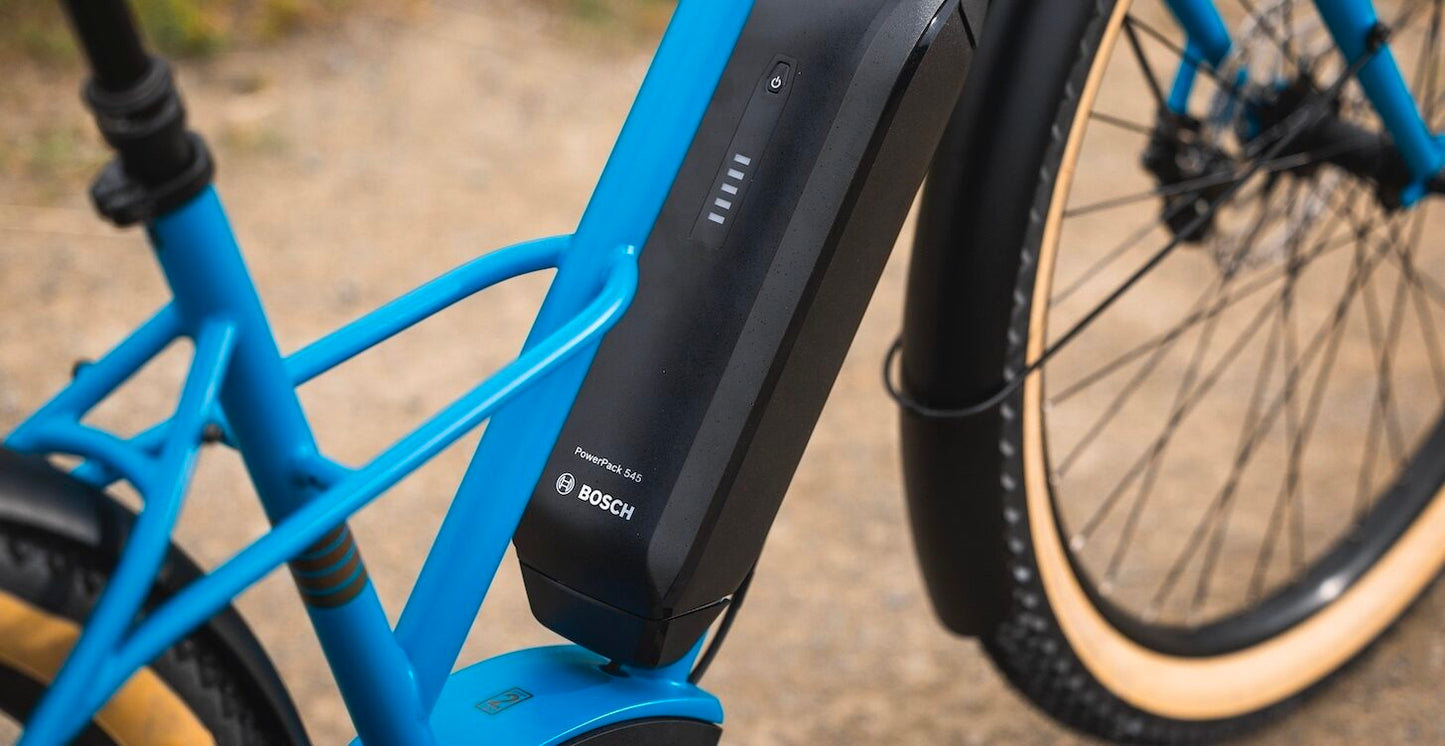

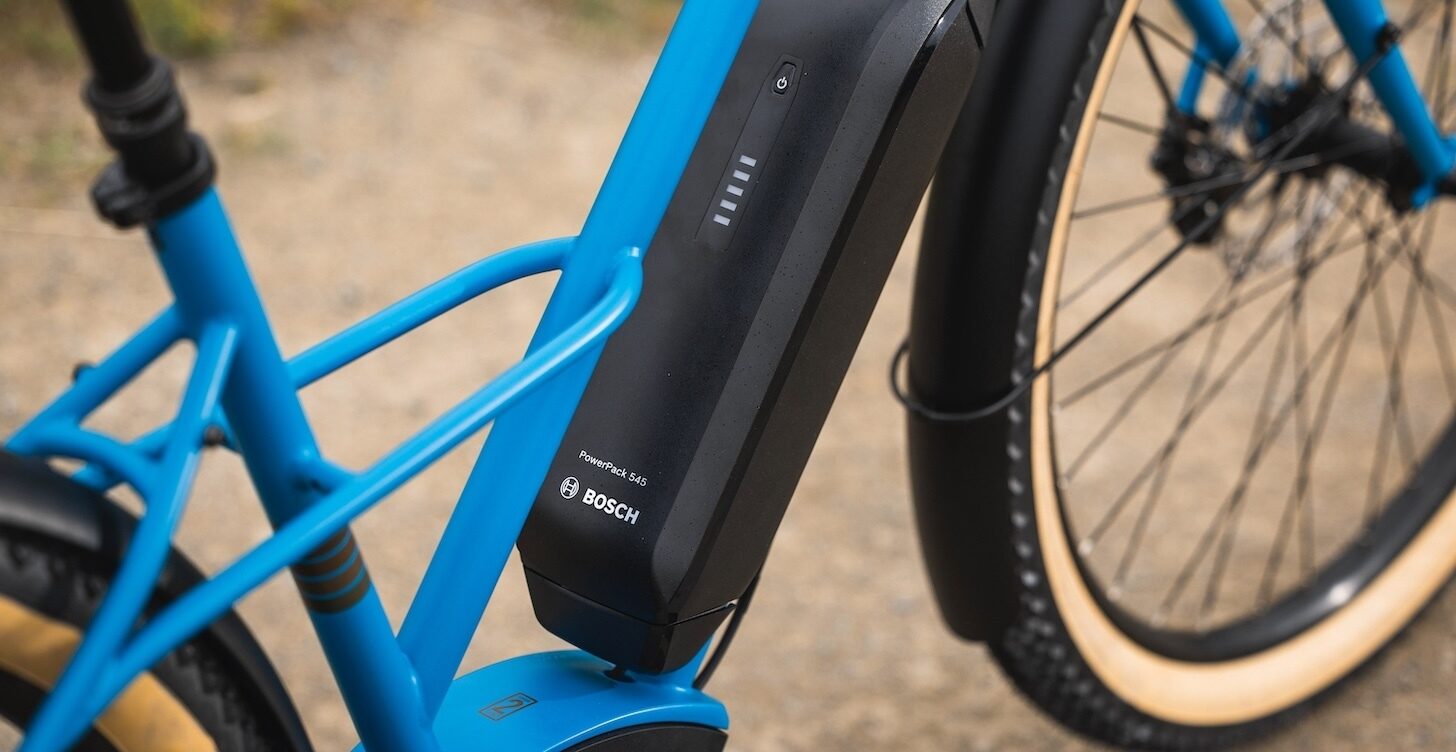

- Battery: Bosch Power Pack 545, 545WhBosch Purion 200 Controller & LCD Display

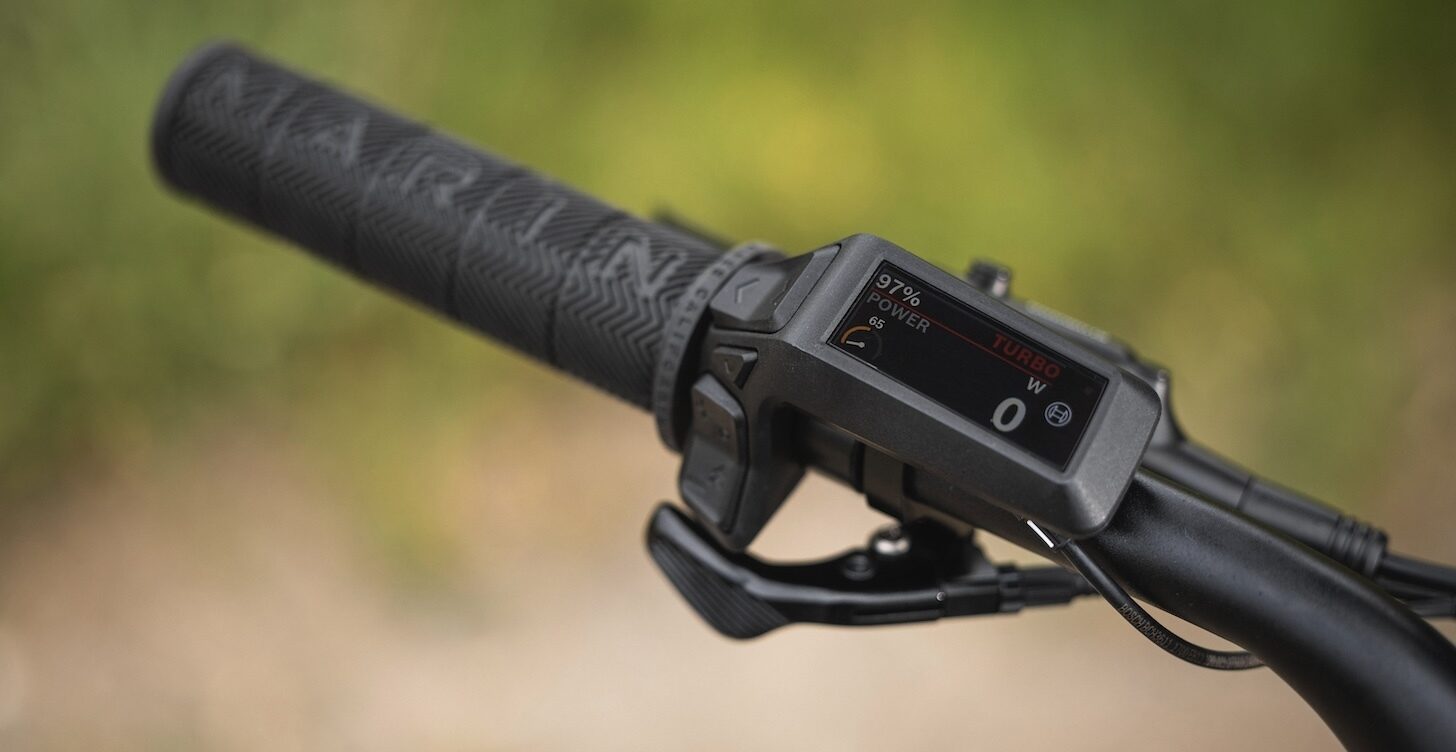

- Controller: Bosch Purion 200 Controller & LCD Display
- Shifters: Shimano CUES 10-Speed
- Crankset: Forged Aluminium w/ 38T Steel Chairing
- Cassette: Shimano CUES 10-Speed 11-48T
- Chain: KMC E11S
- Front Derailleur: N/A
- Rear Derailleur: Shimano CUES 10-Speed
- Bottom Bracket: N/A
- Pedals: Nylon Platform
- Rims: Marin Aluminium Double Wall, Disc Specific
- Front Hub: Vee Tire Co., GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready
- Rear Hub: Vee Tire Co., GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready
- Tyres: WTB Horizon, 650Bx47, Wire Bead
- Brakes: Shimano MT201 Hydraulic, 180mm Rotor
- Handlebars: Marin Urban Alloy, 31.8mm Clamp
- Handlebar Grips: Marin County
- Headset: FSA Orbit CE No.8B
- Stem: Marin Alloy
- Saddle: Marin City Plush
- Seatpost: TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel
- Accessories: Lezyne Power STVZO E500+ Headlamp, Lezyne Fender STVZO Taillamp, Rear Kickstand, Bosch EB12.110.016; 2A Charger
- Weight: N/A
Size Guide for Marin Sausalito
| Frame Size | Rider Height (') |
| S | 5’0″ – 5’4″ |
| M | 5’4″ – 5’8” |
| L | 5'8" – 5'11" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Delivery
Delivery
We offer several delivery options:
Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.
Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.
Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.
Check out our video for more information on how your bike is assembled and packaged.
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
