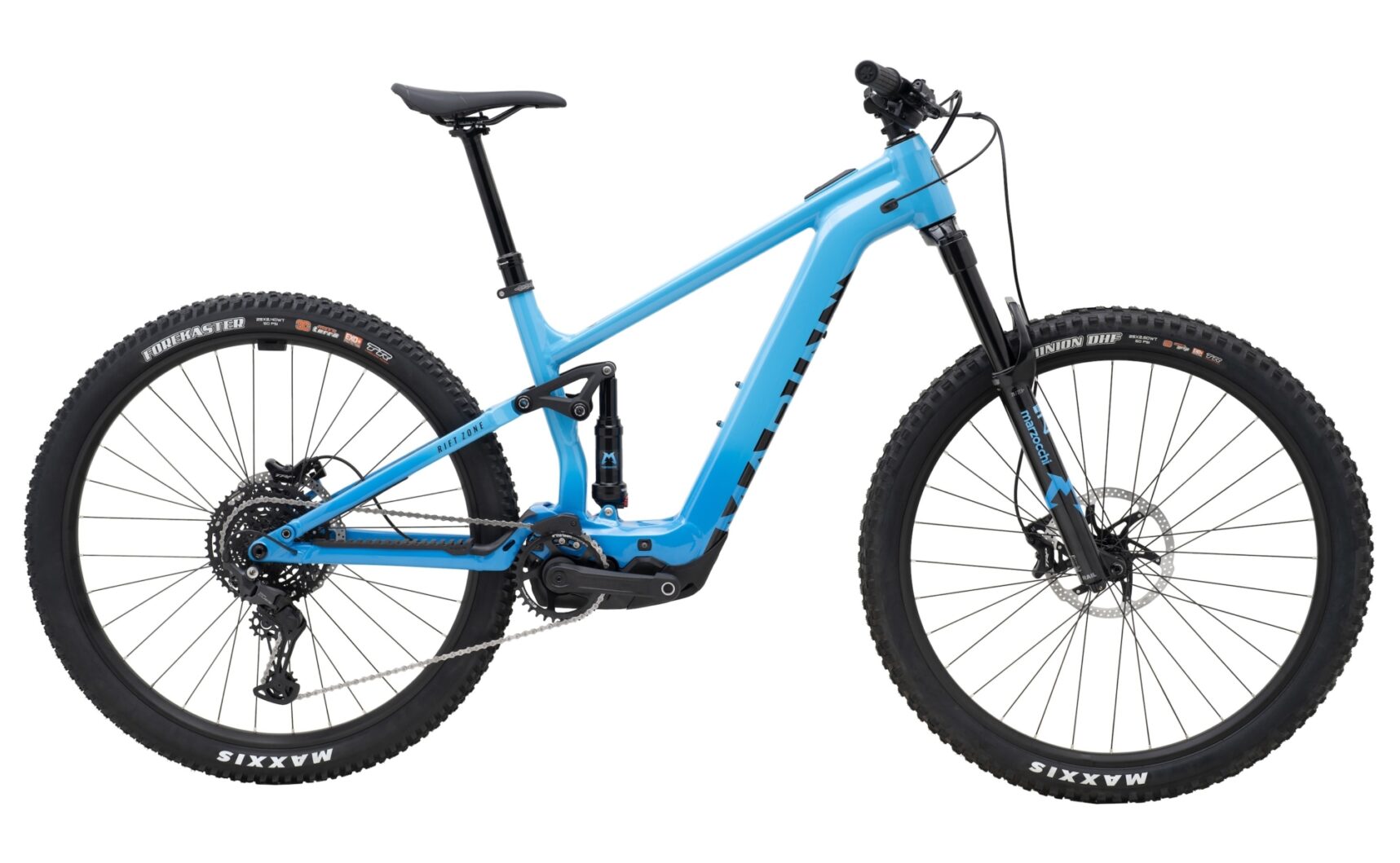

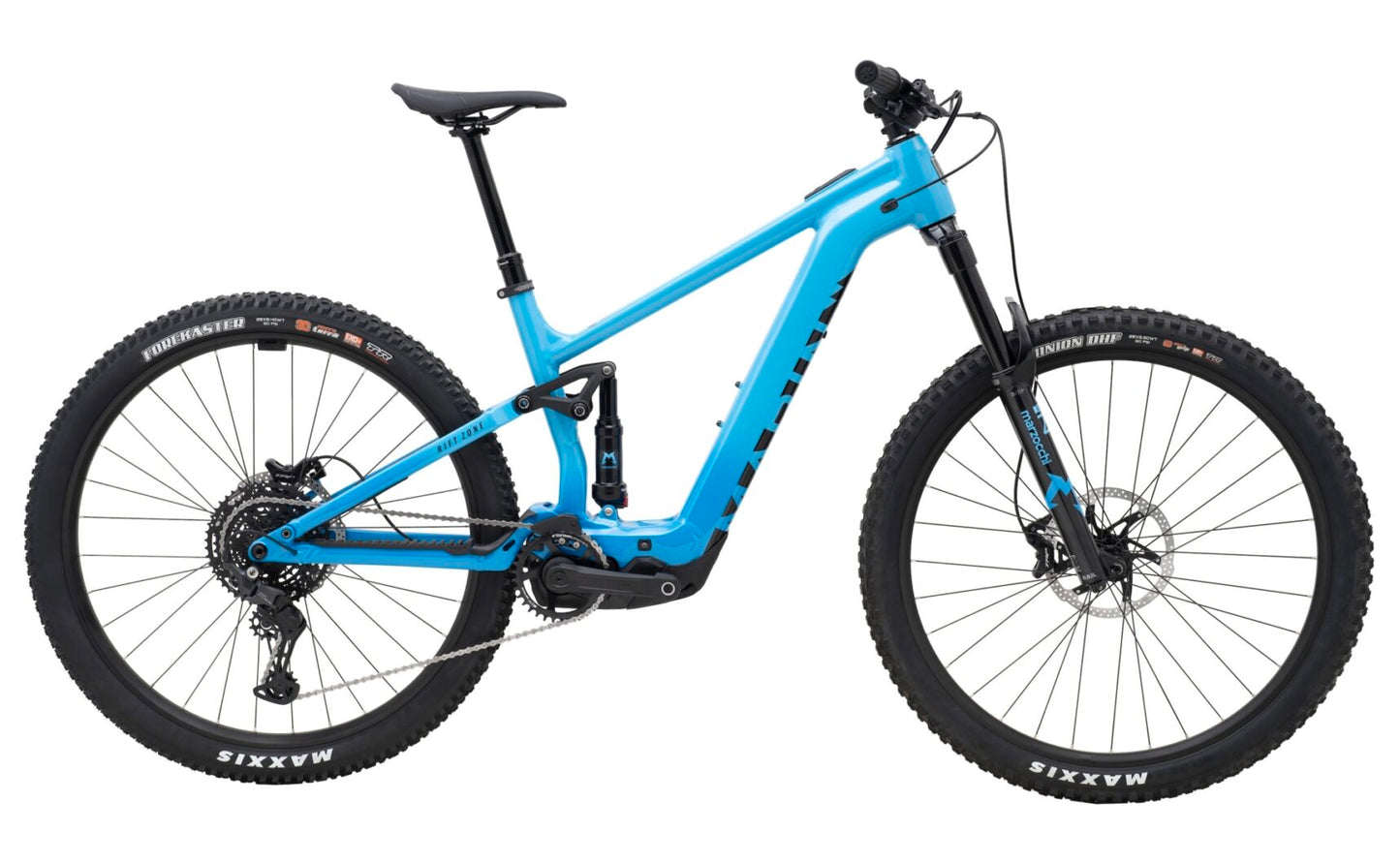

MARIN RIFT ZONE EL 1 FULL SUSPENSION eMTB BIKE 2025 BLUE/NAVY
Product Details - Marin Rift Zone El 1 Full Suspension Emtb Bike 2025 Blue/navy
Product Details - Marin Rift Zone El 1 Full Suspension Emtb Bike 2025 Blue/navy
The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.
Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget its an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.
The Rift Zone EL1 is smartly spec'd with air-sprung Marzozzchi Bomber suspension, Shimano's stout and smooth-shifting CUES 10-speed drivetrain and powerful TRP Slate EVO 4-piston disc brakes
Key Features
- Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
- Multitrac Suspension: It wouldn’t be a Rifty without the much-heralded MultiTrac suspension that pairs an ideal leverage curve with a custom shock tune. The resulting 140mm of travel balances pedal efficiency and the ability to float over rocks and roots while delivering confidence-inspiring chassis control.
-
Bosch Motor: Packing 55Nm torque and up to 600W of power in a lightweight 4.4lbs/2kg drive unit, Bosch’s Performance Line CX drive unit delivers a silent riding experience with no motor noise and no drag at speed, for a very natural feeling power delivery.
Full Specification
- Frame: All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
- Rear Shock: Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
- Fork: Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset
- Motor: Bosch Performance Line SX, 600W, 55Nm torque
- Controller: Bosch BRC3100 Systems Controller
- Battery: Bosch CompactTube 400Wh Internal
- Charger: Bosch 2A
- Shifters: Shimano CUES SL-U6000-10R, 10-Speed
- Crankset: e*thirteen e*spec Plus, 160mm Length, 34T
- Cassette: Shimano CS-LG300-10, 11-48T
- Chain: Shimano LG500
- Front Derailleur: N/A
- Rear Derailleur: Shimano CUES RD-U6000 GS, 10-Speed
- Bottom Bracket: Integrated
- Pedals: Marin MTB Plastic
- Rims: Marin Aluminium Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
- Front Hub: Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock
- Rear Hub: Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock
- Front Tyre: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+
- Rear Tyre: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
- Brakes: TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
- Handlebars: Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
- Handlebar Grips: Marin Grizzly Lock On
- Stem: Marin 3D Forged Alloy, 35mm
- Saddle: Marin Speed Concept
- Seatpost: TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm
- Extras: Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger
-
Range, Charging Time: 15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)
Size Guide for Marin Rift Zone EL
| Size | Rider height range |
| S | 5'3" - 5'6" |
| M | 5'6" - 5'10" |
| L | 5'10" - 6'2" |
| XL | 6'2" - 6'4" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
