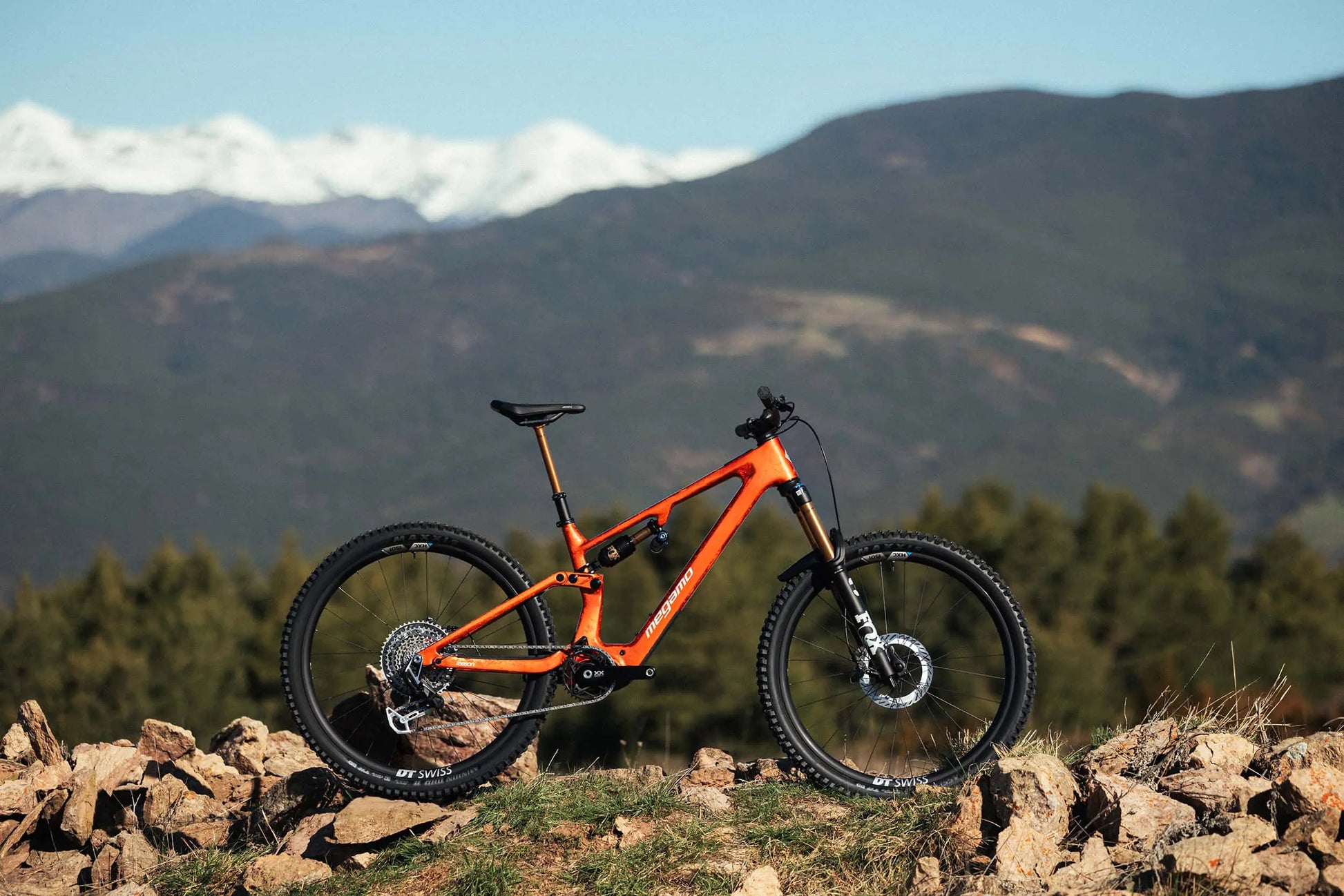

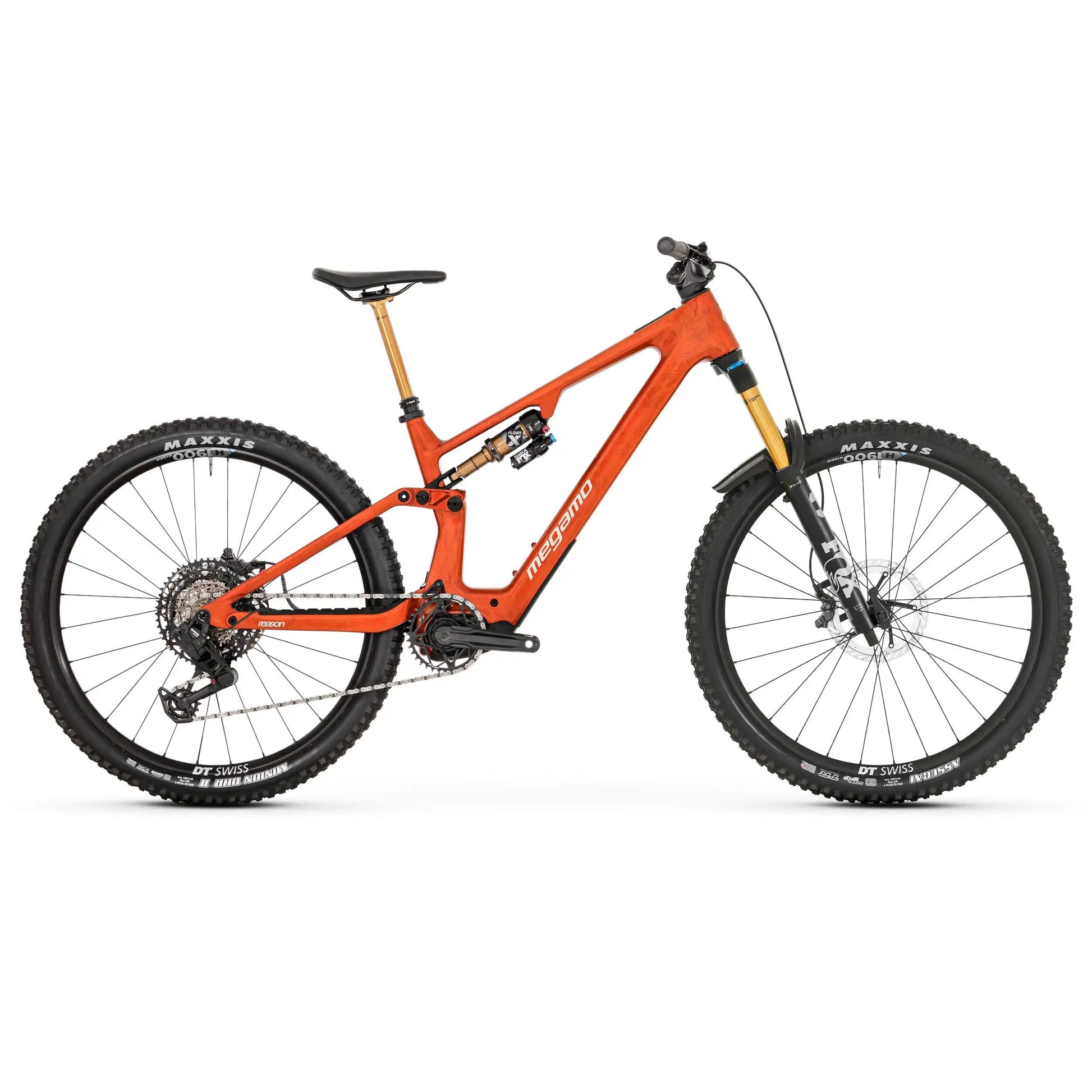

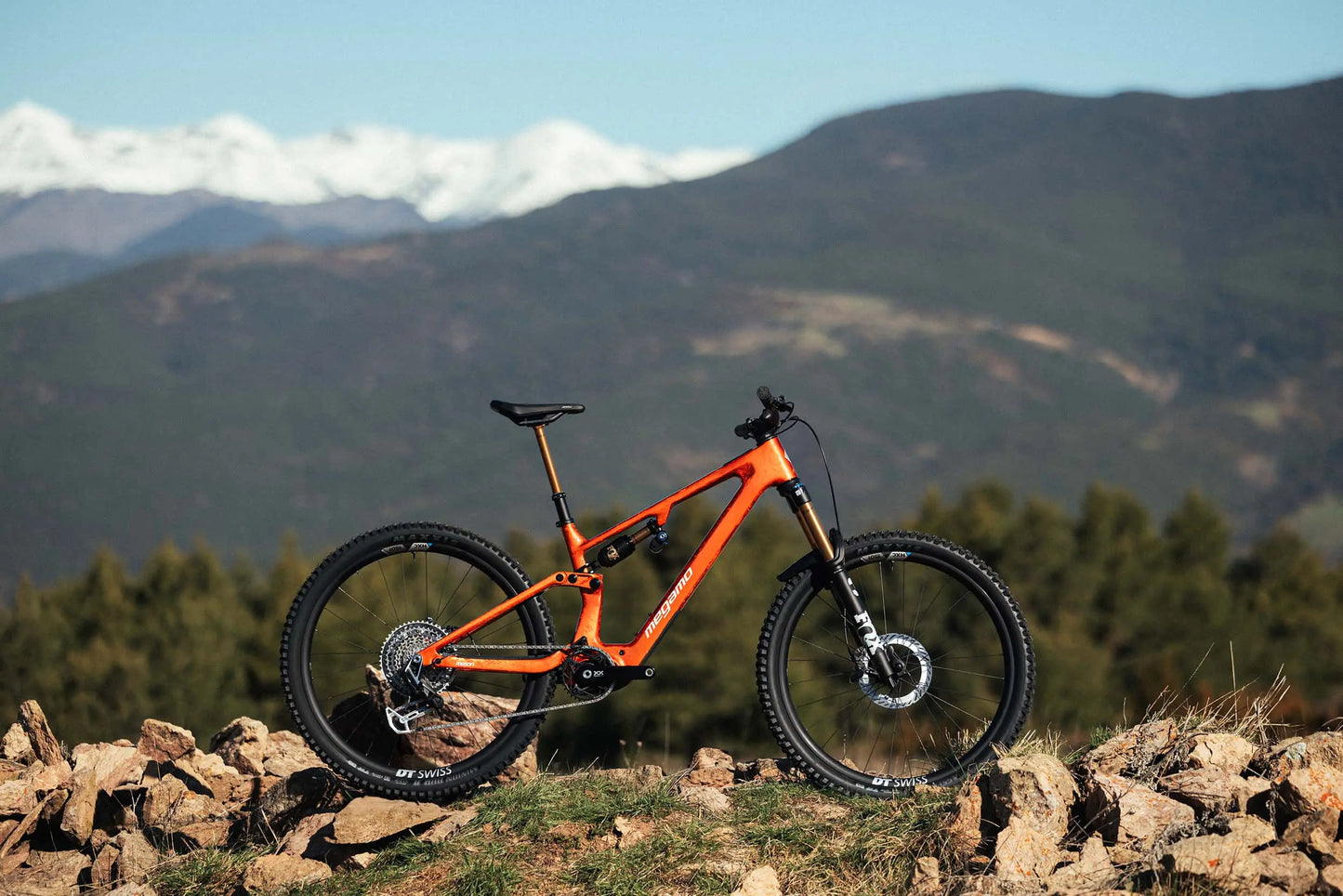

MEGAMO REASON CARBON 03 AXS FS eMTB BIKE 2027 AMBER ORANGE
Product Details - Megamo Reason Carbon 03 Axs Fs Emtb Bike 2027 Amber Orange
Product Details - Megamo Reason Carbon 03 Axs Fs Emtb Bike 2027 Amber Orange
eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated in two boxes.
Minimum personal assembly is required.
The Reason revolutionizes the e-bike segment with a high-performance, lightweight carbon frame and outstanding kinematics.
It absorbs vibrations without losing responsiveness, delivering agility, control, and precision on every ride. Its integrated, sleek design looks like a muscle bike—no one would guess it's electric, even up close. Engineered to balance low weight with high-level performance, the adjustable geometry and optimized kinematics ensure efficiency across all terrain types. Powered by the Avinox system by DJI, you'll experience powerful and smooth assistance ideal for demanding climbs and technical descents. A lightweight, precise, and adaptable e-bike built for every rider.
Features
- Avinox M2S Motor -150Nm 1300W (Boost mode) / 130Nm 1300W
- Integrated 800 Wh LI-ION battery
- Reason Full Carbon frame, Boost, 140mm Wheel travel
- Fox 36 Float SL Factory fork with 140 mm travel
- Fox Float Factory shock
- Sram S1000 AXS T-Type 12-speed drivetrain
- XT 4 Piston disc brakes 203 / 203
Full Specification

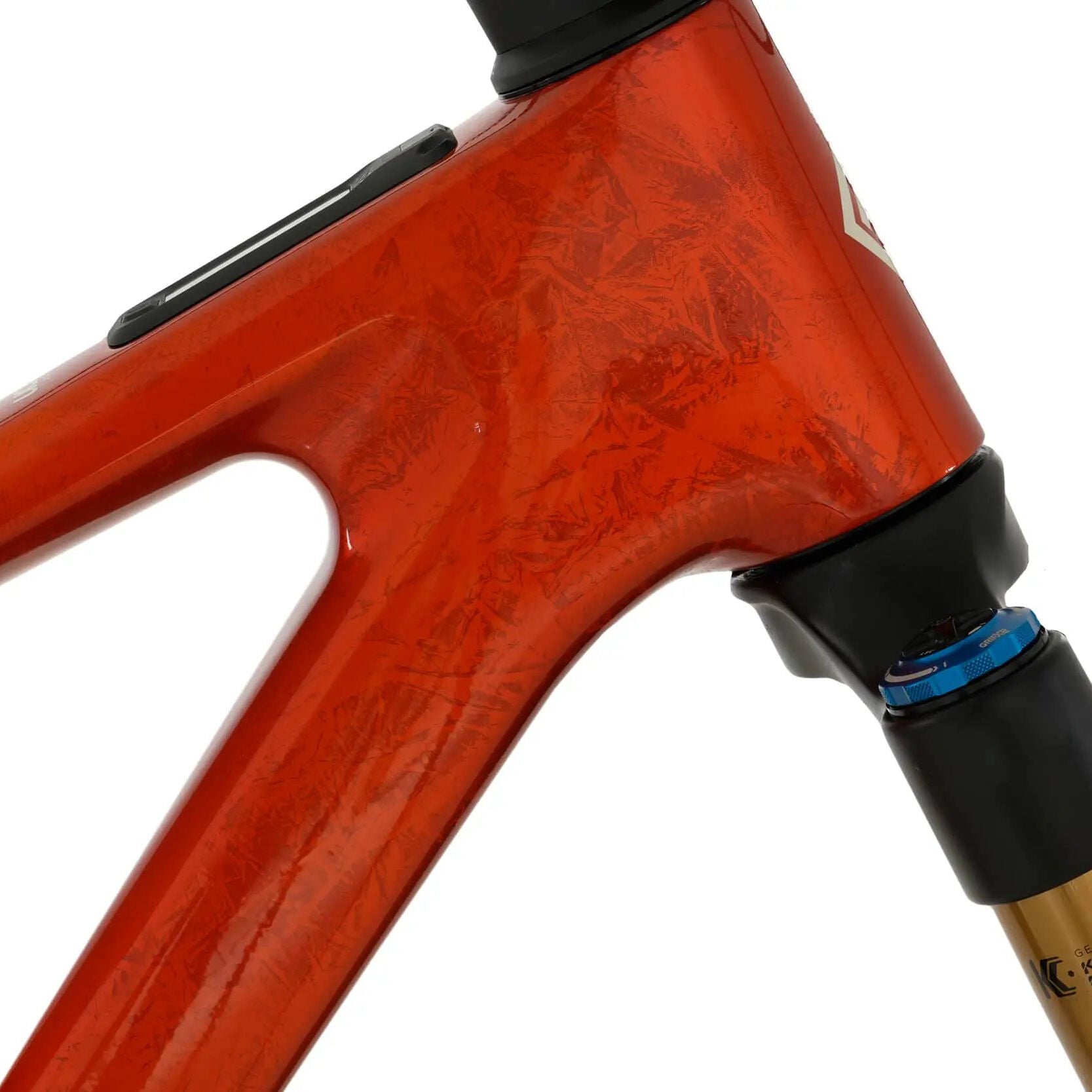

- Frame: Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
- Fork: Fox 38 Float Factory E-Bike Optimized, 160mm Travel, Grip X2
- Shock: Fox FLOAT X, Factory Series, Kashima 2pos-adj, Evol LV, 210x55
- Headset: Acros AZA-288R2 ZS56 blocklock 135º

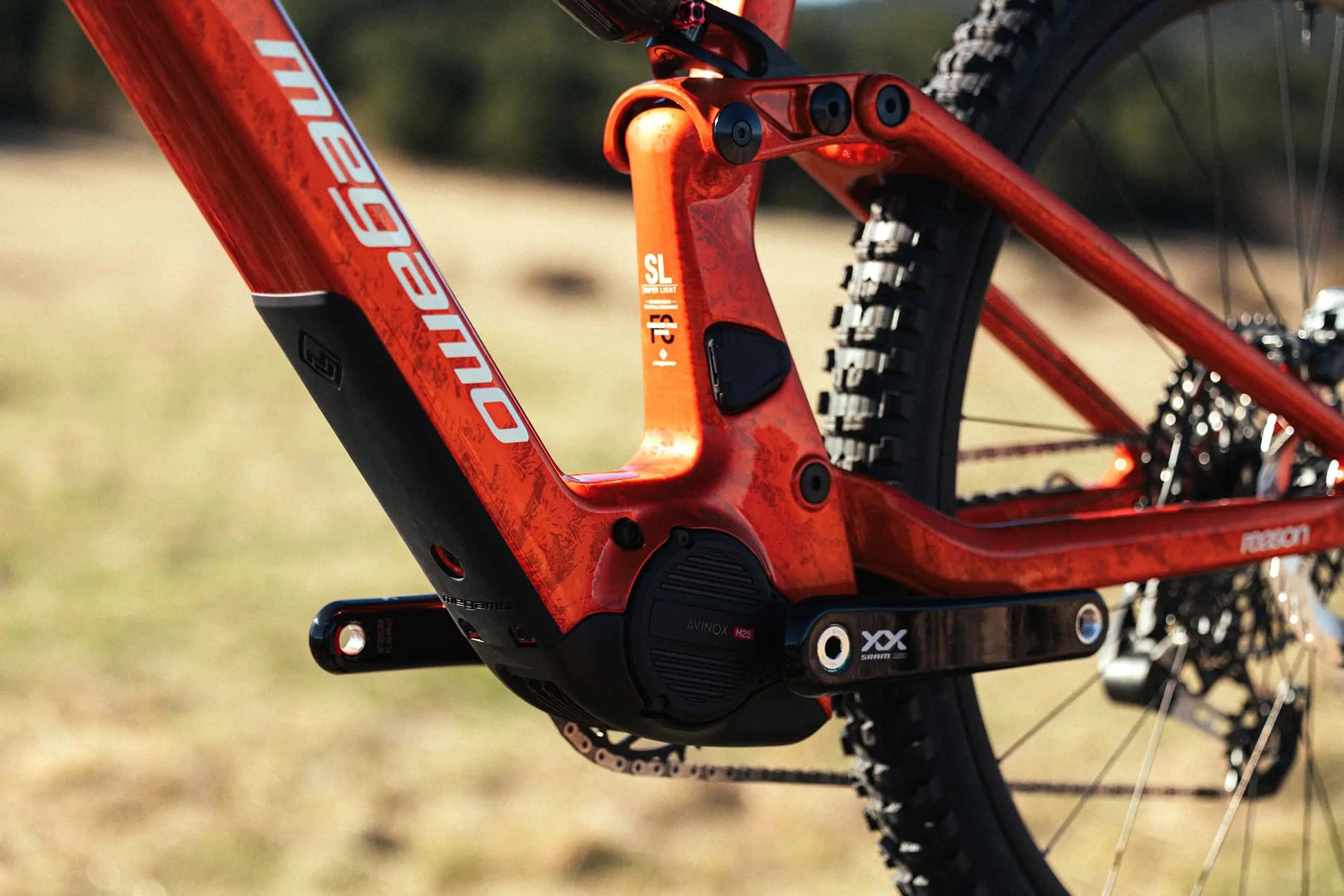

- Motor: Avinox M2S -150Nm 1300W (Boost mode) / 130Nm 1300W
- Battery: Avinox 800 Wh, 35,9V, IP56

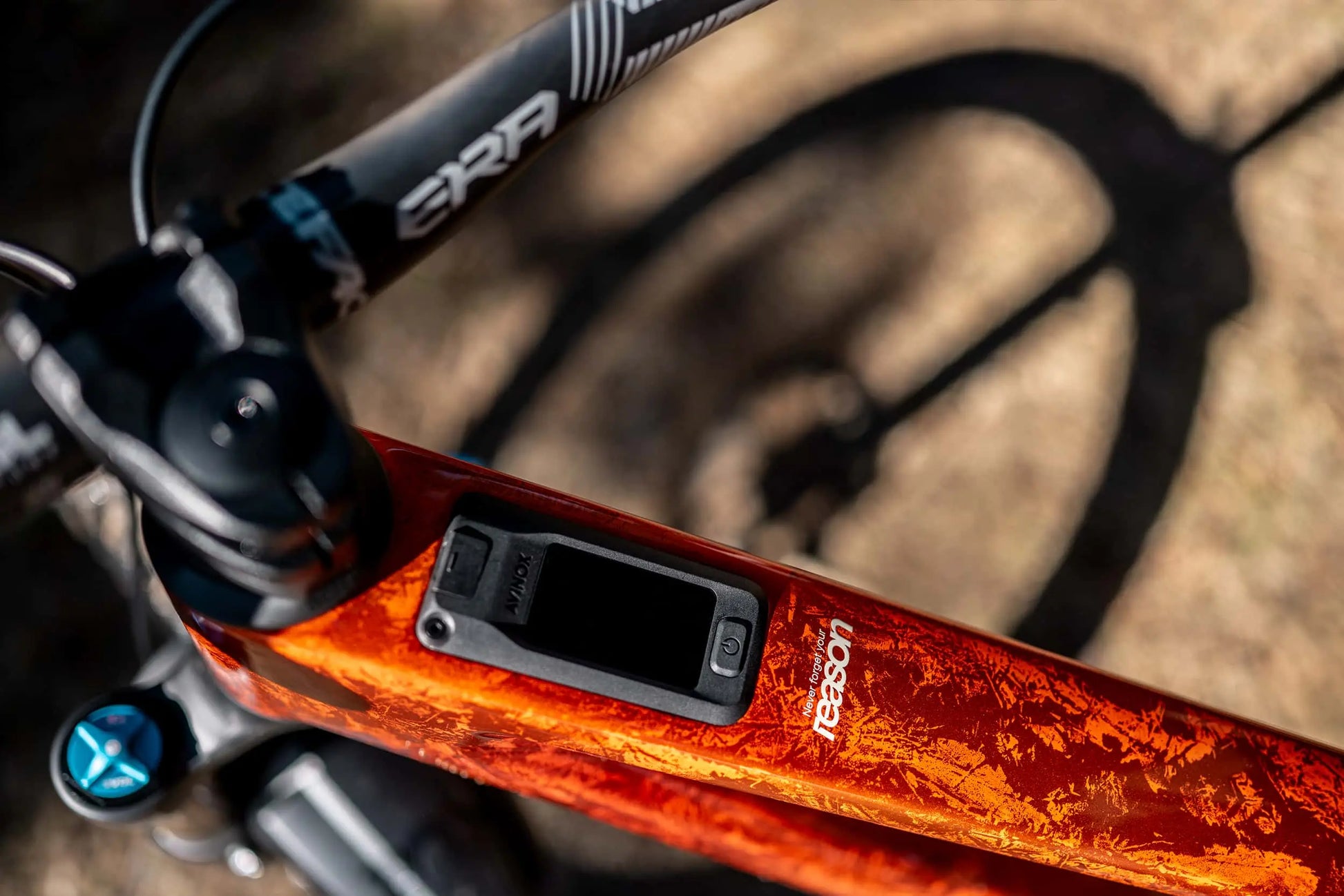

- Display: Avinox DP100, 2-inch full-color OLED touchscreen, 800 nits, 326 ppi
- Charger: Avinox 12A Fast Charger
- Rear Derailleur: Sram S1000 EAGLE AXS T-TYPE, 12-Speed
- Shifters: Sram AXS POD
- Crankset: Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 165mm
- Cassette: Sram XS 1270 T-TYPE, 10-52T
- Brakes: Shimano XT M8220, Hydraulic Disc 4-Piston, RT-CL800 203 mm
- Tyres: Front: Maxxis Assegai 29x2.5 DD 3C MaxxGrip / Rear: Maxxis Minion DHR II 29x2.4 DD 3C MaxxTerra
- Wheels: DT Swiss H 1900 SPLINE, 30mm Tubeless ready Aluminium rim, 370 Ratchet LN 18
- Handlebar: Carbon Race Face ERA 35x800, Rise 20mm
- Stem: Satori Ursa, 35 x 35 mm
- Seatpost: Fox Transfer Factory Kashima 31,6. Internal routing, remote.
- Seat: Fizik Terra Aidon X5, 145 mm
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Delivery
Delivery
We offer several delivery options:
Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.
Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.
Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.
Check out our video for more information on how your bike is assembled and packaged.
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
