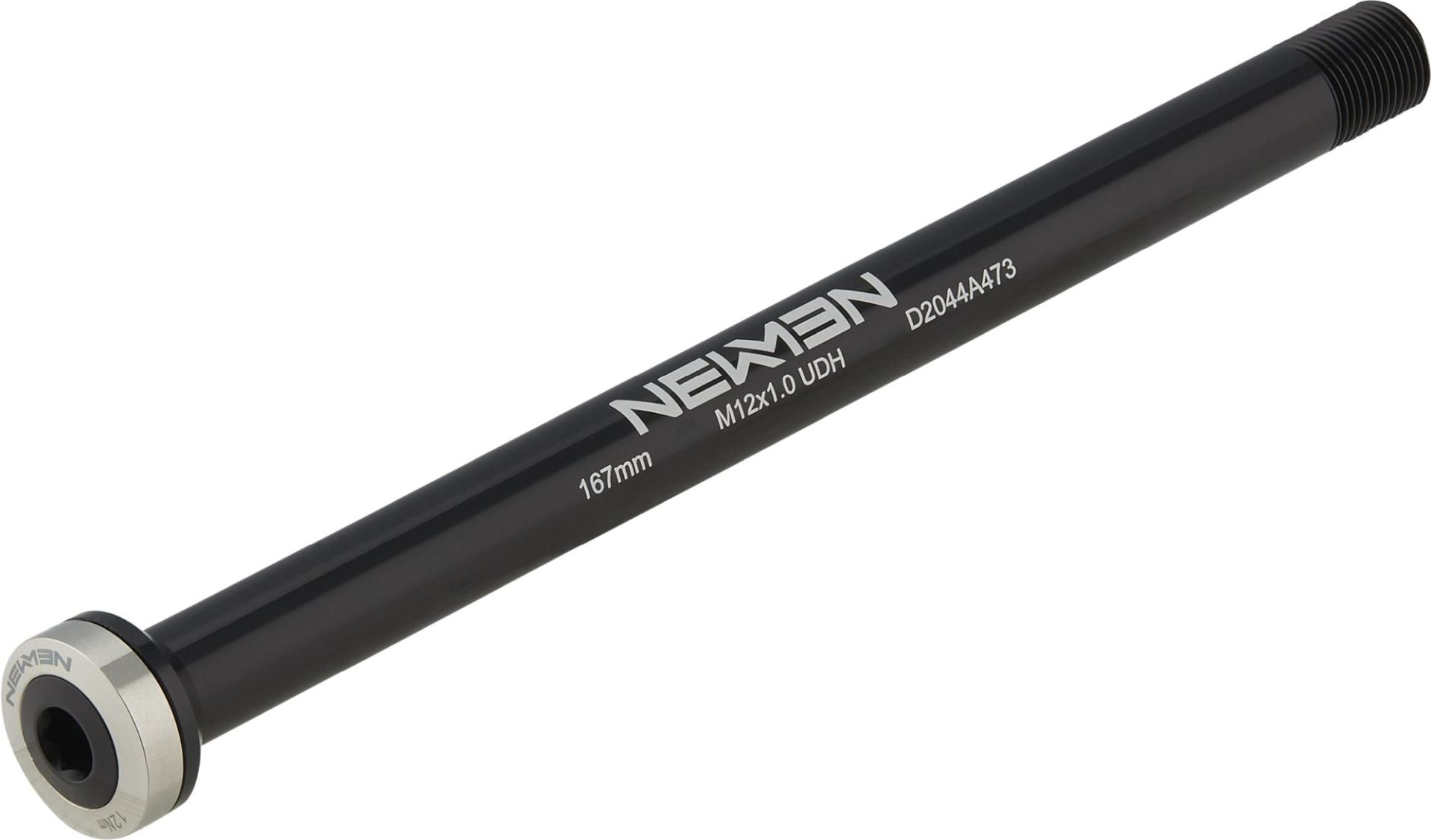

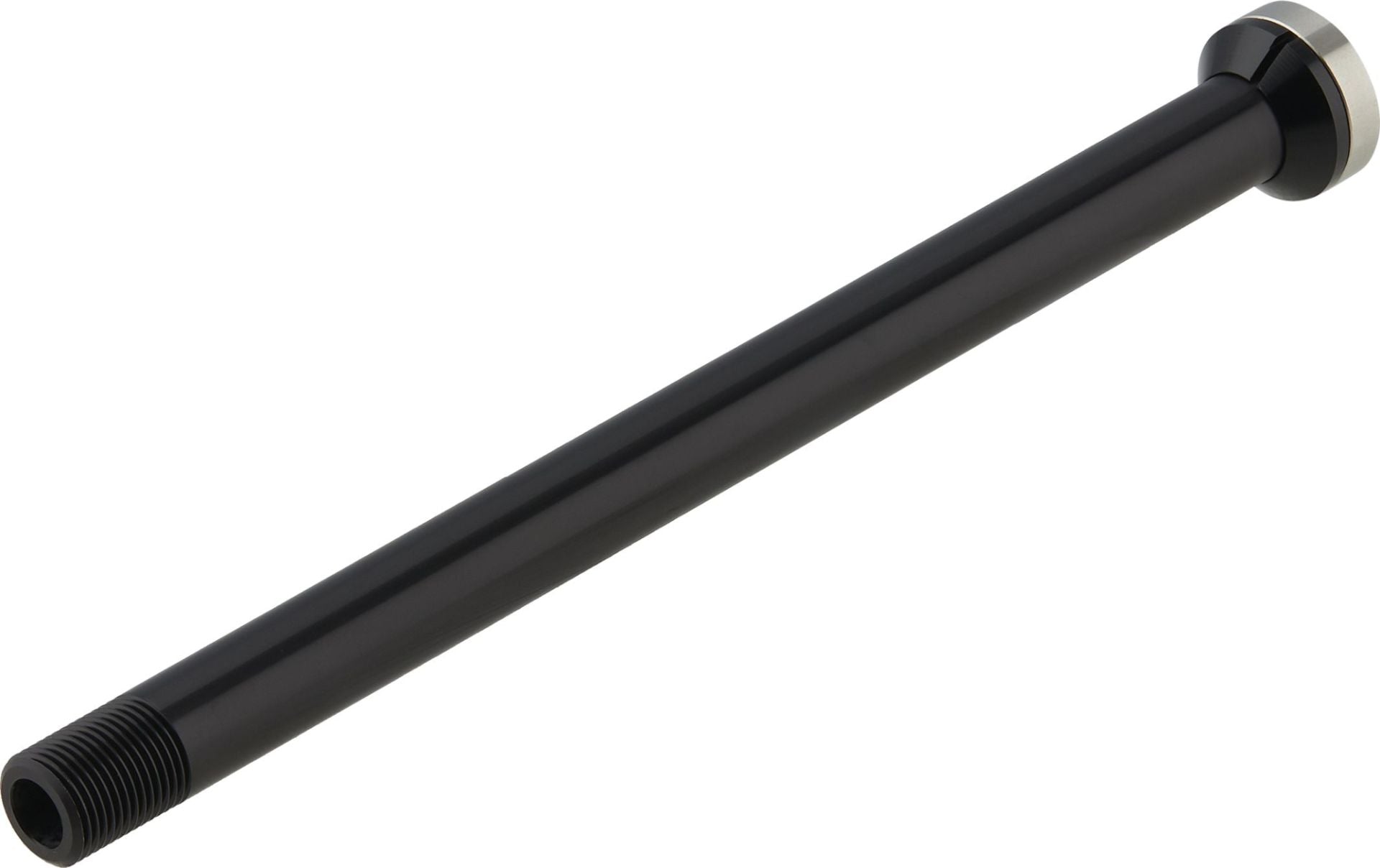

NEWMEN HUB AXLE X12 UDH 12X148 M12x1.0 (167mm)

NEWMEN hub axle for mountain bikes WITH UDH hanger.

With thru axles from Newmen, your rear wheel is reliably secured at all times. In addition, your favorite is significantly enhanced by the great look. The excellent workmanship ensures long-lasting durability and the low weight will delight you when you look at the scales.

Specification

• Material: Aluminium

• Hub standard: 12x148 mm Boost

• Compatibility: X-12 rear triangle with UDH derailleur hanger standard

• Axle length: 167 mm

• Axle diameter: 12 mm

• Thread pitch: M12x1

• Thread length: 15 mm

• Contact surface not threaded side: conical (X-12 standard)

• Tool holder: 6 mm hexagon socket

• Max. permissible torque: 12 Nm

• Colour: silver-black

Weight

• 0.055 kg

Contents

•   1 x NEWMEN thru axle M12x1.0 X-12 UDH 12x148 mm | 167 mm
