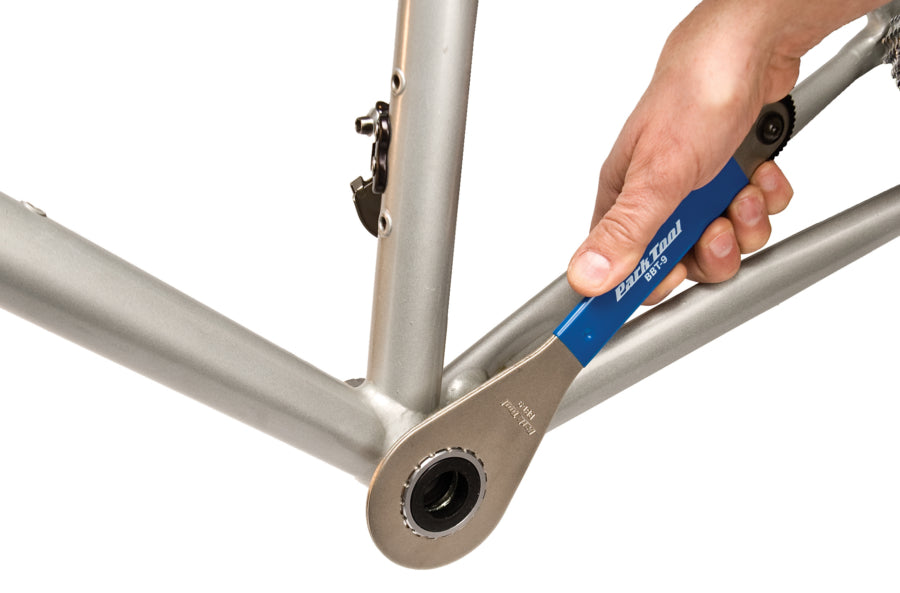

Bicycle bottom brackets occasionally require removal for service, replacement, or upgrading.

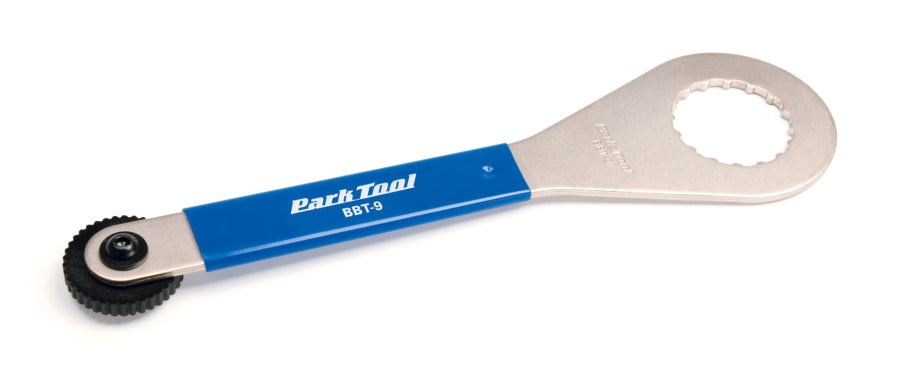

The Park Tool BBT-9 is used to remove and install select threaded bottom brackets with 16-notch tool fittings, including Shimano®, SRAM® GXP, Chris King®, Campagnolo®, and many others. This tool fitting is also found on some disc brake rotor lockrings. Additionally, the BBT-9 includes a tool that removes and installs 8-point Shimano Hollowtech II crank arm adjusting caps. The long, plated-steel handle offers good leverage for high-torque applications and is vinyl-dipped for comfort.
Features
Fits 16-notch tool fittings with a major diameter (outside of notches) of 44–45 mm and a minor diameter (inside of notches) of 42.7 mm, including:
- Shimano® BB80, BB5700, XT® BB70, BB51, and previous external bearing threaded cups
- Threaded bottom bracket cups from Campagnolo®, Chris King®, FSA® MegaExo®, Hope™, SRAM®/Truvativ® GXP®, Race Face® X-type, Surly®, Wheels®, Fulcrum®, and others
- 16-notch disc brake rotor lockrings
- 16-notch Bafang® BBSH, BBS02 mid-drive motor lockrings
Fits 8-point tool fittings on Shimano® Hollowtech II® crank arm caps:
- Equivalent to Shimano® TL-FC16 or TL-FC18 tool
Contents
- 1 x Park Tool BBT-9 Bottom Bracket Tool
