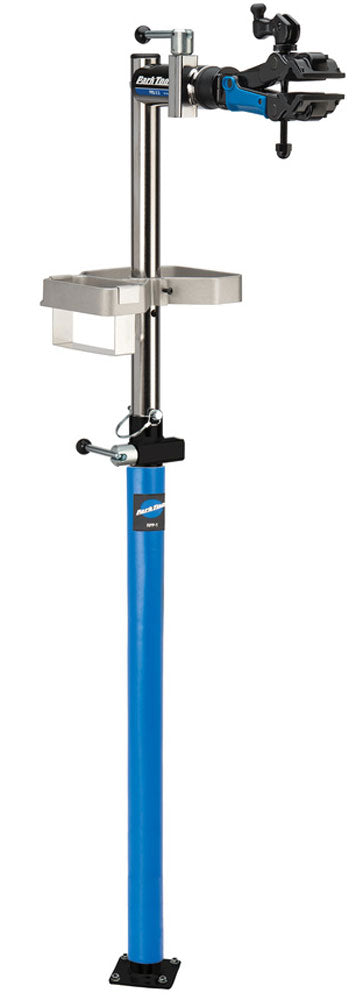

The single-arm Park Tool PRS-3.3-2 repair and assembly stand was developed for the tough workshop routine and is the first choice for professional bike mechanics worldwide.
Now this Cadillac among the assembly stands highest professional standards also brings to your home workshop.
At the heart of the Park Tool PRS-3.3-2 assembly stand is the 100-3D Micro Adjust retaining claw. It has a two-stage cam actuation system and can be quickly and comfortably adjusted to almost any seat tube or frame size. The height of the stand and the position of the clamp are stably secured by a proven blocking system. The stand is made of heavy, oversized steel tubing, chrome-plated and powder-coated, so you will enjoy it for many years.
The scope of delivery of this high-end workshop equipment includes the practical work tray #105 made of cast aluminium and the removable PVC sheathing for the stand tube of the stand, RPP-1. It prevents paint damage when bikes are leaned against the stand tube or even fall against the stand in the heat of the workshop battle.
Features
-
PRS-3.3-2:
- Sturdy construction
- Includes an aluminium tool tray
- Can be installed on the #130 Base repair stand base (sold separately and not included!)
-
100-3D
- Continuous fine adjustment allows perfect clamping pressure at all times while preventing damage to thin-walled tubes
- Cam-actuated adjustment system for quick insertion, adjustment and removal
- Clamped wheel can be continuously rotated 360 degrees
- Durable, replaceable jaw covers available as spare parts
Specification
- PRS-3.3-1
-
Maximum load capacity: 54 kg
-
Clamp height: adjustable from 128 to 158 cm
-
Clamp jaw size: only 70 mm wide, so even narrow places or short seat posts can be fixed
- 100-3D
-
Compatible tube diameters: 22 - 76 mm (7/8" to 3")
-
Height adjustability: 99 - 145 cm (39" to 57")
-
Maximum load: 36 kg (weight should be centred over the feet)
-
Folding size: 1140 mm x 370 mm (44" x 14.5")
Material
-
Chrome-plated, powder-coated steel / die-cast aluminium
Contents
- 1 x Park Tool PCS-3.3-2 assembly stand with 100-3D holding claw
- 1 x Park Tool #105 tool tray
- 1 x Park Tool #RPP-1 removable PVC sheath for the stand tube
#130 Base ground plate not included! >CLICK HERE<
