PARK TOOL PRS-30 MECHANICAL LIFT eBIKE REPAIR STAND

The PRS-30 solves one of the biggest challenges of e-bike maintenance, repair, and cleaning: getting it off the ground. With a footprint no larger than a traditional bicycle repair stand, the PRS-30 easily lifts and lowers bikes up to 120 lbs. (54 kg) with ease.

The professional-grade clamp lowers to a height of 29" (74 cm), allowing you to clamp onto the seatpost or seat tube of most bicycles without needing to lift them into the stand. From there, the PRS-30 features 23" (58 cm) of height adjustment, elevating the bike to a comfortable position for removing wheels, tuning the drivetrain, cleaning the chain, or any other procedure.

Height adjustment is accomplished using an internally-geared mechanism driven by a simple hand crank. Height can also be adjusted using a common battery-operated drill with 10 mm socket for truly effortless lifting of heavy bicycles.

Built to the same standards as our legendary professional repair stands, the PRS-30 is built from all-steel components and powder coated for a lifetime of use. The PRS-30 features sturdy legs with integrated wheels for easy repositioning.

Features

• With no mains power required and a footprint no larger than a traditional bicycle repair stand, the PRS-30 easily lifts and lowers bikes up to 120 lbs. (54 kg) with ease
• The professional-grade 100-3D clamp lowers to a height of 74 cm, allowing you to clamp onto the seat post or seat tube of most bicycles without needing to lift them into the stand
• From there, the PRS-30 features 58 cm of height adjustment, elevating the bike to a comfortable position for removing wheels, tuning the drivetrain, cleaning the chain, or any other procedure
• Height adjustment is accomplished using an internally-geared mechanism driven by a simple hand crank
• Height can also be adjusted using a common battery-operated drill with 10 mm socket for truly effortless lifting of heavy bicycles
• Built to the same standards as Park's legendary professional repair stands, the PRS-30 is built from all-steel components and powder coated for a lifetime of use

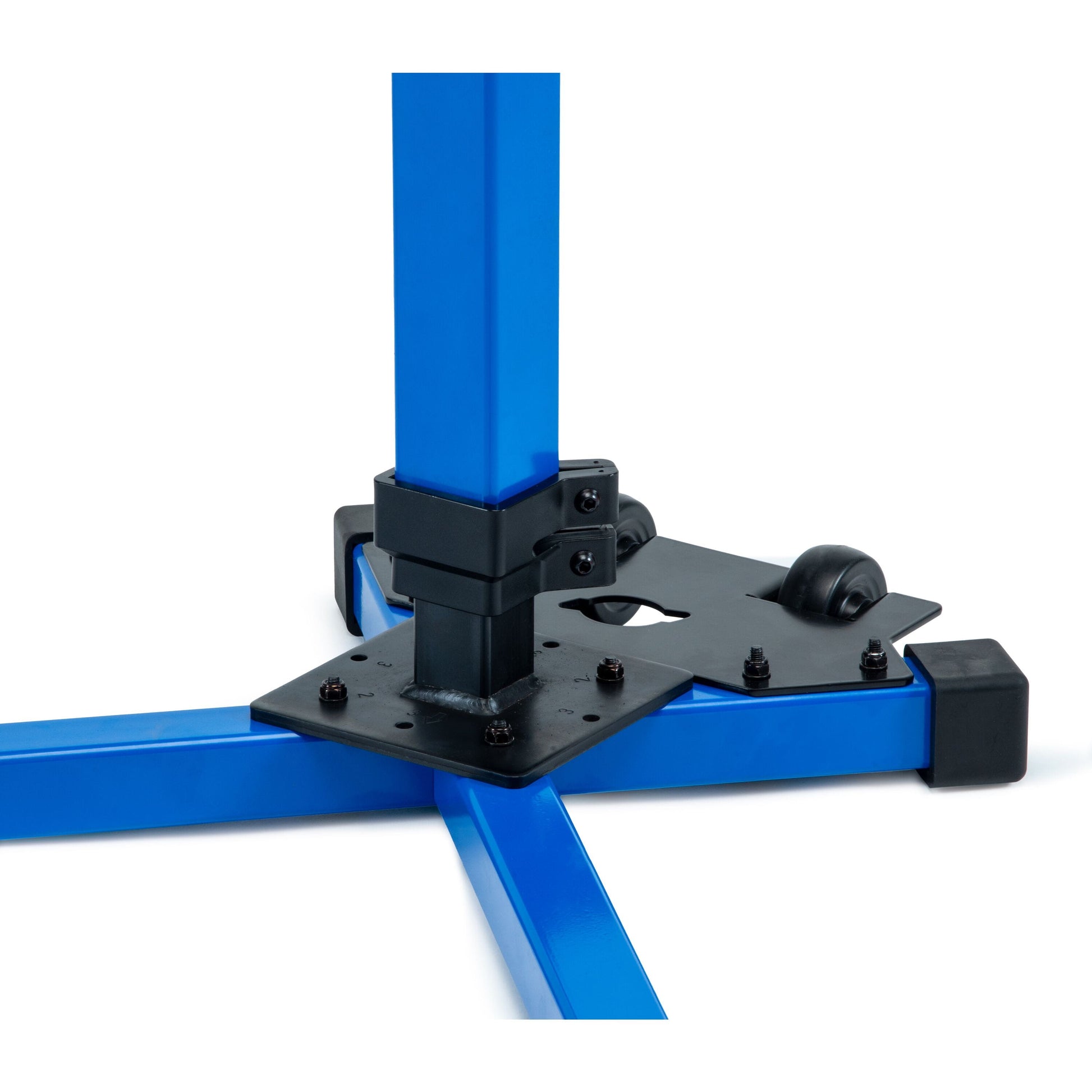

• The PRS-30 features sturdy legs with integrated wheels for easy repositioning

Specification

• Maximum weight capacity: 54 kg (120 lbs.)
• Product weight: 20 kg (44 lb)
• Clamp capacity: round and aero tubes from 23 to 76 mm (7/8" to 3") wide
• Jaw height: 70 mm (2.75")
• Clamp height: adjustable from 74 to 132 cm (29" to 52")
• Clamp can also be installed 10 cm (4") lower for a height range of 64 to 122 cm (25" to 48")
• Full stand height at maximum height adjustment: 157 cm (62")
• Replaceable jaw covers (part #1960)


Contents

• 1 x Park Tool PRS-30 Mechanical Lift Repair Stand
