The 50mm depth is engineered for racing, prioritising aerodynamics over the shallower 38mm option.
As a daily wheelset, it suits riders in areas without persistent high winds—though experienced riders accustomed to deep-section wheels can confidently use the GMR 50 in any conditions. Optimised for wide tyres at lower pressures, the GMR 50 Tubeless Rim-Brake delivers the low rolling resistance and compliance modern riders demand. Its 19mm internal width excels on rough roads and performs fastest with a 28mm tyre across most wind angles.
Features
- 50mm rim depth offers good aerodynamics without creating too much side profile
- High temperature resin for consistent braking on long descents.
- Extra stiff hub shell design.
- Proprietary precision machined alloy hubs.
- Sapim CX-Ray spokes with Sapim Polyax double square nipples.
- Sealed cartridge bearings.
- Hand-built assembly.
- Full Carbon Clincher, Tubeless Ready Rim.
- Rim brake.
Specification

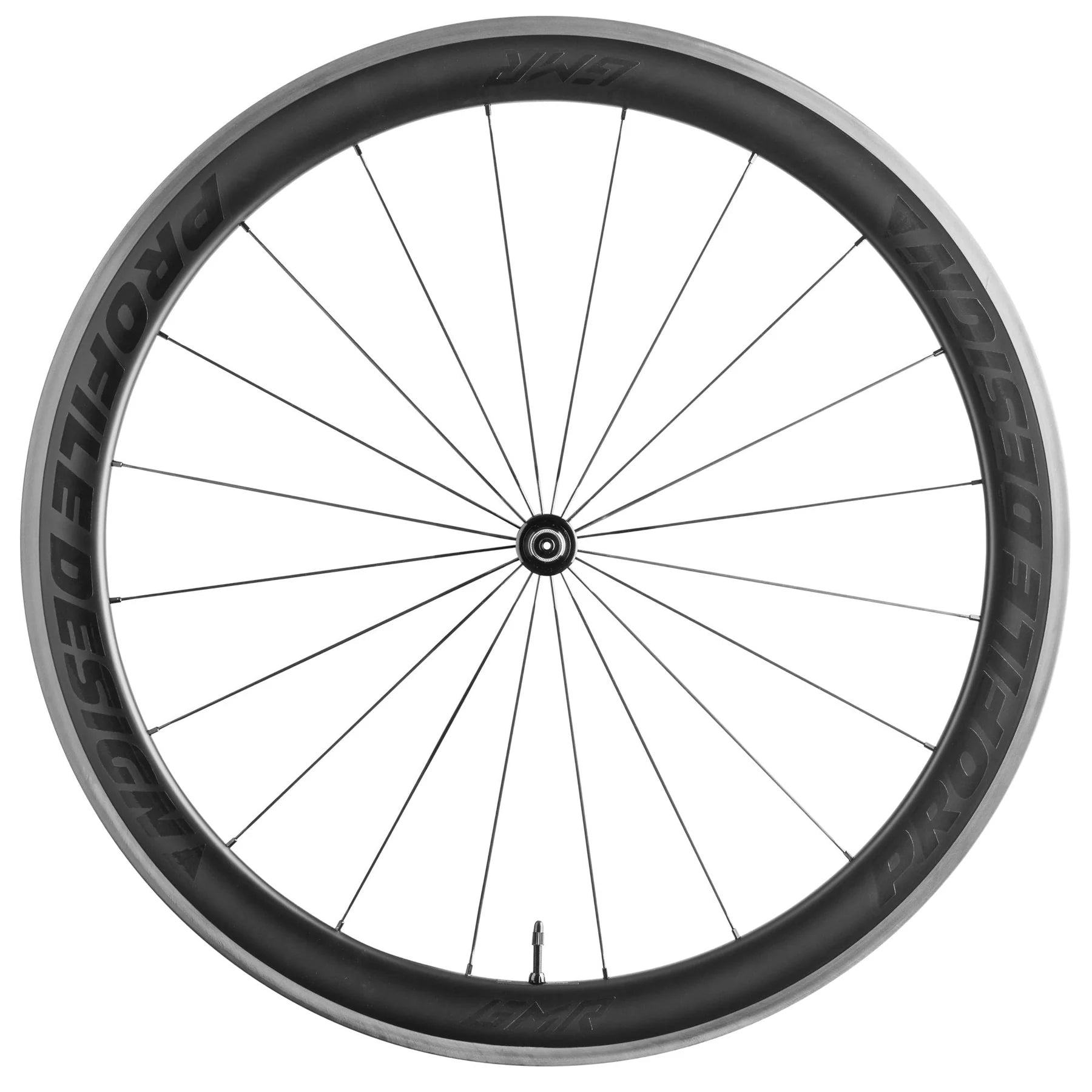

Front Wheel
-
Weight: 675g
-
Diameter: 700c
-
Hub: 6061-T6 Alloy
-
Bearing Size: 6901
-
Hub Compatibility: QR
-
Rim Depth: 50mm
-
Rim Width (Outside): 26mm
-
Rim Width (Inside): 19mm
-
Colour: UD Carbon
-
Spokes: Sapim® CX-Ray Aero Spoke
-
Spoke Shape: Straight Pull, Bladed
-
Spoke Count: 20
-
Spoke Pattern: Radial
-
Spoke Length: 260mm
-
Nipples: 7075 Alloy Polyax Double Square
-
External Nipples: Yes
-
Tyre Compatibility: Tubeless Ready (TLR) / Clincher
-
Max Tyre Pressure: 70-100psi (also refer to Tire sidewall)
-
Tire Width: 700c x 28-38mm

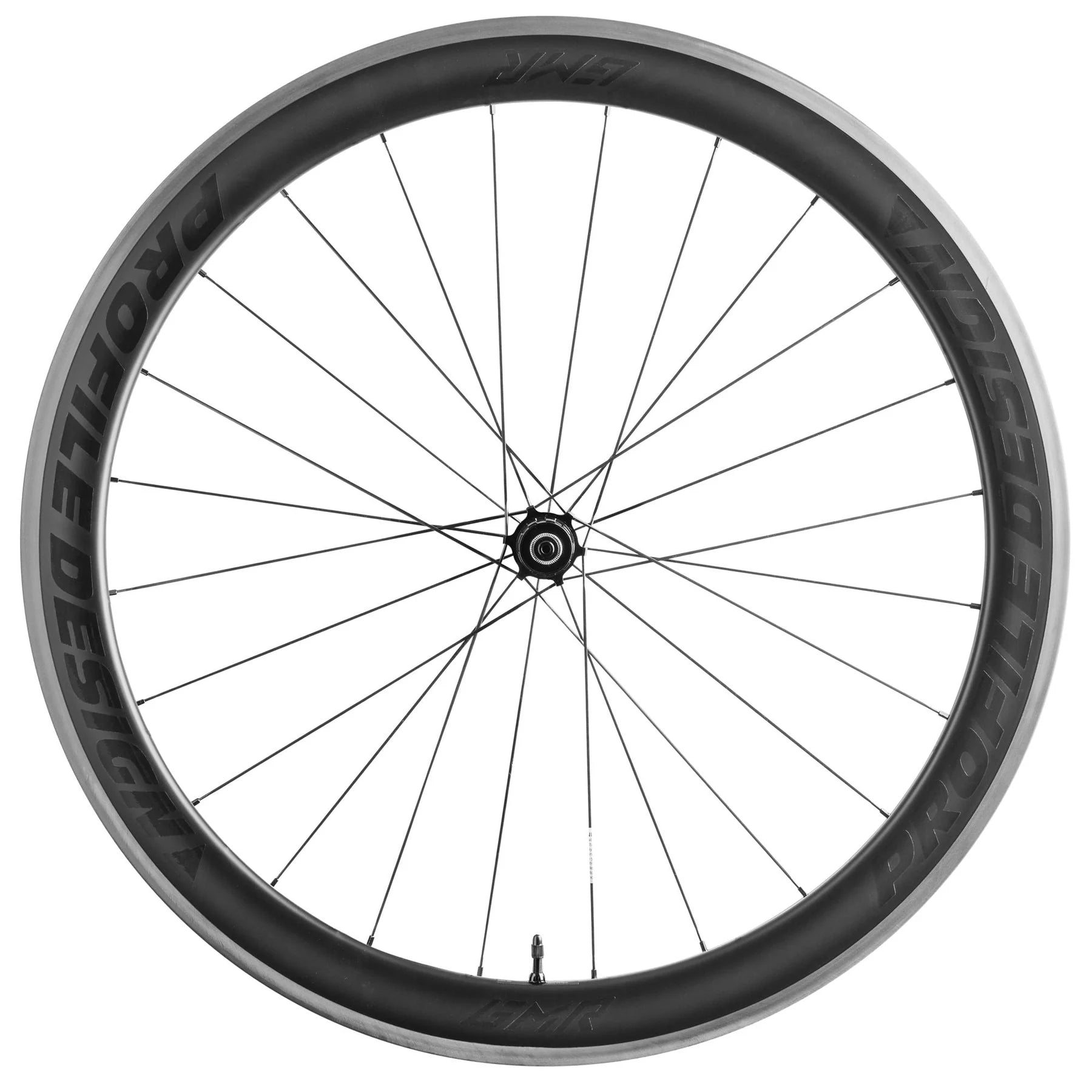

Rear Wheel
-
Weight: 866g
-
Diameter: 700c
-
Hub: 6061-T6 Alloy
-
Bearing Size: 6802
-
Cassette Compatibility: Shimano/SRAM: 9/10sp, 11sp
-
Hub Compatibility: QR
-
Rim Depth: 50mm
-
Rim Width (Outside): 26mm
-
Rim Width (Inside): 19mm
-
Colour: UD Carbon
-
Spokes: Sapim® CX-Ray Aero Spoke
-
Spoke Shape: Straight Pull, Bladed
-
Spoke Count: 24
-
Spoke Pattern Non-Drive: Radial
-
Spoke Pattern Drive: 2 cross
-
Spoke Length Non Drive: 261mm
-
Spoke Length Drive: 268mm
-
Nipples: 7075 Alloy Polyax Double Square
-
External Nipples: Yes
-
11-Speed Compatible Hub: Yes
-
12-Speed XDR Compatible Hub: Yes w/ (Aftermarket XDR Freehub purchase)
-
Tyre Compatibility: Tubeless Ready (TLR) / Clincher
-
Max Tyre Pressure: 70-100psi (also refer to Tire sidewall)
-
Tire Width: 700c x 28-38mm

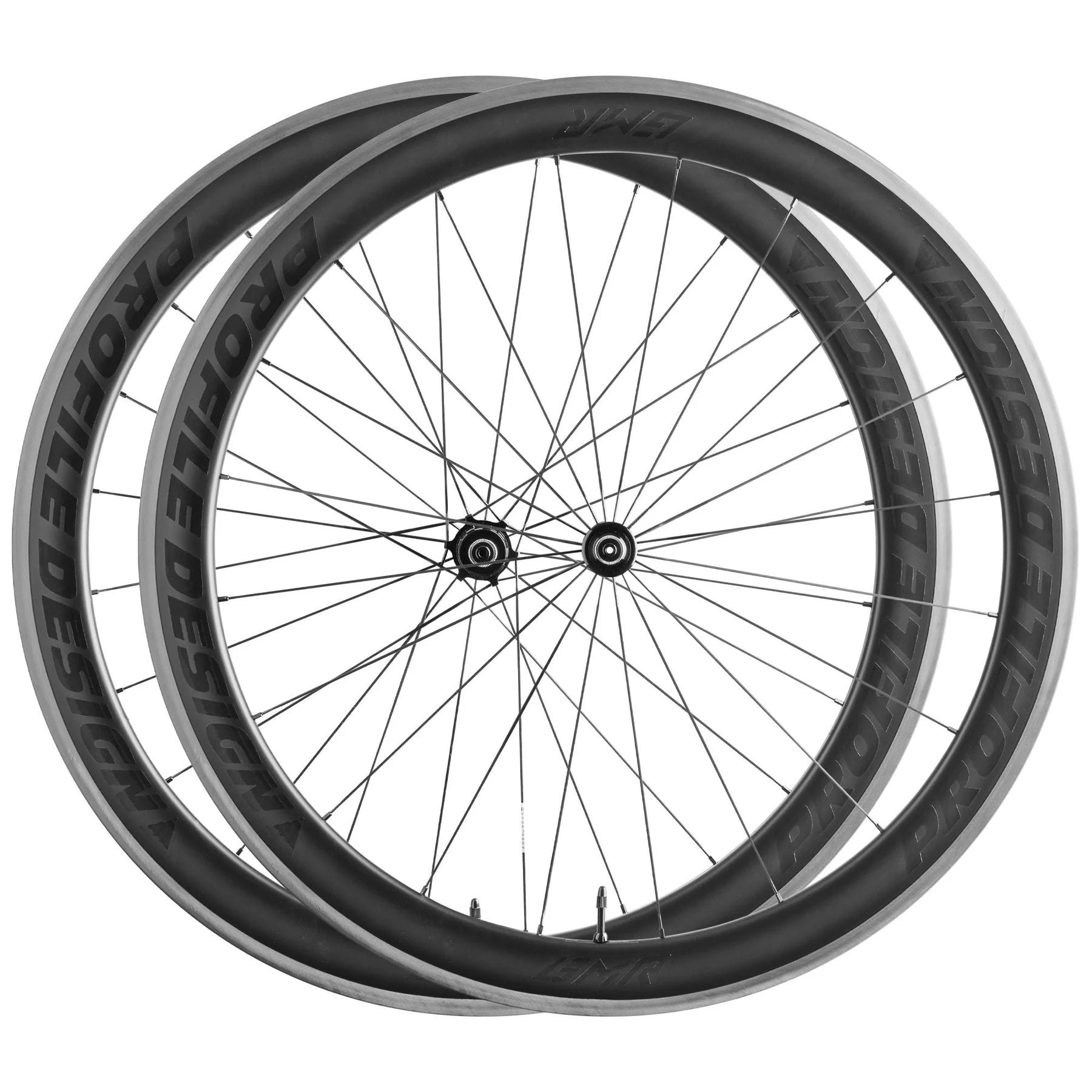

Wheelset
-
Set Weight: 1541g
-
Max Recommended Rider Weight (lbs): 220lbs
Contents
- Tubeless valves Stems.
- Tubeless Rim Strip(s)
- 10 Speed Cassette spacer – (as these wheels are designed for SRAM, Shimano 11 speed cassettes)
- Profile Design quick-release skewers.
- Profile Design Carbon-Specific P220 GMR Series brake pads.
- 2 x 260mm extra spokes
- 2 x 268mm extra spokes
- 2 x 261mm extra spokes
- 6 extra nipples
- 6 extra nipple washers
