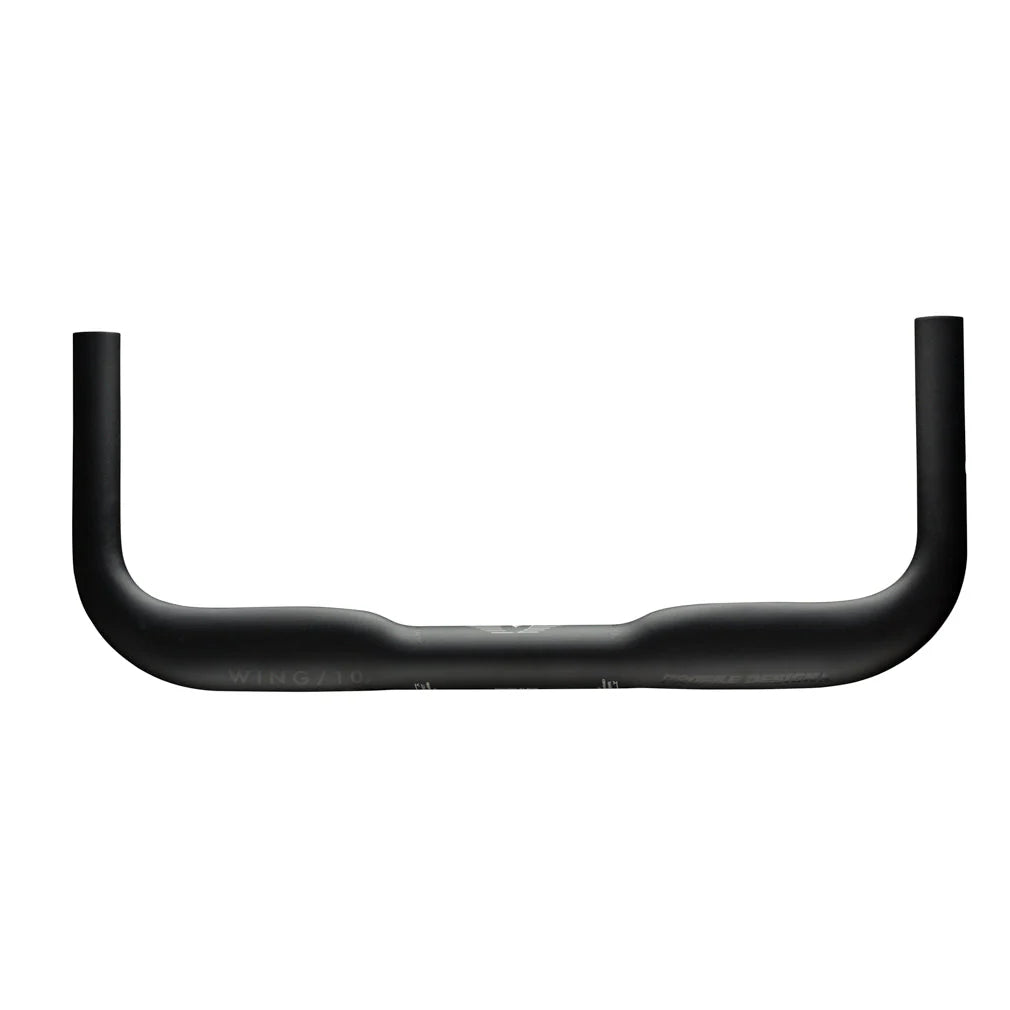

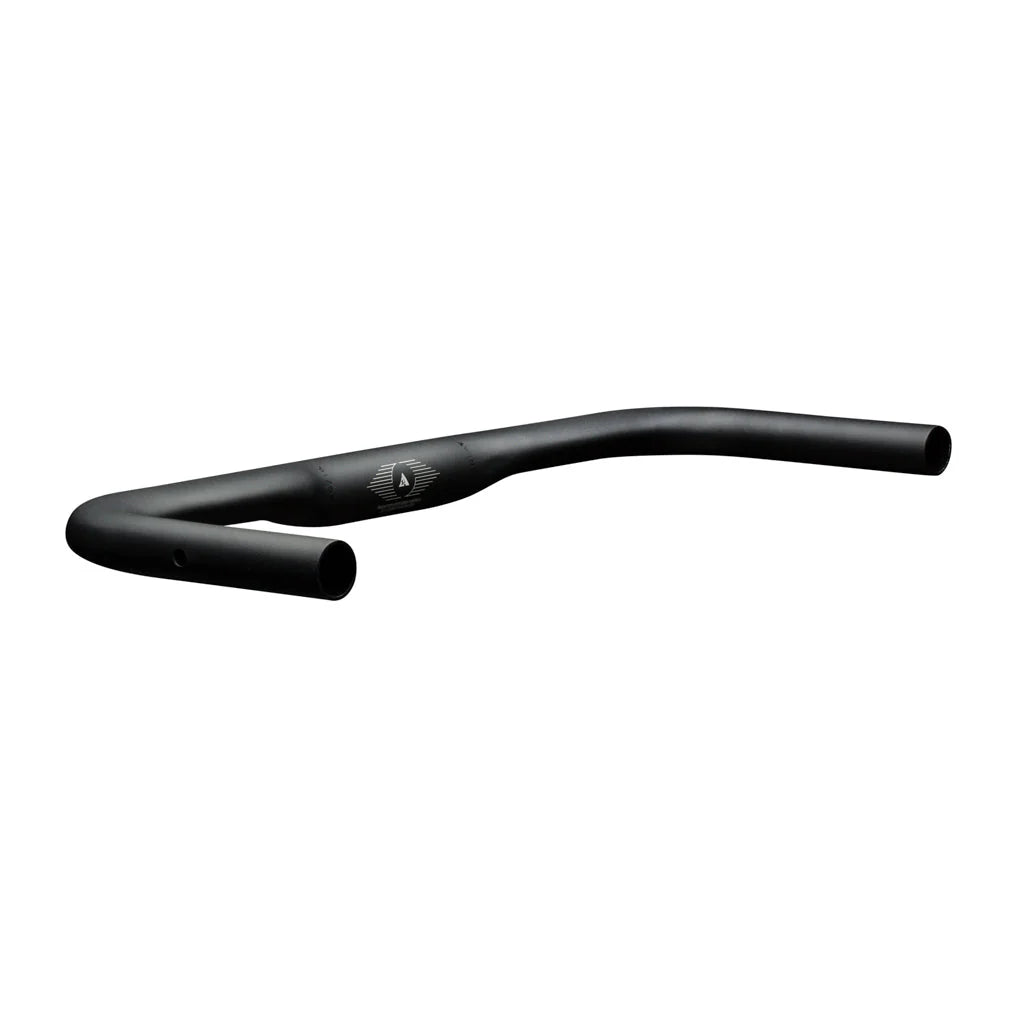

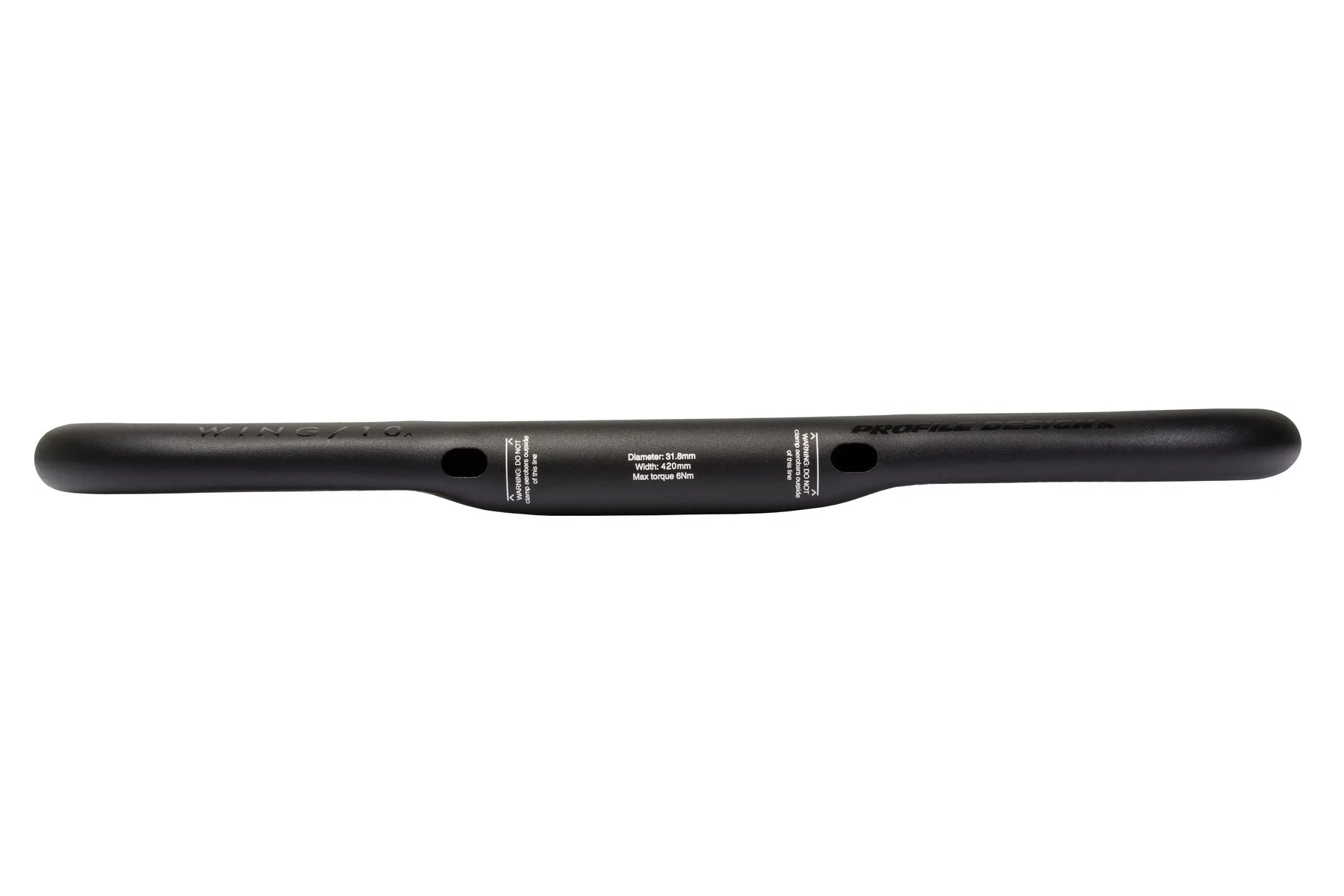

The WING/10a delivers exceptional fit versatility with its flippable design, allowing you to adjust grip height by 10mm to match your riding style and comfort preferences.
The straight hand grips can be fine-tuned for your ideal position. Built with a truncated airfoil (Kamm Tail) design, the WING/10a maximises aerodynamic performance while staying within UCI regulations. The refined underside eliminates cable routing inefficiencies for measurable speed gains. For optimal aero benefit, position the bar in the low setting to increase separation from the armrests and unlock the full performance advantage. Whether you're chasing marginal gains or prioritising comfort, the WING/10a adapts to your needs without compromise.
Features
- The WING/10a is available in the following widths: 36, 38, 40, 42, 44

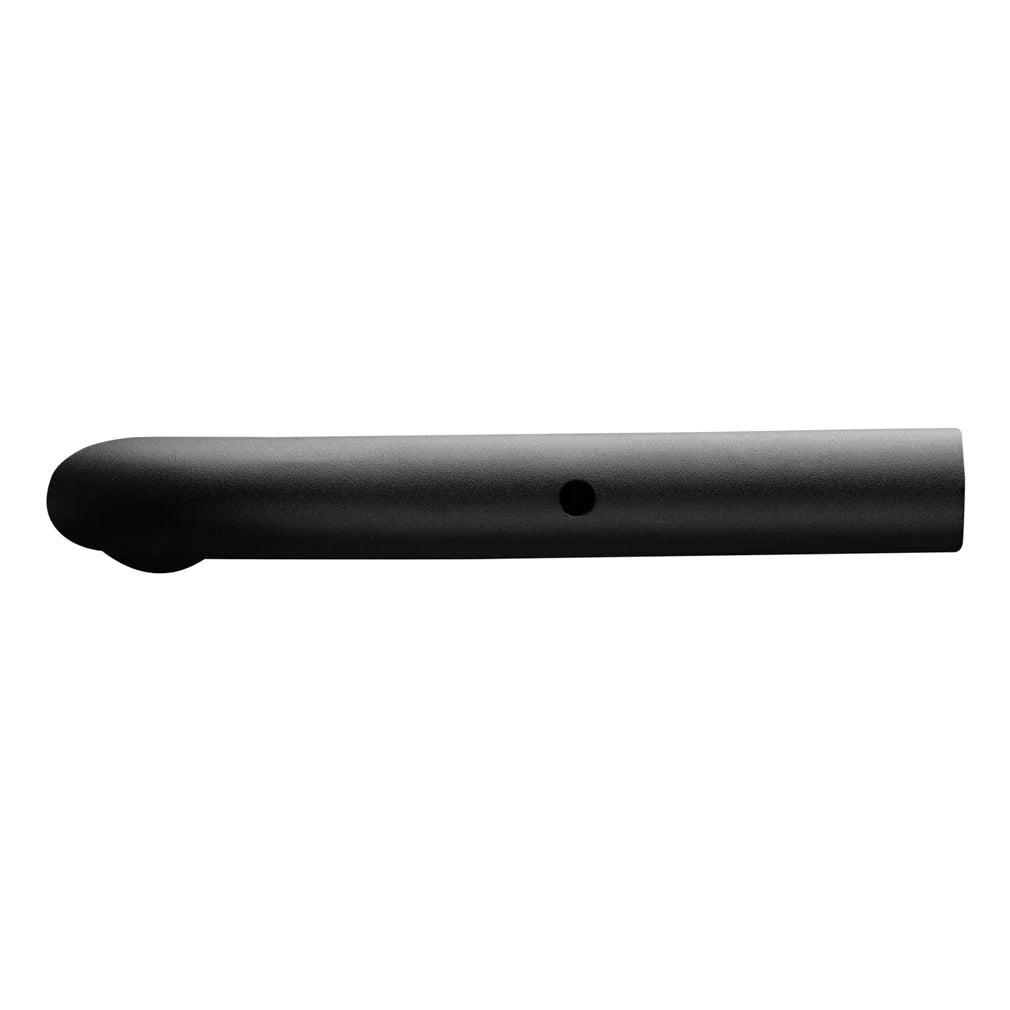

- The straight hand grips are part of the flippable design that allows the grip height to be modified by 10mm. The grip length can also be trimmed by up to 30mm.
- The WING/10a offers the greatest fit versatility of any alloy basebar we’ve previously made, allowing the rider to fine tune for their riding style and comfort preferences.
- An additional reason for the truncated design of the wing was to improve hand comfort when sitting up on the bar tops
Specification
- Weight: 265g (38cm)
- Width: 36, 38, 40, 42, 44cm (centre to centre)
- Centre Clamp Diameter: 31.8mm
- Clamp Width: 100mm (on all bar sizes)
- Clip Compatible: Yes
- Material: 6061-T6 AL
- Finish: Matte Black
- Pursuit Reach: 160mm (centre to tip)
- Grip Offset: ± 5mm
- Pursuit OD/ID: 23.7 / 20.3mm
- Drop Out sweep: No
- Maximum cut distance on grip: 30mm
- Grip Stack High position: 15.9mm
- Grip Stack low position: 5.9mm
- Only compatible with internally routed brake levers
- Di2 Compatible
- UCI 3:1 compliant
Contents
- 1 x Profile Design WING/10a
