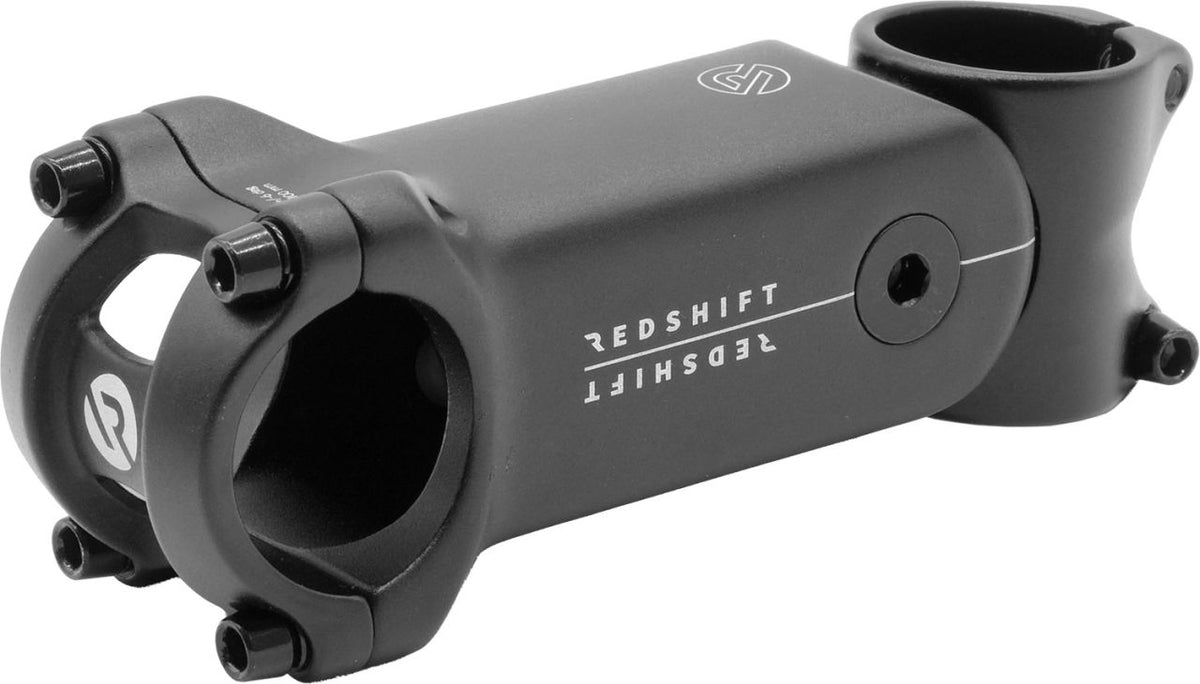

REDSHIFT SHOCKSTOP 6° 31.8mm SUSPENSION STEM 1-1/8"

Up to 20 mm of effective travel dampens shocks and vibrations, significantly reducing fatigue in your hands, arms, shoulders and upper body.

The five included elastomers let you fine-tune suspension characteristics to your exact needs, whilst the modern design integrates seamlessly with any current bike aesthetic.

Engineered from 6061 T6 aluminium with a 1 1/8" steerer clamp and 31.8 mm handlebar compatibility, this 6° FlipFlop stem suits drop bars and flat bars alike. Supports riders up to 135 kg and rated ASTM F2043 Class 2 for on and off-road riding with drops under 15 cm. Available in six lengths from 55 mm to 110 mm, each with full fitting hardware included.

Features

• Up to 20 mm of effective travel to dampen shocks and vibrations
• Reduces fatigue in the hands, arms, shoulders and upper body
• Individually adjustable suspension characteristics thanks to five interchangeable elastomers
• Increases comfort and control on rough terrain
• Supports more efficient riding by minimising energy loss due to frame vibrations
• Discreet, modern design to complement current bike designs
• Includes fitting hardware and an elastomer set for individual tuning

Specification

• Range of use: gravel biking, road cycling, bikepacking and e-bikes
• Angle: 6° (FlipFlop)
• Effective travel: up to 20 mm
• Handlebar compatibility: drop bars and flat bars (55/70 mm Drop Bars only)
• Handlebar clamp diameter: 31.8 mm
• Steerer clamp diameter: 1 1/8” (28.6 mm)
• Steerer tube clamp stack height: 40 mm
• Max rider weight: 135 kg
• ASTM F2043 classification: 2 – (For on and off-road riding and drops less than 15 cm)

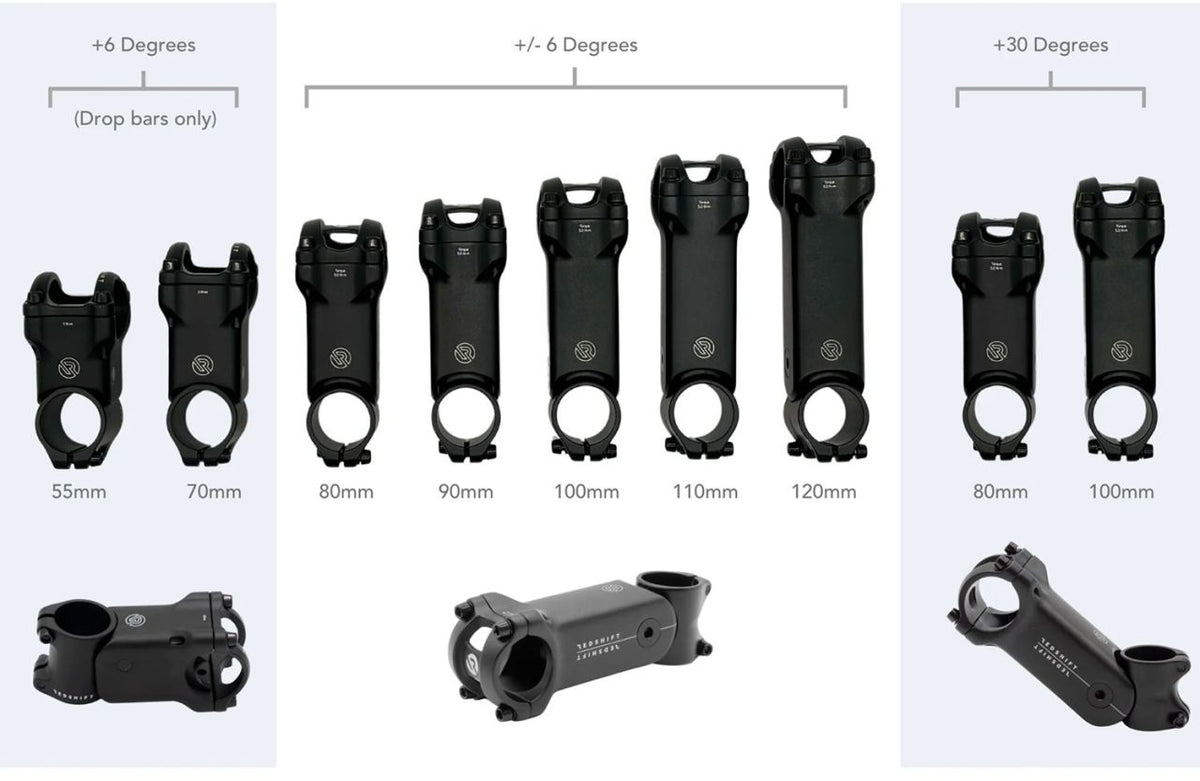

Length

• 55 mm
• 70 mm
• 80 mm
• 90 mm
• 100 mm
• 110 mm

Material

• 6061 T6 aluminium

Weight

• 55 mm - 185 g
• 70 mm - 212 g
• 80 mm - 256 g
• 90 mm - 266 g
• 100 mm - 278 g
• 110 mm - 290 g

Contents

• 1 x Redshift ShockStop 6° 31.8mm Suspension Stem, 1 1/8"
• 5 x swappable elastomers (2 pre-installed, 3 additional in box)
