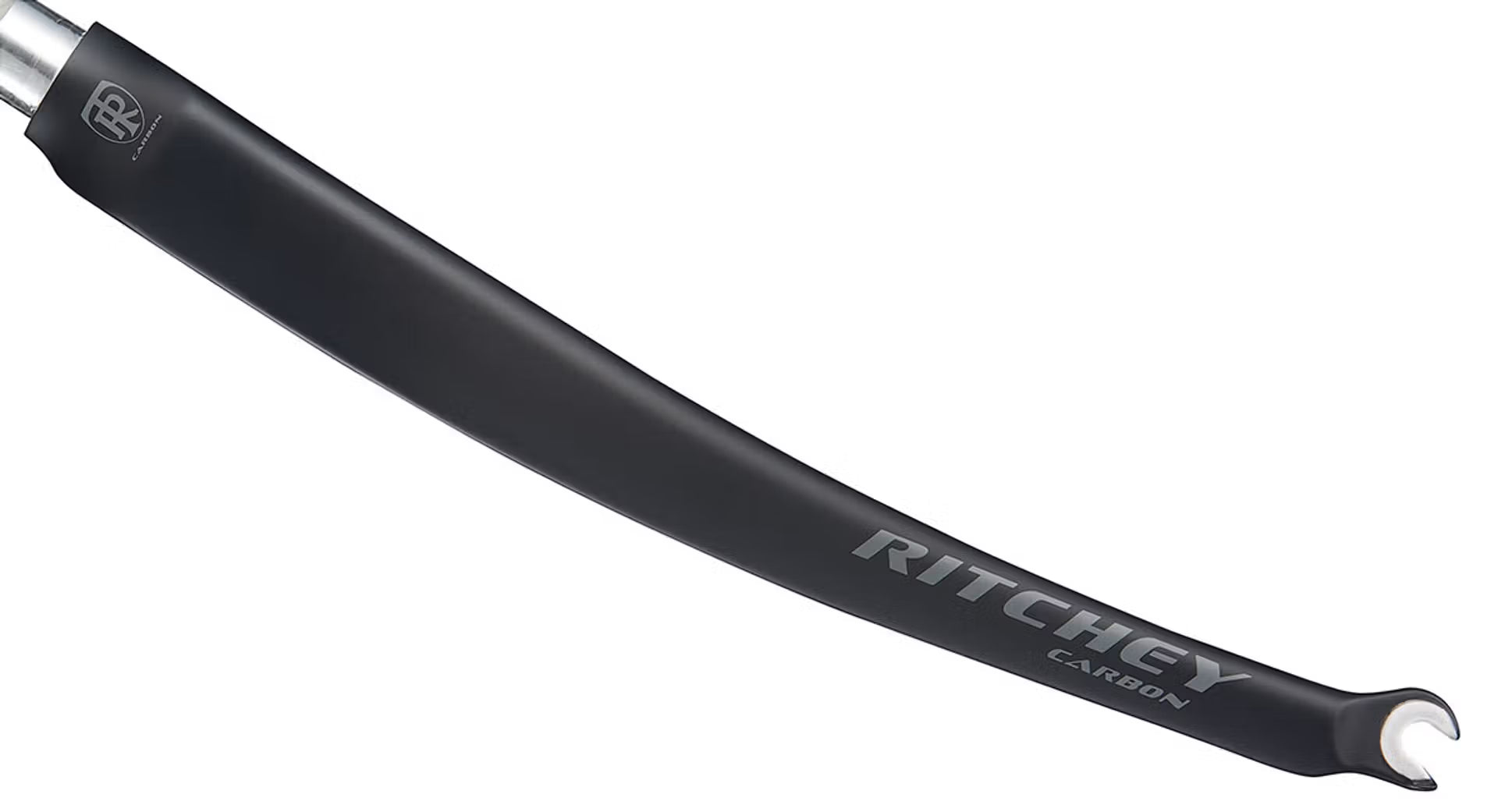

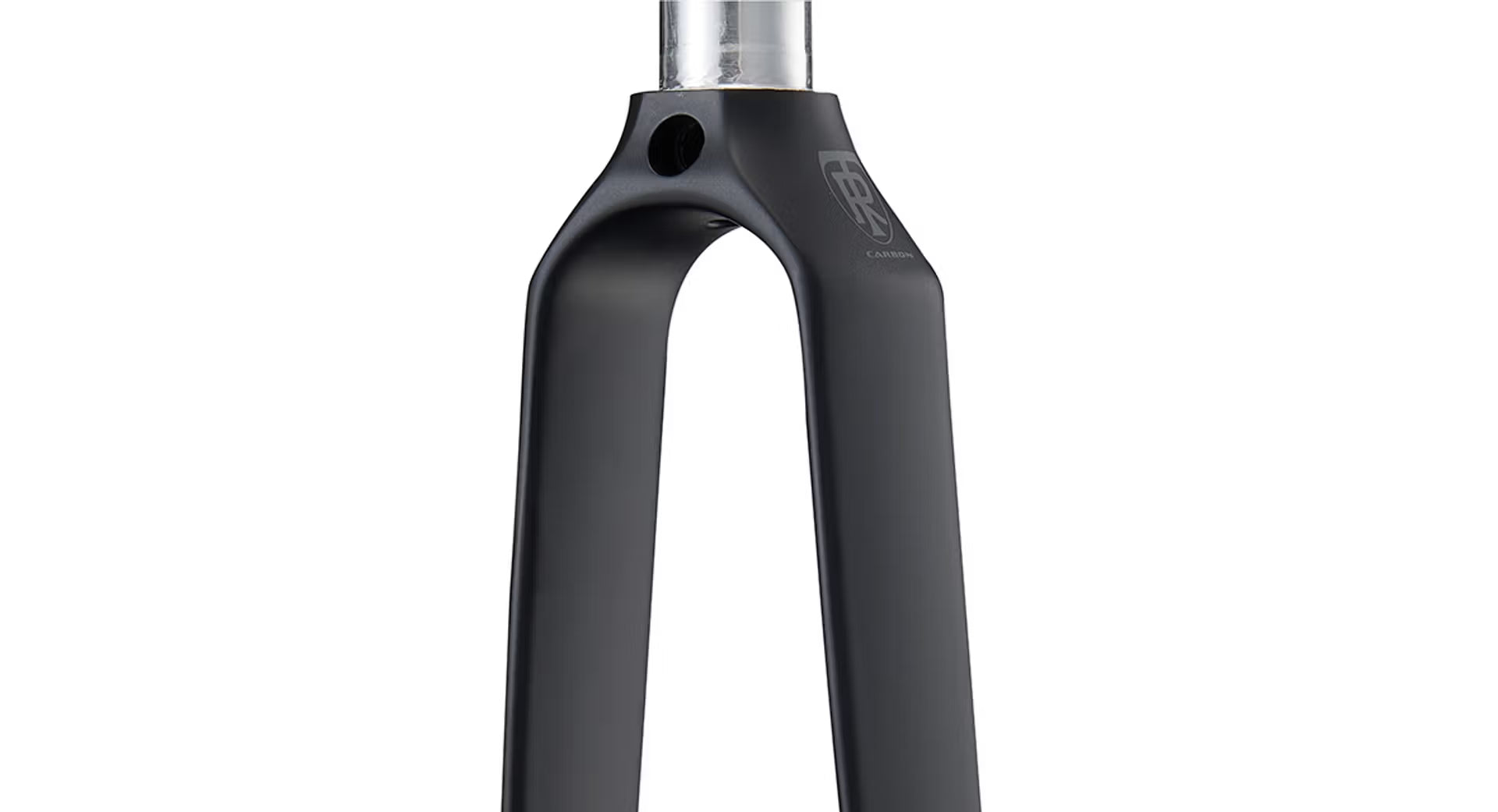

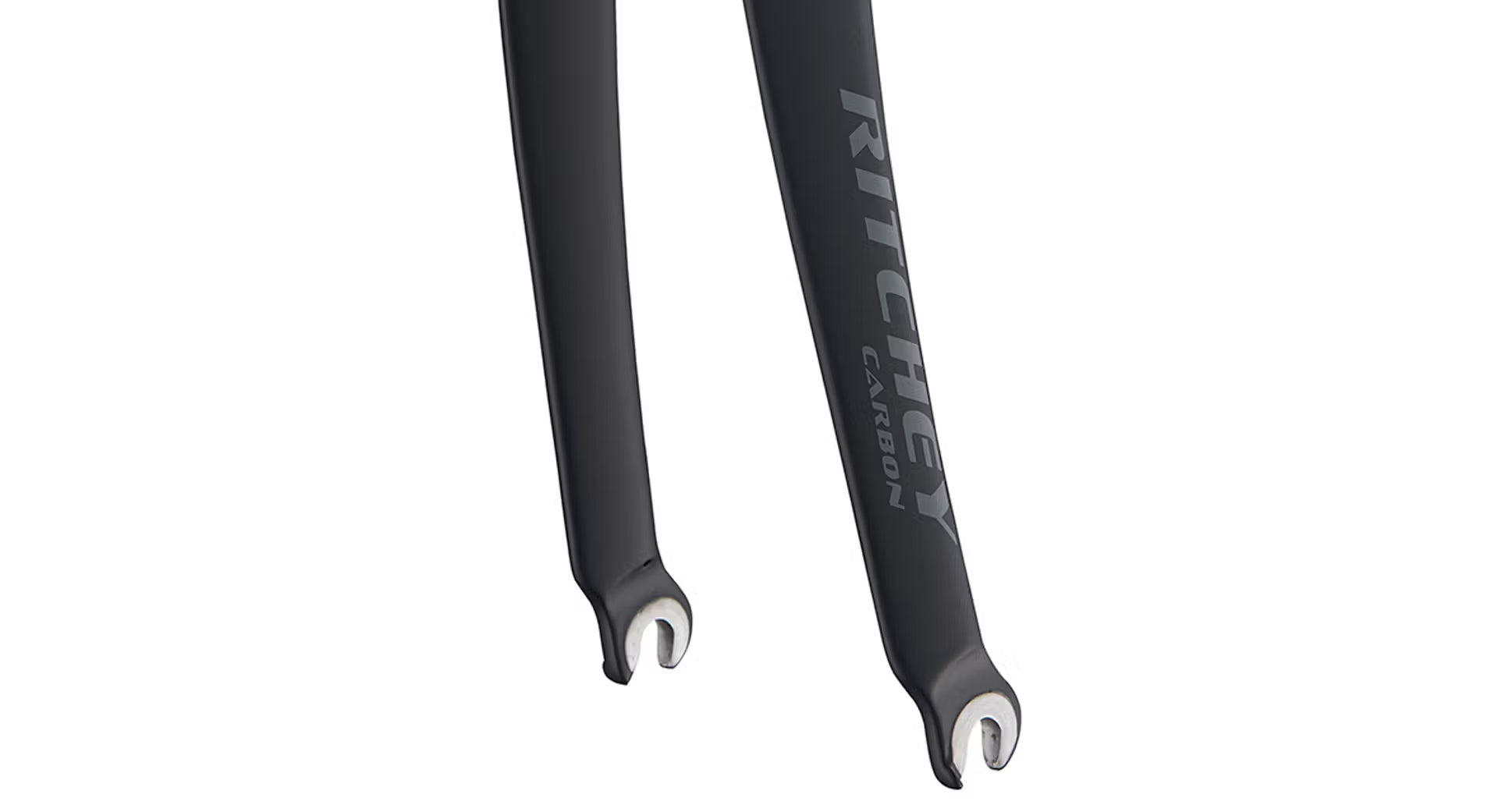

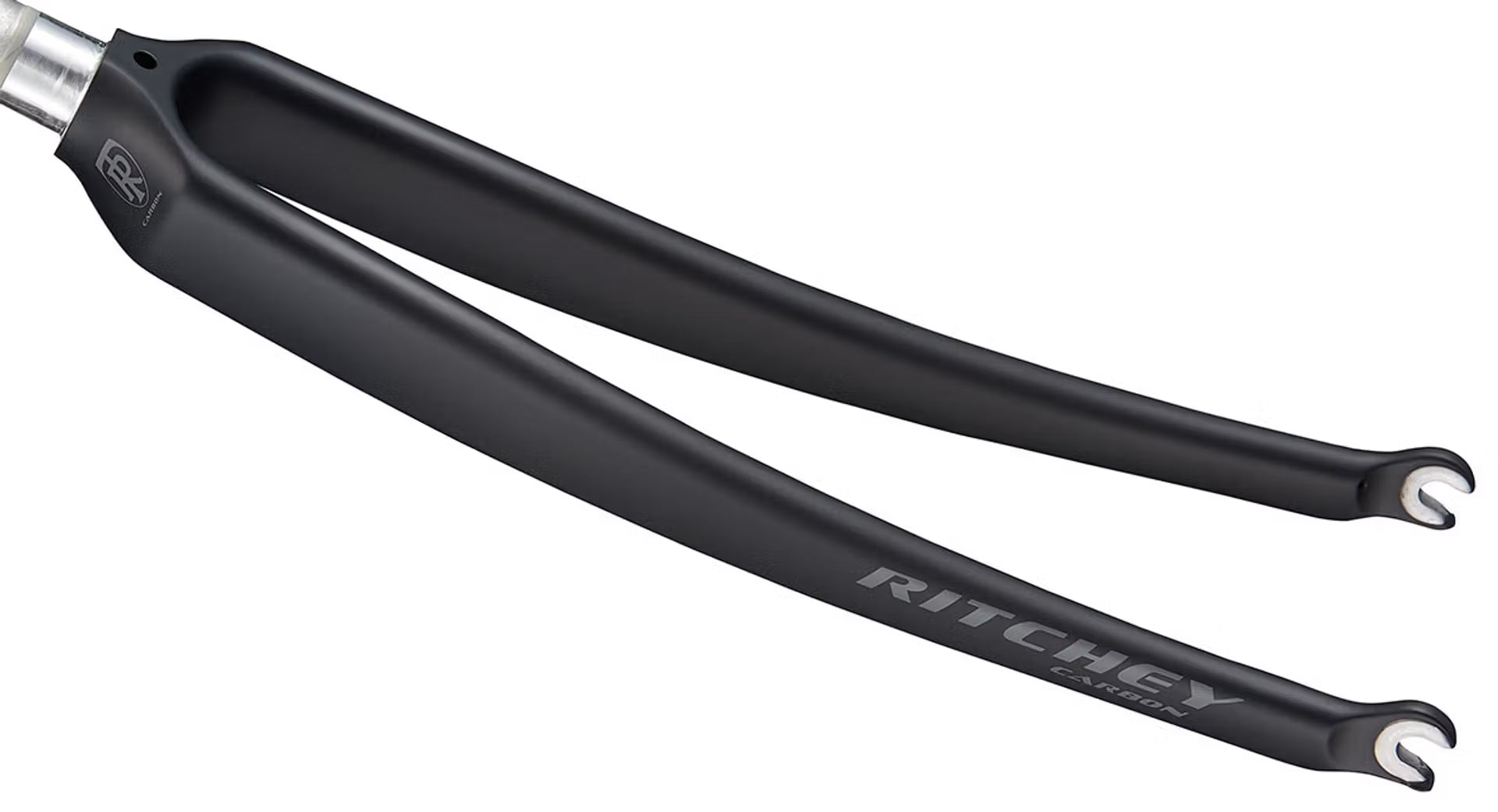

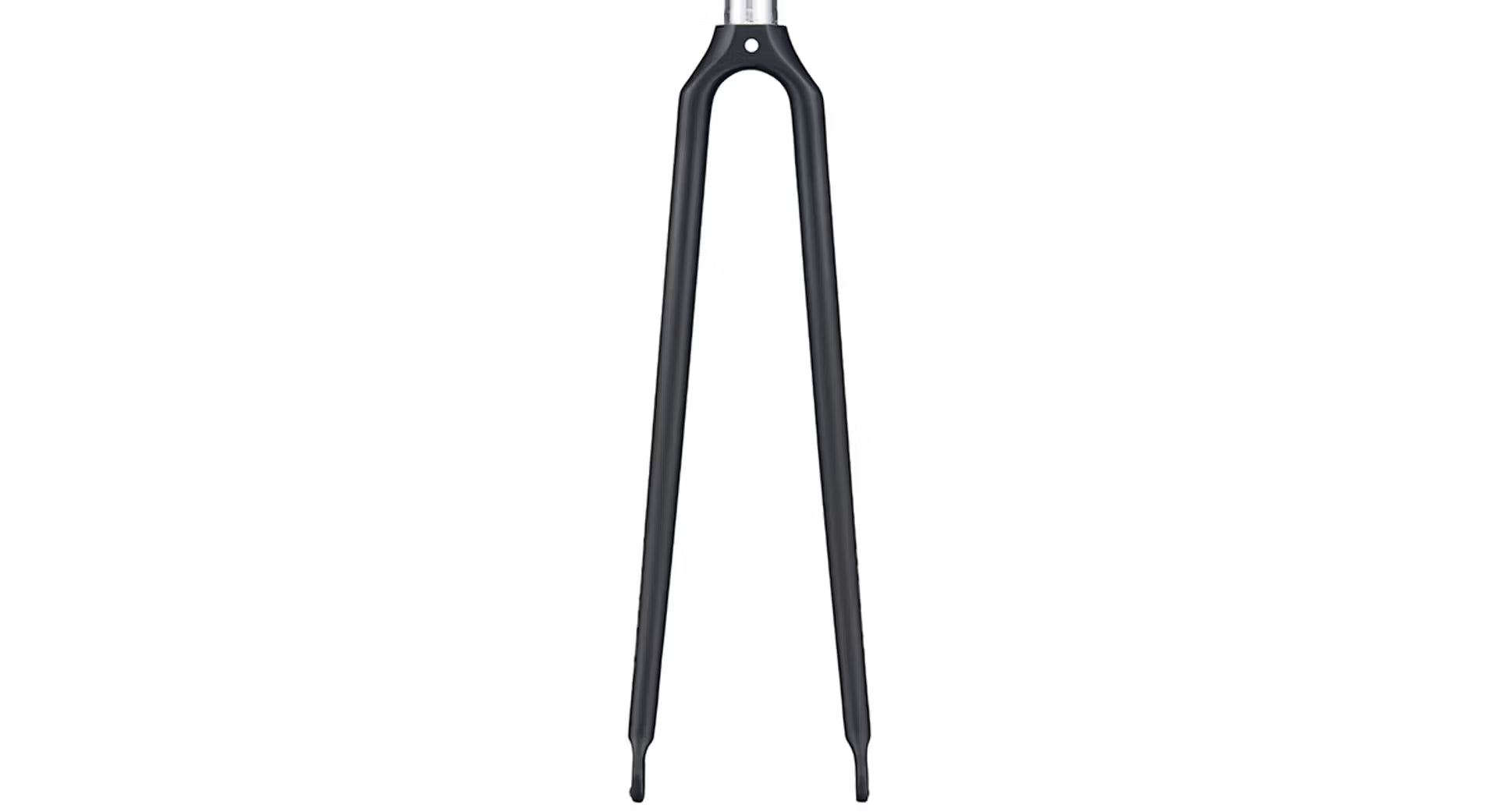

The Ritchey Comp Carbon Road Fork was designed for how you love to ride.
Built with High Modulus Fibre (HMF), this choice road fork offers superior strength. It's strong without sacrificing a pleasurable road feel. Smooth internal fibre flow in the crown/steerer area delivers the best force transfer from crown to shaft and increased impact strength. The orientation of the fibres have been optimized to absorb and dissipate loads, which delivers a confident and comfortable ride. The fork also uses various fibre types based on their specific properties to manage different load types as best as possible in the areas in which they occur - such as side load, torsion and impact.
Specification
-
Material: Carbon blades - alloy steerer, crown and dropouts
-
Steerer: 1" or 1-1/8" straight
-
Axle-crown: 365.5mm (1") - 368mm (1-1/8")
-
Rake/Offset: 43mm
-
Brake compatibility: Rim brakes
-
Crown Diameter: 34mm (1") - 45mm (1-1/8")
-
Steerer length: 300mm
-
Spacing: 39mm (1") - 32mm (1-1/8")
-
Axle Compatibility: 100x9mm quick release (QR not included)
-
Wheel and tyre compatibility: 700 x 25mm (depending on tire/rim manufacturer)
-
Minimum Tyre Clearance: 4mm
Colour
Weight
- 525g (with uncut steerer)
Scope of delivery
- 1 x Ritchey Comp Carbon Road Fork
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
