The front of the new Ritchey Switch Stem features the tried-and-true Ritchey C220 handlebar clamp design seen on many Ritchey stems, but we've increased its width for additional stiffness.
Beyond that, everything else on this innovative stem is new and designed to stealthily conceal cables into the headset and frame. Up to four cables – such as for the rear brake, shifter, or electronics - are situated within a unique enclosed channel on the underside of the stem, which then effortlessly integrate with the Ritchey Logic-E 1.5" headset – cleanly routing the cables into the frame. The Ritchey Switch Stem includes a matching compression cap.
Features
- The Ritchey Switch System is an innovative integrated system designed to easily conceal internally routed cables, wires, and hydraulic lines from the handlebar into bicycle frames with straight 1.5" head tubes together with tapered 1-1/8" – 1.5" forks.
- 3D Net Shape Forging - Process that forces the material grain to follow the product shape for greater structural strength.
Specification
-
Material: 6061 alloy
-
Bolts: Stainless steel black
-
-
-
Bar clamp diameter: 31.8mm
-
-
Steerer diameter: 1-1/8" (28.6mm)
-
Stack height: 51mm (43mm stem + 8mm cable guide)
Colour
Weight

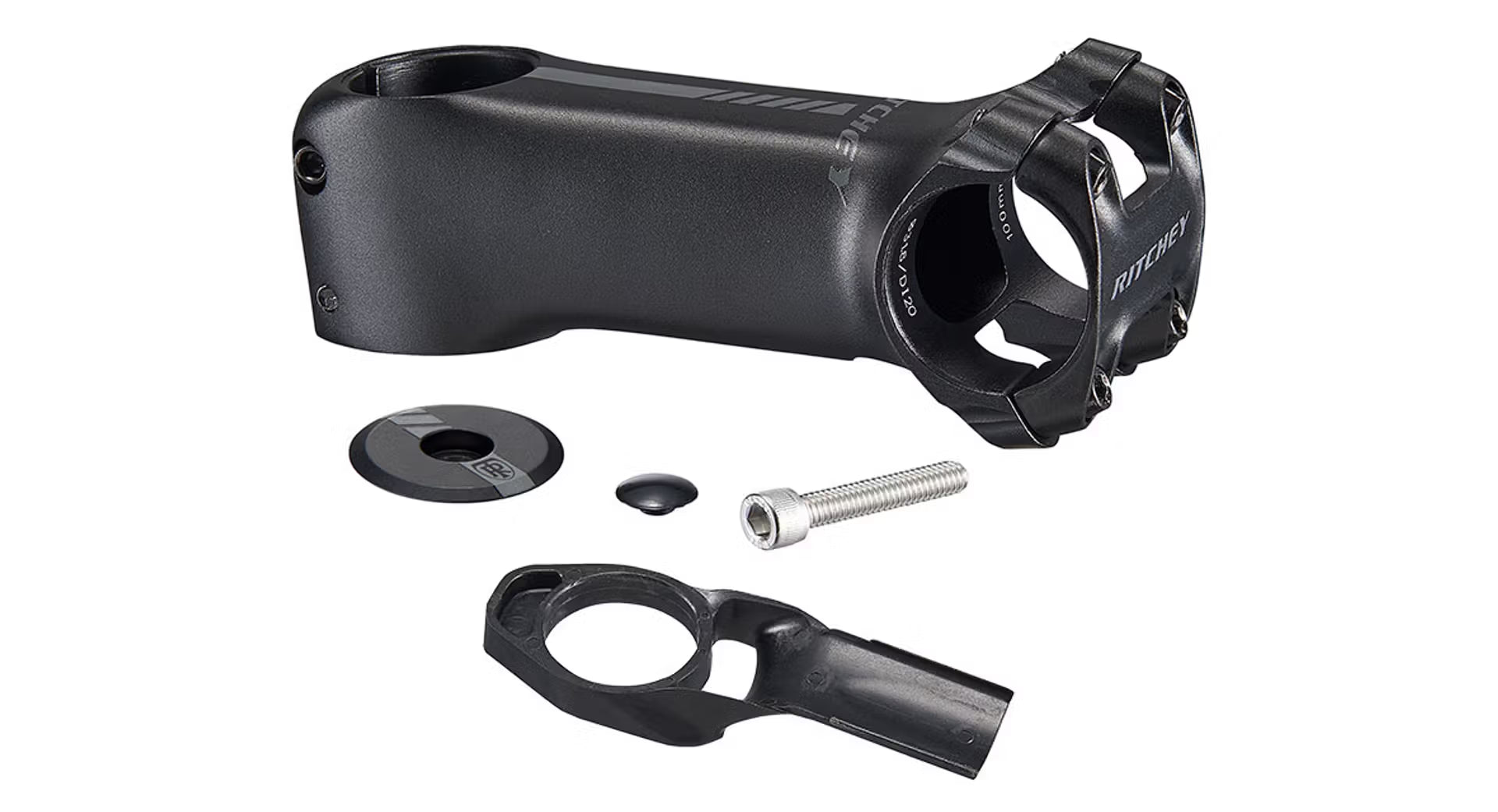

Contents
- 1 x Ritchey Comp Switch Stem
- Matching compression cap
- Cable guide included
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
