Since its introduction a few years ago, the Butano has been adopted by legions of gravel lovers and road riders.
Its modest drop flare angle offers adventurous off-road riders an increased level of control and confidence compared to more traditional drop bars. Yet, the drop flare is not so radical as to make more traditional road riders bristle at its aesthetics.

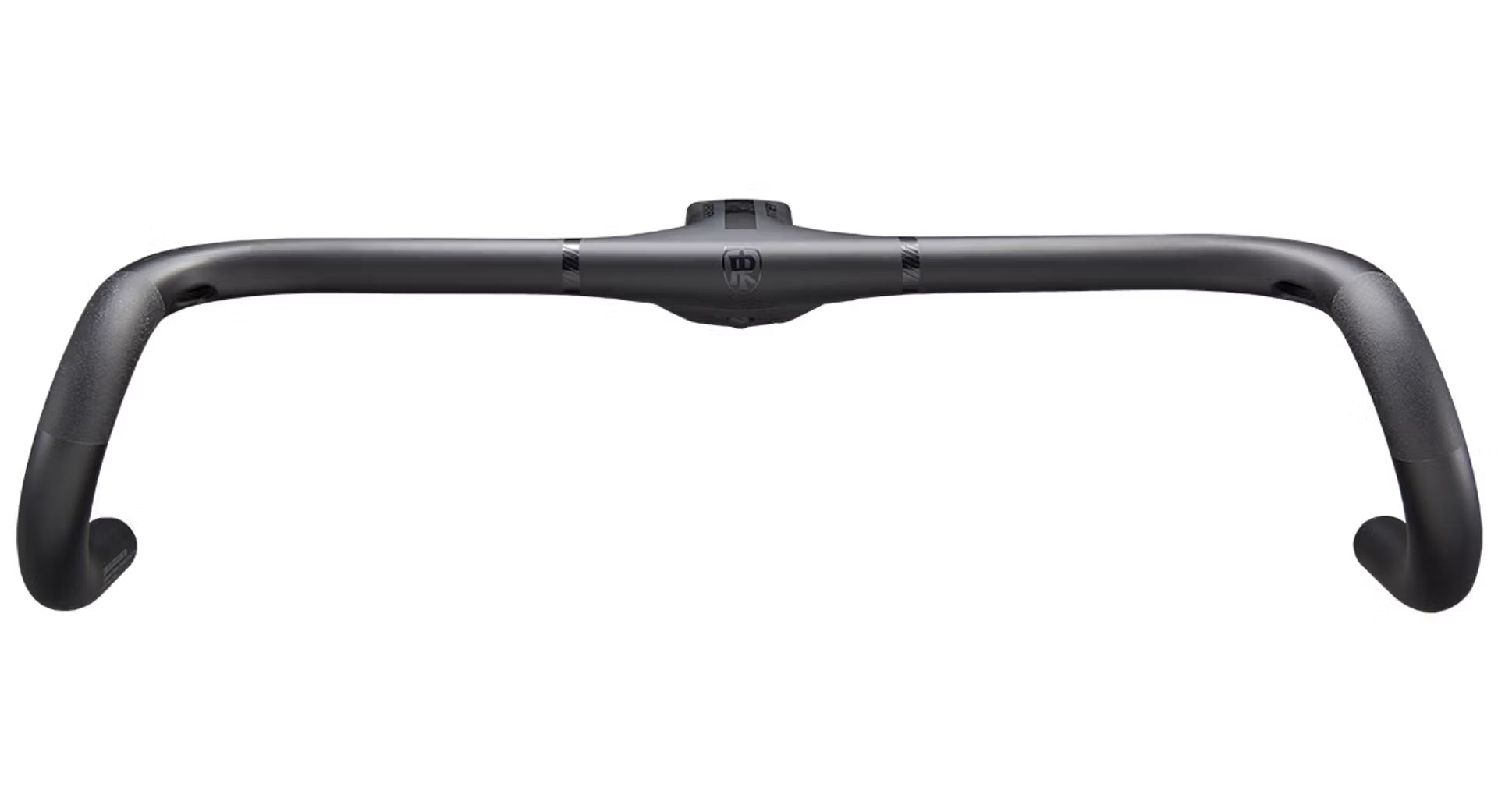

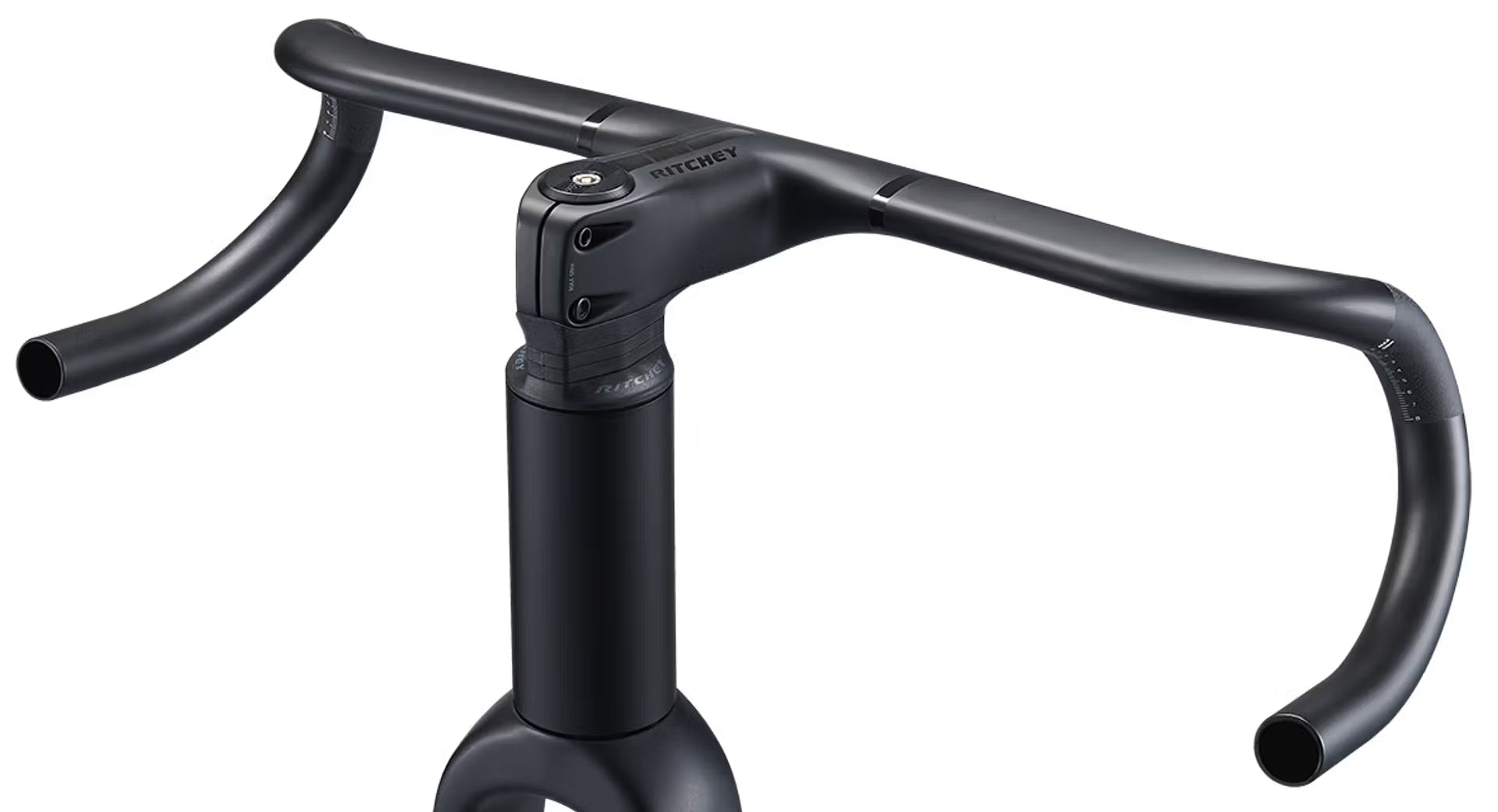

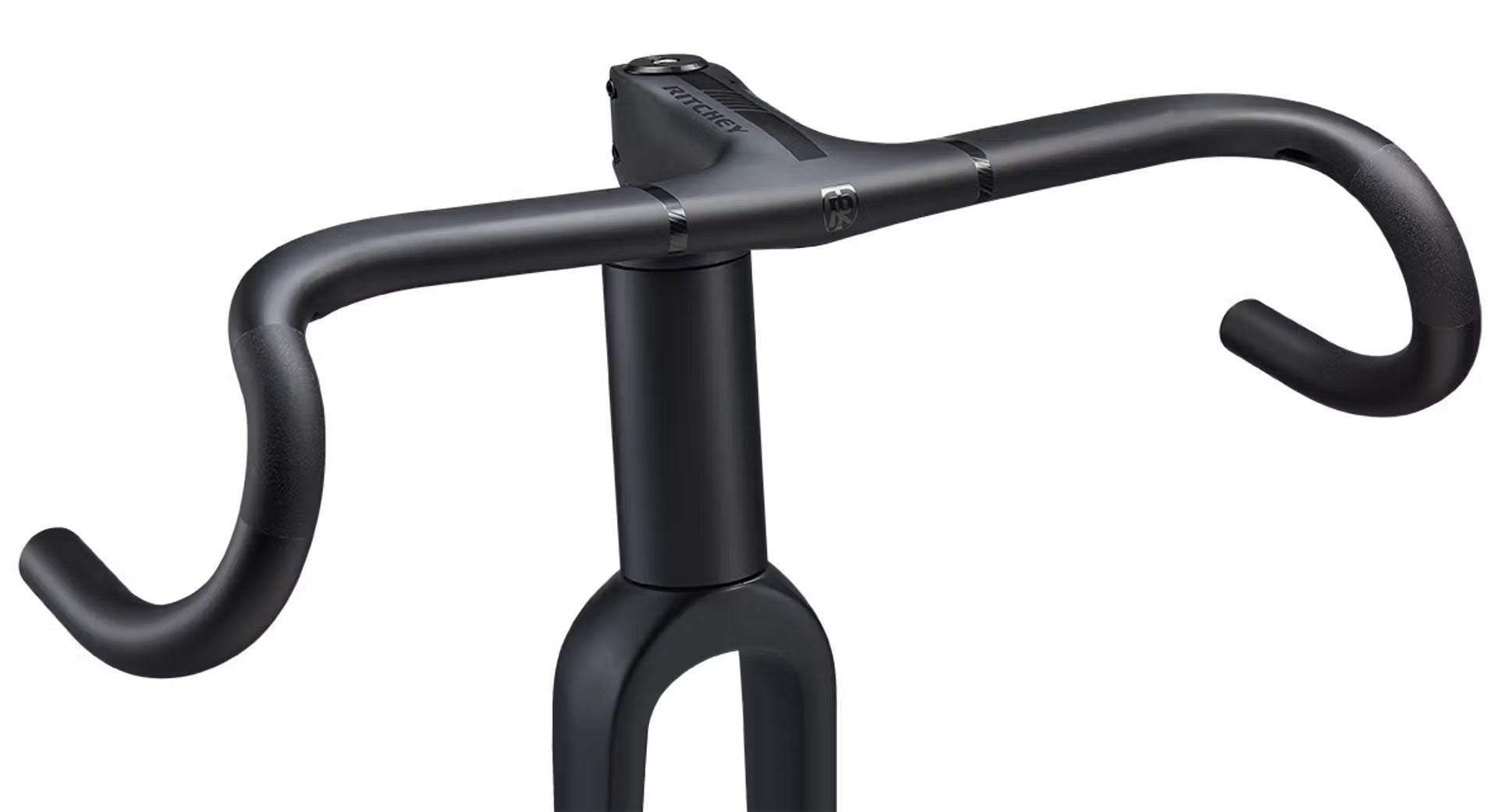

Taking cues from the more recent Ritchey road combo bars, such as the SoloStreem and MonoCurve, the SuperLogic Butano Ridge fulfills the demands of adventurous riders calling for a carbon fiber version of the Butano. We’ve doubled down on the original concept of the Butano by blessing it with the SuperLogic treatment and delivering an integrated bar/stem combo that's lightweight, stealthy, and more than capable of handling the rough stuff when it turns into fast rough stuff.

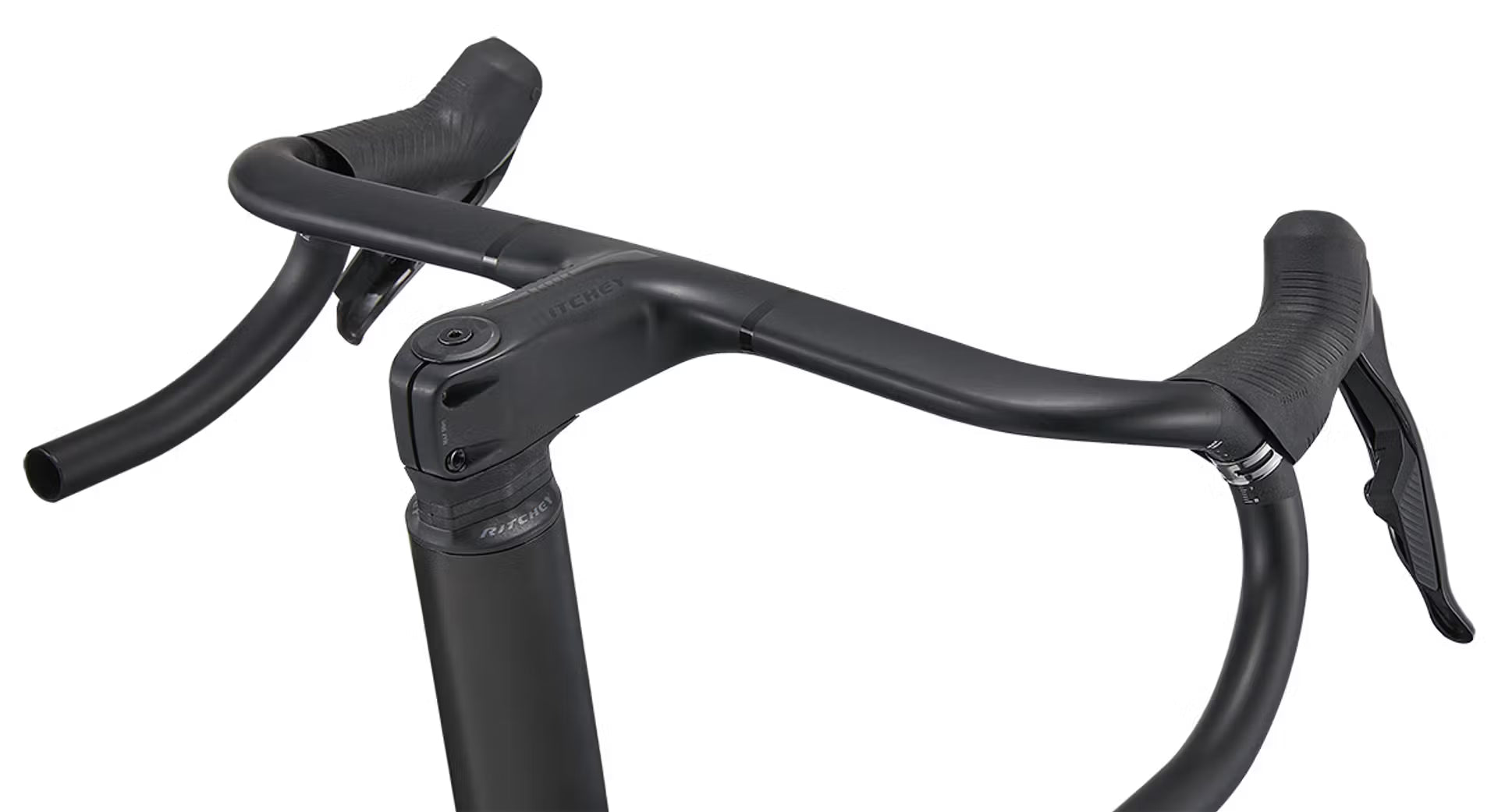

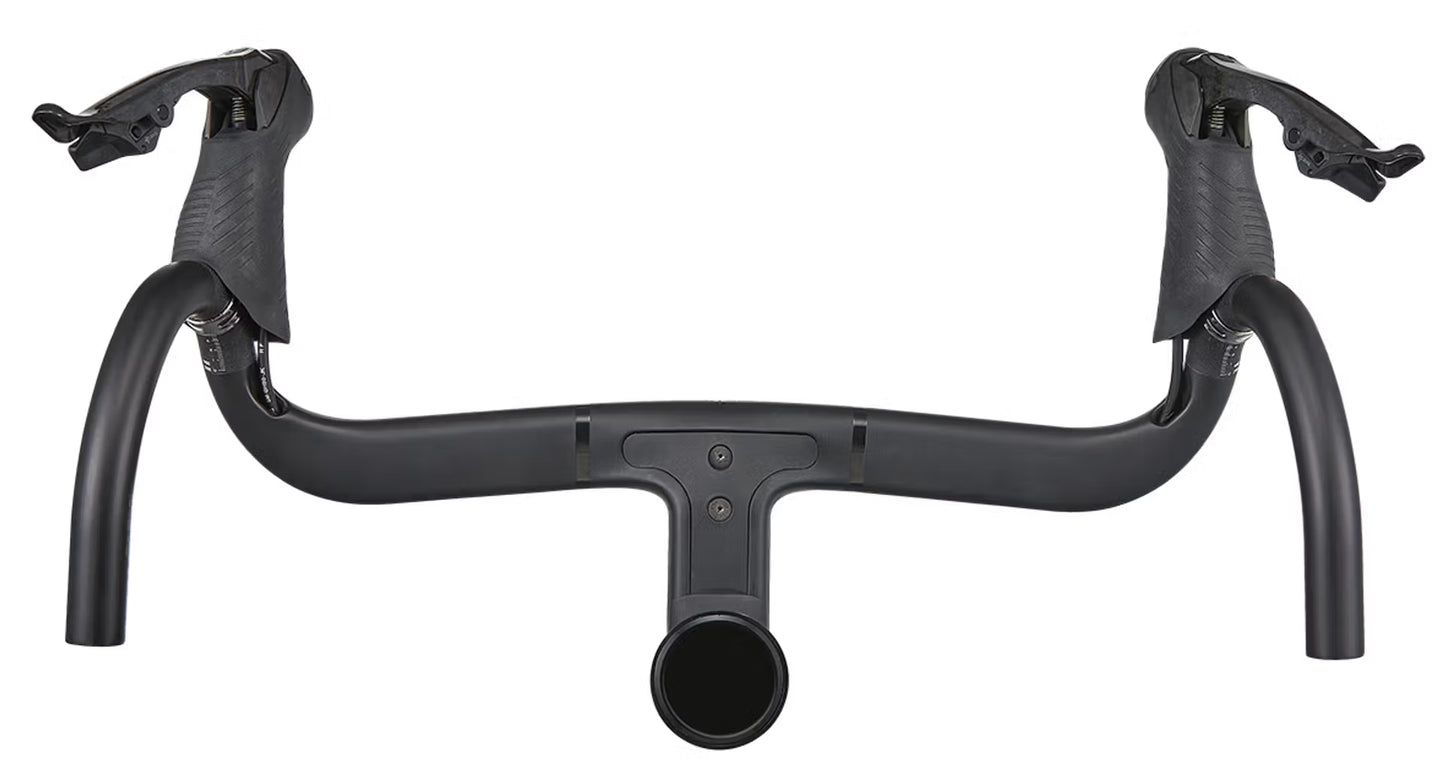

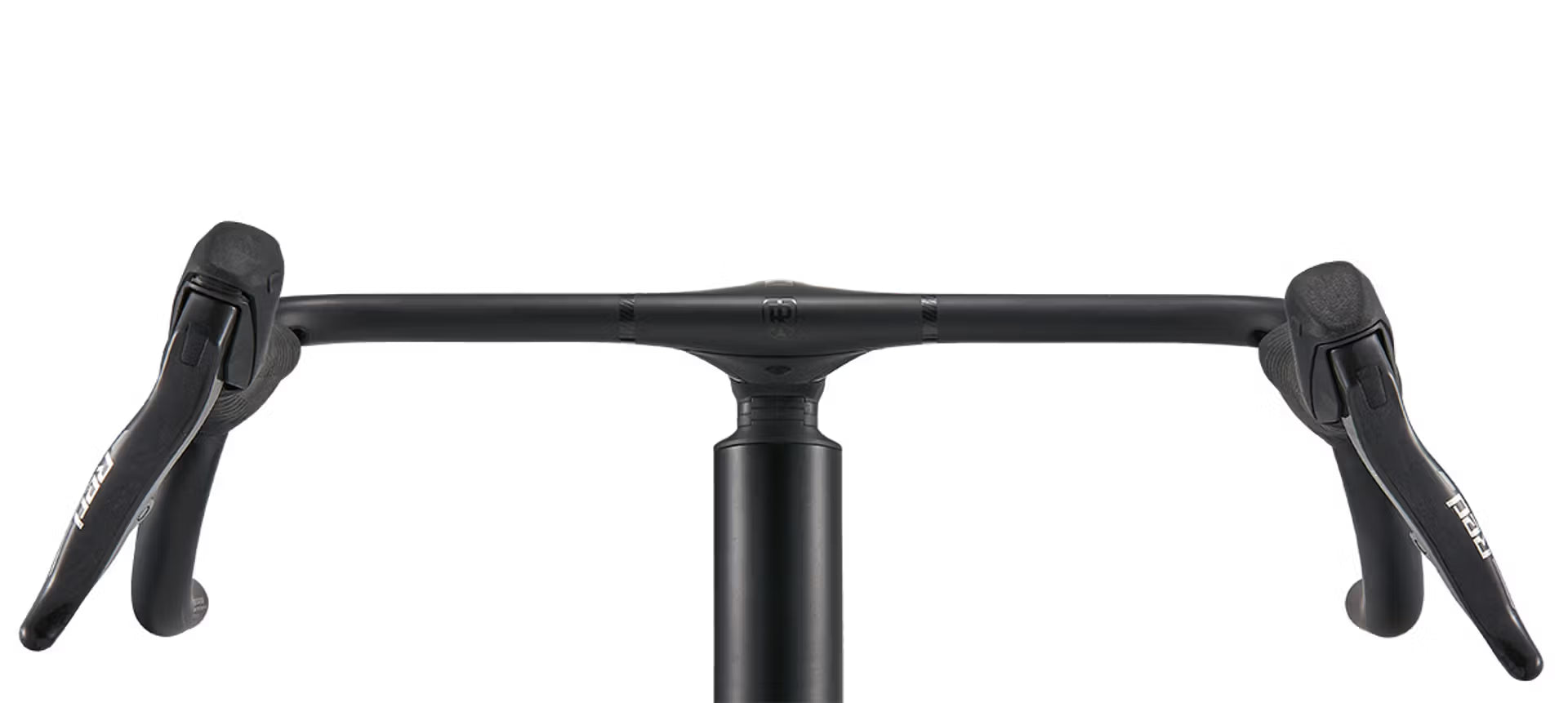

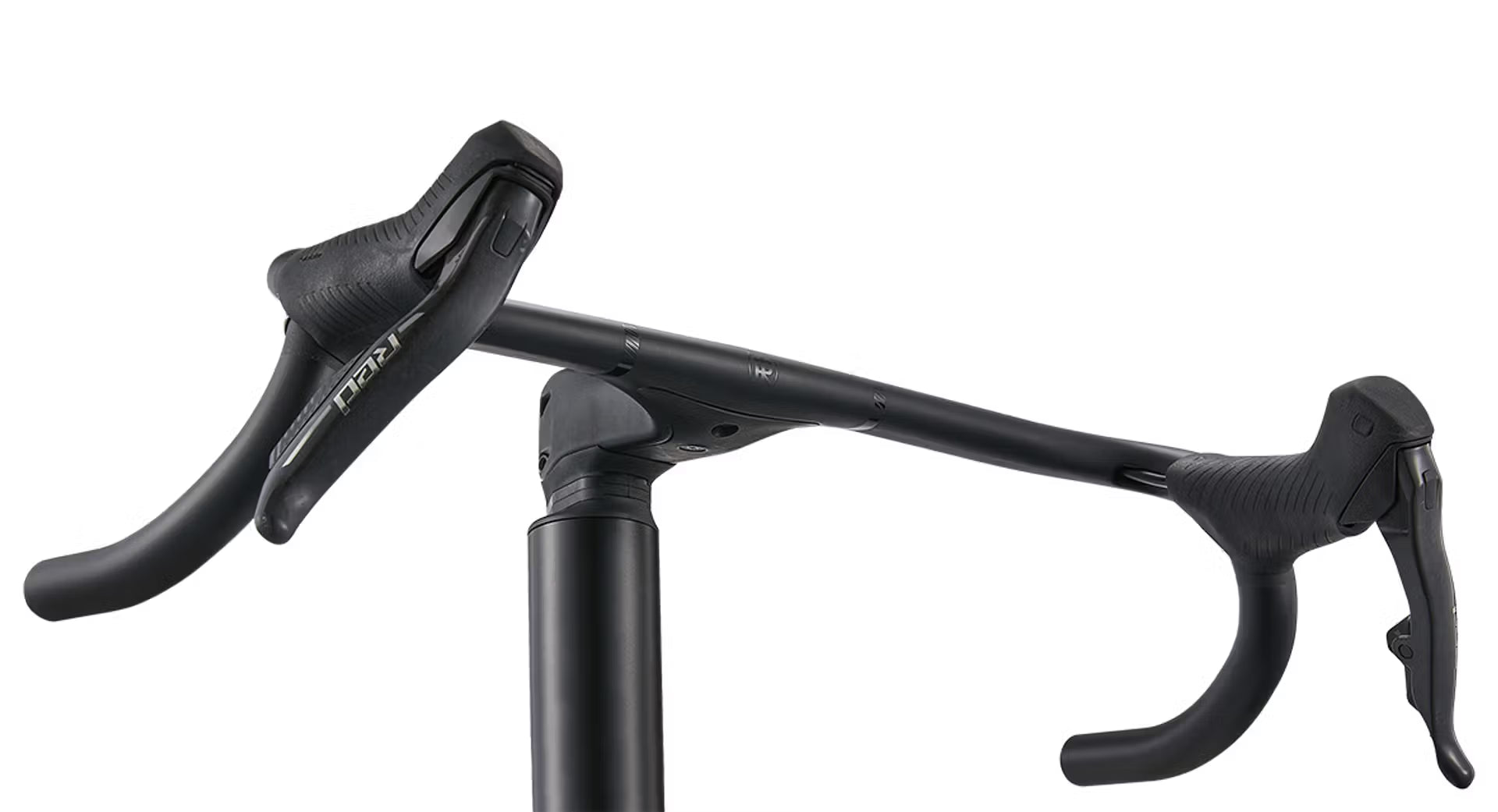

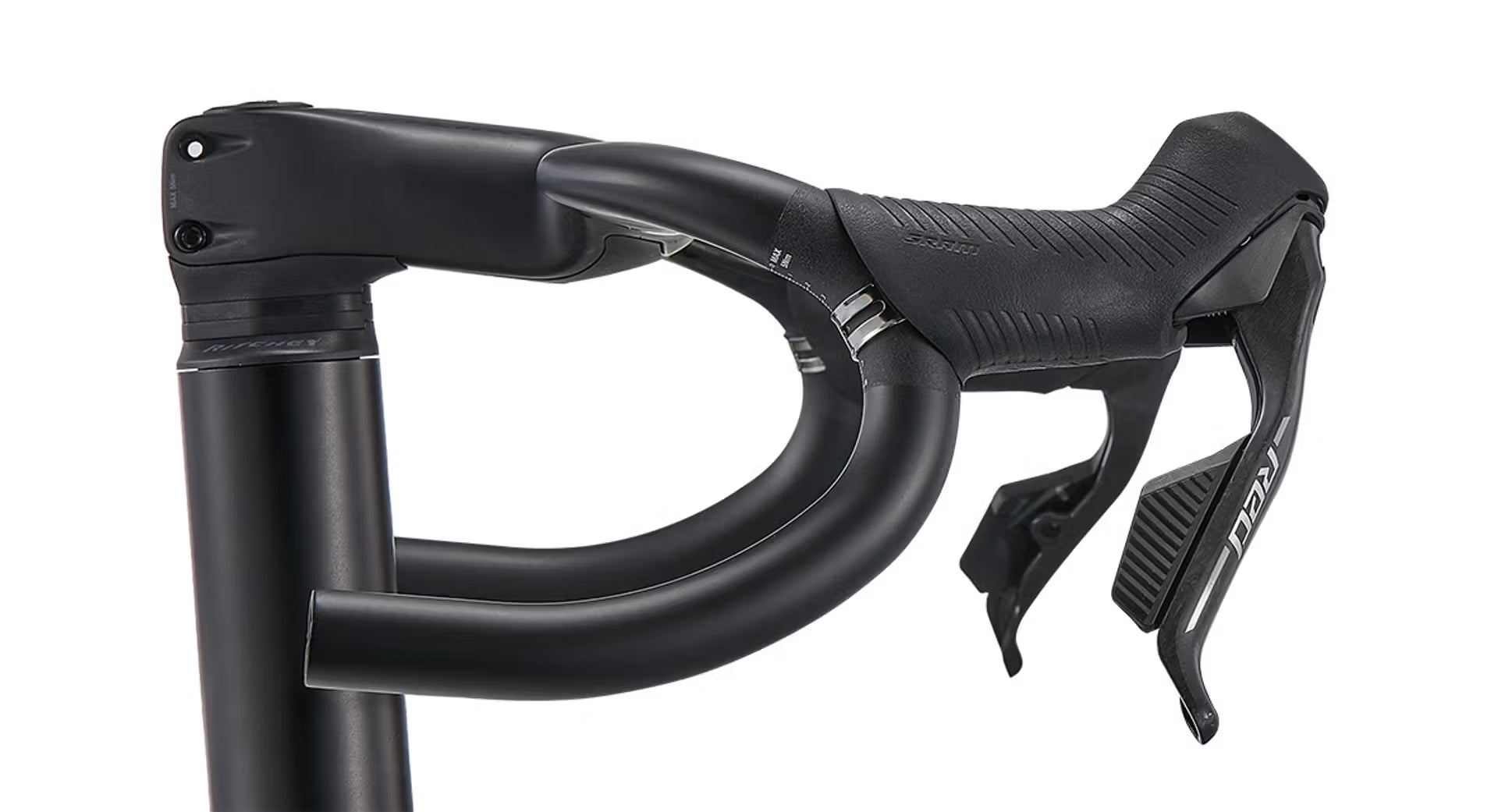

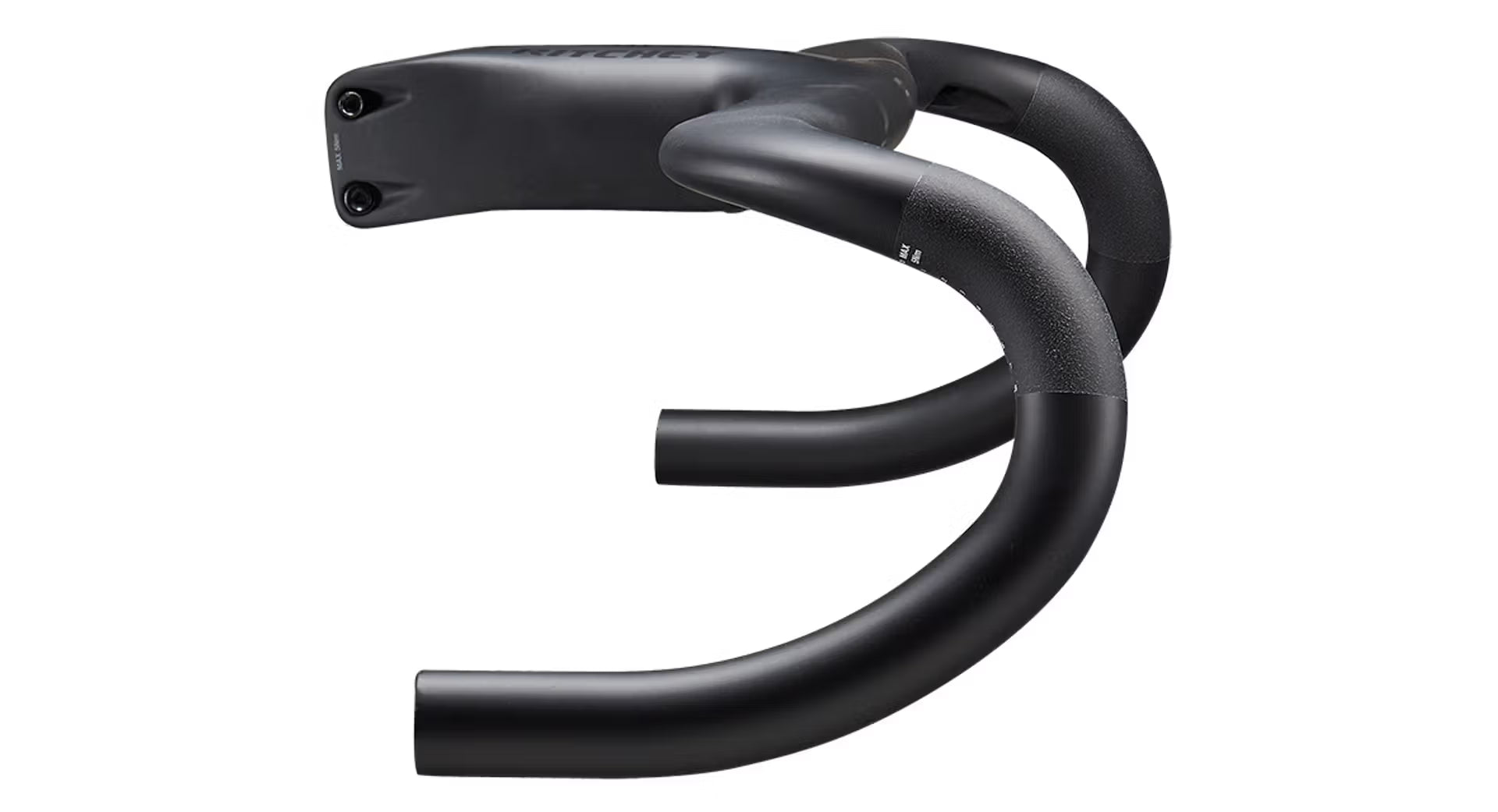

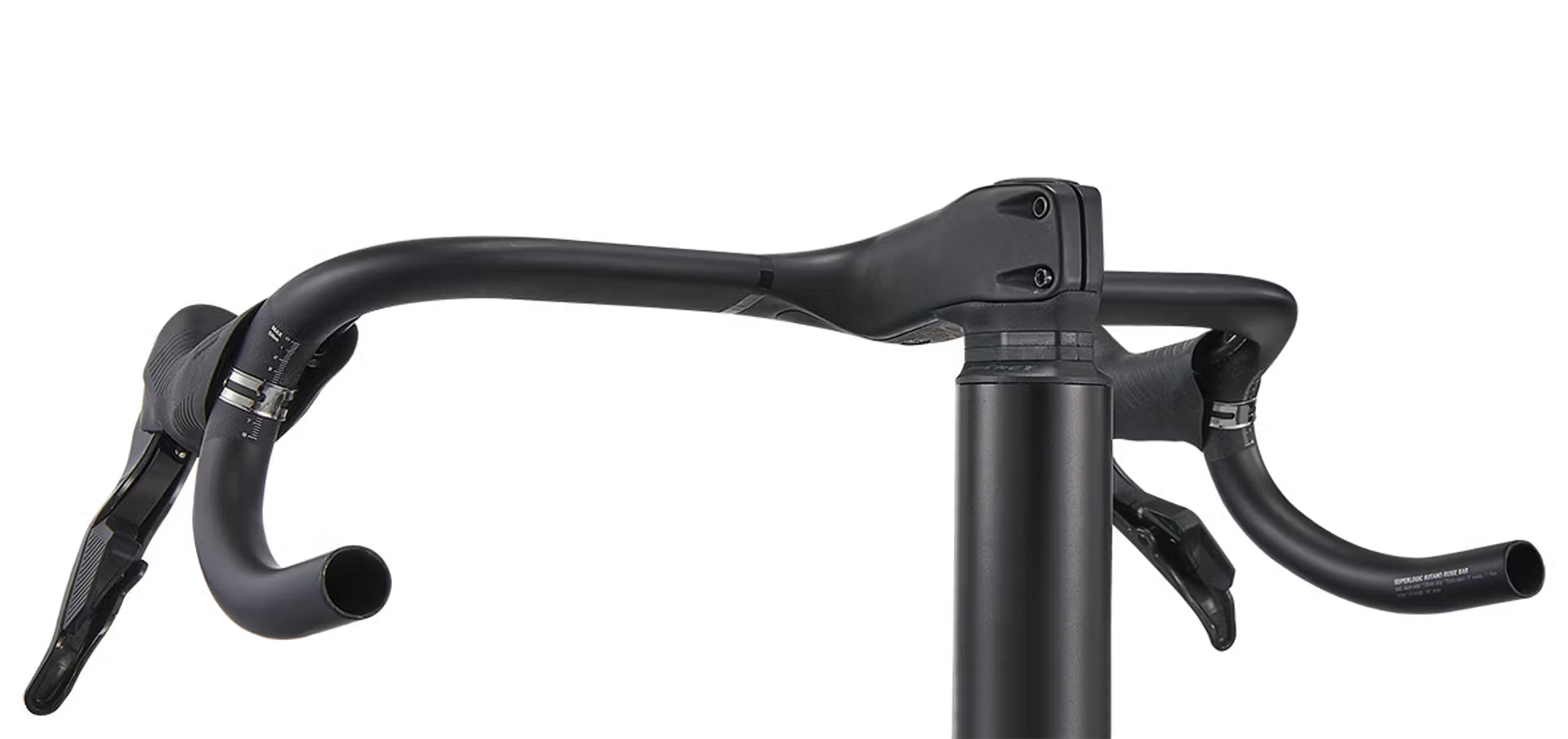

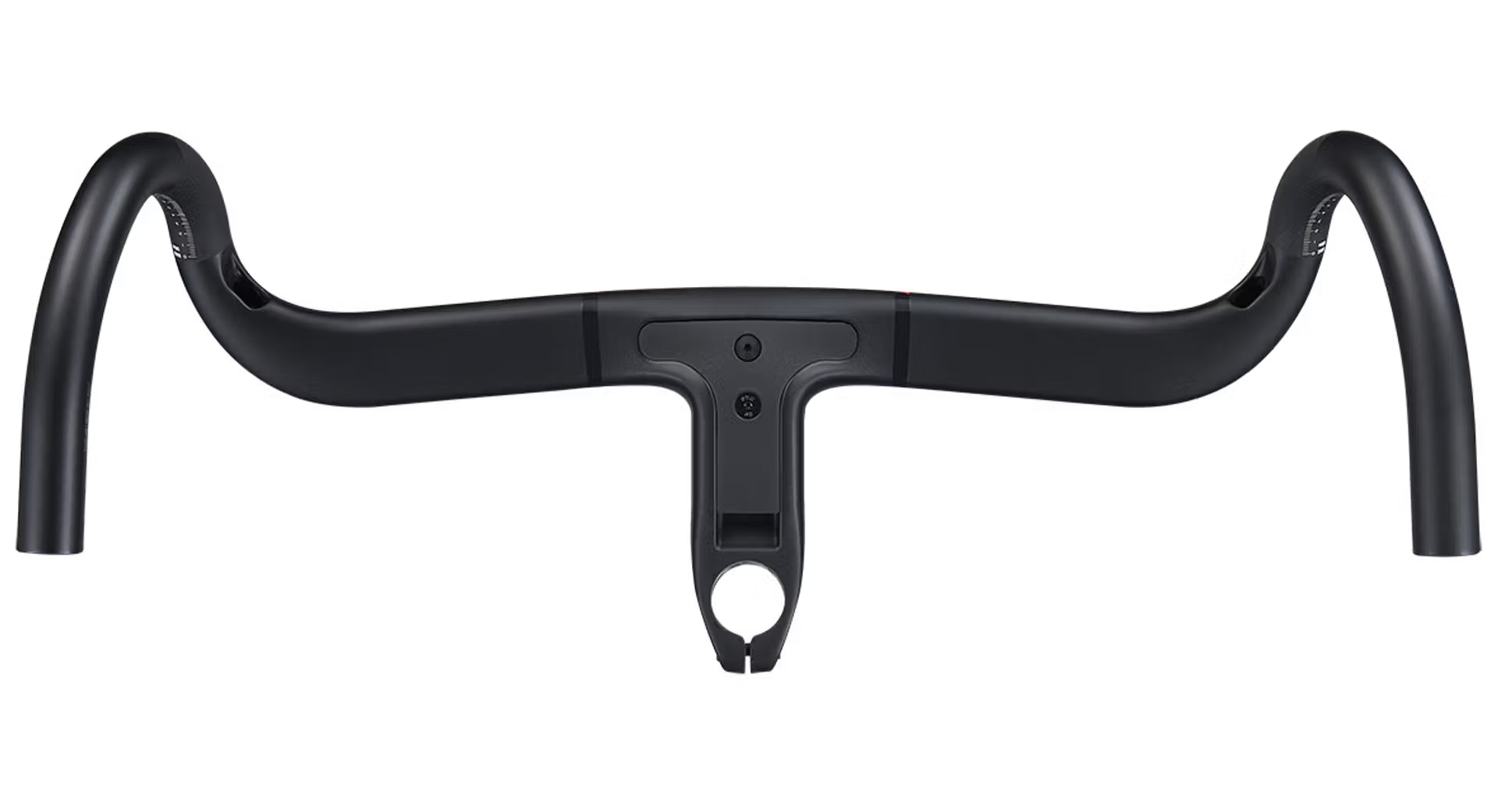

This magnificent monocoque carbon fibre beauty offers complete internal brake routing for Shimano Di2 and SRAM AXS for modern gravel and road bike frames when paired with Ritchey's Switch headset (required). The underside of the bar features a removable cable cover offering easy access for brake cable routing, and doubles its duty with the ability to receive an integrated accessory mount (sold separately).
Features
- Complete internal cable routing inside the bar via the integrated stem for a fluid look and aerodynamic advantage
- A flattened round top offers a comfortable ergonomic hand position with aerodynamic benefits
- 5° crank for a comfortable, natural wrist position and less fatigue
- Moderate 17.5° drop flare for the best possible control off-road and maximum comfort on the road
Product features
-
Material: Carbon fibre monocoque
-
Bend shape: Compact
-
Top section: Ergo aero
-
Drop: 115mm
-
Reach: 73mm
-
Drop flare: 17.5°
-
Flare out: 2.2°
-
Backsweep: 5°
- Stem angle: 80°
-
Steerer: 1-1/8"
-
Steerer height: 42mm
-
Cable routing: Internal
-
Clip-on compatibility: No
-
Lever/shifter torque: 5Nm (recommended)
-
Fork Clamp Torque: 5Nm (max)

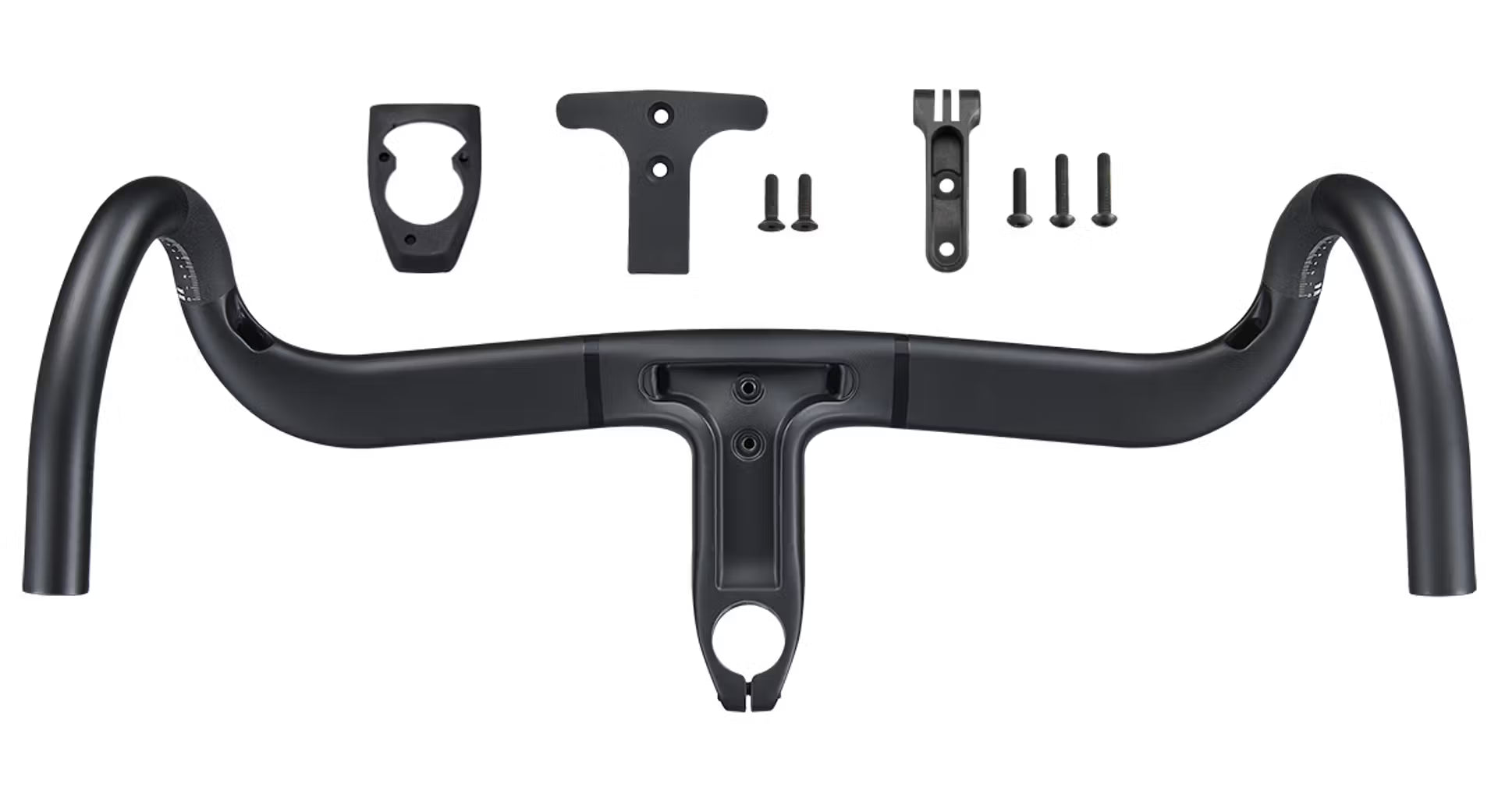

- Computer mount adaptor and cable guide included
Width/Length
- 420 mm / 90 mm
- 420 mm / 100 mm
- 440 mm / 100 mm
- 440 mm / 110 mm
Colour
Weight
Scope of delivery
- 1 x Ritchey SuperLogic Butano Ridge Handlebar
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
