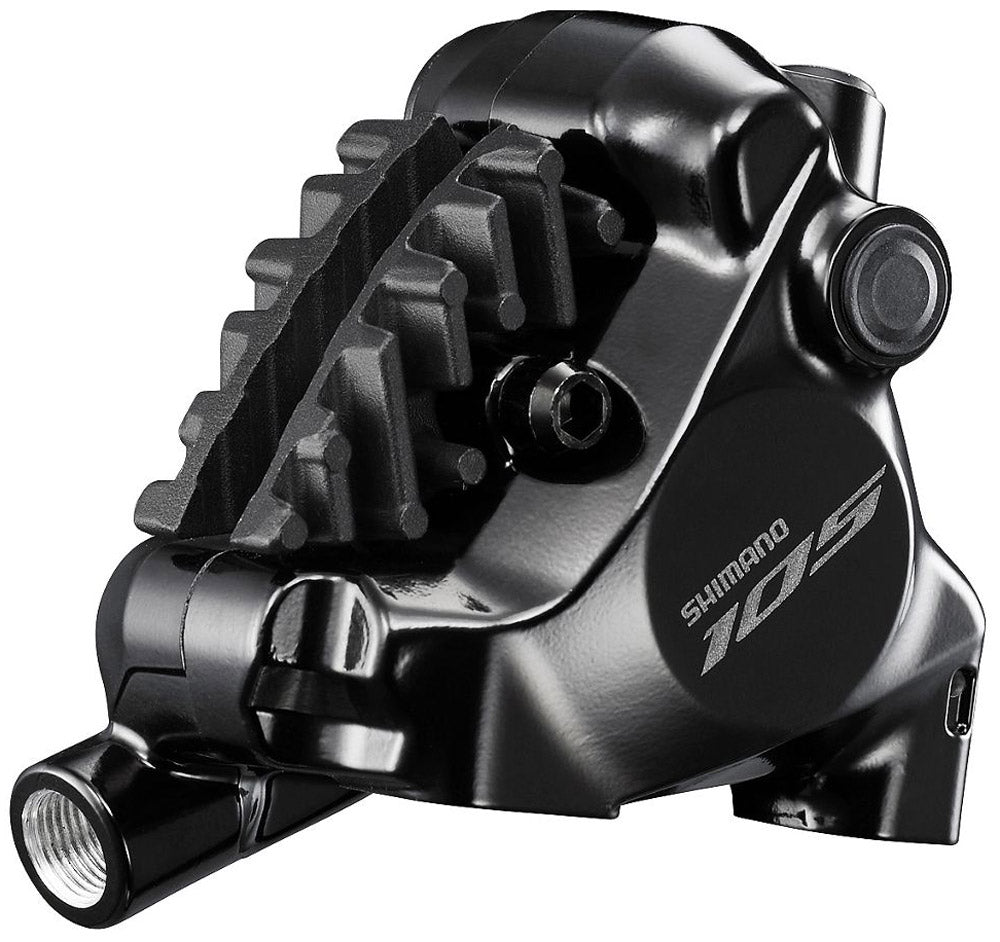

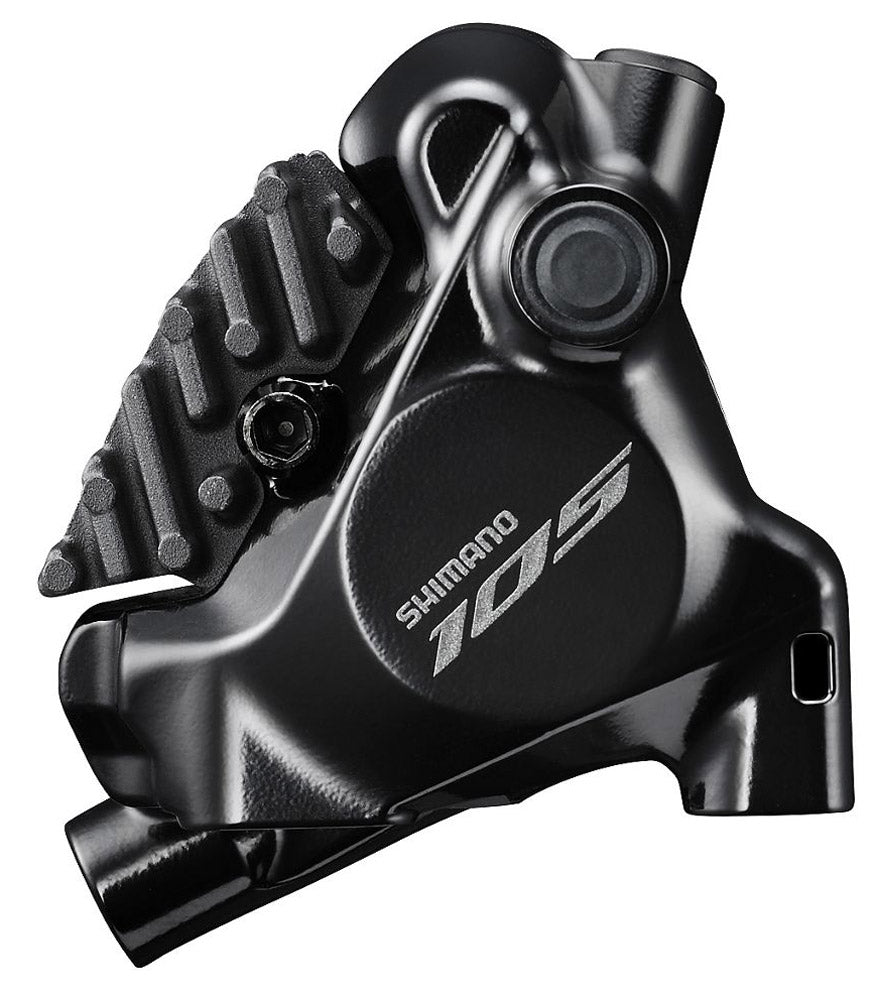

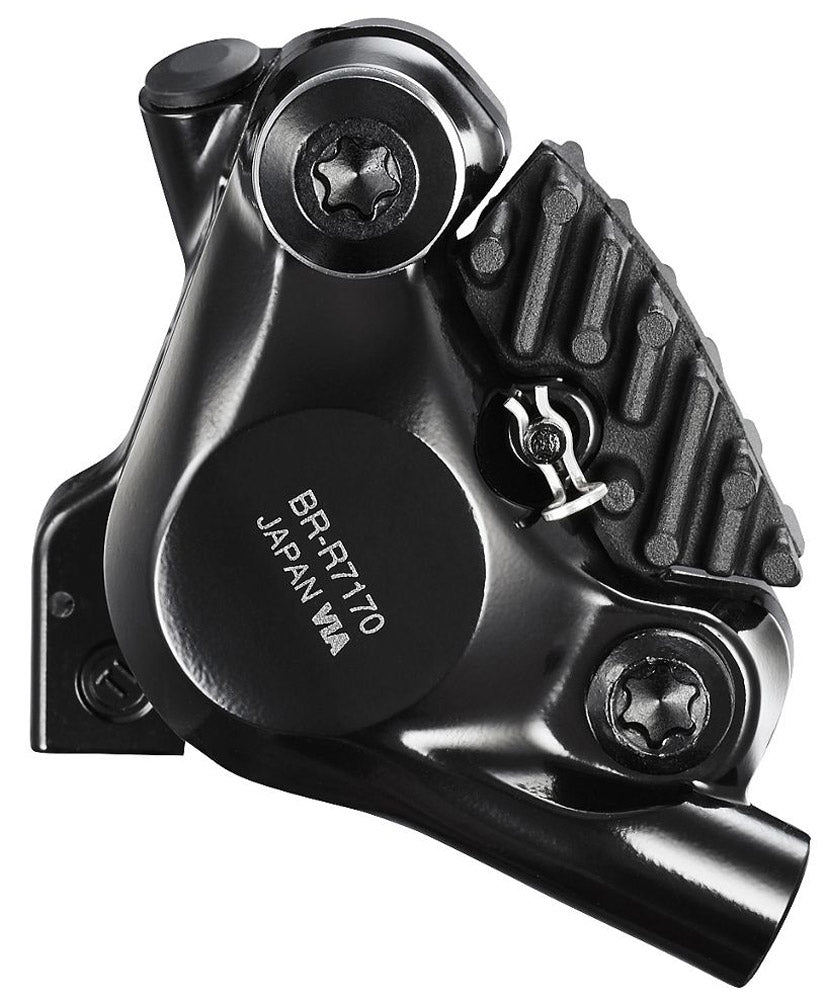

The hydraulic 2-piston brake caliper Shimano 105 BR-R7170 for rear with Flat-Mount and L05A-RF Resin disc pads with fin. The completely newly developed hydraulic disc brakes provide an unprecedented combination of braking power and controllability.
The next-generation SHIMANO 105 featuring Di2 draws on the design philosophy The Science of Speed bringing fresh momentum, comfort and control. It lets you embrace an open road, full of infinite possibilities. Go deeper into your journeys. See the world in a fresh new way. And enjoy the gift of each new day.
With proven hydraulic braking technology, the new SHIMANO 105 2-piston calipers BR-R7170 feature the SHIMANO Flat Mount System and its low-profile design that is ideal for road bikes. More compact and lighter than ever, the R7170 brakes offer wide pad clearance for easy wheel removal and quiet performance as well as one-way bleeding for easy, clean maintenance.
Features
- 10% wider pad clearance decreases the chance of disc brake rotor rub
- Maintenance-friendly bleeding process
Specification
-
Use: Road
-
Group: 105 Di2 R7100
-
Model: BR-R7170-R
-
Brake type: Disc-Brake
-
Mount: rear
-
Brake mounting: Flat-Mount
-
Brake pads: L05A-RF Resin with Fin
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake lever: ST-R7170
-
Recommended brake hose: SM-BH90-J-SSR, SM-BH90-JK-SSR
-
Recommended brake rotor: SM-RT70, SM-RT64
Material
Contents
- 1 x Shimano 105 BR-R7170 Flat-Mount Brake Caliper
- 1 x Brake pads L05A-RF Resin with Fin
- 2 x Screw for brake caliper (25mm)
Brake hose and Mineral oil not included!
