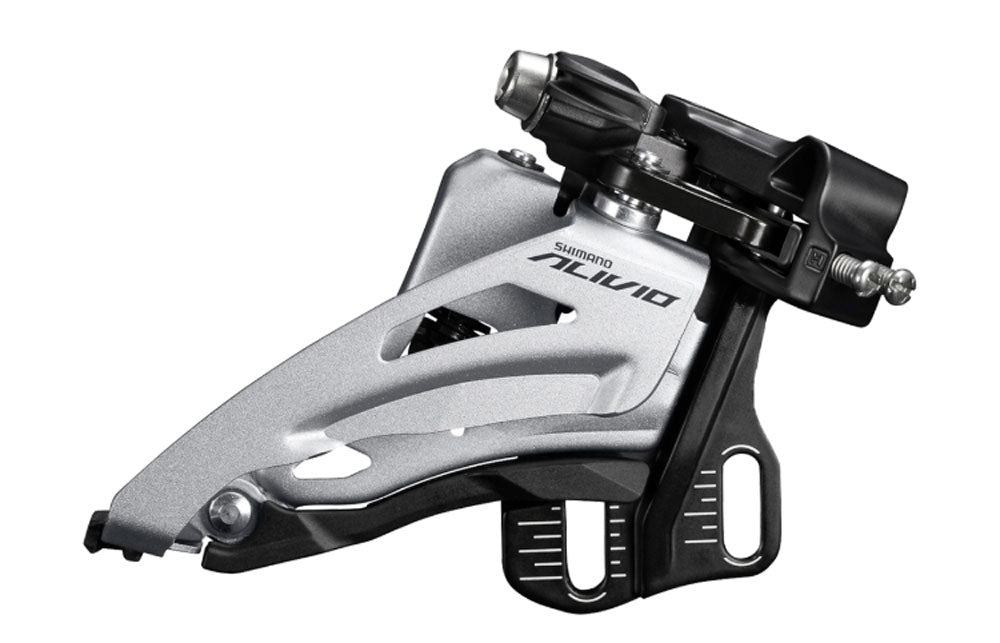

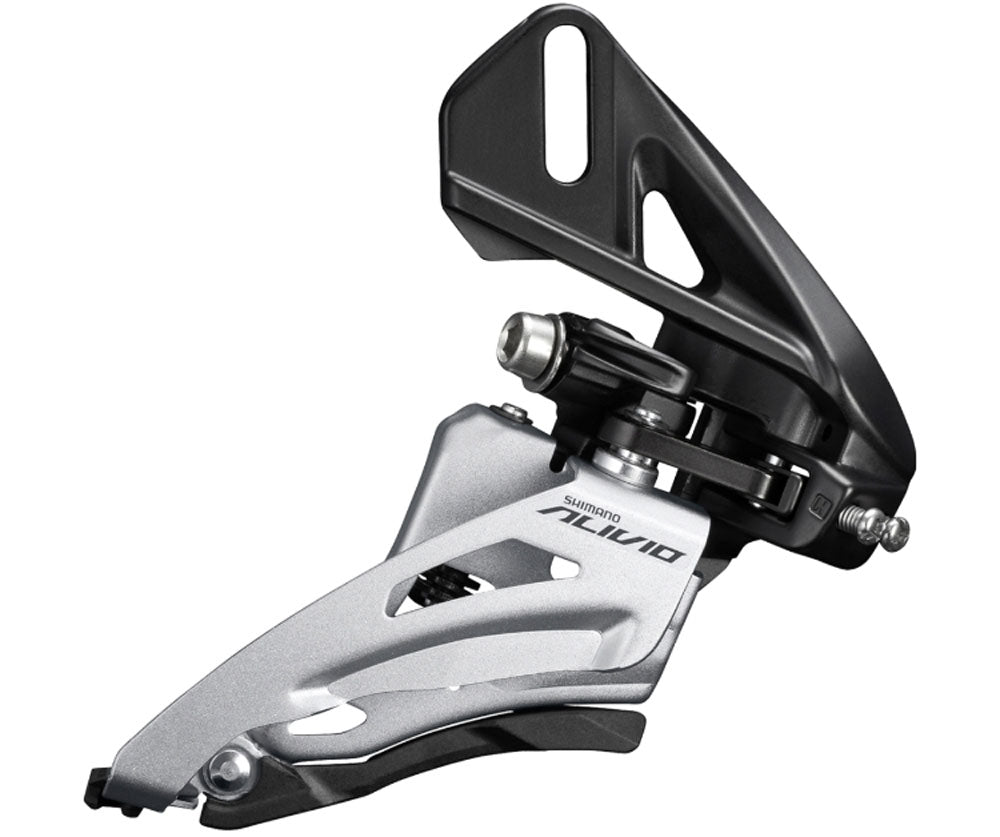

The ALIVIO FD-M3120 2 x 9-speed front derailleur from Shimano is available as Direct-Mount (FD-M3120-D), E-Type (FD-M3120-E) version and for the middle clamp position (FD-M3120-M). Shift performance is improved by side swing technology, which provides 15 mm more space between seat tube and tyre.
The SHIMANO ALIVIO M3100 2x9-speed or 3x9-speed drivetrains receive new updated shifters and derailleurs. SHIMANO ALIVIO utilizes Shimano hallmark technologies including SHIMANO SHADOW RD derailleurs and RAPIDFIRE PLUS MONO technology in the left shifter to simplify the riding experience. New SHIMANO ALIVIO M3100 utilizes HG shifting for smooth gear changes.
Features
- Smooth shifting by Side-Swing mechanism
- For front double chainring
- Smooth and quiet front shifting on the trail
- More powerful outward shifting
- Wider traction range reduces chain rub for rear suspension bikes
- Extra wide range with front double 36-22T
- Wide frame mounting compatibility
- Available in D, E, and M-type mounts
- Compatible with 2.3-inch tire on wider rims
Specification
-
Use: MTB
-
Group: ALIVIO M3100
-
Model: FD-M3120
-
Cable route type: Front Pull
-
Gear front: 2-speed
-
Gear rear: 9-speed
-
Top gear teeth: 36T
-
Total capacity: 14T
-
Compatible Chain: HG 9-speed
-
Chain stay angle: 64-69°
-
Chain line:
-
FD-M3120-D 48.8mm (142mm) / 51.8mm (148mm Boost)
-
FD-M3120-E 48.8mm (142mm) / 51.8mm (148mm Boost)
-
FD-M3120-M 48.8mm (142mm)
Mounting
Material
- Aluminium
- Stainless steel
- Steel
Contents
- 1 x Shimano ALIVIO FD-M3120 2x9-speed Front Derailleur Side-Swing
