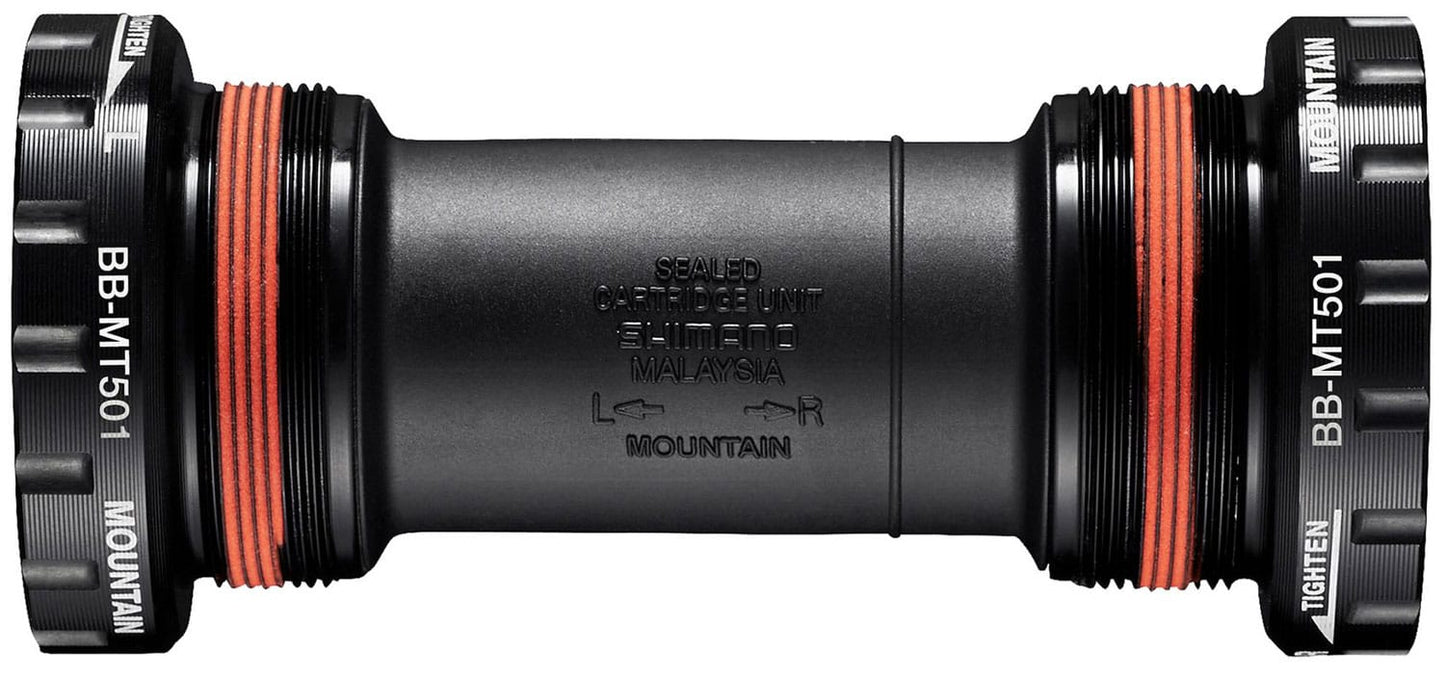

Shimano BB-MT501 Hollowtech II threaded bottom bracket for cranksets with 24 mm integrated bearing axle and 68/73 mm shell width. With better sealing and rotation the SHIMANO DEORE bottom bracket delivers high driving efficiency.
Features
- Genuine Shimano HollowTech II bottom bracket assembly
- Set includes left and right hand cups, spacers, inner cover, and inner O-rings
- Sealed cups keep out dirt and water
- Maintenance free
- Compatible with 68 mm and 73 mm shell
- Durable anodised finish
- Easy installation
Specification
-
Use: MTB
-
Model: BB-MT501
-
BB-Type: HOLLOWTECH II
-
Threaded: BSA
-
Threaded BB shell width: 68/73mm
-
Shell diameter: BSA (BC 1.37)
Compatibility
- FC-M6100-1
- FC-M6120-1
- FC-M6130-1
- FC-MT610-2
- FC-MT610-B2
- FC-MT510-1
- FC-MT511-1
- FC-MT512-1
- FC-M5100-1
- FC-M5100-2
- FC-M5100-B2
- FC-M640
- FC-M645
- FC-M6000-2
- FC-M4100-2
- FC-M4100-B2
- FC-M617
- FC-M617-B2
- FC-MT500-2
- FC-MT500-3
- FC-M627-B
- FC-MT210-3
- FC-MT210-2
- FC-MT210-B2
- FC-MT200
- FC-T6010
- FC-T551
- FC-T4060
Material
Contents
- 1 x Shimano BB-MT501 Hollowtech II Bottom Bracket
