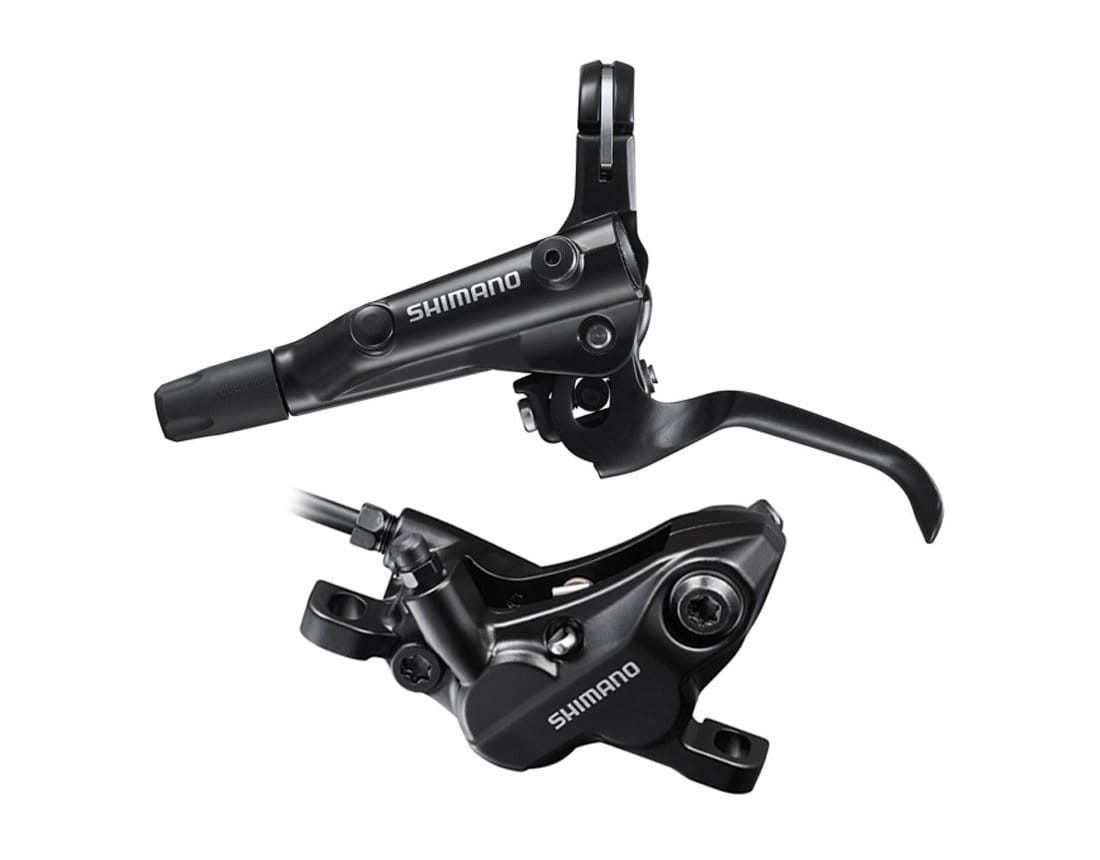

The hydraulic disc brake from Shimano with ergonomic 2-finger brake lever BL-MT501 and 4-piston caliper BR-MT520 is the benchmark for cost-effective performance brake systems. The brake lever delivers high-powered mountain biking SERVO WAVE performance, and I-spec II compatibility.
Features
- Smooth and durable master cylinder design
- SERVOWAVE high-power brake
- Sleek and stable
- Reliable power and rigid brake design is great for all riding styles from XC to trail
- Brake Caliper for Postmount Brake
- Optimized ergonomic 2-finger brake lever
- 4-Piston Caliper
- Wider contact area of dual diameter opposed-piston design
- Rapid initial pad contact and controllable brake power modulation
- Sleek and durable master cylinder design
- Heat insulated pad and piston
- High power brake performance boosts rider confidence and enjoyment
- Highly responsive braking power for greater control
- Stable braking and greater durability
- One-Way bleeding
- I-spec II compatible - securing the shift lever on the brake lever
-
Rotors SM-RT70 and SM-RT66 are available separately!
Specification
-
Use: MTB/Trekking
-
Model: BR-MT501 (front)
-
Brake type: Disc-Brake
-
Brake lever: BL-MT501
-
Lever length: 2-Finger
-
Mount: left
-
Open clamp: Yes
-
Adjustable pressure point: No
-
Reach adjustment: Yes, with tool
-
Caliper: BR-MT520 (4-Piston)
-
Brake mounting: Postmount
-
Brake pads: D01S Resin
-
Brake hose: SM-BH90-SS
-
Brake hose length: front 1000mm (shortable)
-
Cable connection: Banjo
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake rotor: SM-RT70, SM-RT66
Material
-
Lever: Aluminum Anodized
-
Caliper: Aluminum Painted
Colour
Contents
- 1 Brake lever BL-MT501 left
- 1 Brake caliper BR-MT520 (4-Piston)
- 1 Brake hose SM-BH90-SS 1000mm long (shortable)
- 1 Tube Joint Kit
- 1 Brake pads D01S Resin without Fin
- 2 Screws for brake caliper
- The brake hose SM-BH90-SS is with mineraloil filled and pre-mountedon the caliper BR-MT520!
Rotor and Adapter not included!
