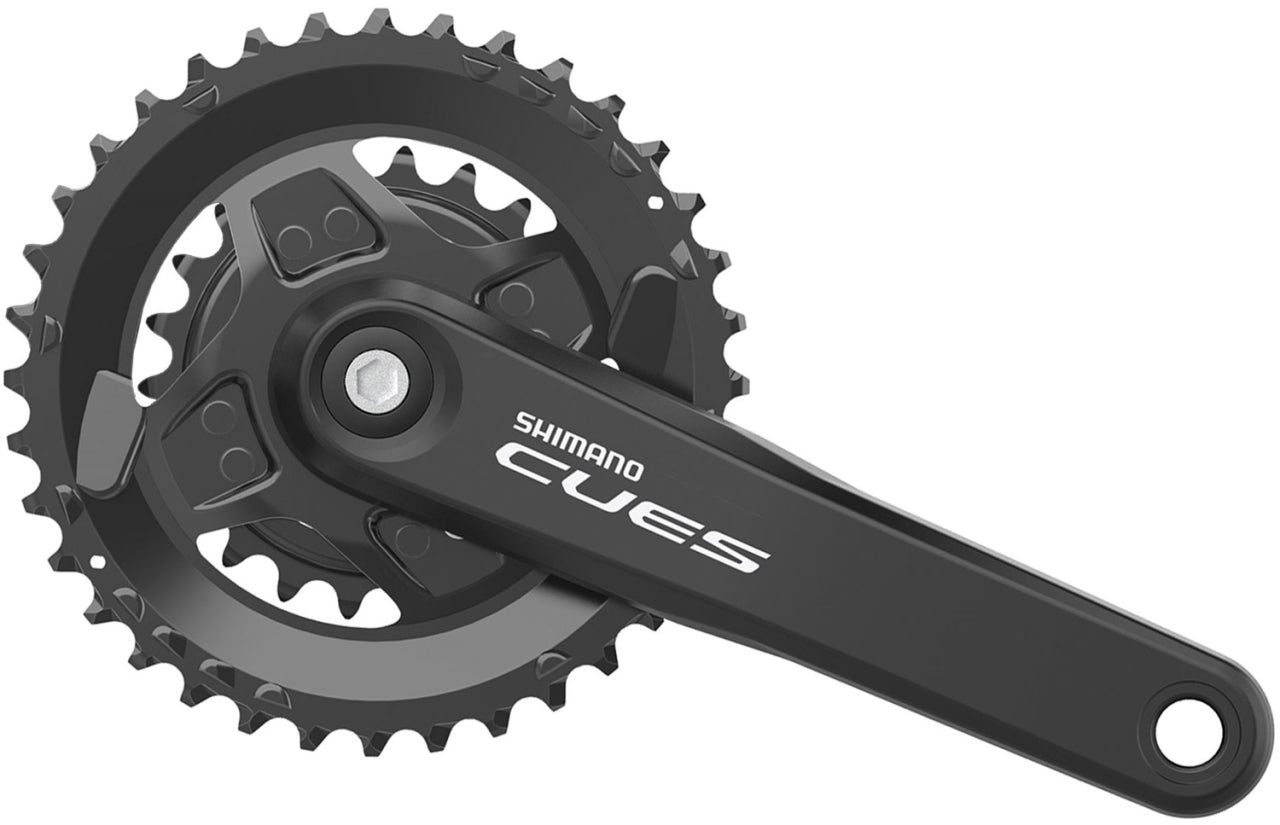

SHIMANO CUES FC-U4000 9/10/11-SPEED CRANKSET 36/22T

The Shimano CUES FC-U4000 2 x 9/10/11-speed square crank delivers reliable performance across any terrain.

Its wide ratio range makes it ideal for tackling rougher ground and exploring off-the-beaten-path routes. The 36/22T configuration provides harmonious pedalling efficiency, whether you're climbing steep inclines or cruising flat sections. Built for durability and consistent shifting, this crankset is engineered to handle the demands of all-terrain cycling with confidence.

Features

• Only compatible with LINKGLIDE shifting system

Specification

• Use: MTB, Trekking
• Group: CUES U4000
• Model: FC-U4000-2
• Gradation: 36-22T
• Q-Factor: 178mm
• Threaded BB shell width: 68/73mm
• Gear: 9/10/11-speed
• Construction: Square
• Compatible Chain: LINKGLIDE, HG 11-speed
• Bolt Circle Diameter: Riveted
• O.L.D.|Thru: 142mm
• O.L.D.|QR/Nut: 135mm
• Chain line: 48.8mm
• Chain guard: No

Crank Arm Length

• 170mm
• 175mm

Material

• Crank arm: Aluminium
• Large Chainring: Steel
• Small Chainring: Steel

Colour

• Series colour

Contents

• 1 x Shimano CUES FC-U4000 9/10/11-Speed Crankset 36/22T
