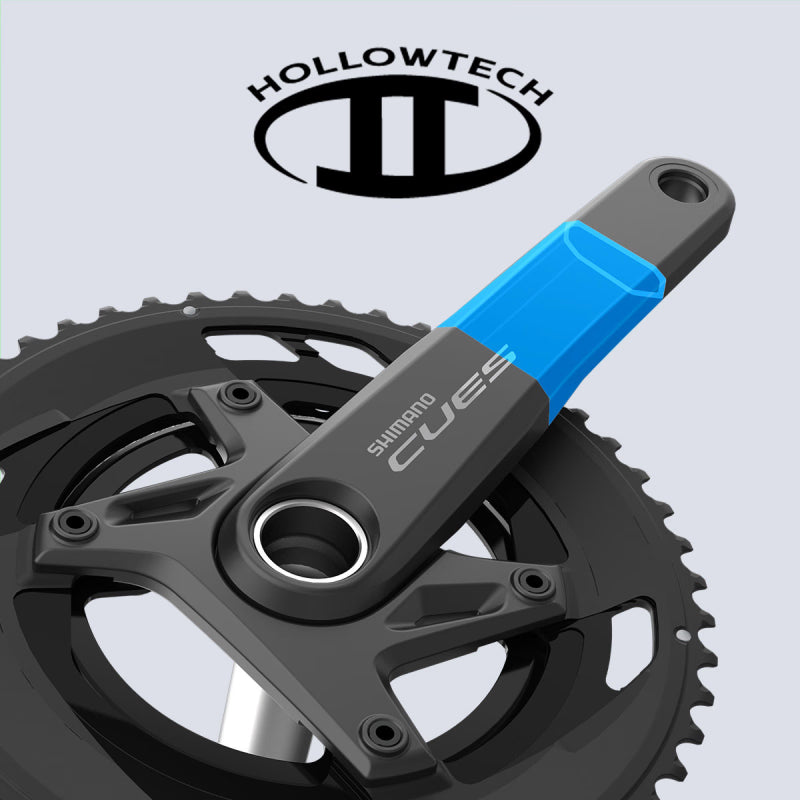

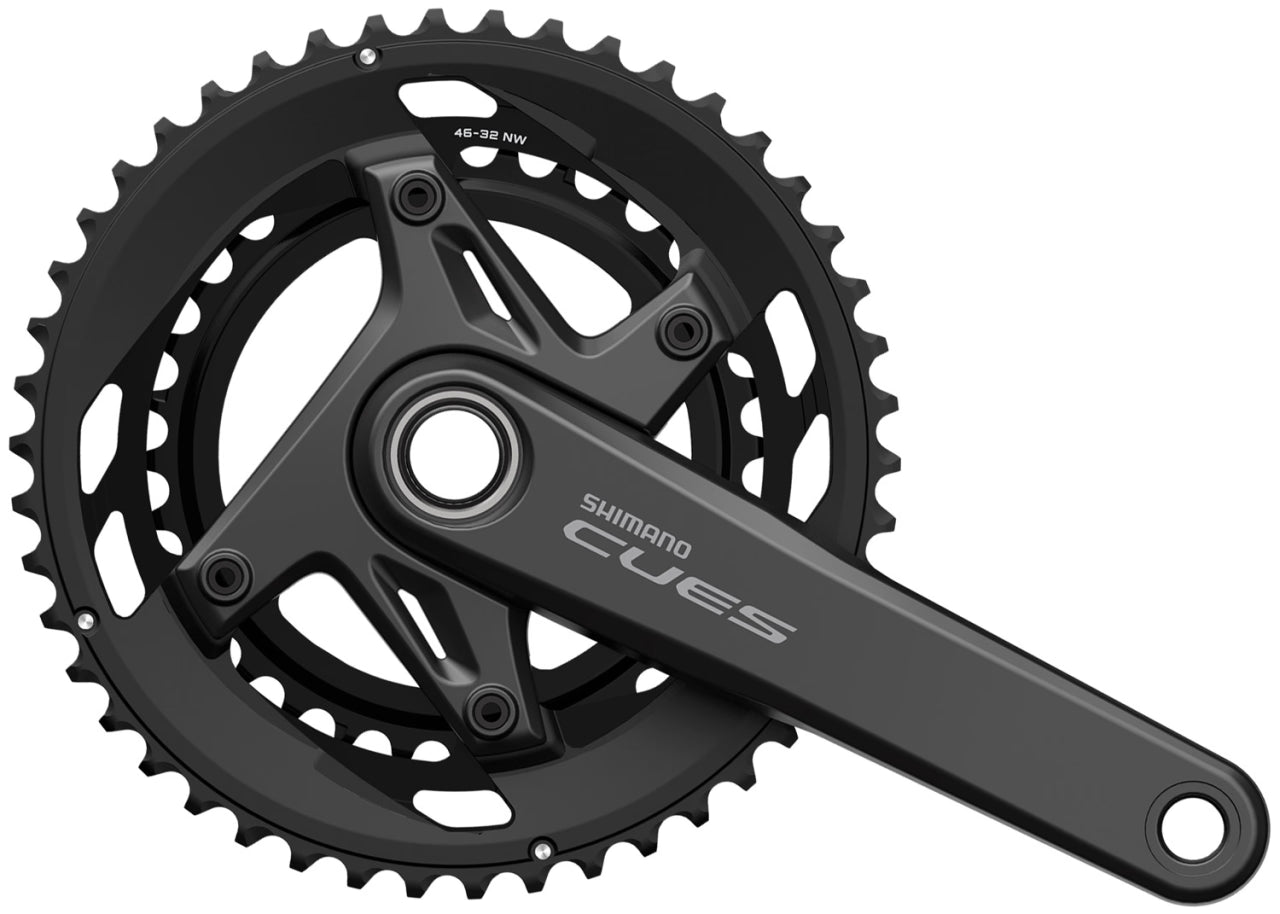

SHIMANO CUES FC-U6040 9/10-SPEED CRANKSET 46/32T

The Shimano CUES FC-U6040 2 x 9/10-speed HOLLOWTECH II crankset delivers excellent chain retention and reliable performance across varied terrain.

Its stiff yet lightweight construction minimises flex whilst keeping weight down, making it ideal for extended road and gravel rides. The 46/32T gearing provides versatile ratios for climbing and cruising, whilst HOLLOWTECH II technology ensures durability and efficient power transfer. Built for riders seeking dependable drivetrain performance without compromise.

Features

• HOLLOWTECH II Hollow-forged Crank limits weight while optimizing power transfer
• Only compatible with LINKGLIDE shifting system

Specification

• Use: Gravel, Cyclocross
• Group: CUES U6000
• Model: FC-U6040-2
• Gradation: 46-32T
• Q-Factor: 152mm
• Threaded BB shell width: 68/70mm
• Gear: 9/10-speed
• Construction: HOLLOWTECH II
• Compatible Chain: LINKGLIDE, HG 11-speed (CN-HG601, CN-HG701, CN-HG901, CN-LG500)
• Spider arms: 4
• Bolt Circle Diameter: 110mm
• O.L.D.|Thru: 142mm
• O.L.D.|QR/Nut: 135mm
• Chain line: 47mm

Crank Arm Length

• 170mm
• 172.5mm
• 175mm

Material

• Crank arm: Aluminium
• Spider arm: Aluminium
• Large Chainring: Aluminium
• Small Chainring: Steel

Colour

• Series colour

Contents

• 1 x Shimano CUES FC-U6040 9/10-Speed Crankset 46/32T
