SHIMANO CUES FD-U6000 10/11-SPEED FRONT DERAILLEUR SIDE SWING

Shimano CUES FD-U6000 front derailleur for 2 x 10/11-speed drivetrains.

Features side-swing technology that provides 15mm extra clearance between seat tube and tyre, enhancing shifting performance. Available in direct-mount, E-type, and mid-clamp configurations to suit various frame designs.

Features

• CUES range of components for mid-grade riding styles offers simplified compatibility, versatility and durability
• LINKGLIDE technology is very durable, up to 300% more durable than current Hyperglide drivetrain and maintaining smooth shifting
• Side swing, front pull derailleur decrease problems with tyre clearance and reduces cable friction
• Designed specifically with modern bikes in mind, Shimano side swing technology front derailleurs increases tyre clearance, while cable routing resulting in the lightest shifting action yet
• Wide pivot link design for greater torsional rigidity improves shifting response and service life
• E-type mount frame fit
• For bike designs with 64-69 degree chainstay to seat tube angle
• For double 40-26/36-22 tooth chainring
• Compatible with 11/10-speed LINKGLIDE drivetrains
• Chainline 48.5/51.8 mm


Specification

• Use: MTB, Trekking
• Group: CUES U6000
• Model: FD-U6000
• Cable route type: Front Pull
• Gear front: 2-speed
• Gear rear: 10/11-speed
• Top gear teeth: 36/40T
• Total capacity: 14T
• Compatible Chain: LINKGLIDE, HG 11-speed
• Chain stay angle: 64-69°
• Chain line: 48.8mm (142mm) / 51.8mm (148mm Boost)

Mounting

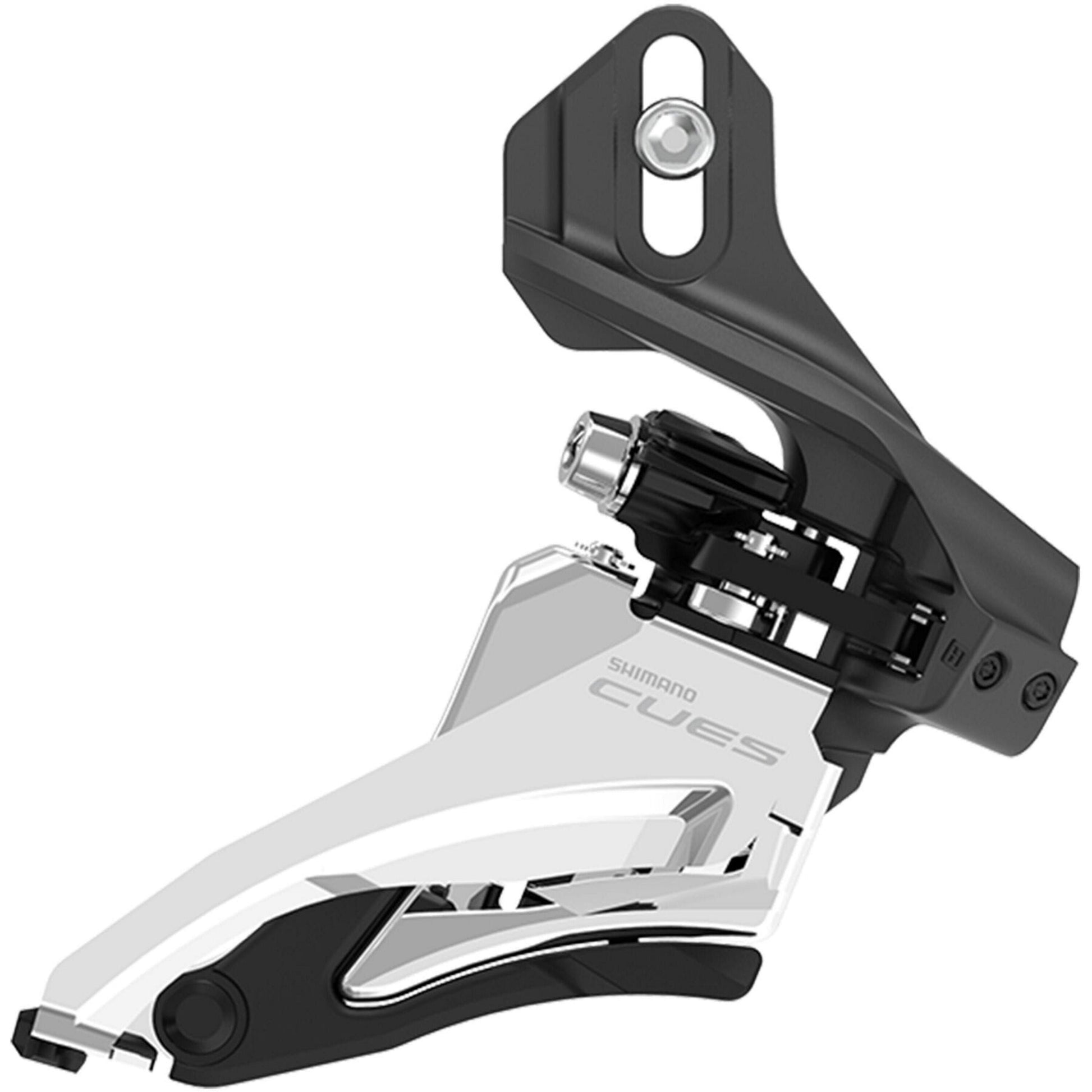

• Direct-Mount FD-U6000-D

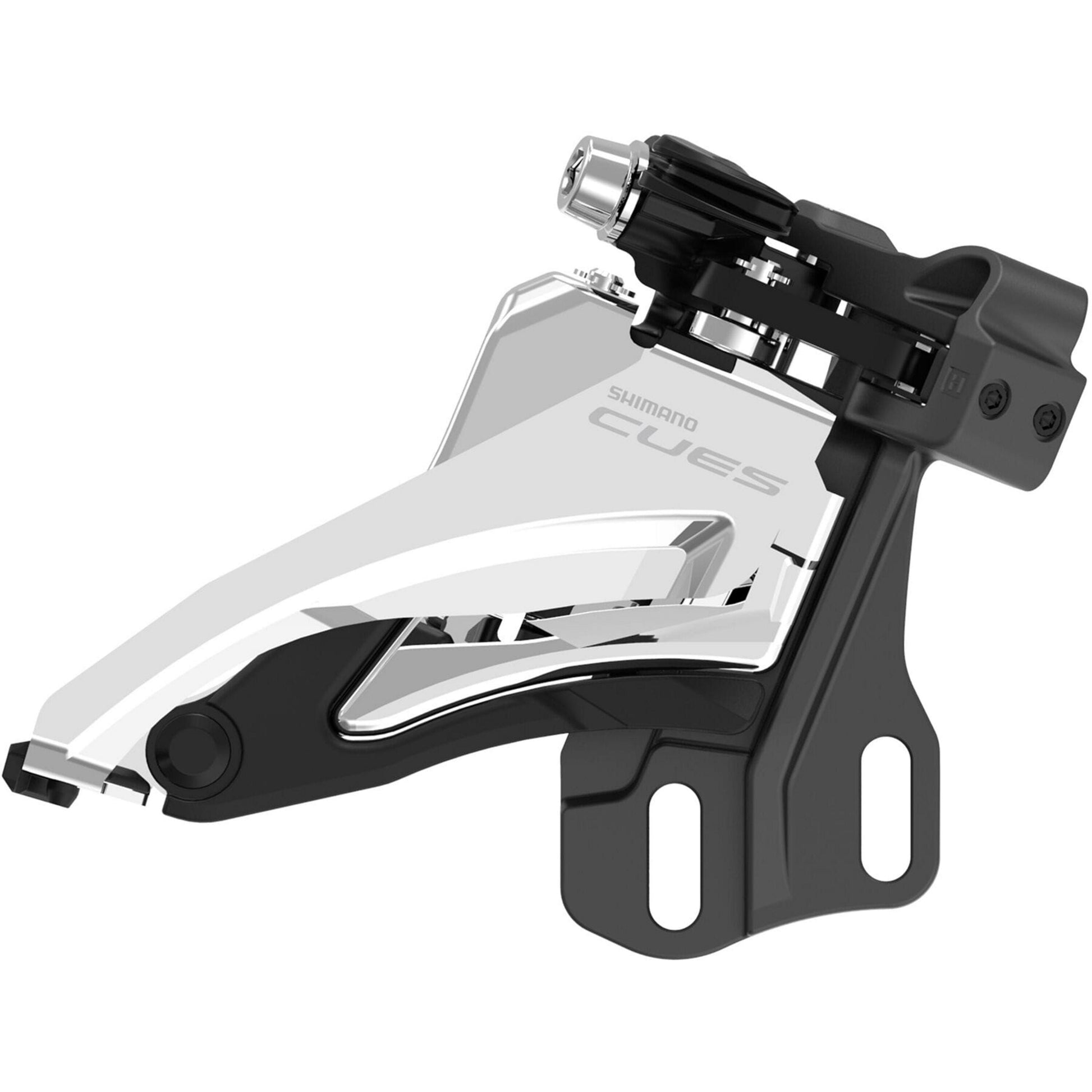

• E-Type FD-U6000-E (without plate)

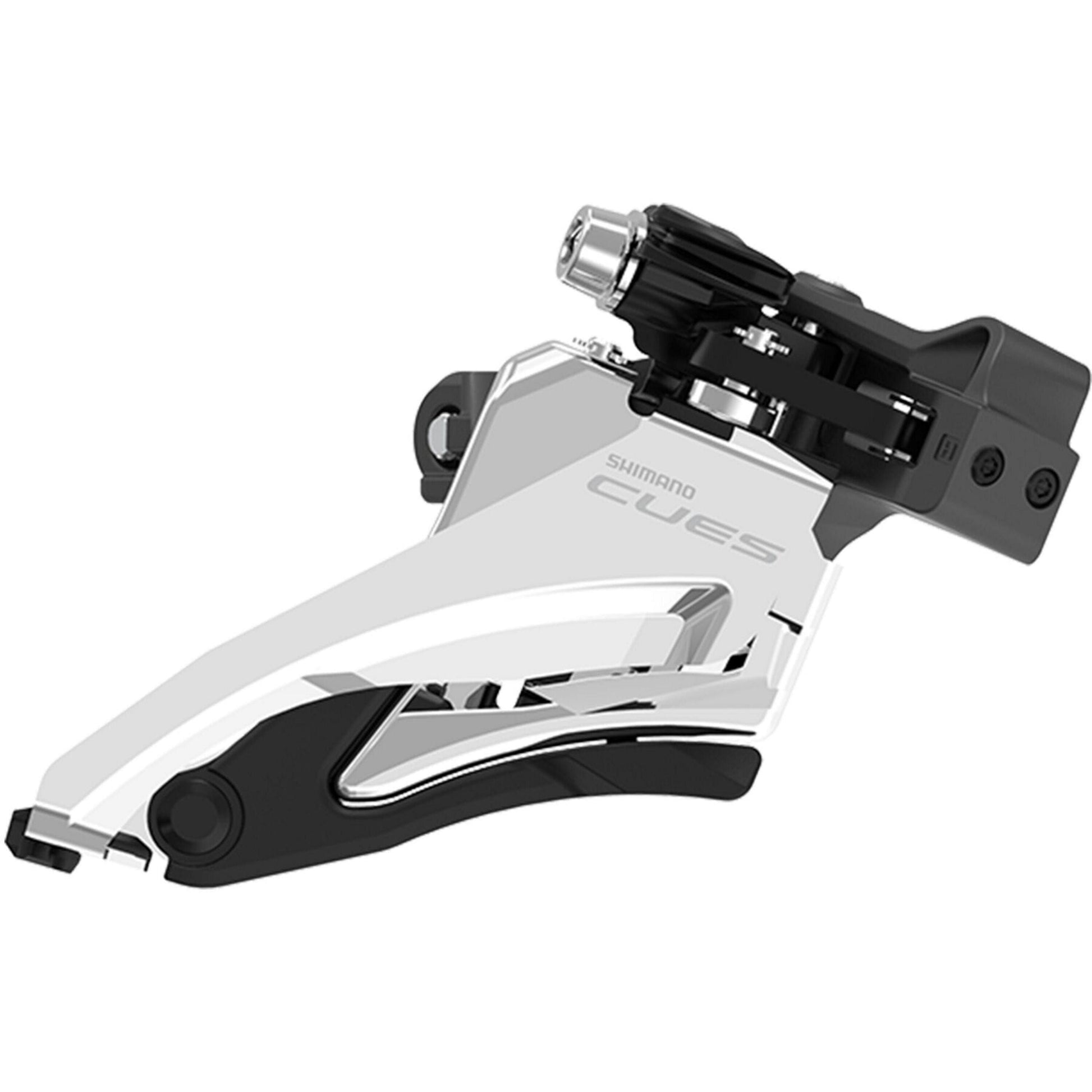

• Clamp FD-U6000-M (Clamp 34.9mm with Adapter 31.8mm)

Material

• Aluminium
• Stainless steel
• Steel

Colour

• Black

Contents

• 1 x Shimano CUES FD-U6000 10/11-speed Front Derailleur Side-Swing
