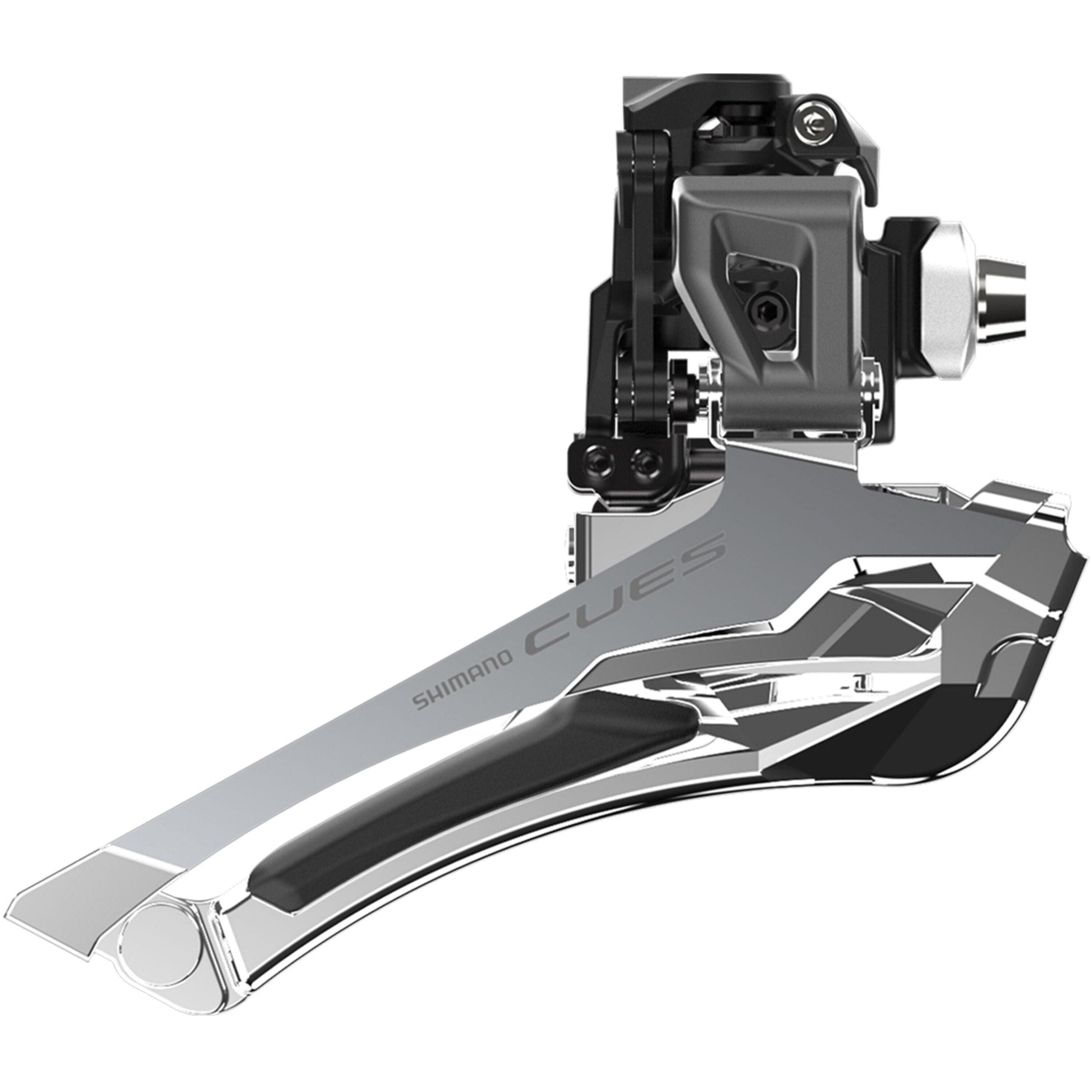

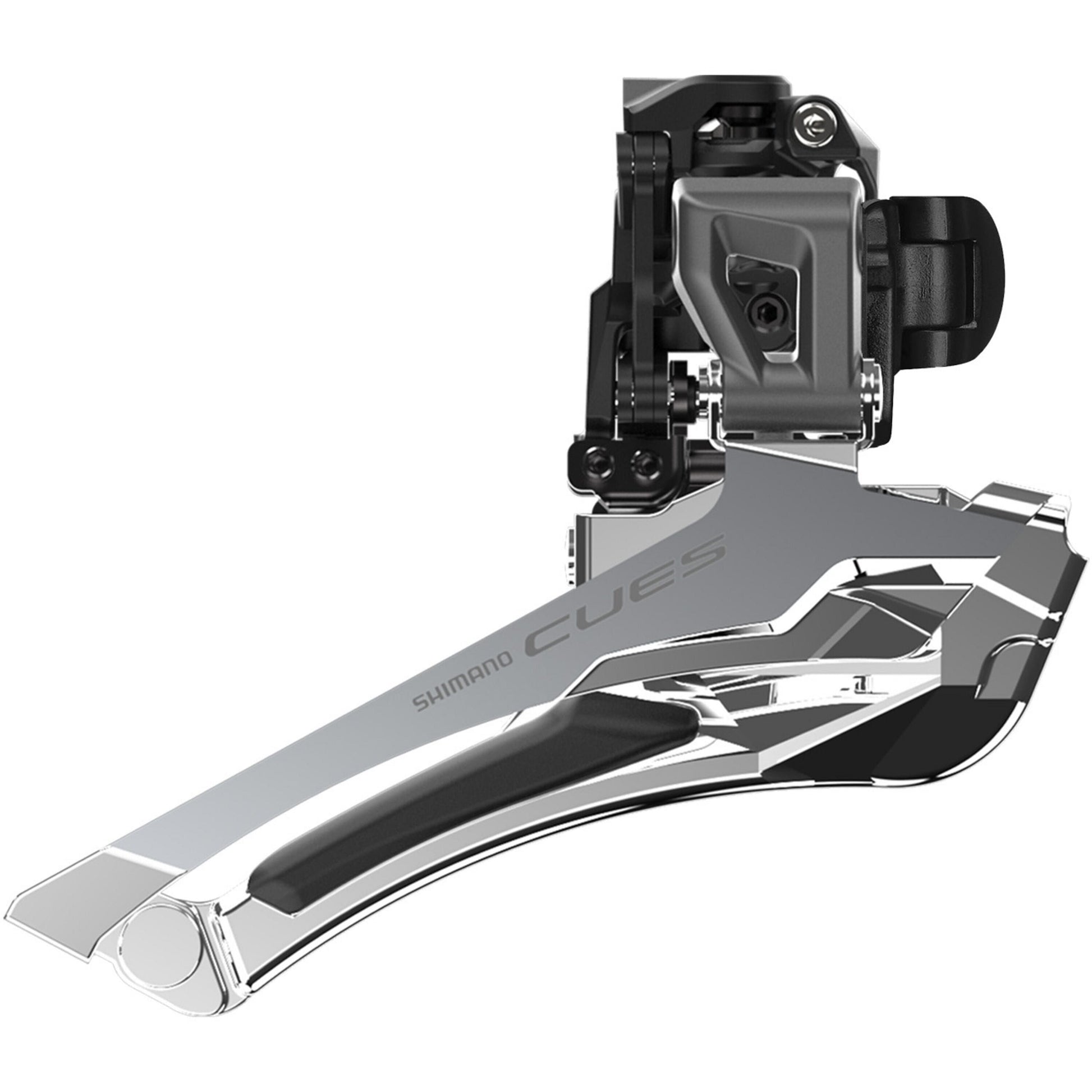

The Shimano CUES FD-U6030 front derailleur delivers smooth, responsive shifting for CUES bikes equipped with racing handlebars.
Engineered for 2 x 9/10-speed setups, this derailleur features an innovative link design and integrated cable tensioner that simplify adjustment and enhance performance. The outward-shifted chainline provides an extra 2.5mm of tire clearance, reducing interference and improving reliability on varied terrain. Down swing/pull operation with braze-on mounting makes installation straightforward on compatible frames.
Features
- The toggle link construction delivers lighter front shifting with a smooth, natural shift action
- The chain line is 2.5 mm wider than conventional road front derailleurs, allowing for greater tire clearance
- Total capacity: 16T
- 10/9-speed compatible
- Down-Pull
- Only compatible with LINKGLIDE shifting system
Specification
-
Use: Gravel, Road, Cyclocross
-
Group: CUES U6030
-
Model: FD-U6030
-
Cable route type: Down-Pull
-
Gear front: 2-speed
-
Gear rear: 9/10-speed
-
Top gear teeth: 46/50T
-
Total capacity: 16T
-
Compatible Chain: LINKGLIDE, HG 11-speed
-
Chain stay angle: 62-66°
-
Chain line: 47mm
Mounting
- Braze-on
-
Clamp (Clamp 34.9mm with Adapter 31.8mm)
Material
- Aluminium
- Stainless steel
- Steel
Colour
Contents
- 1 x Shimano CUES FD-U6030 2x9/10-Speed Front Derailleur Down-Swing
