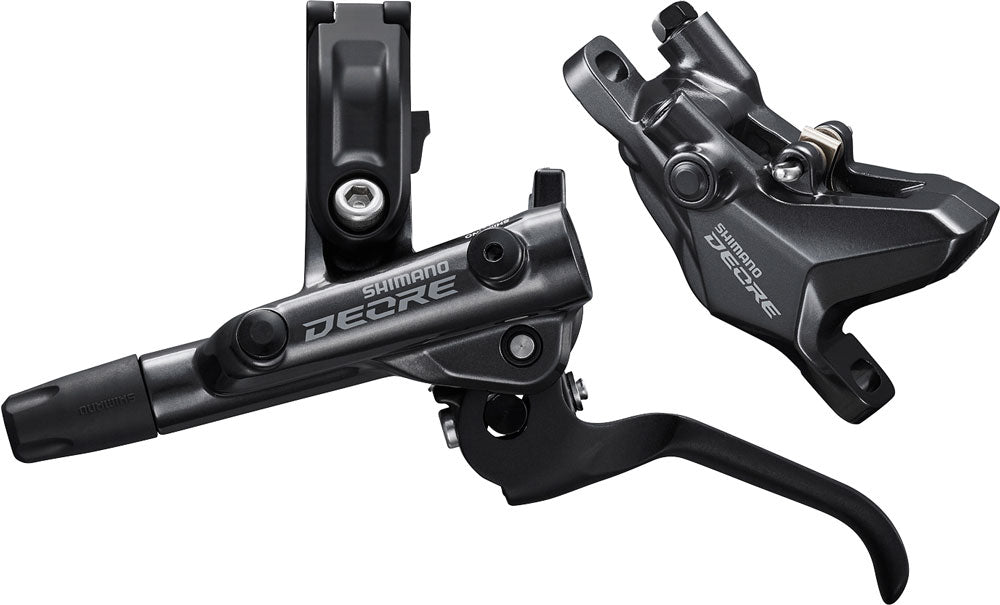

The DEORE BR-M6100 hydraulic 2-piston disc brake with 2-finger brake lever from Shimano fits seamlessly into the line-up of the new DEORE M6100 component group. Higher braking force with less effort on the fingers and extremely linear response to the lever movement.
Moulded from the same DNA as XTR, DEORE XT and SLX, the new M6100 series delivers Shimano’s proven 12-speed technologies at DEORE level.
The DEORE M6100 brakes come in either an XC-specific two piston caliper or the trail/enduro four piston variant, both with a redesigned brake lever resulting in a stiffer mount, for better feedback and more power. The brake levers are equipped with Shimano’s proven SERVO WAVE technology which results in quicker pad/rotor engagement, improved power and a shorter free stroke.
Features
- Quicker rebound between actions maintains rider concentration
- Greater flexibility and action-optimized cockpit layout
- Update brake lever shape
- Seamless operation
- High rigidity
- 2-Piston Caliper Brake
- Caliper for Postmount Brake
- Optimized ergonomic 2-finger brake lever
- One-Way bleeding
- I-Spec EV compatible - securing the shift lever on the brake lever
- Rotors in 140, 160, 180, 203mm are available separately!
Specification
-
Use: MTB
-
Group: DEORE M6100
-
Model: BR-M6100 (front)
-
Brake type: Hydraulic Disc-Brake
-
Brake lever: BL-M6100
-
Lever length: 2-Finger
-
Mount: left
-
Clamp: open
-
Mounting system: I-Spec EV (I-Spec EV is not compatible with I-Spec II and I-Spec B shifters!)
-
Reach adjustment: Yes, with tool
-
Caliper: BR-M6100 (2-Piston)
-
Brake mounting: Postmount
-
Brake pads: G03S Resin without Fin
-
Brake hose: SM-BH90-SS
-
Brake hose length: front 1000mm (shortable)
-
Cable connection: Straight brake lever / Straight calliper
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake rotor: SM-RT64, SM-RT66
Material
-
Lever: Aluminium Anodized
-
Calliper: Aluminium Painted
Contents
- 1 x Brake lever DEORE BL-M6100 left
- 1 x Brake calliper DEORE BR-M6100 (2-Piston)
- 1 x Brake hose SM-BH90-SS 1000mm long (shortable)
- 1 x Tube Joint Kit
- 1 x Brake pads G03S Resin without Fin
- 2 x Screw for brake calliper
- The brake hose SM-BH90-SS is filled with mineral oil and pre-mounted on the calliper BR-M6100!
Rotor and Adapter not included!
