With the same size as its predecessor, the slim DN300 battery can be housed inside seat posts or frames ensuring a clean aesthetic.
Now with 3 ports, the DN300 simplifies wiring to front and rear derailleurs, supplying stable power at all times. The third port is for riders who seek the redundancy of Shimano's 12-speed Di2 wired option.

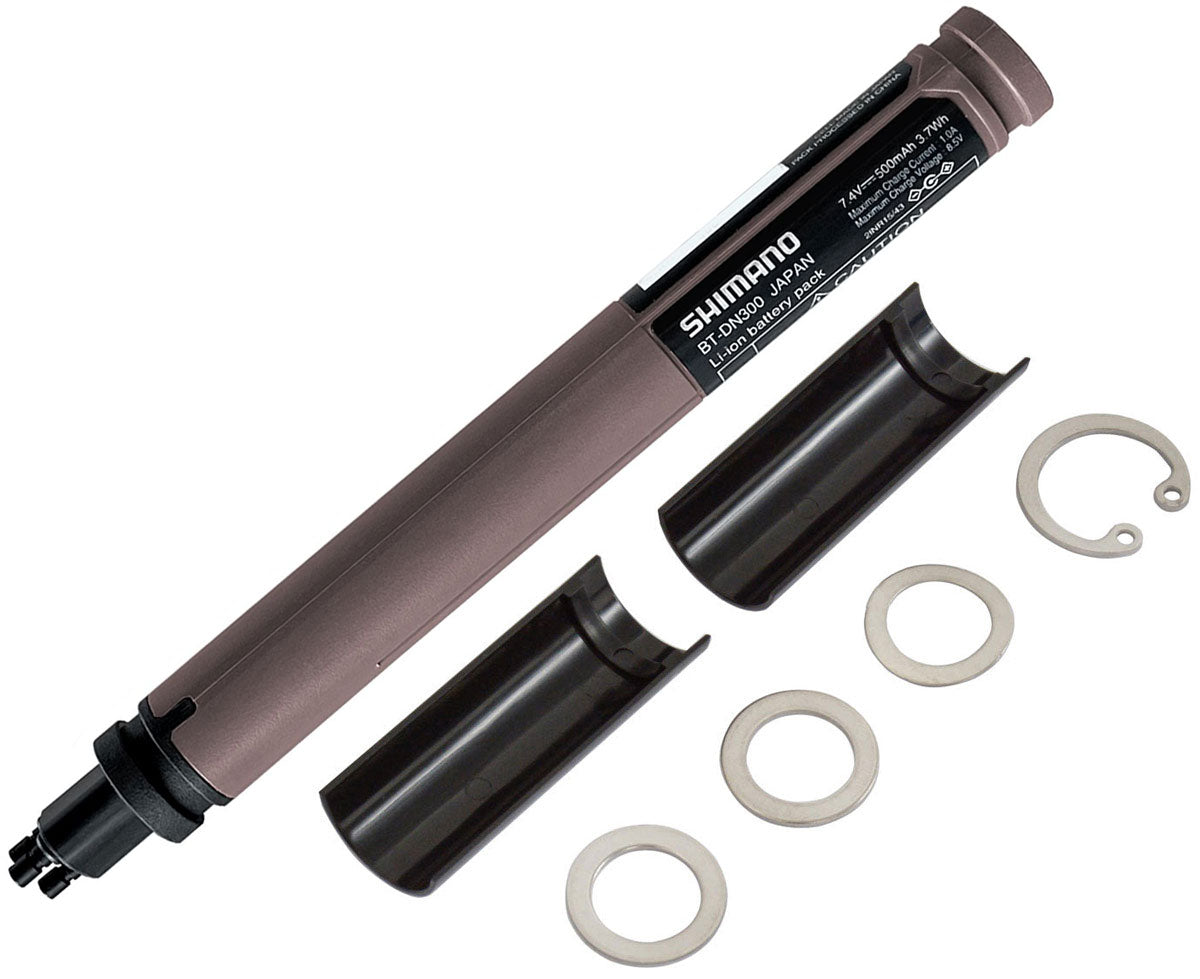

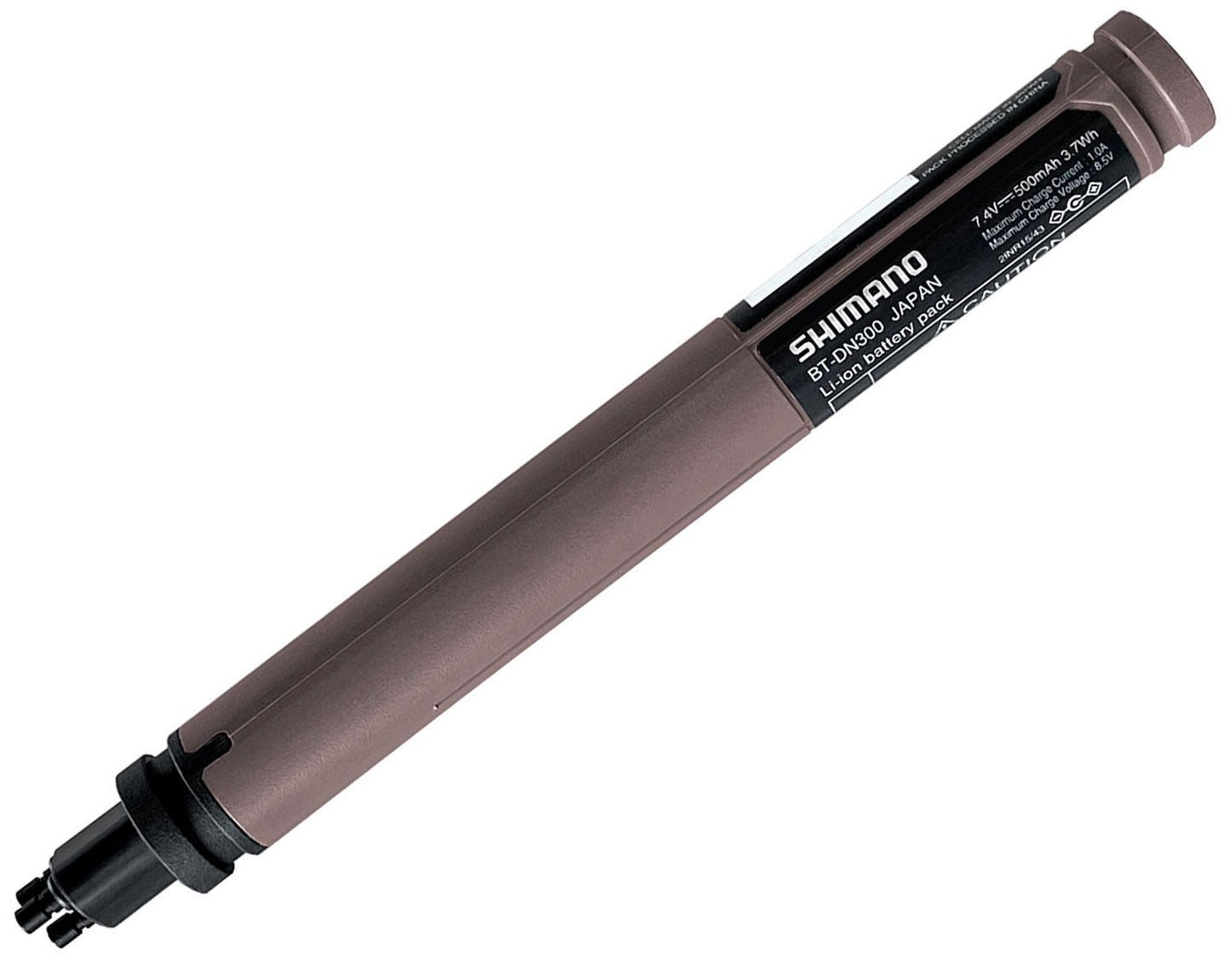

Features Shimano Di2 BT-DN300 Battery for Internal Mounting
- Compatible with thinner next generation electric wire SD300 and systems after R9250/R8150 series

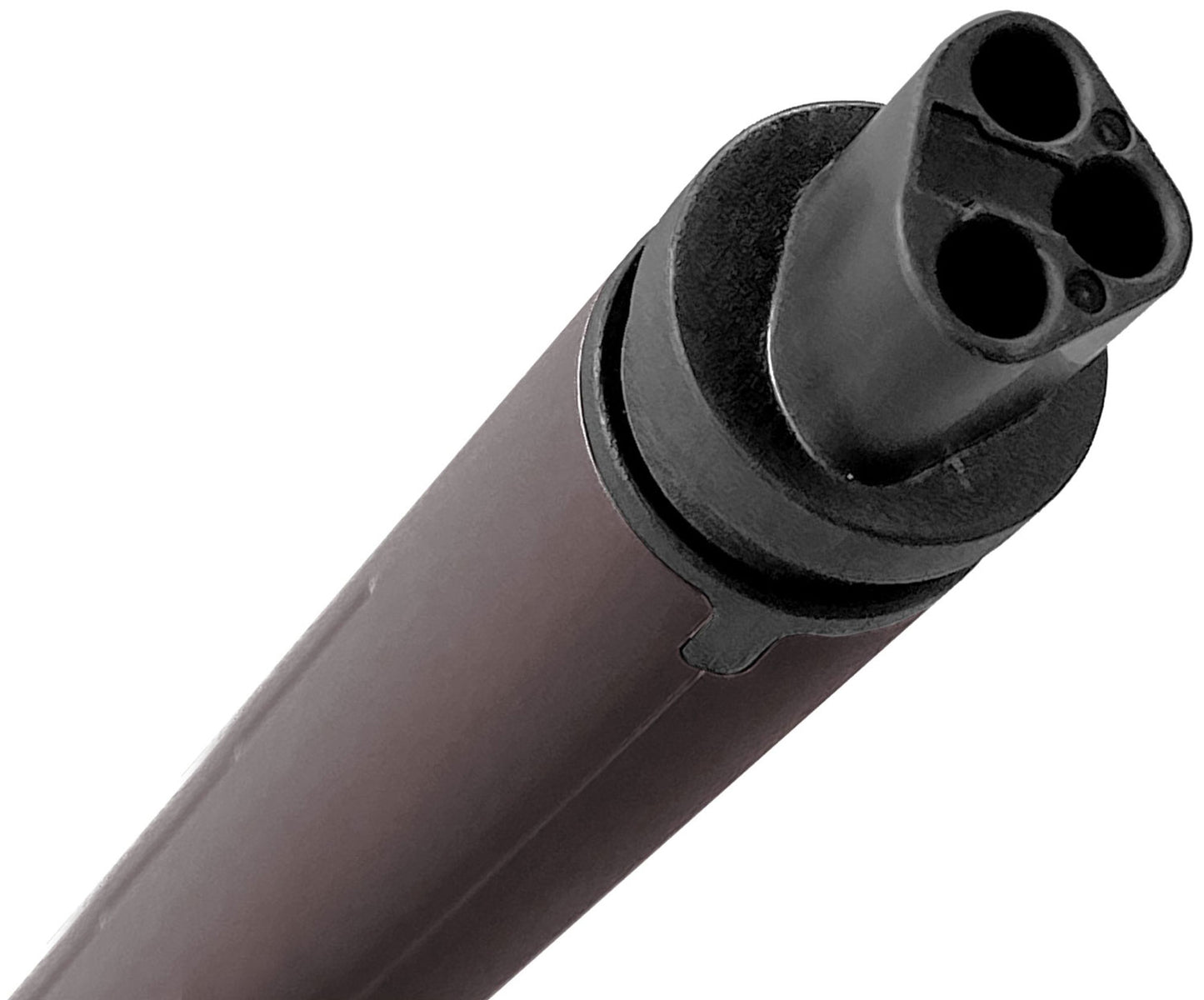

- 3 SD300 ports
- Shared fixing method with BT-DN110
- For built-in installation in the frame or seat post
- High-power lithium-ion battery
Specification
-
Model: BT-DN300
-
Type: Built-In
-
Battery: Lithium Ion
-
Nominal capacity: 500mAh 3.7Wh
-
Nominal voltage: 7.4V
-
Compatible electric wire: EW-SD300
-
E-tube port (pcs): 3
-
Operating temperature range:
- During discharge: -10°C bis 50°C
- During charging: 0°C bis 45°C
-
Diameter: Ø17mm
-
Length: 152mm
Compatibility
- Dura Ace Di2 R9250
- Ultegra Di2 R8150
Weight
Contents
- 1 Shimano Di2 BT-DN300 Battery for internal mounting
