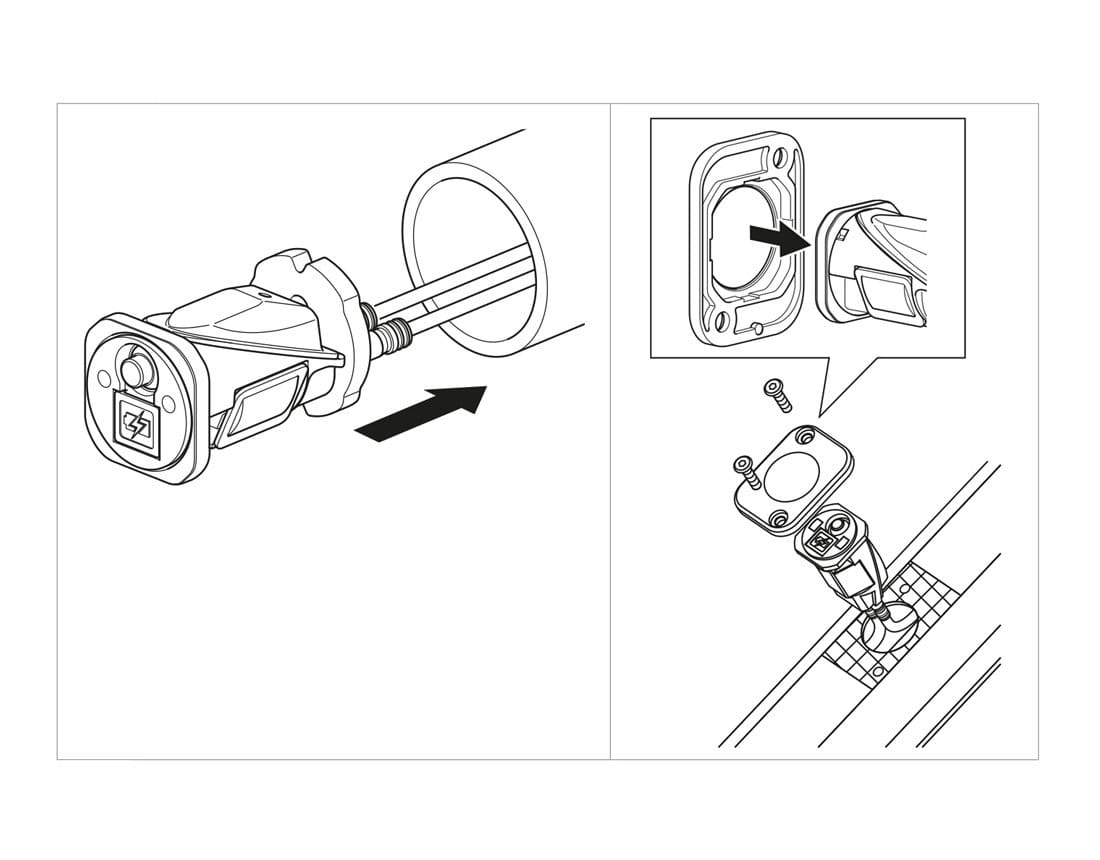

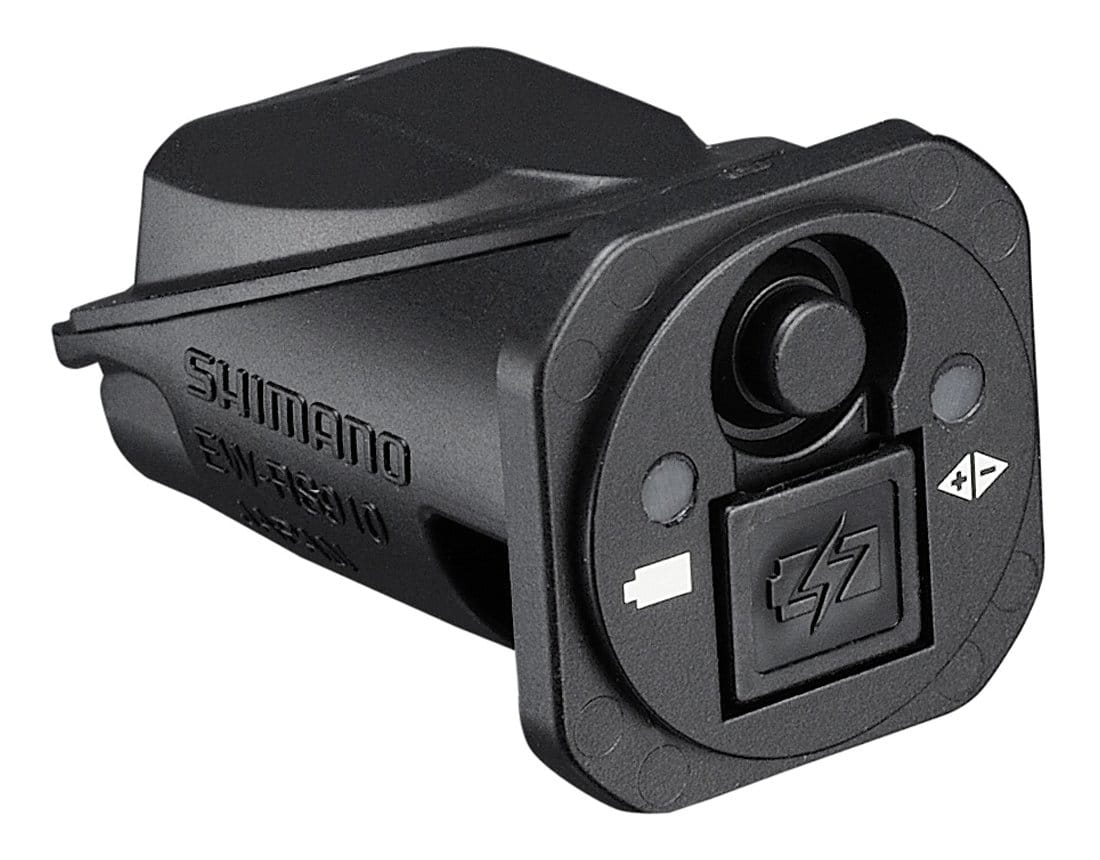

The Shimano Di2 distributor unit A EW-RS910 can be mounted on the handlebar ends of road bikes or on suitable frames. It has 2 connections for the internal E-TUBE cable routing as well as for charging, battery monitoring and switching the shifting mode.
Specification
-
Model: EW-RS910
-
Type: Built-in type
-
Position: In side of frame or handlebar (Inner-ø 20.5-21.5 mm, Outer-ø 23.8-24.2mm)
-
Wireless system: No
-
Compatible system: E-tube system
-
Compatible EW: EW-SD50
-
Master unit: No
-
Firmware update by E-tube Project: Yes
-
E-tube port (QTY): 2
-
E-tube connector (QTY): 0
-
Connector for remote sprinter shifter (QTY): 0
-
Port for remote sprinter shifter (QTY): 0
-
Charging port (QTY): 1
-
Function: Gear position, Di2 Battery level, Adjust mode display, E-tube connection
Compatibility
- Dura Ace Di2 R9150
- Dura Ace Di2 9070
- Ultegra Di2 6870
Weight
Contents

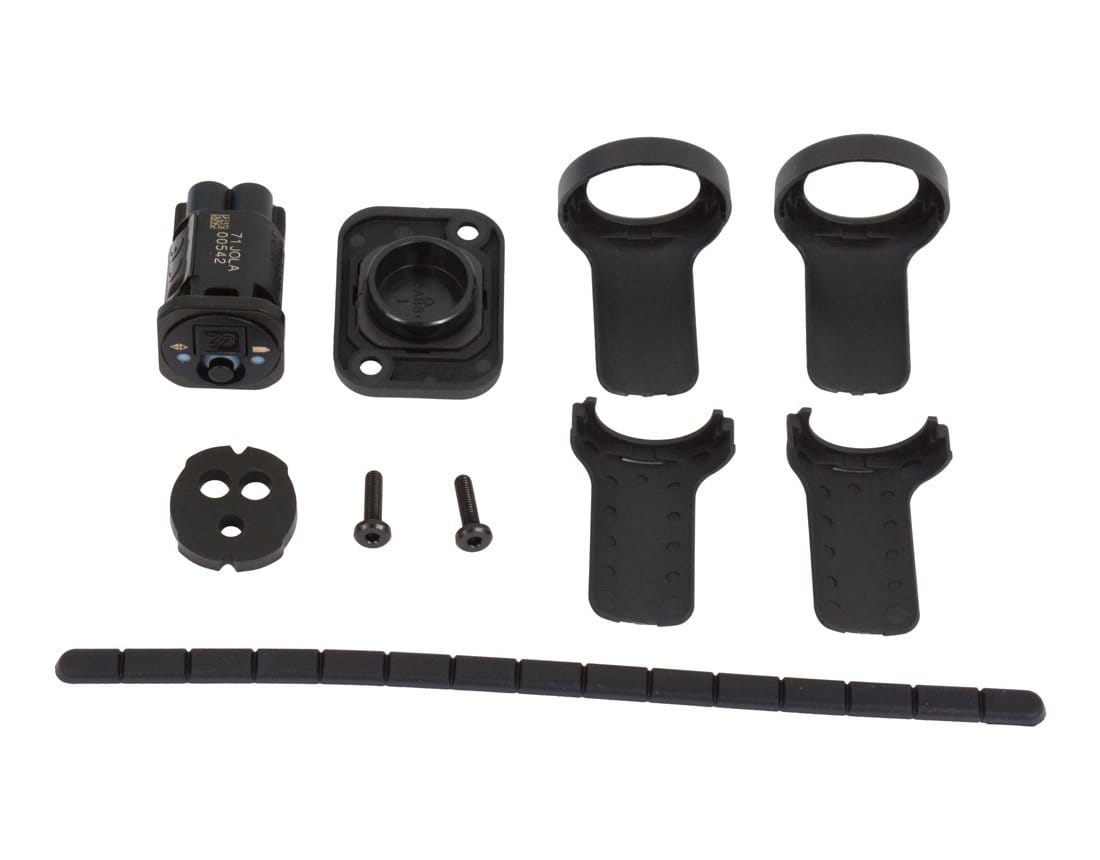

- 1 x Shimano Di2 Junction 2 Ports EW-RS910 integrated incl. mounting hardware
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
