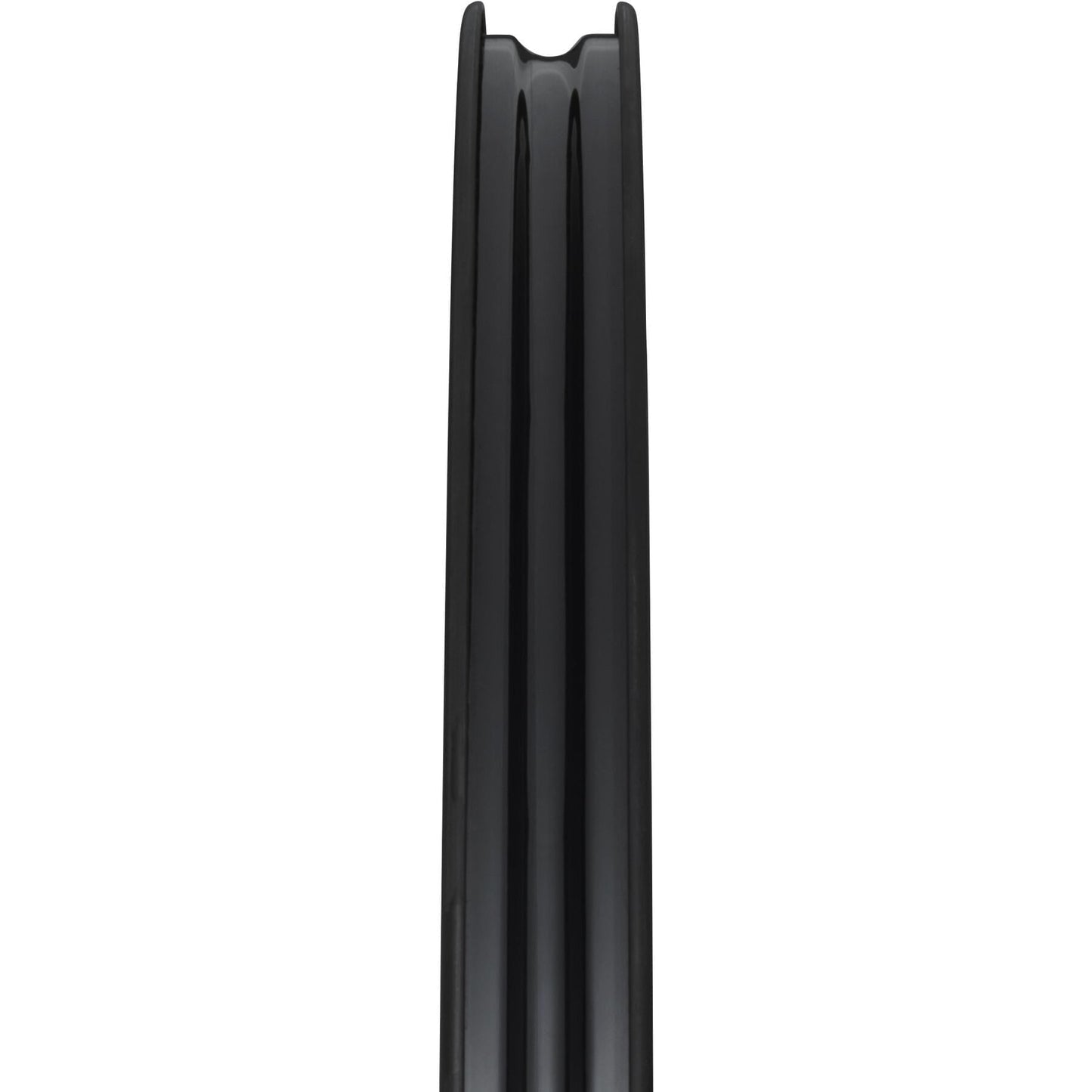

Engineered for climbers who demand lightweight performance without compromise, the SHIMANO DURA-ACE C36 combines a featherweight all-carbon 36 mm rim with an equally refined hub design.
The wider rim profile maintains excellent aerodynamic efficiency while shedding grams where it counts most. An alloy FREEHUB body and redesigned engagement mechanism boost rigidity and reliability, ensuring responsive power transfer on steep ascents and technical descents. Tubeless-ready construction adds versatility for varied terrain. Built for serious cyclists tackling mixed conditions with confidence.
Features
- 36 mm height full carbon rim
- Internal rim width: 21 mm
- DIRECT ENGAGEMENT
- Compatible only with Shimano road 12-speed cassette sprockets
Specification
-
Use: Road
-
Group: Dura Ace R9200
-
Model: WH-R9270-TL
-
Wheel size: 28"
-
Tyre type: UST Tubeless Ready / Clincher
-
Rim size: 622 x 21C
-
Rim inner width: 21mm
-
Rim outer width: 28mm
-
Brake type: Disc Centre-Lock
-
Freehub body: Shimano 12-speed Road
-
Over locknut: front 12 x 100mm / rear 12 x 142mm
-
Axle Fixing method: 12mm E-thru
-
Contact seal: Labyrinth and Contact
-
Spokes: front 24 / rear 24
-
Tyre recommended size: 25-622 to 32-622
Rim heights available
- C36 Rim (36mm)
- C50 Rim (50mm)
- C60 Rim (60mm)
Material
-
Rim: Carbon
-
Hub: Aluminium
-
Spokes: Stainless steel
-
Nipples: Aluminium
Colour
Weight
- C36 (Front 620g | Rear 730g | Set 1350g)
- C50 (Front 674g | Rear 787g | Set 1461g)
- C60 (Front 751g | Rear 858g | Set 1609g)
Contents
- 1 x Shimano Dura Ace C36 Tubular Rear Wheel
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
