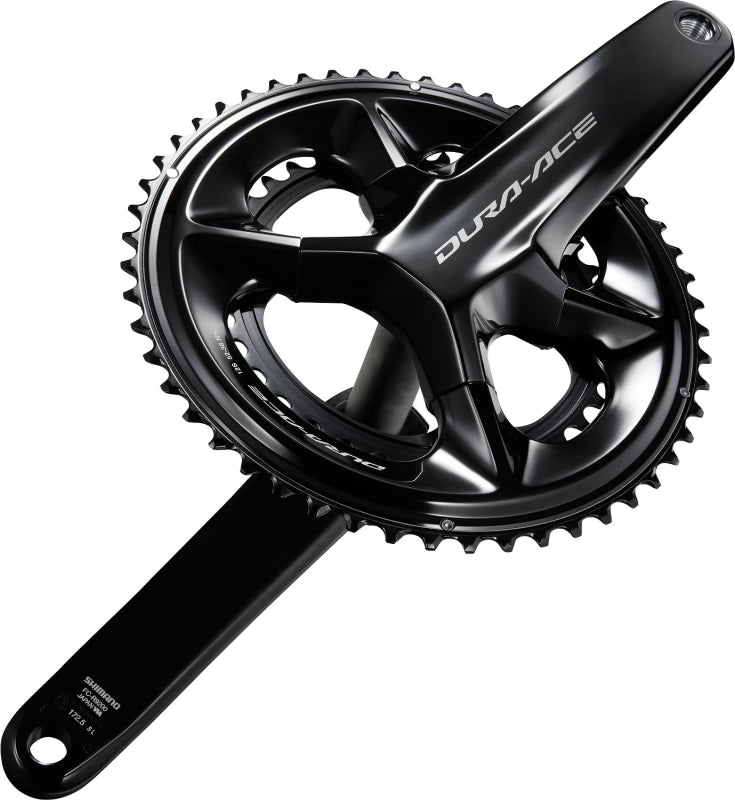

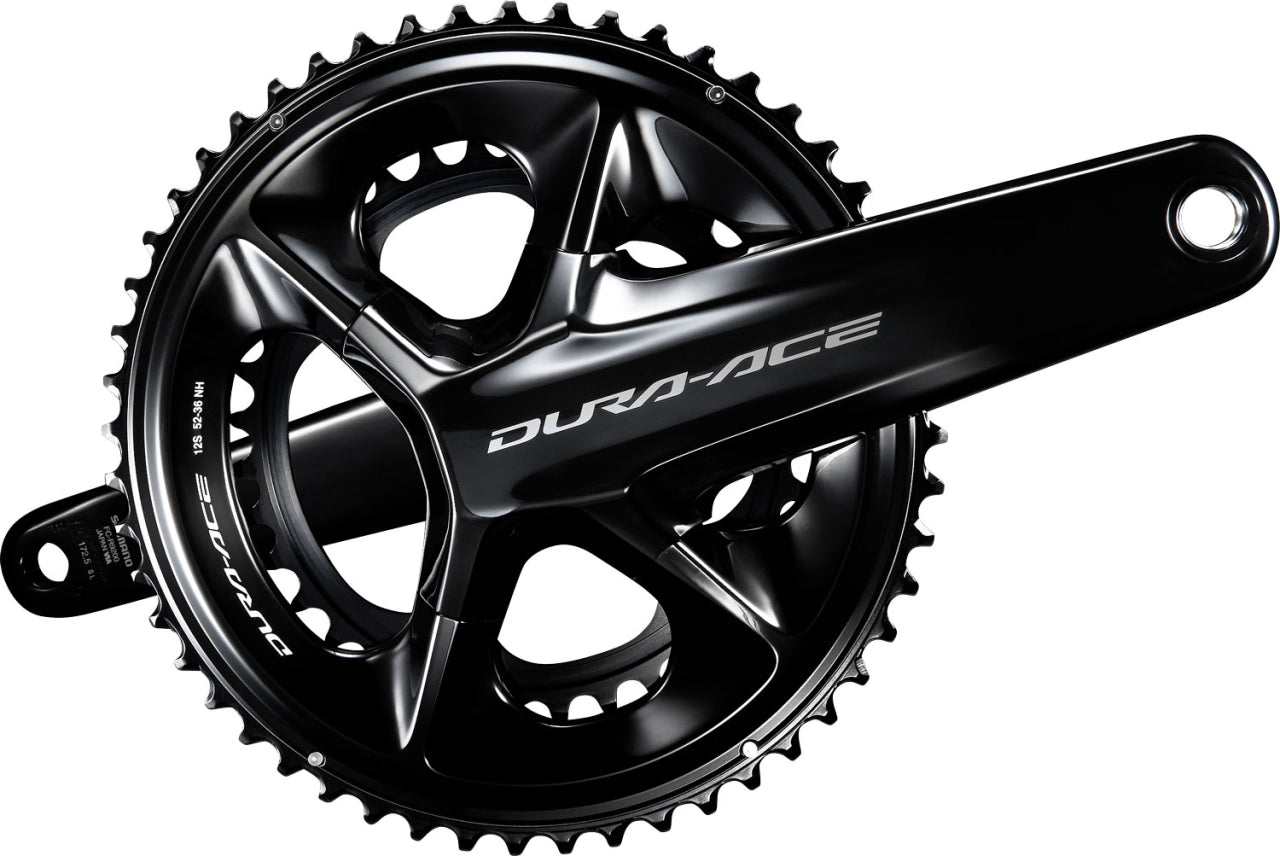

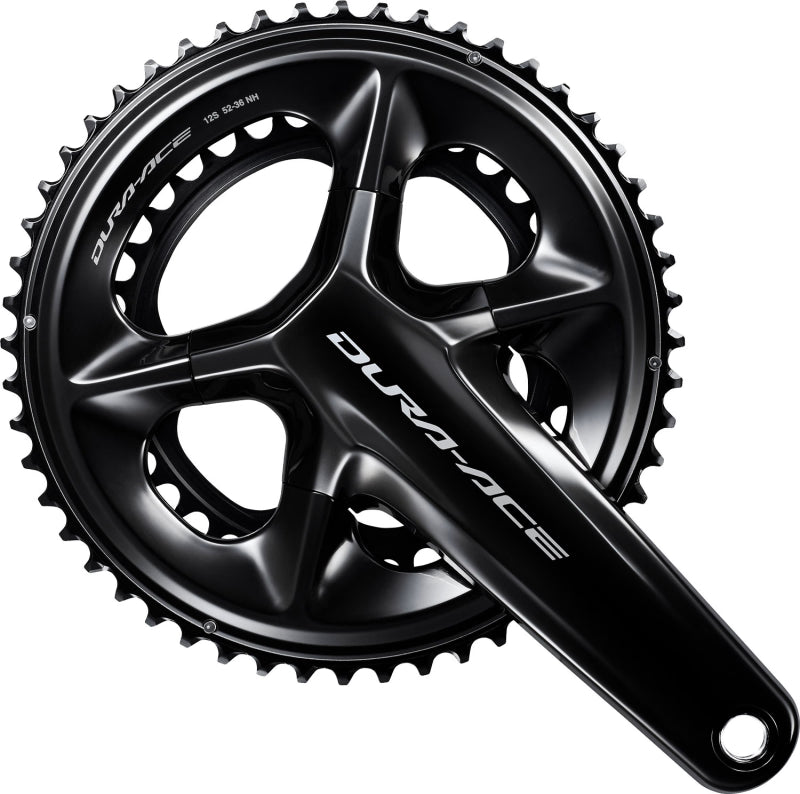

The Shimano Dura Ace FC-R9200 2 x 12-speed HOLLOWTECH II crankset combines striking modern design with exceptional performance.
This latest iteration delivers refined aesthetics alongside improved efficiency, making it the ideal choice for cyclists demanding both style and substance. Built with Shimano's proven engineering, it offers smooth power transfer and reliable shifting across the full 12-speed range. Whether you're tackling climbs or pushing on the flats, this crankset provides the precision and durability expected from Dura Ace's premium lineup.
Features
- HOLLOWTECH II crankset
- Optimum power transfer Best balance for lighter weight and efficiency

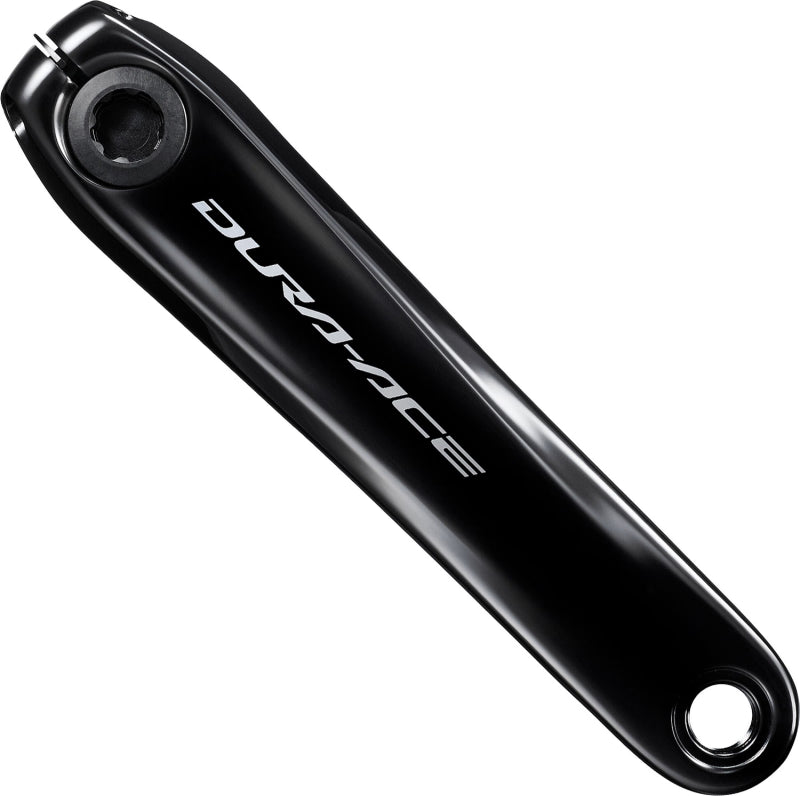

- New designed crank arm
- Maintains high rigidity and reduces weight
- 4-arm construction crankset
- Iconic design
Specification
-
Use: Road
-
Group: Dura Ace R9200
-
Model: FC-R9200
-
Gradation: 50-34T
-
Q-factor: 146mm
-
Threaded BB shell width: 68 / 70mm
-
Gear front: 2-speed
-
Gear rear: 12-speed
-
Construction: Hollowtech II
-
Compatible chain: CN-M9100 HG 12-speed
-
PCD: 110mm
-
Chain line: 43.5mm
Crank Arm Length
- 160mm
- 165mm
- 170mm
- 172.5mm
- 175mm
- 177.5mm
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
-
Large Chainring: Aluminium Anodized / CFRP
-
Small Chainring: Aluminium Anodized
Colour
Contents
- 1 x Shimano Dura Ace FC-R9200 12-Speed Crank 50/34T
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
