The new Shimano Dura Ace FC-R9200-P redefines performance cycling with its striking HOLLOWTECH II design.
This 2 x 12-speed power meter crank delivers dual-sided power measurement with exceptional accuracy (±1.5%), setting a new benchmark for precision training data. The refined aesthetics combine cult-like appeal with genuine performance gains, making it the choice for serious cyclists demanding both style and substance. Chainrings sold separately.
Features
- Integrated design
- Reliable electric system
- Waterproof in all conditions
- Easy maintenance
- Integrated rechargeable battery
- Battery charged for less trouble
- Easily change chainrings without affecting power
- Clearance with frame
- Enough clearance with our direct mount brake caliper
- Accurate data collection ±1.5% accuracy of strain gage measured power in full-range
- Stable power measurement system at the various stepping positions
- Active temperature compensation

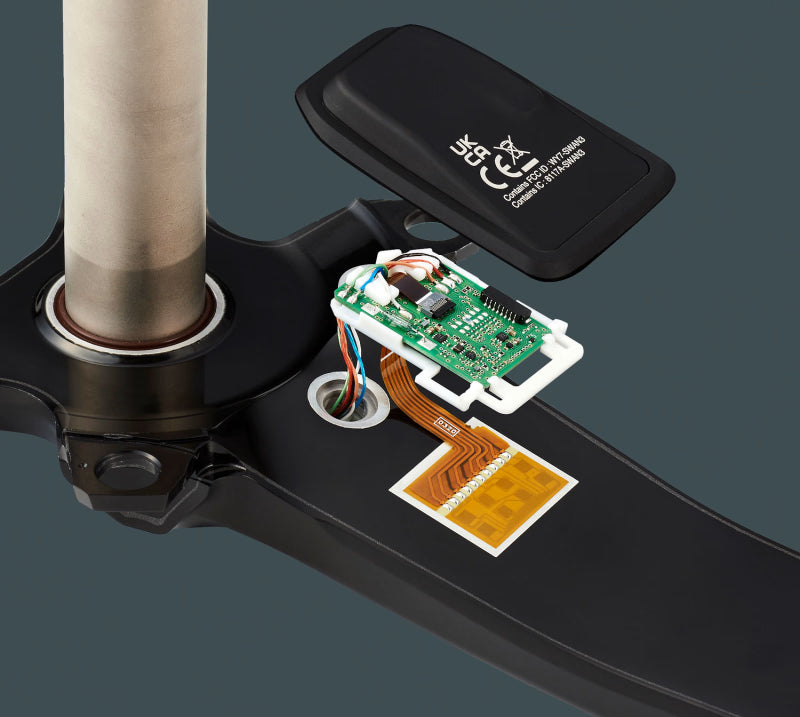

- Own developed strain gauge
- Software compensate automatically
- Quick response and operation without stress
- Possible to start quickly
- Simple zero reset with switch on transmitter
- Direct response
- Both left and right side connected with cable
- Magnet based cadence
- Bluetooth®LE and ANT+
- Wireless firmware update system
- HOLLOWTECH II crankset
- Optimum power transfer Best balance for lighter weight and efficiency
- New designed crank arm
- Maintains high rigidity and reduces weight
- 4-arm construction crankset
Specification
-
Use: Road
-
Group: Dura Ace R9200
-
Model: FC-R9200-P
-
Gradation: -
-
Q-factor: 146mm
-
Threaded BB shell width: 68 / 70mm
-
Gear front: 2-speed
-
Gear rear: 12-speed
-
Construction: Hollowtech II
-
Compatible chain: CN-M9100 HG 12-speed
-
PCD: 110mm
-
Chain line: 43.5mm
Crank Arm Length
Material
-
Crank arm: Aluminium Anodized
-
Crank axle: Steel Plated
Colour
Contents
- 1 x Shimano Dura Ace FC-R9200-P 12-Speed Power Meter Crankset without Chainring
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
