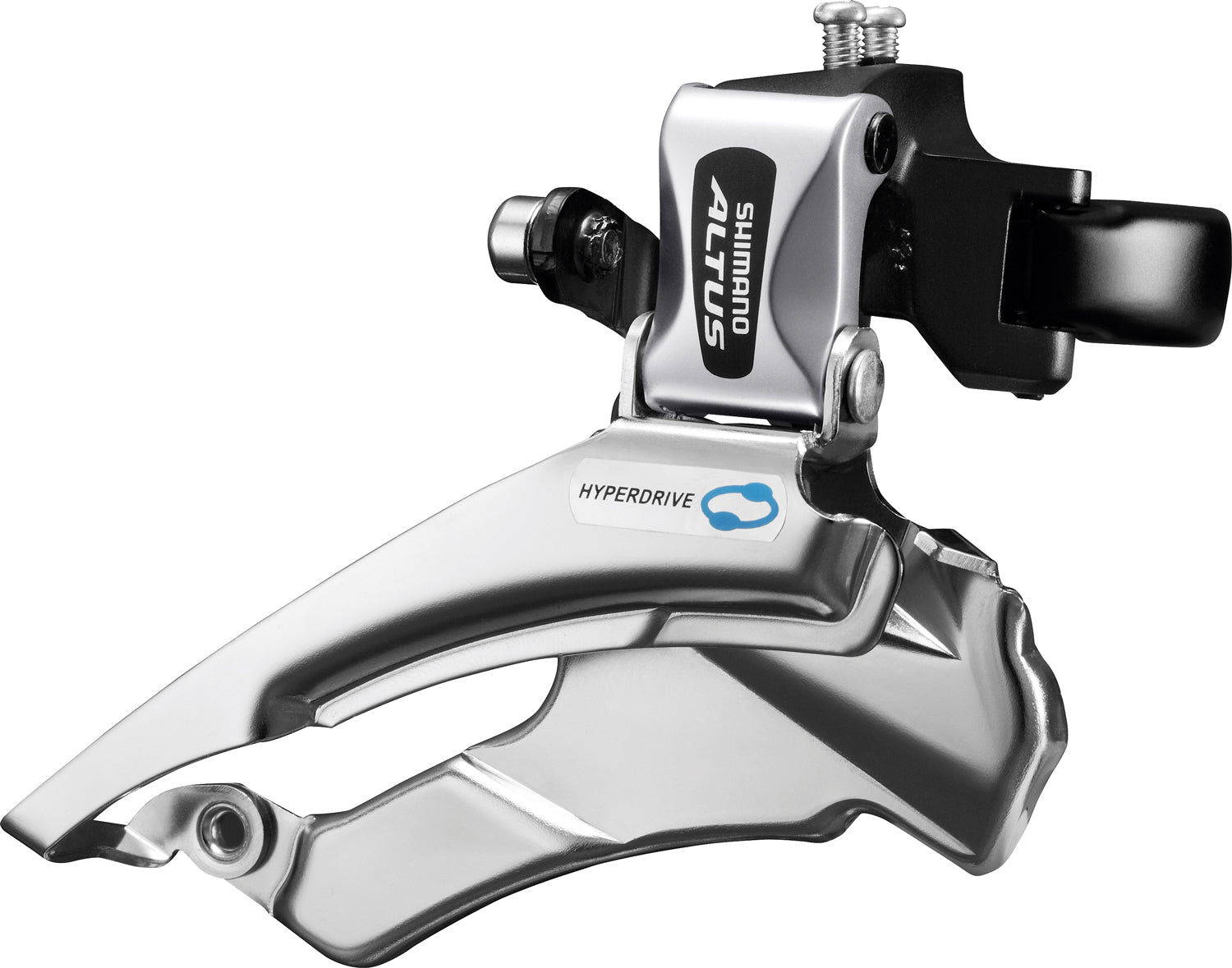

The Shimano ALTUS FD-M313 down-swing front derailleur is compatible with traditional mounting standards and guarantees precise, superior shifting with 3 x 7/8-speed cranksets.
Features
- Super light shift action
- Mounting high clamp
Specification
-
Use: MTB/Trekking
-
Group: ALTUS
-
Model: FD-M313
-
Mounting: Conventional Swing - High Clamp
-
Multi-Clamp: 34.9mm (28.6mm / 31.8mm w/ Adapter)
-
Cable route type: Dual Pull
-
Gear front: 3-speed
-
Gear rear: 7/8-speed
-
Top gear teeth: 42-48T
-
Total capacity: 20T
-
Applicable Top-Mid teeth difference: 10T
-
Compatible Chain: HG 7/8-speed
-
Chain line: 47.5/50mm
Chain stay angle
- 63-66° (FD-M313-3)
- 66-69° (FD-M313-6)
Material
Colour
Contents
- 1 x Shimano ALTUS FD-M313 3x7/8-speed Front Derailleur
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
