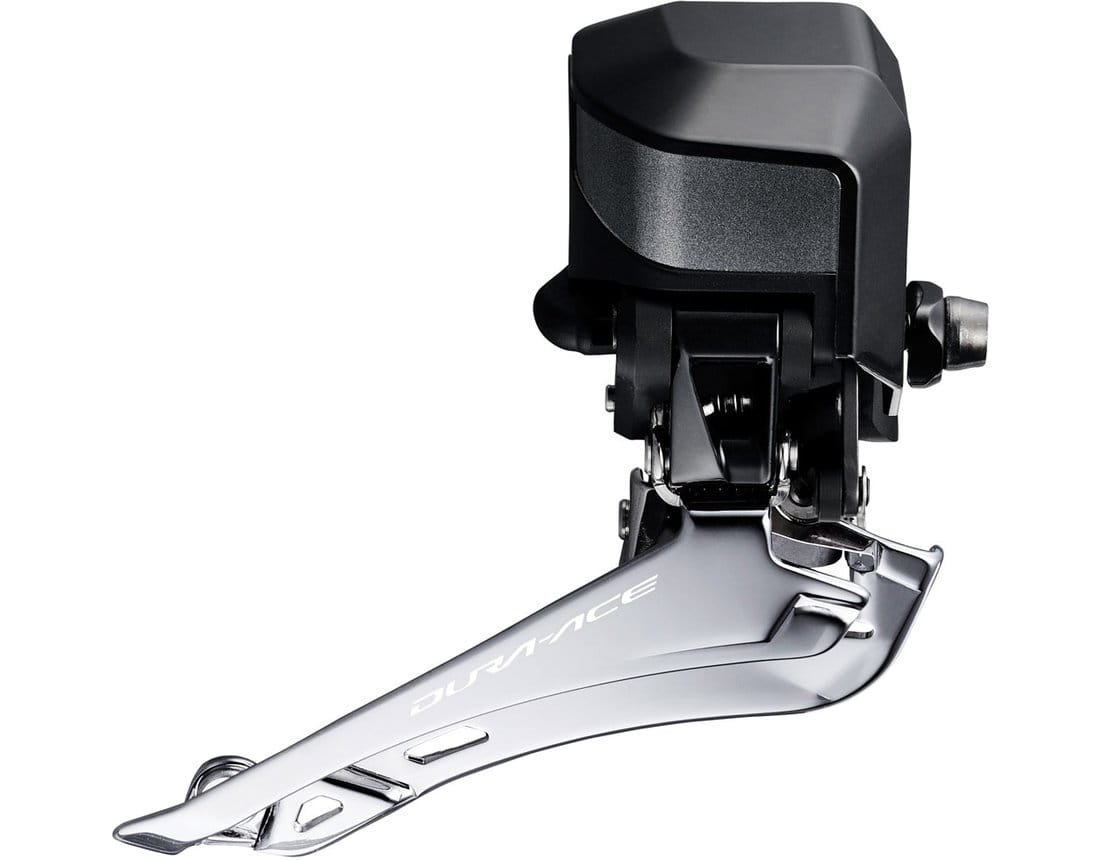

The Shimano DURA ACE Di2 FD-R9150 front derailleur incorporate these new cockpit functions.
The electronic front derailleur is compact and designed to protect the shifting operation in the event of a crash.
Front (FD-R9150) and rear derailleurs (RD-R9150) incorporate these new cockpit functions. Both electronic derailleurs are compact and designed to protect the shifting operation in the event of a crash. The low profile of the rear derailleur also comes with SHIMANO SHADOW RD technology, positioning the derailleur further below the functioning sprocket.
Features
- Ergonomic shifting operation without stress
- SHIMANO synchronized shift
- Race endurance for less damage in crush
- Quick and smooth front shifting "under" high pedalling torque
- Maintains compact and smooth appearance
Specification
-
Use: Road
-
Group: Dura Ace Di2
-
Model: FD-R9150
-
Mounting: Braze On
-
Action: Down-Swing
-
Gear front: 2-speed
-
Gear rear: 11-speed
-
Top gear teeth: 46-55T
-
Total capacity: 16T
-
Compatible Chain: HG-EV 11-speed / HG-X 11-speed
-
Chain stay angle: 61-66°
-
Chain line: 43.5mm
-
Compatible: EW-SD50
-
Master unit: No
-
Firmware update by E-tube Project: Yes
-
E-tube port (pcs): 1
-
E-tube connector (pcs): 0
Material
Weight
Contents
- 1 Dura Ace 2x11-speed Di2 Front Derailleur FD-R9150 Braze On
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
