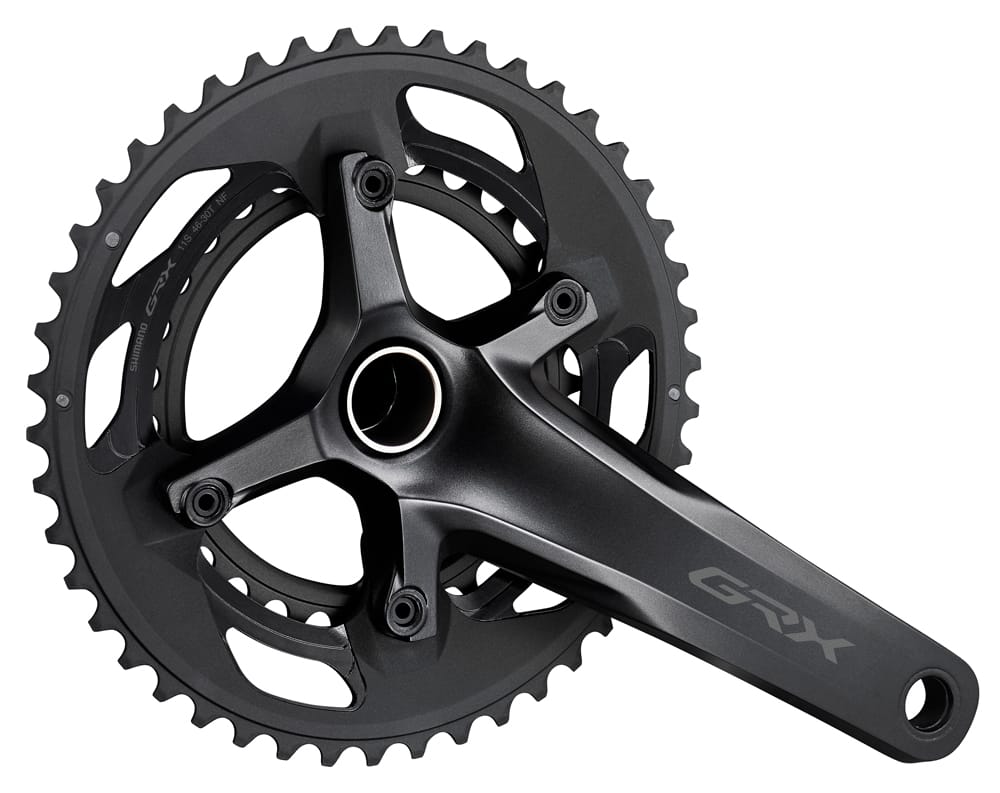

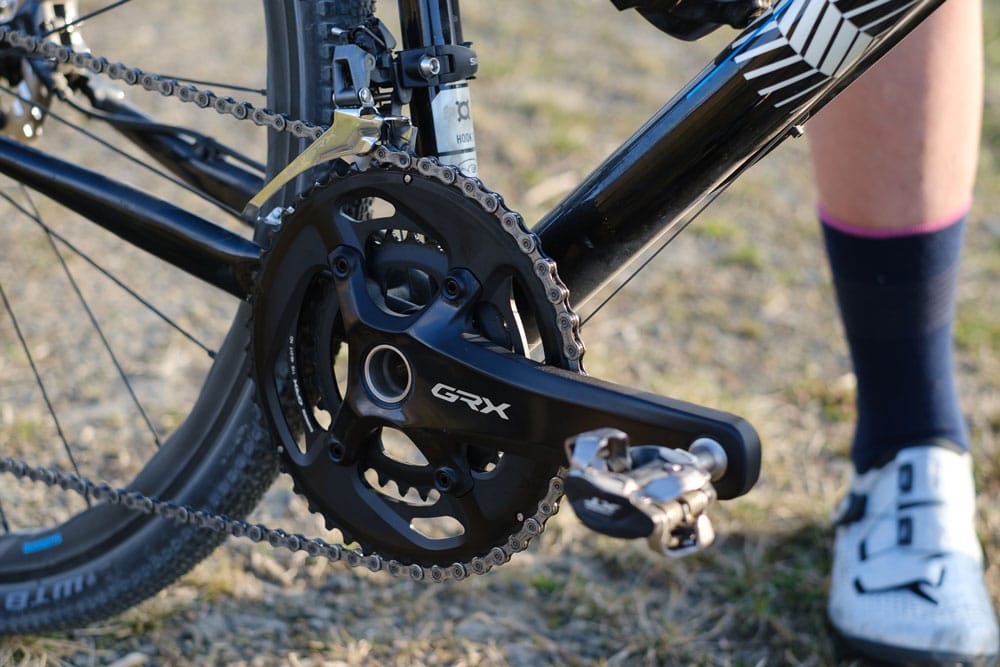

SHIMANO GRX FC-RX600 2x11-SPEED CRANK 46/30

The new GRX FC-RX600 2-Piece crank from Shimano was developed for 2 x 11-speed to handle a wide variety of terrain and driving styles.

All versions feature a 2.5mm wider chain line that gives more space in the frame design and wider tyres. GRX 1-speed cranks minimize the complexity of shifting only at the rear of the cassette (optional RX800/600 40T cassettes or RX800 42T cassettes), and are equipped with chainrings with SHIMANO's DYNAMIC CHAIN ENGAGEMENT+ toothed treads that provide optimal chain retention especially on bumpy surfaces. The GRX RX810 2-speed crank, on the other hand, is characterised by the specific 17-tooth difference between the large 48T and small 31T chainrings, the widest gradation of all SHIMANO components to date. Together with the 46-30T cranks of the RX600 series (10-speed and 11-speed), the 2-speed cranks of the GRX family thus offer more than enough bandwidth for super steep climbs and high speeds in the flat or on descents.

Features

• Wider gear range for long tours or unknown terrain
• Optimum gearing for mixed terrains and riding styles

Specification

• Use: Gravel, Road, Cyclocross
• Group:  GRX
• Model: FC-RX600-11
• Gradation: 46/30T
• Q-Factor: 151mm
• Threaded BB shell width: 68 / 70mm
• Gear front: 2-speed
• Gear rear: 11-speed
• Construction: 2-Piece
• Compatible Chain: HG-EV 11-speed, HG-X11
• PCD: 110/80mm
• Chain line: 46.9mm
• Recommended BB Pressfit: BB-RS500-PB
• Recommended BB BSA: BB-RS500

Crank Arm Length

• 170mm
• 172.5mm
• 175mm

Material

• Crank arm: Aluminium Anodized
• Crank axle: Steel Plated
• Chainrings: Aluminium Anodized

Weight

• 816g (manufacturer information)

Contents

• 1 x GRX 2x11-speed Crank FC-RX600 46/30T
