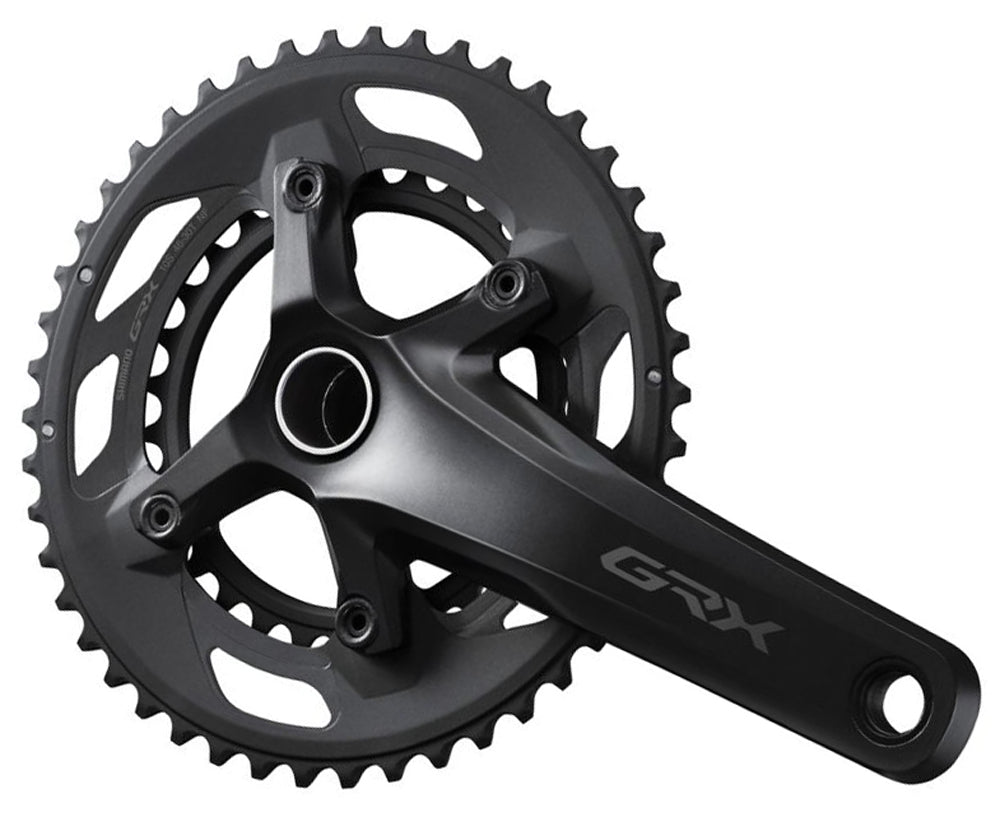

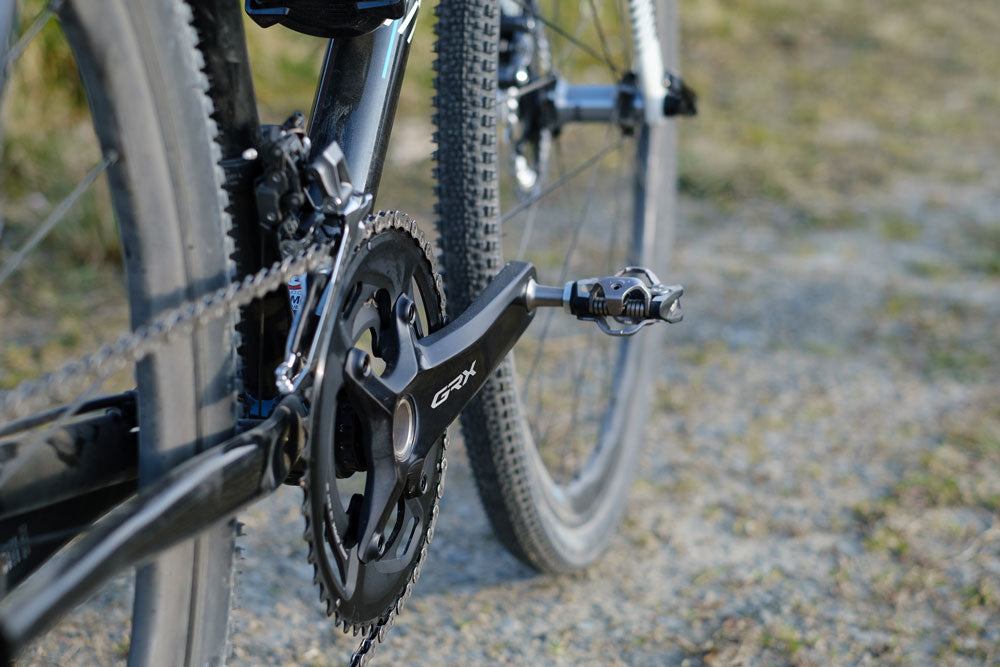

The new GRX FC-RX600 2-Piece crank from Shimano was developed for 2 x 10-speed to handle a wide variety of terrain and driving styles.

All versions feature a 2.5mm wider chain line that gives more space in the frame design and wider tyres. GRX 1-speed cranks minimize the complexity of shifting only at the rear of the cassette (optional RX800/600 40T cassettes or RX800 42T cassettes), and are equipped with chainrings with SHIMANO's DYNAMIC CHAIN ENGAGEMENT+ toothed treads that provide optimal chain retention especially on bumpy surfaces. The GRX RX810 2-speed crank, on the other hand, is characterised by the specific 17-tooth difference between the large 48T and small 31T chainrings, the widest gradation of all SHIMANO components to date. Together with the 46-30T cranks of the RX600 series (10-speed and 11-speed), the 2-speed cranks of the GRX family thus offer more than enough bandwidth for super steep climbs and high speeds in the flat or on descents.

SHIMANO's GRX, the first Gravel-specific component family designed for both fast progress and safe bike handling on loose surfaces, is the result of an intensive and extensive research, testing and development process that incorporates information and feedback from countless riders on trails, forest tracks, gravel tracks and asphalt all over the world.

Features

• Wider gear range for long tours or unknown terrain
• Optimum gearing for mixed terrains and riding styles

Specification

• Use: Gravel, Road, Cyclocross
• Group: GRX
• Model: FC-RX600-10
• Gradation: 46/30T
• Q-Factor: 151mm
• Threaded BB shell width: 68 / 70mm
• Gear front: 2-speed
• Gear rear: 10-speed
• Construction: 2-Piece
• Compatible Chain: HG-10-speed
• PCD: 110/80mm
• Chain line: 46.9mm
• Recommended BB Pressfit: BB-RS500-PB
• Recommended BB BSA: BB-RS500

Crank Arm Length

• 165mm
• 170mm
• 172.5mm
• 175mm

Material

• Crank arm: Aluminum Anodized
• Crank axle: Steel Plated
• Chainrings: Aluminium Anodized

Weight

• 819g (manufacturer information)

Contents

• 1 x GRX 2x10-speed Crank FC-RX600 46/30T

Bottom Bracket BB-RS500 BSA/ Pressfit BB-RS500 not included!
