Matching the Shimano GRX cranksets, the GRX FD-RX810 2 x 11-speed front derailleur is also designed for a 2.5 mm wider chain line and thus allow tyre widths of up to 42 mm for rough terrain.
The RX800 front derailleurs are designed to handle the 17-tooth chainring difference of the RX800 48/31T crank, while the FD-RX400 front derailleur harmonizes perfectly with the 16-tooth difference of the RX600 crank for 10-speed with 46/30 teeth. All front derailleurs naturally offer the typical SHIMANO shifting performance and precision. The Di2 front derailleur can be easily and intuitively adjusted using the integrated control functions. The mechanical front derailleurs impress with their smooth-running function with a very ergonomic power curve and the integration of tension clamp and adjustment function.
Features
- Ergonomic power curve
- Integrated cable tension adjustment
- Natural stroke feeling
- Chainline +2.5 mm vs. conventional road FD
- Compatible with up to 42 mm tires
- More cable routing options
- Wider tire clearance
- Wider range front gearing
- Precise and easy front derailleur adjustment
Specification
-
Use: Gravel, Road, Cyclocross
-
Group: GRX
-

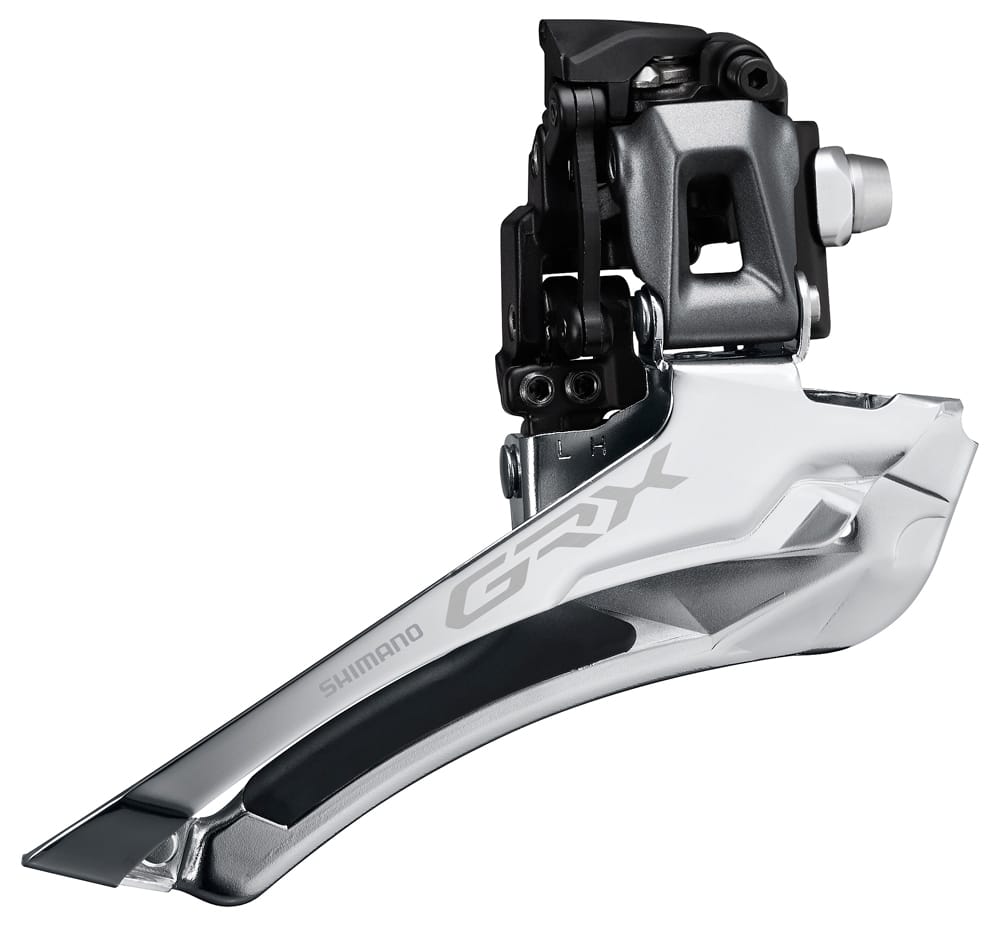

Model: FD-RX810-F
-
Mounting: Brazed-on
-
Cable route type: Down-Pull
-
Gear front: 2-speed
-
Gear rear: 11-speed
-
Top gear teeth: 46-50T
-
Total capacity: 17T
-
Compatible chain: HG-EV 11-speed, HG-X11
-
Chain stay angle: 61-66°
-
Chain line: 46mm
Material
Colour
Weight
Contents
- 1 x Shimano GRX 2x11-speed FD-RX810 Front Derailleur Braze On
