Shimano's XTR PD-M9200 pedals deliver enhanced stability through wider edge-to-edge contact areas, keeping your foot secure on technical terrain.
Rounded contact points and offset bindings shed mud effectively, maintaining consistent grip in wet conditions. The Rider-Tuned design includes two axle length options—choose the new 3 mm shorter axle to reduce Q-factor on Boost drivetrains, perfect for XC riders seeking optimal pedalling efficiency and comfort.
Features
- Wider edge-to-edge contact area provides solid pedal - shoe interface and transmits power efficiently
- Cylindrical contact area sheds mud better for consistent stepping-in & out
- Efficient pedaling and better bike control
- Better mud clearance
- Stress-free pedaling
- Improved axle durability
- 2 axle length options Crank surface - Pedal center: 52mm (3mm shorter axle) / 55mm (Standard)
Specification
-
Use: MTB Cross Country, Race
-
Group: XTR M9200
-
Model: PD-M9200
-
Type: Click
-
Pedal system: SPD
-
Binding: Dual Sided
-
Mechanism sealed: Yes
-
Cleat retention adjuster:Yes
-
Cleats: SM-SH51
-
Optional cleats: SM-SH56 (Not included!)
-
Optional reflector for PD-M9100: SM-PD60 (Not included!)
-
Optional reflector for PD-M9100-S1: SM-PD22 (Not included!)
Axle length
-
3mm shorter axle (PD-M9200-S1 for Boost cranks)
-
Standard (PD-M9200)
Material
-
Pedal body: Aluminum anodized
-
Pedal axle: Chromoly steel
Weight
- Approx. 313g pair (3mm shorter axle)
- Approx. 316g pair (Standard)
Contents

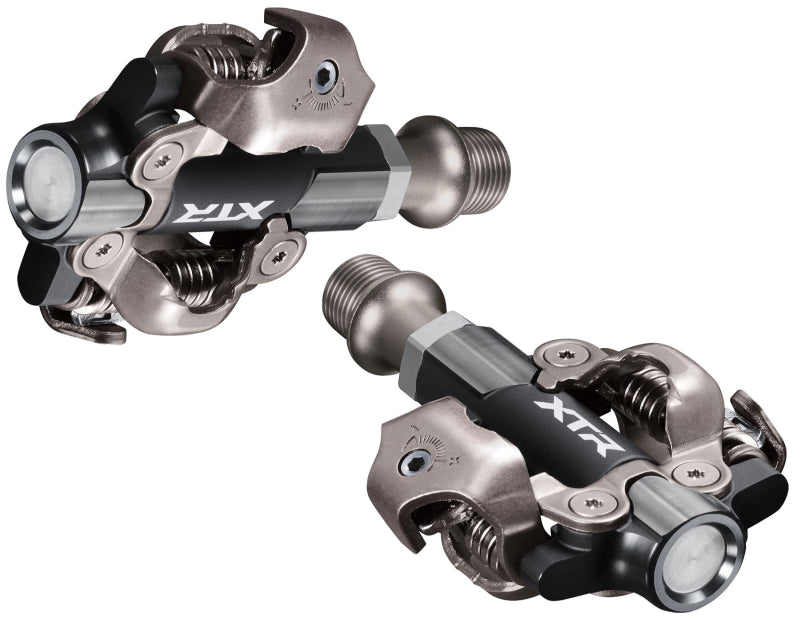

- 1 pair Shimano XTR PD-M9200 Pedals

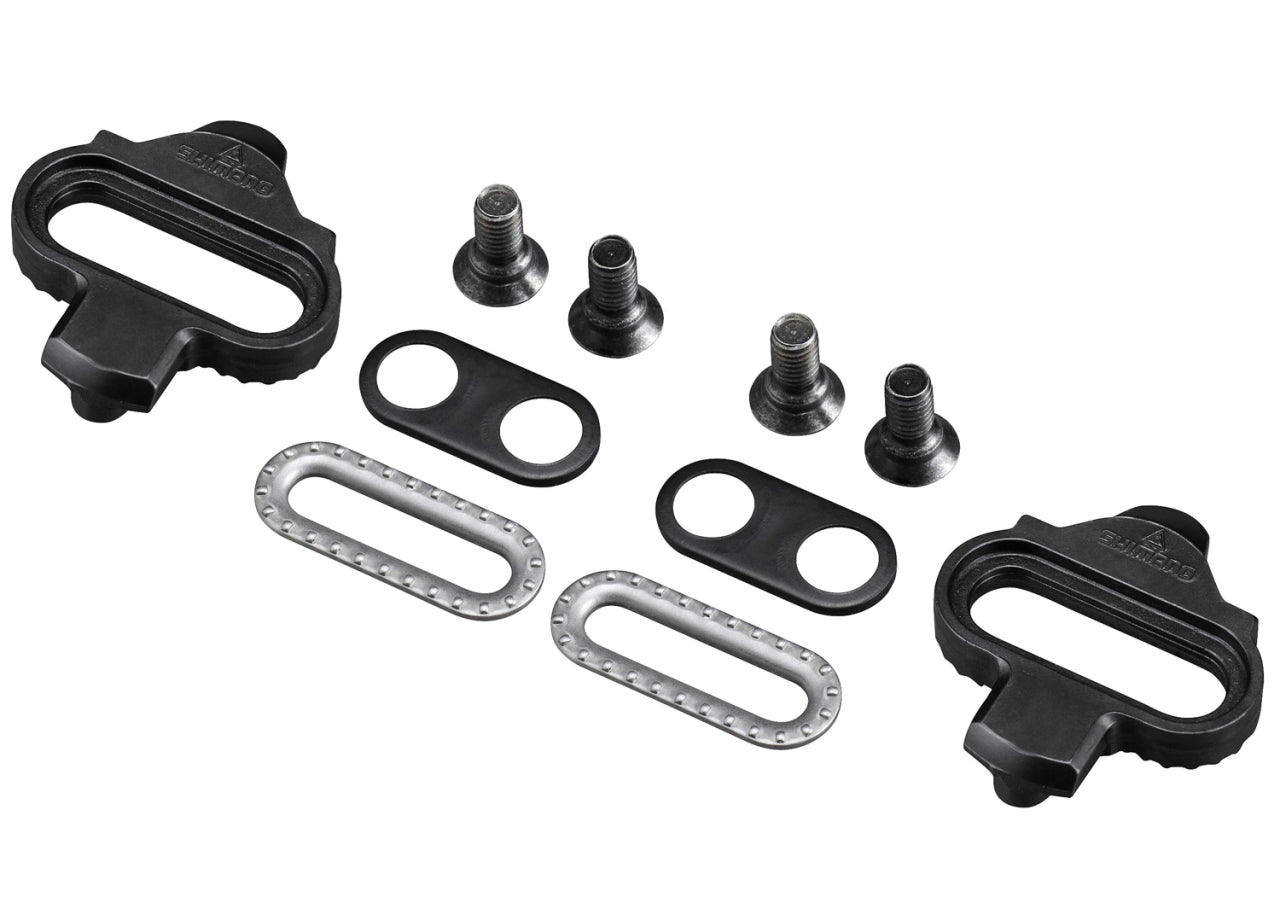

- 1 pair Shimano SM-SH51 Cleats
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
