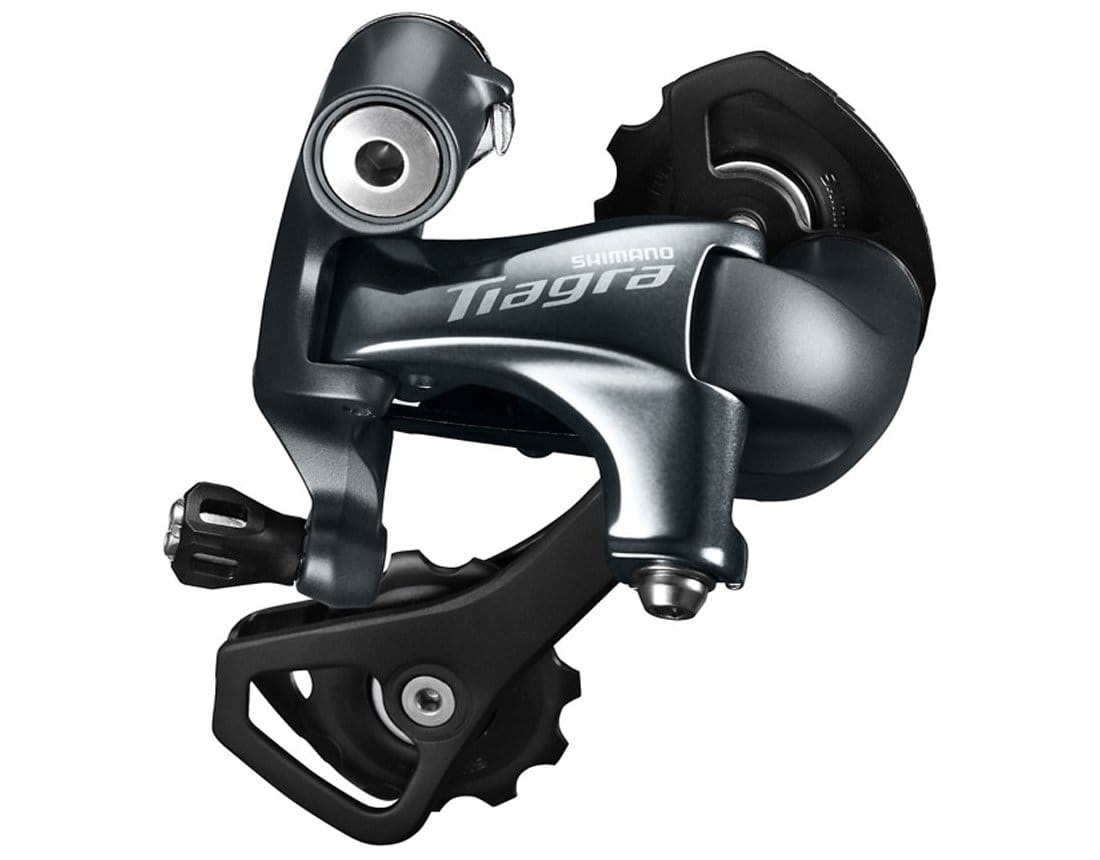

The SHIMANO Tiagra RD-4700 rear derailleur shifts with a consistently smooth, light action. Designed for 10-speed road drivetrains, it is offered in short and medium cage options. New 10-speed Tiagra provides serious entry-level riding performance with cascaded technology from top-tier lines.
Features
- Offering pro-level features, the 10-speed compatible Tiagra rear derailleur gives high performance at a low price
- Wide link design increases rigidity and service life
- Advanced light action for low-friction shifting up or down the block
- Alloy body's and outer link leads to lower weight without compromising strength and durability
- 11-tooth pulleys for reduced pulley wear and chain noise
- Two fluorine-coated link pin bushings for low-friction performance
- 32 tooth max with triple, 34 tooth max with double chainset
- Compatible with 4700 10-speed road drive systems only
Specification
-
Use: Road/Fitness
-
Group: Tiagra
-
Model: RD-4700 GS
-
Cage: Medium (GS)
-
Gear: 10-speed
-
Mount type: Direct Mount
-
Compatible chain: HG 10-speed
-
Total capacity: 41T
-
Max. front difference: 16T (2x10) / 20T (3x10)
-
Max. teeth large sprocket: GS 34T (2x10) / 32T (3x10)
-
Min. teeth large sprocket: 28T (2x10) / 25T (3x10)
-
Max. teeth small sprocket: 12T
-
Min. teeth small sprocket: 11T
Material
Contents
- 1 x Shimano Tiagra RD-4700 10-speed Rear Derailleur
