Product Details
Product Details

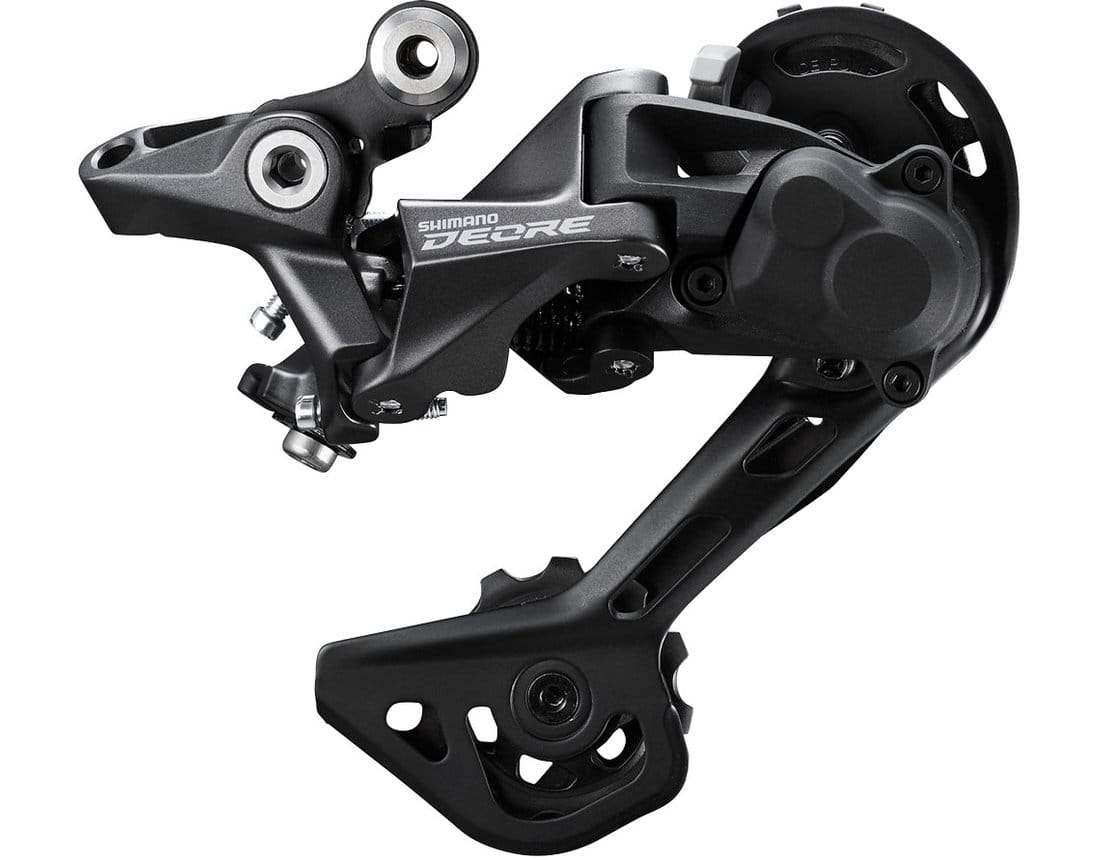

The Shimano DEORE RD-M5120 rear derailleur for 1x10-speed 11-46 cassette and 2x10/11-speed 11-42 cassette features an elegant yet aggressive angled design and an attractive anodised aluminium surface.
Features
- Shadow RD+ For optimal chain retention
-
RD-M5120-SGS
- 42T max cog size with 2x10-speed and 2x11-speed 11-42-teeth cassette
- 46T max cog size with 1x10-speed 11-46-teeth cassette
Specification
- Use: MTB
- Group: SLX M5100
- Model: RD-M5120
- Mount: Direct Mount
- Technology: Shadow RD+
- Gradations: SGS-Type 1x10-speed (11-46) / 2x10-speed (11-42) / 2x11-speed (11-42)
- Compatible chain: HG-X 10-speed / 11-speed
- Max. teeth large sprocket: 46T (1x10-speed)
- Min. teeth large sprocket: 42T (2x10/11-speed)
- Max. teeth small sprocket: 11T
- Min. teeth small sprocket: 11T
- Max. Front Difference: 10T
- Total Capacity: 41T
Material
- Aluminium
- GFRP
- Stainless steel
- Steel
Pulley Cage
-
Type-SGS long
Contents
- 1 x Shimano DEORE 10/11-speed RD-M5120 Rear Derailleur
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
SHIMANO RD-M5120 DEORE 10/11-SPEED SGS REAR DERAILLEUR
- SKU: RDM5120SGS
- Product ID: 157433
- EPOS Code:
Product Description
Product Description
The Shimano DEORE RD-M5120 rear derailleur for 1x10-speed 11-46 cassette and 2x10/11-speed 11-42 cassette features an elegant yet aggressive angled design and an attractive anodised aluminium surface.
Features
- Shadow RD+ For optimal chain retention
-
RD-M5120-SGS
- 42T max cog size with 2x10-speed and 2x11-speed 11-42-teeth cassette
- 46T max cog size with 1x10-speed 11-46-teeth cassette
Specification
- Use: MTB
- Group: SLX M5100
- Model: RD-M5120
- Mount: Direct Mount
- Technology: Shadow RD+
- Gradations: SGS-Type 1x10-speed (11-46) / 2x10-speed (11-42) / 2x11-speed (11-42)
- Compatible chain: HG-X 10-speed / 11-speed
- Max. teeth large sprocket: 46T (1x10-speed)
- Min. teeth large sprocket: 42T (2x10/11-speed)
- Max. teeth small sprocket: 11T
- Min. teeth small sprocket: 11T
- Max. Front Difference: 10T
- Total Capacity: 41T
Material
- Aluminium
- GFRP
- Stainless steel
- Steel
Pulley Cage
-
Type-SGS long
Contents
- 1 x Shimano DEORE 10/11-speed RD-M5120 Rear Derailleur
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
