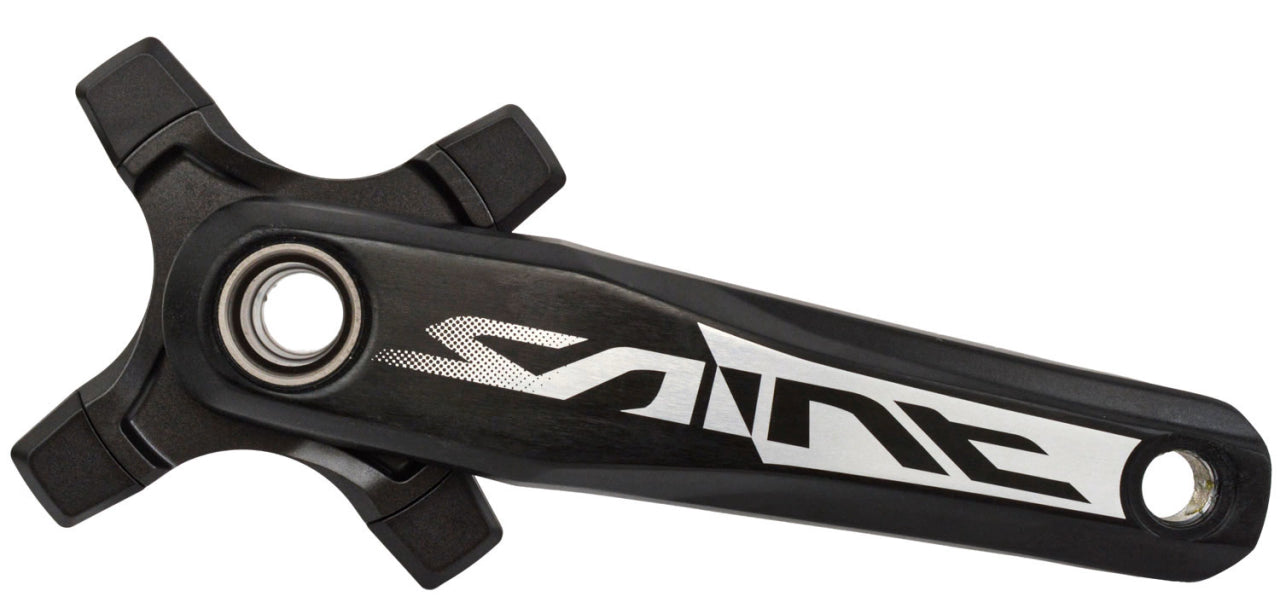

SHIMANO SAINT FC-M820 10-SPEED CRANK WITHOUT CHAINRING

With its unrivalled durability, stability, and ergonomics, Shimano SAINT FC-M820 1 x 10-speed crank puts you fully in charge of your bike.

Built for the eager downhill racer, SAINT lets you accelerate and decelerate at World Cup levels.

Features

• Strongest HOLLOWTECH II
• Strongest steel axle in Shimano line-up
• Steel pedal insert
• Lighter 4 arm
• Bottom Bracket width 68 / 73mm
• Q-Factor 178mm
• O.L.D 135mm and 142mm

Specification

• Use: MTB Downhill/Freeride
• Group: SAINT M820
• Model: FC-M820
• Gradation: Chainring is not included!
• Q-Factor: 178mm
• Threaded BB shell width: 68 / 73mm
• Gear front: 1-speed
• Gear rear: 10-speed
• Construction: Hollowtech II
• Compatible Chain: HG-X 10-speed
• Crank arms: 4 arm
• P.L.D: 104mm
• O.L.D: 135mm / 142mm
• Chain line: 50.4mm

Crank Arm Length

• 165mm
• 170mm
• 175mm

Material

• Crank arm: Aluminium Anodized
• Crank axle: Steel Plated

Colour

• Series colour

Weight

• Approx. 919g with 170 and 36 chainring

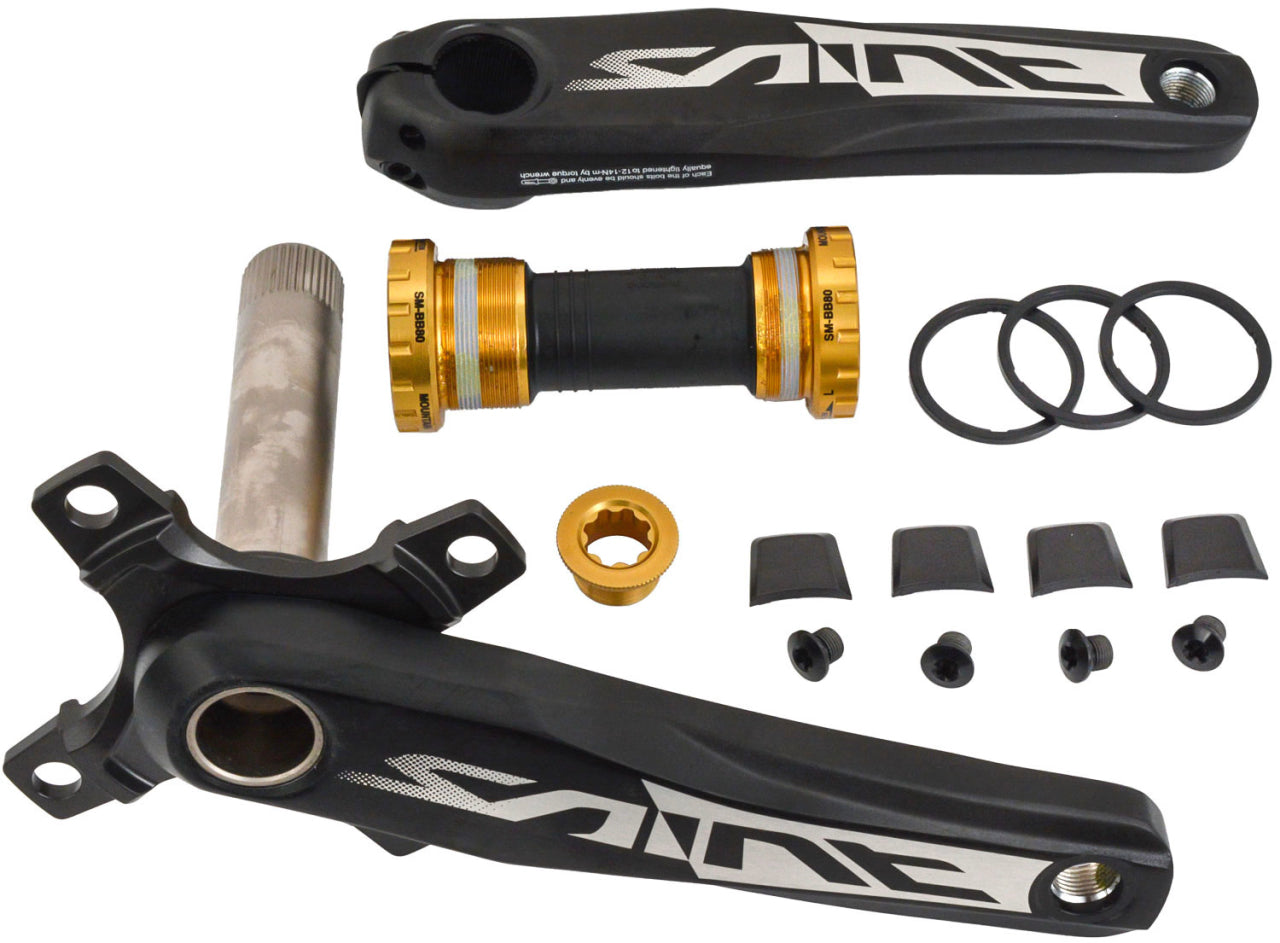

Contents

• 1 x Shimano SAINT FC-M820 10-Speed Crank without Chainring
• 4 x Shimano Fixing Bolt (M8 x 7) + Nuts
• 1 x Shimano SM-BB80 BSA 68/73mm Bottom Bracket
