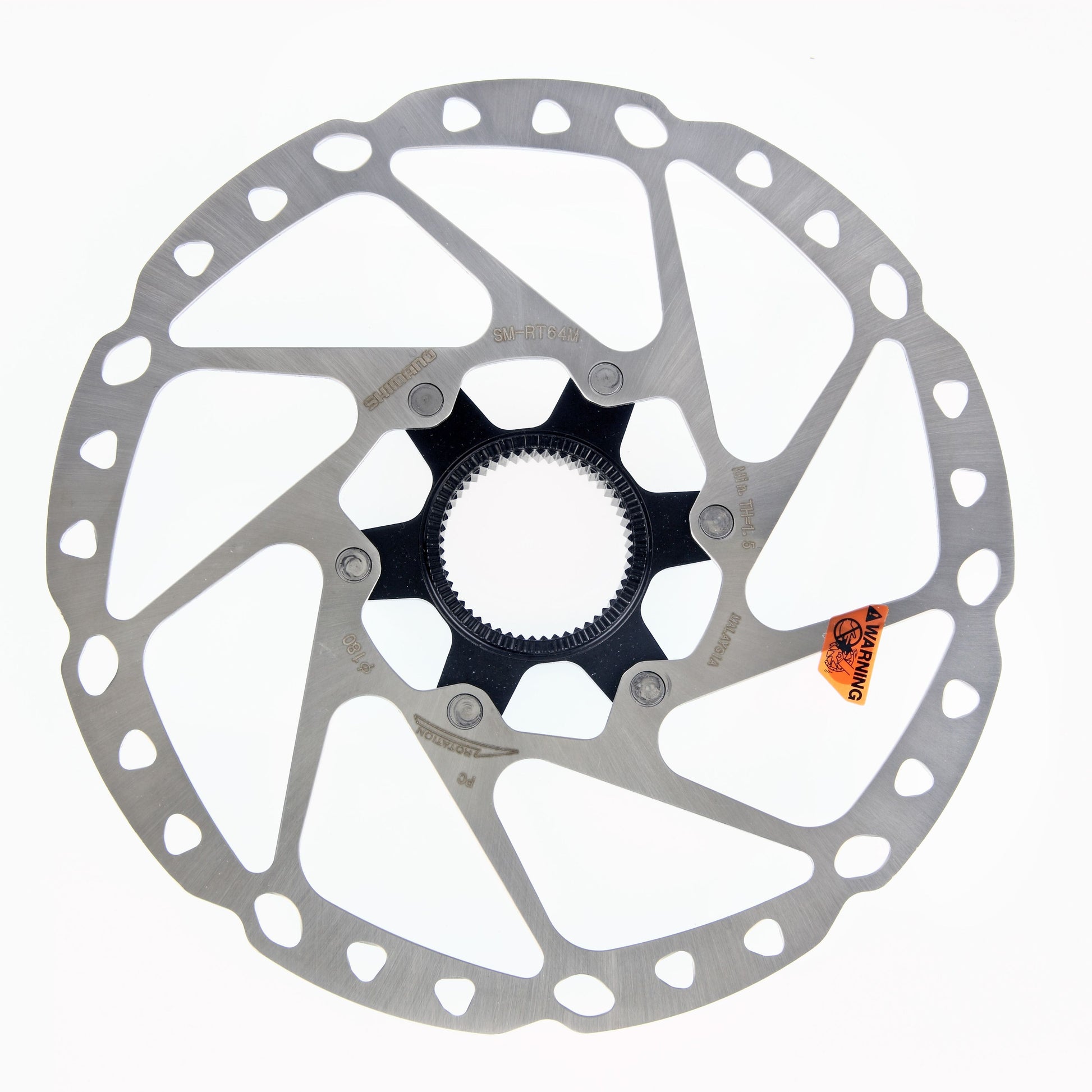

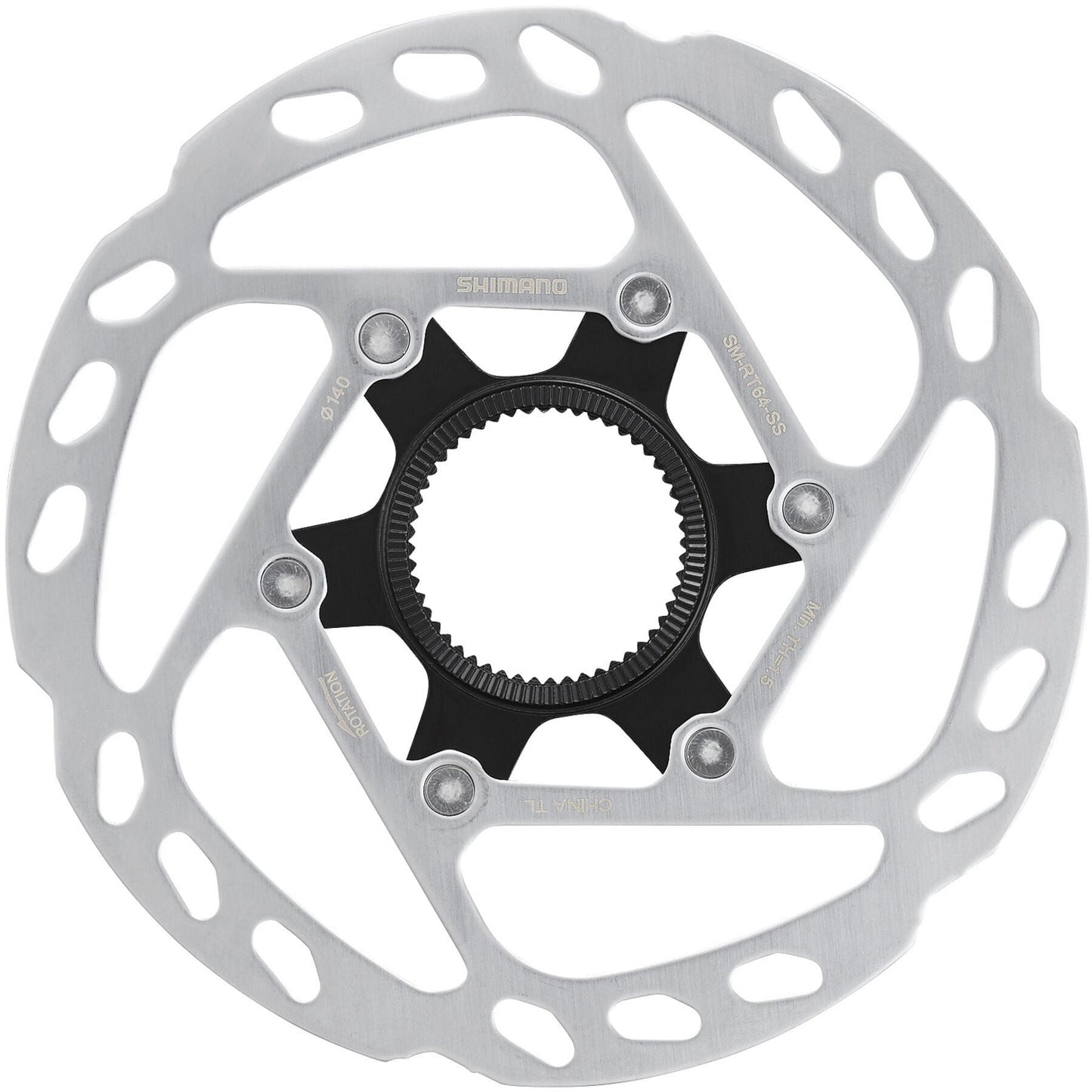

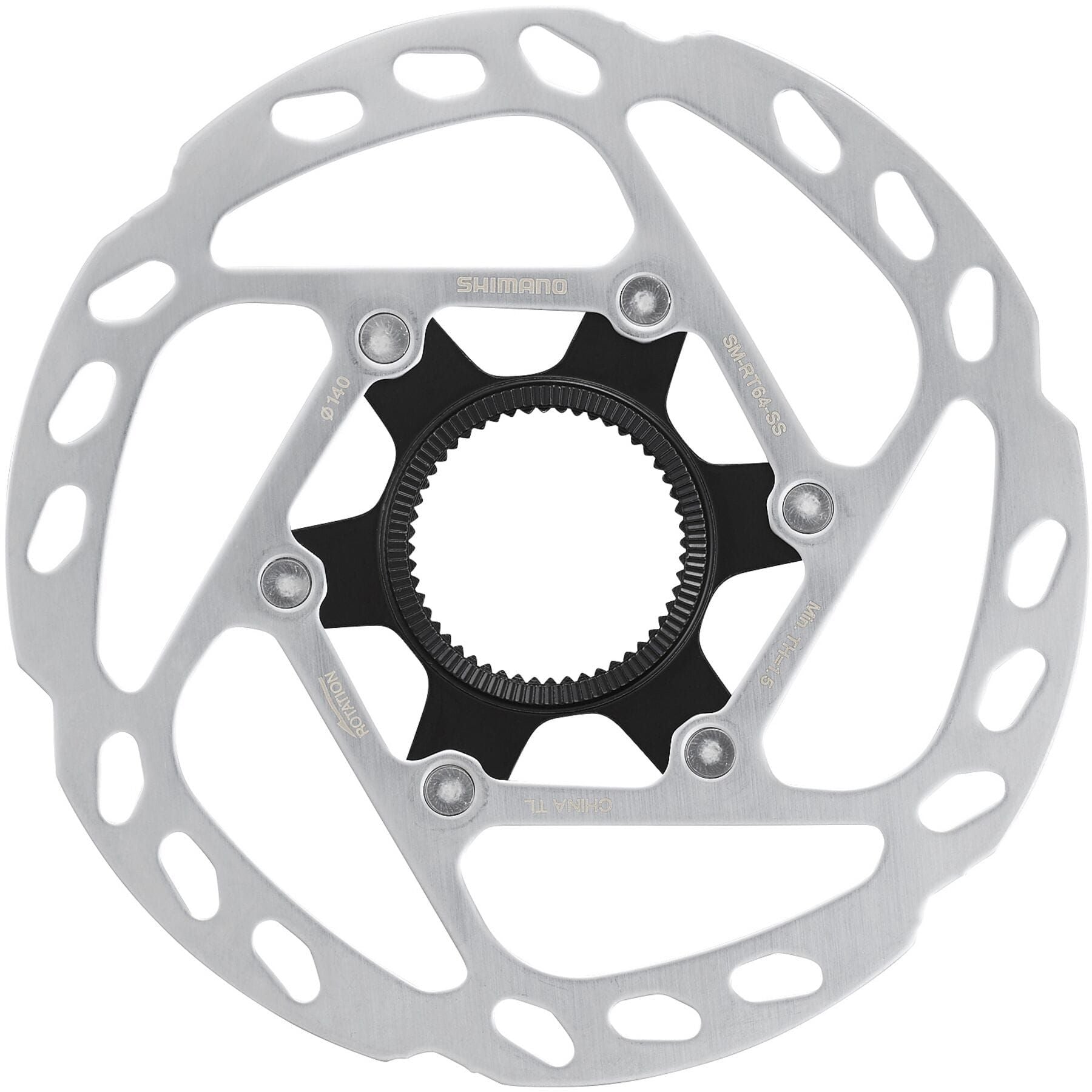

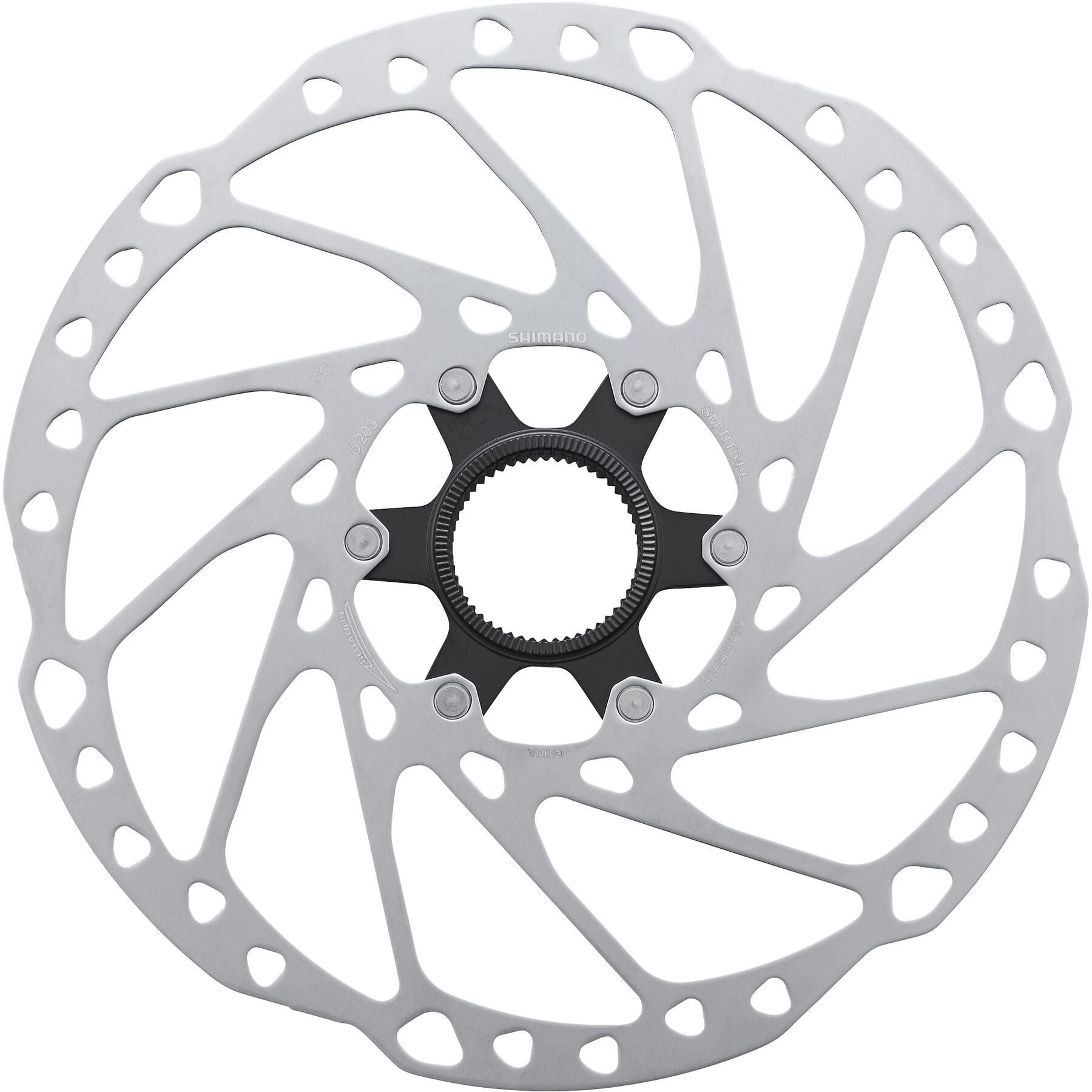

Shimano Deore SM-RT64 180mm disc rotor with Centre Lock mounting and integrated magnet for speed sensor compatibility.
Delivers reliable braking across all conditions with quick, tool-free installation via the spine mount and lock ring system.
Features
- Lockring type with internal (Internal Serration) toothing
- Magnet-Lockring for EW-SS302
- For use with SHIMANO STEPS speed sensor EW-SS302
Specification
-
Use: E-Bike, MTB, Road, Gravel
-
Group: DEORE / SHIMANO STEPS
-
Model: SM-RT64
-
Disc: Centre-Lock
-
Pad compatibility: Metal / Resin (with BR-S700 and BR-S7000 Resin only!)
Size
- 160mm intern
- 180mm intern
- 203mm intern
Lockring type with internal tool holder!
Compatible Brake Caliper
- BR-M9100*
- BR-M9120
- BR-M9110-R**
- BR-M9000,
- BR-M9020
- BR-M8100
- BR-M8120
- BR-M8110-R*
- BR-M8000
- BR-M8020
- BR-M7100
- BR-M7120
- BR-M7110-R*
- R-M7000
- BR-M6100
- BR-M6120
- BR-M6000
- BR-MT520
- BR-MT420
- BR-M820
- BR-M640
- BR-S7000
- BR-S700
- BR-R9270**
- BR-R9170*
- BR-R8170*
- BR-R8070*
- BR-R7070*
- BR-4770*
- BR-RS805*
- BR-R785*
- BR-RS785*
- BR-RS505*
- BR-RS405*
- BR-RX810*
- BR-RX400*
- BR-CX77**
- BR-R517**
- BR-R317**
- BR-RS305**
- BR-U5000**
* not compatible with 203mm** only compatible with 160mm
Material
-
Rotor: Stainless steel
-
Lockring: Aluminium
Contents
- 1 x Shimano SM-RT64 Centre-Lock Disc Rotor incl. Magnet-Lockring
